Amazon Elasticache

Hands-On

Demo

In this demo, we will:

Create an Aurora Serverless v2 MySQL cluster with sample product data
Deploy ElastiCache Serverless for Valkey with IAM authentication
Configure VPC networking and security groups for secure communication
Create VPC endpoints for Lambda to access AWS services
Build and deploy a Lambda function implementing cache-aside pattern using the official Glide client
Test the complete system and observe performance improvements
Monitor cache metrics and validate the caching behavior
Clean up all resources

Agenda

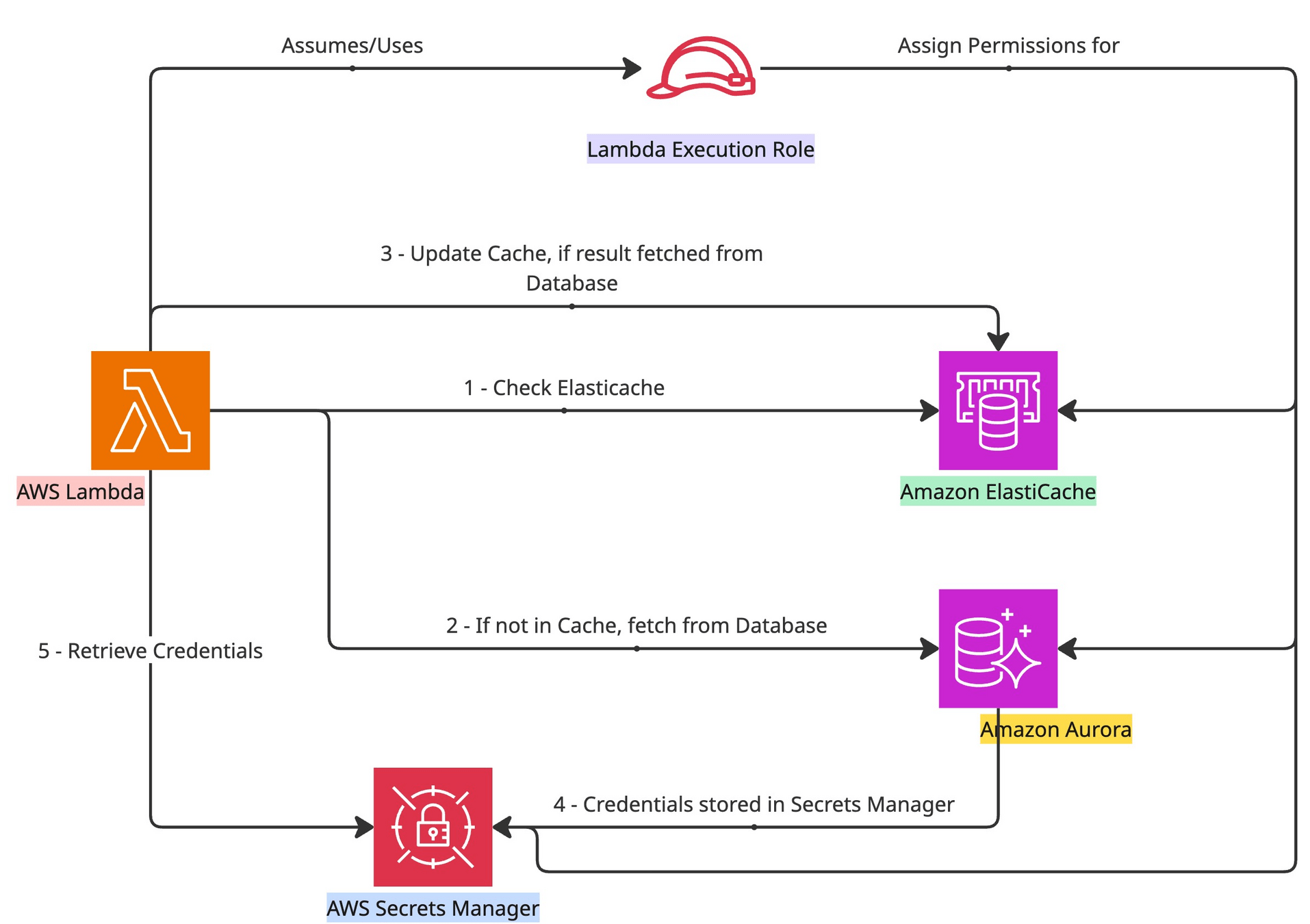

Visual Representation

Step 1: Create Aurora Serverless v2 Database

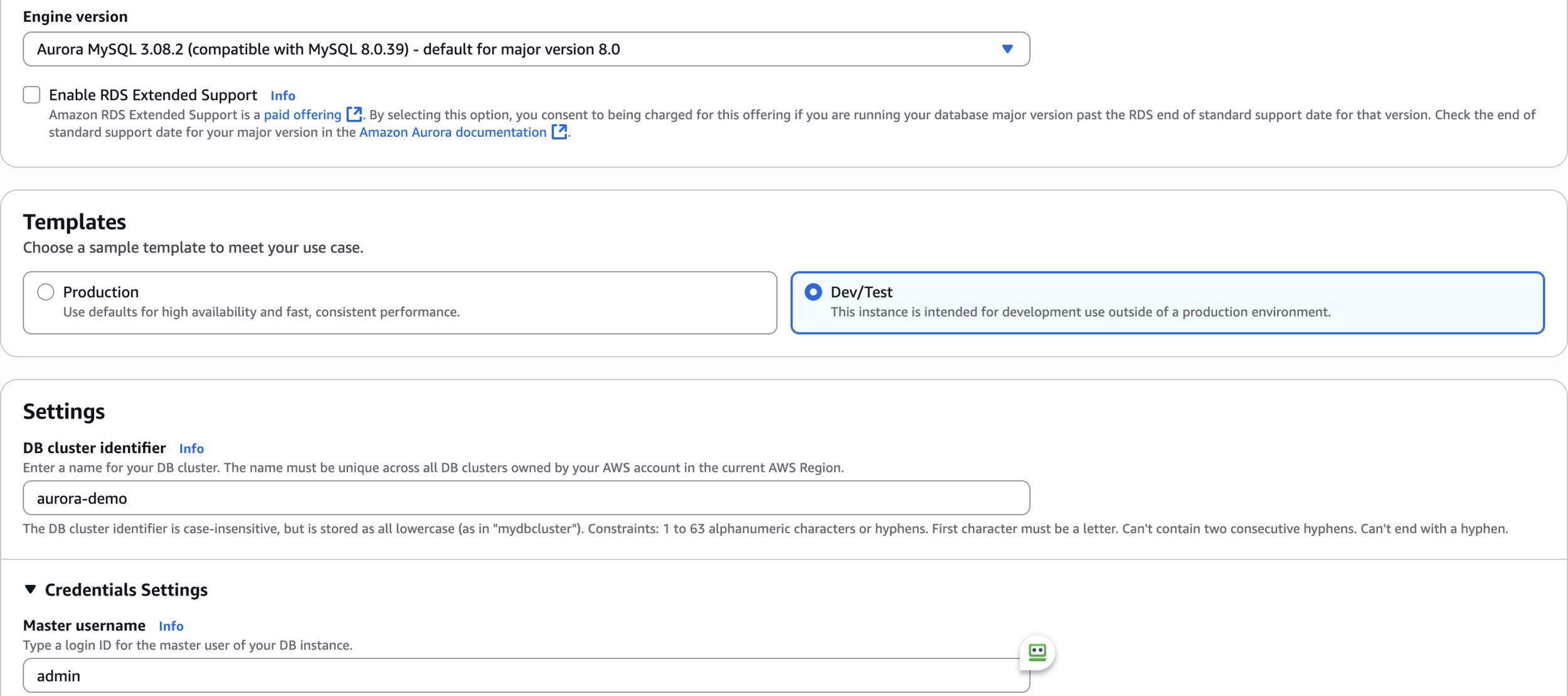

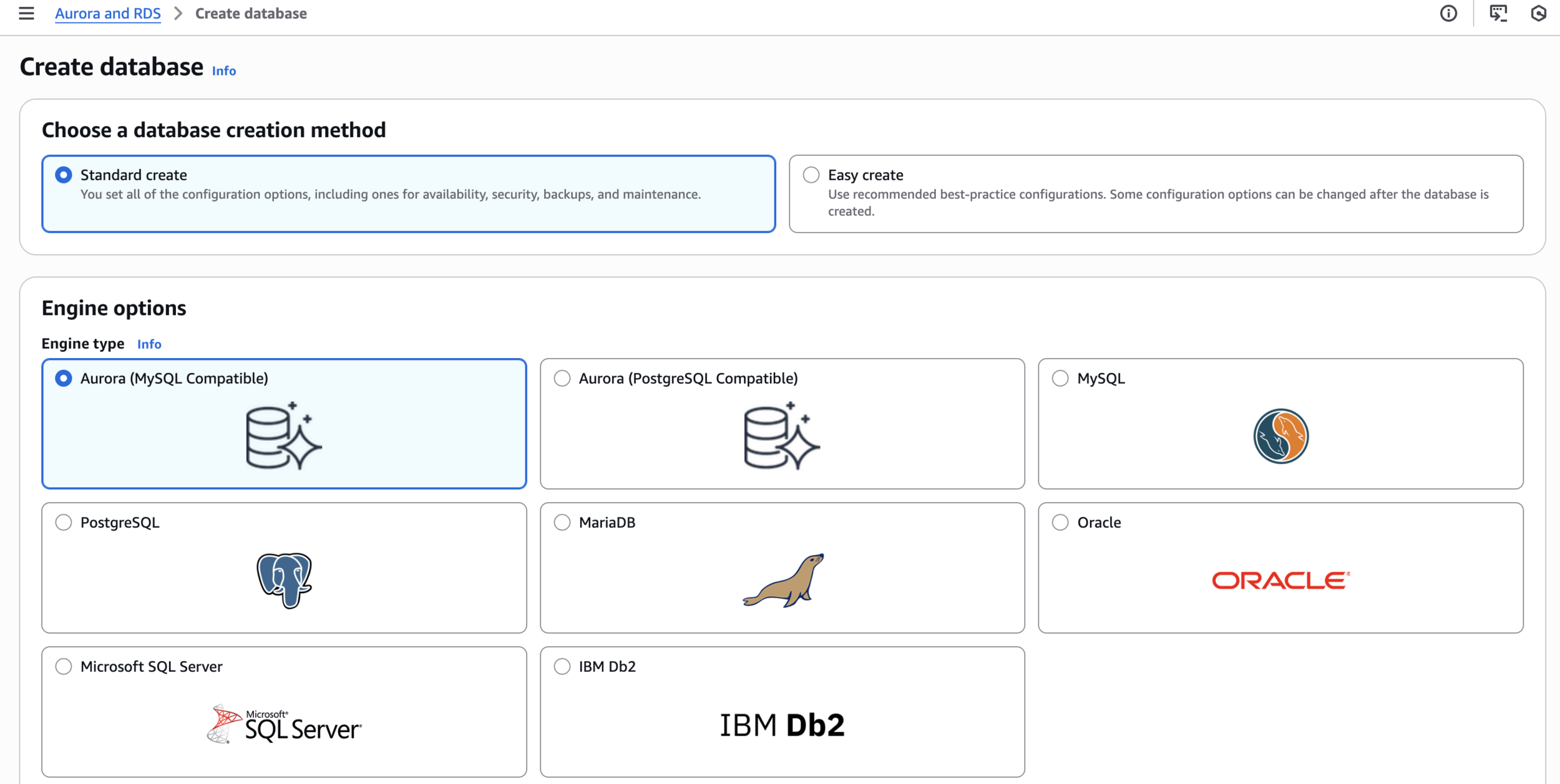

Create Aurora database

Engine version

aurora-demo

admin

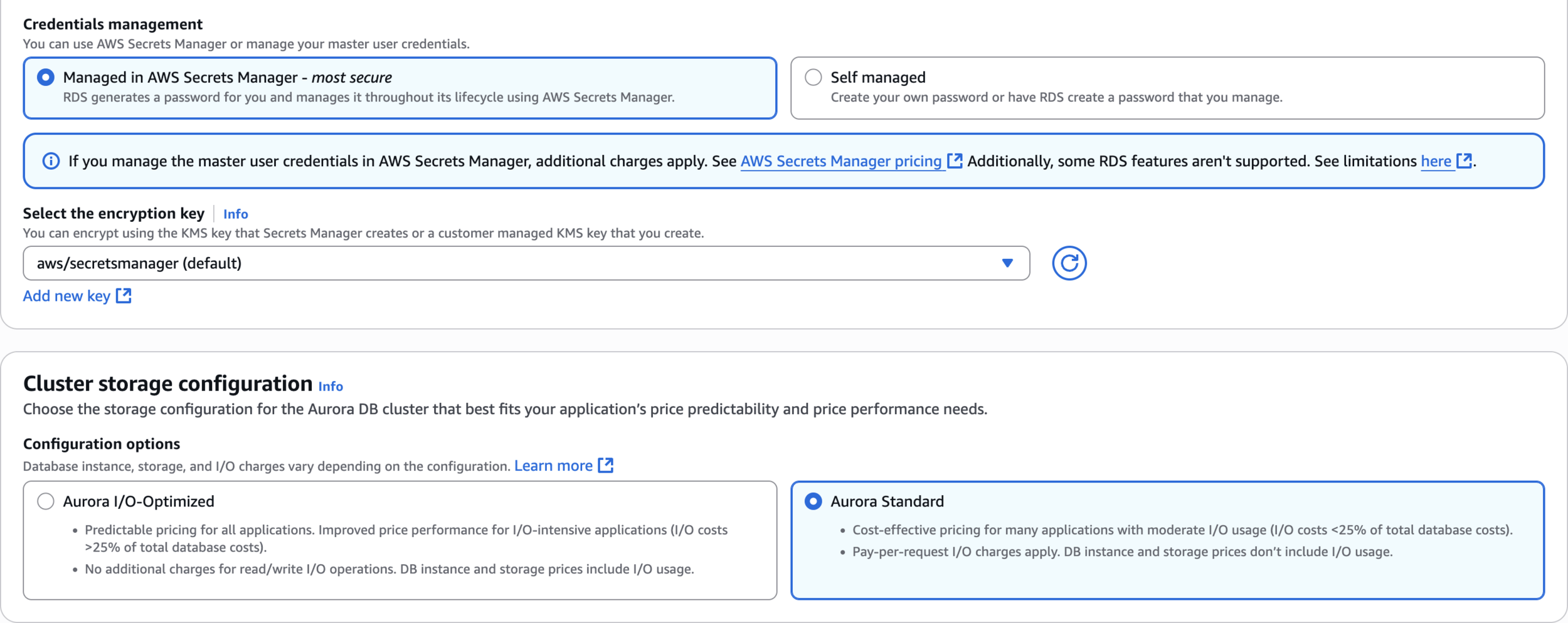

Credentials management

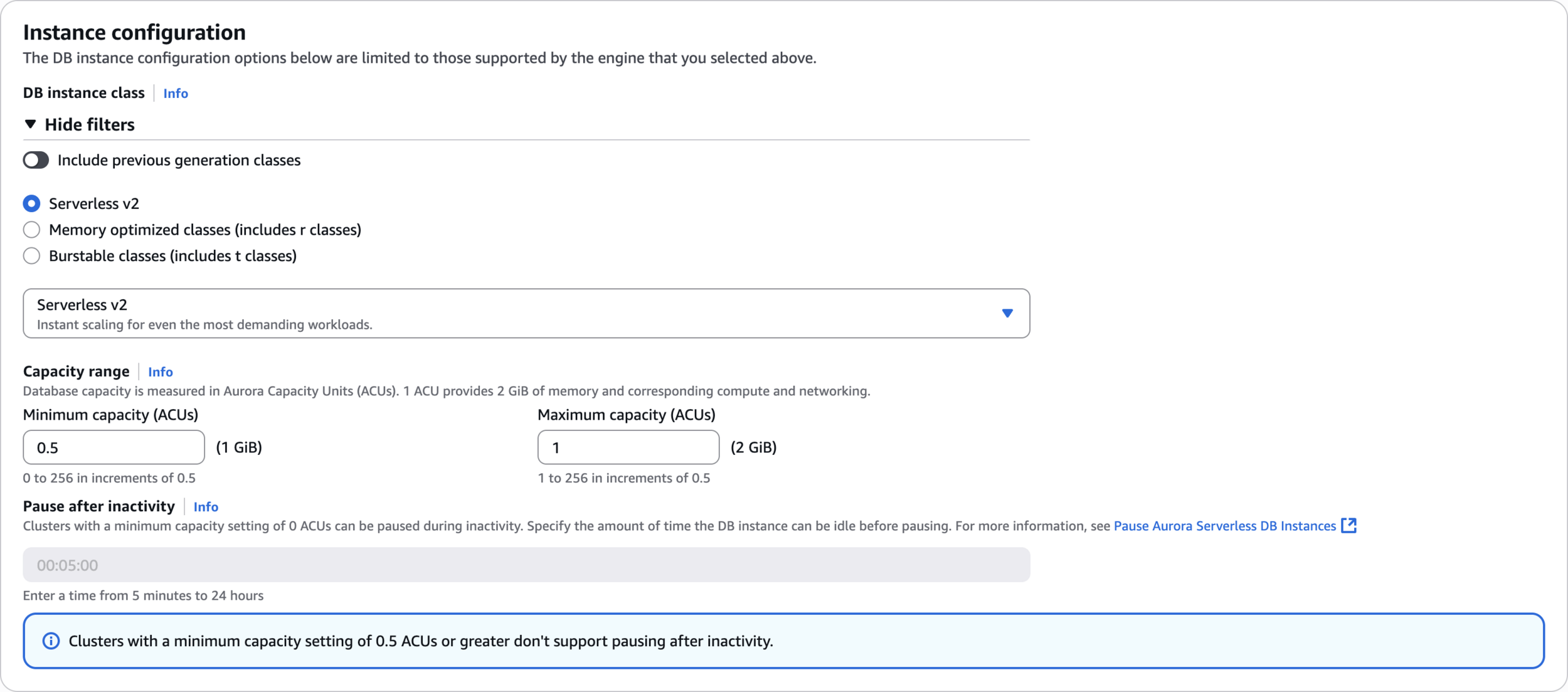

Instance configuration

0.5

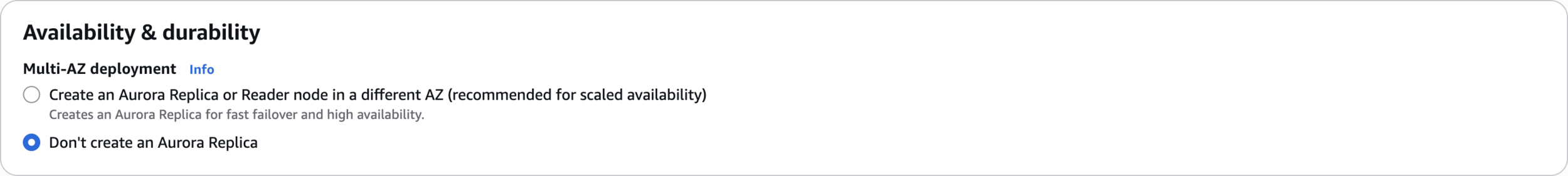

Availability & durability

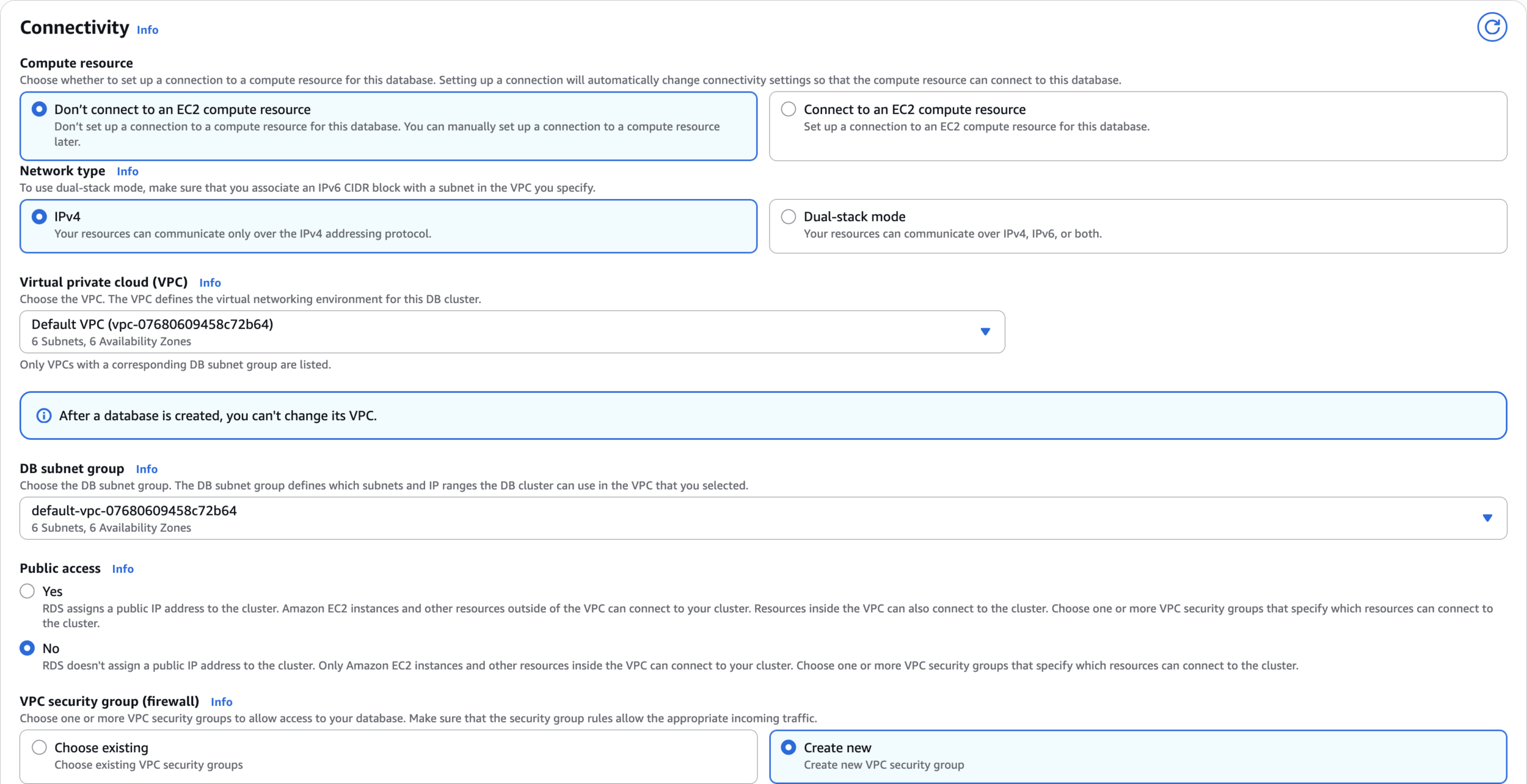

Connectivity

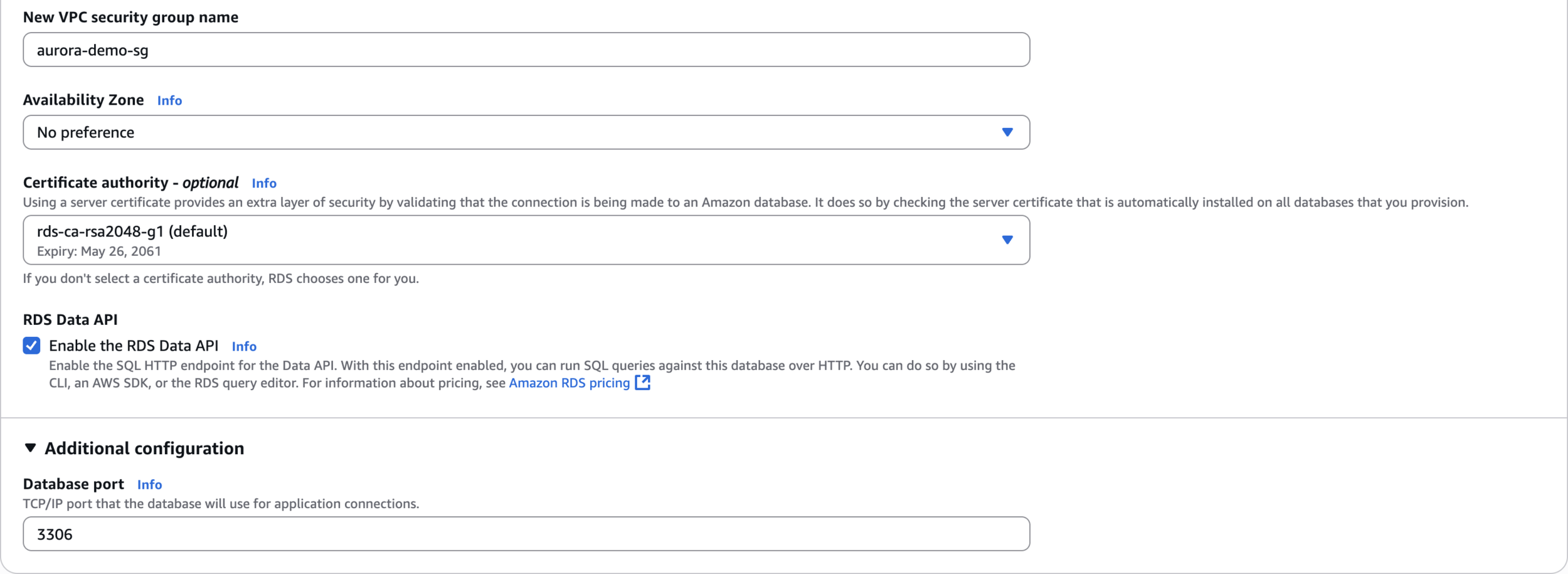

VPC security group name

aurora-demo-sg

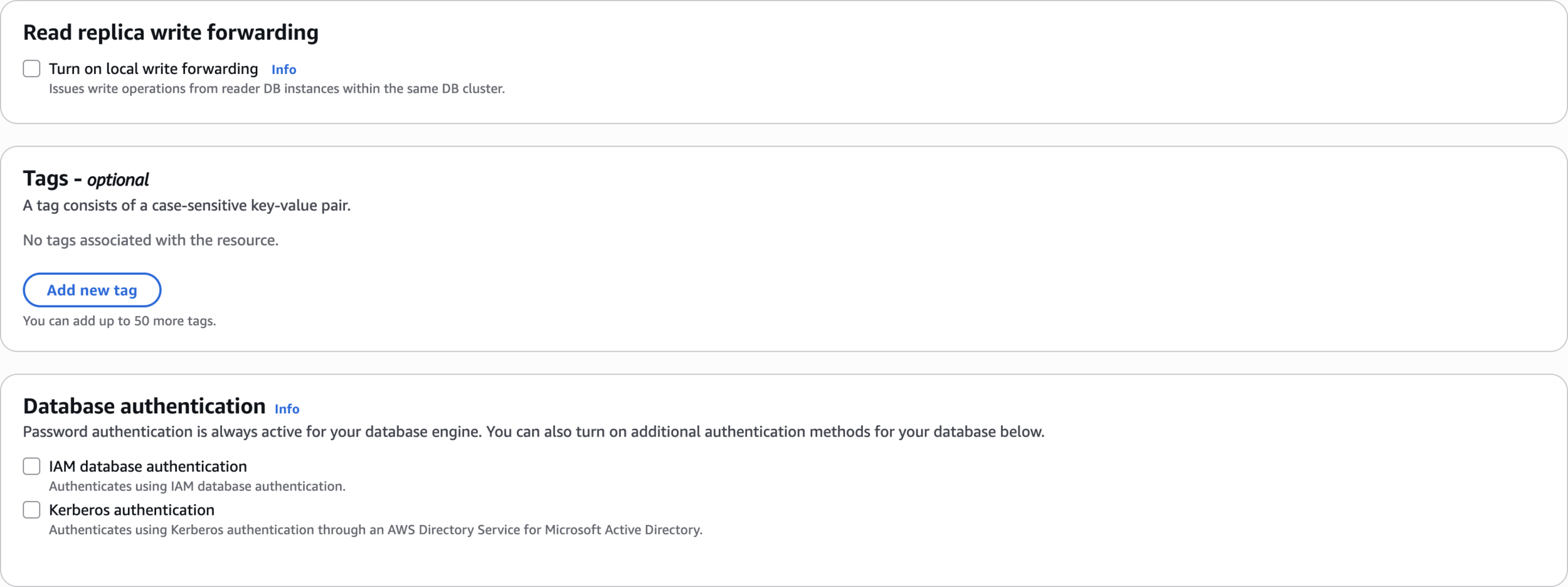

Read replica write forwarding

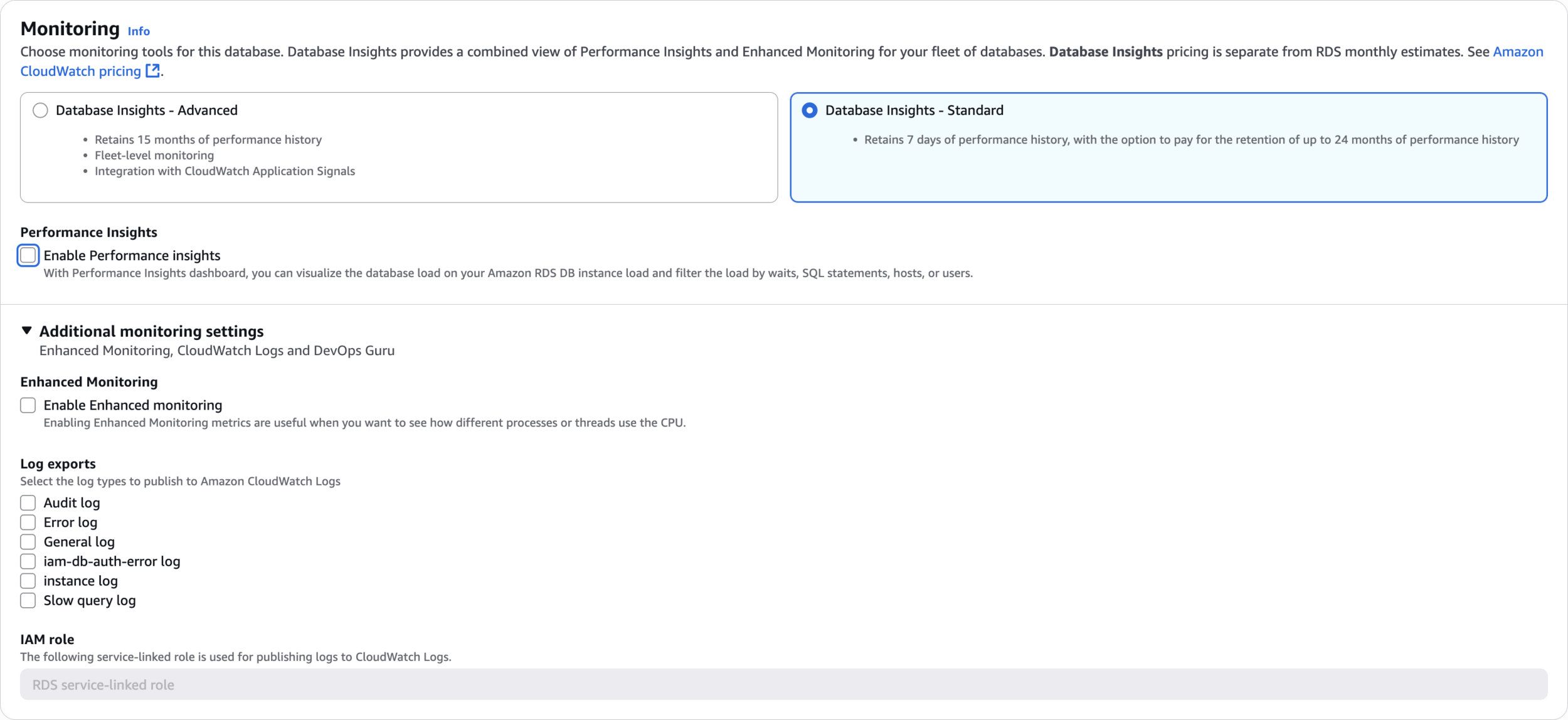

Monitoring

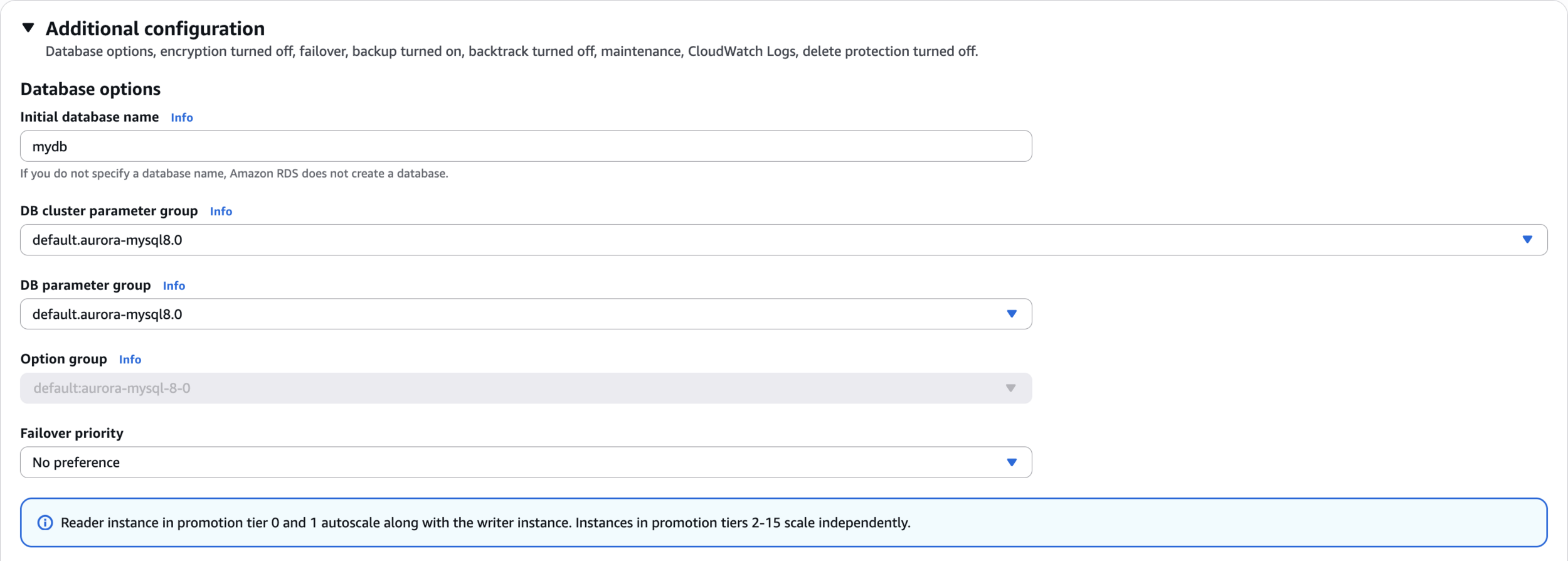

Additional configuration

mydb

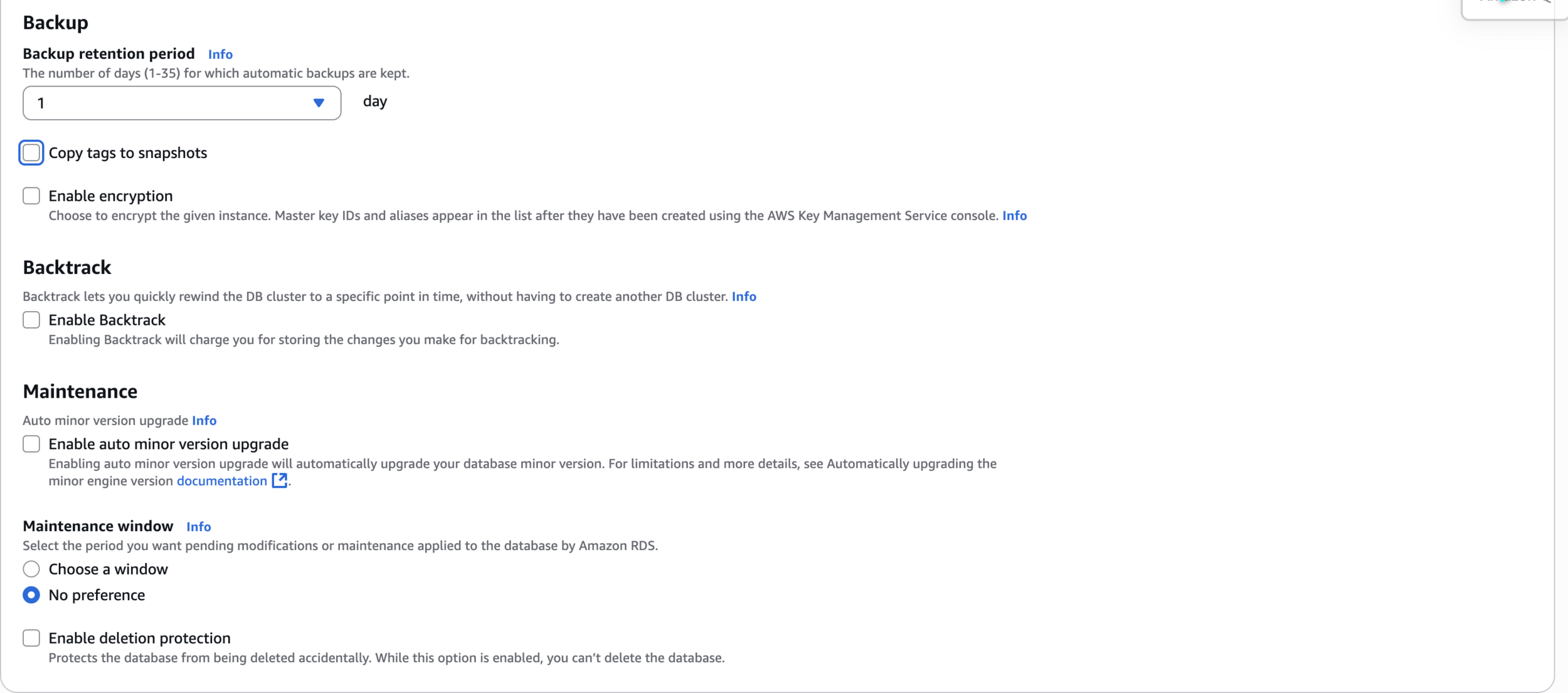

Backup

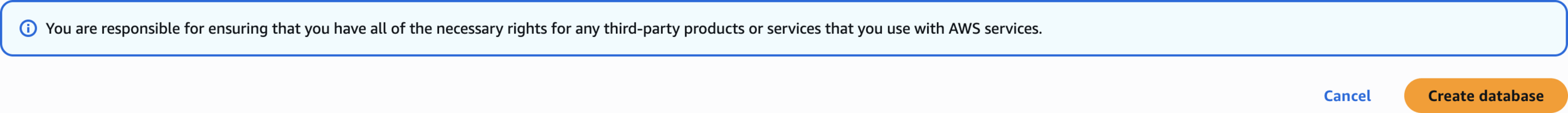

Create database

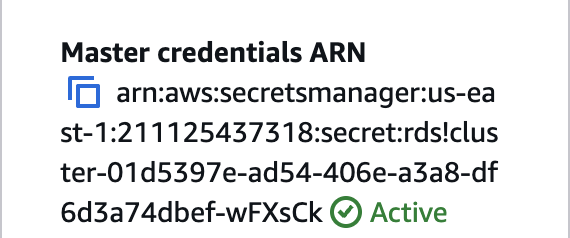

Secrets ARN

Step 2: Load Sample Data into Aurora

Load Sample Data into Aurora

AWS_PAGER=""
DB_ARN="

SECRET_ARN='

# Create Database if not exists
aws rds-data execute-statement \
  --resource-arn "$DB_ARN" \
  --secret-arn "$SECRET_ARN" \
  --sql "CREATE DATABASE IF NOT EXISTS mydb;" \
  --database "mysql"

# Create the products table
aws rds-data execute-statement \
  --resource-arn "$DB_ARN" \
  --secret-arn "$SECRET_ARN" \
  --sql "CREATE TABLE products(id INT PRIMARY KEY, name VARCHAR(50), price DECIMAL(6,2));" \
  --database "mydb"

# Insert sample data
for i in {1..20}; do
  aws rds-data execute-statement \
    --resource-arn "$DB_ARN" \
    --secret-arn "$SECRET_ARN" \
    --sql "INSERT INTO products VALUES($i, CONCAT('Widget-', $i), ROUND(RAND()*100,2));" \
    --database "mydb"
done

# Verify data creation
aws rds-data execute-statement \
  --resource-arn "$DB_ARN" \
  --secret-arn "$SECRET_ARN" \
  --sql "SELECT COUNT(*) as product_count FROM products;" \
  --database "mydb"

Load Sample Data into Aurora

Step 3: Create ElastiCache Serverless for Valkey

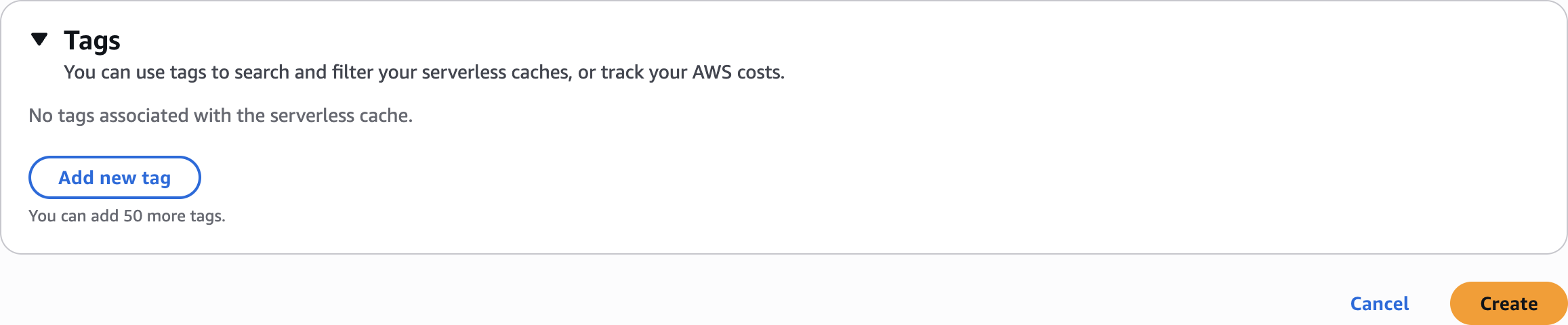

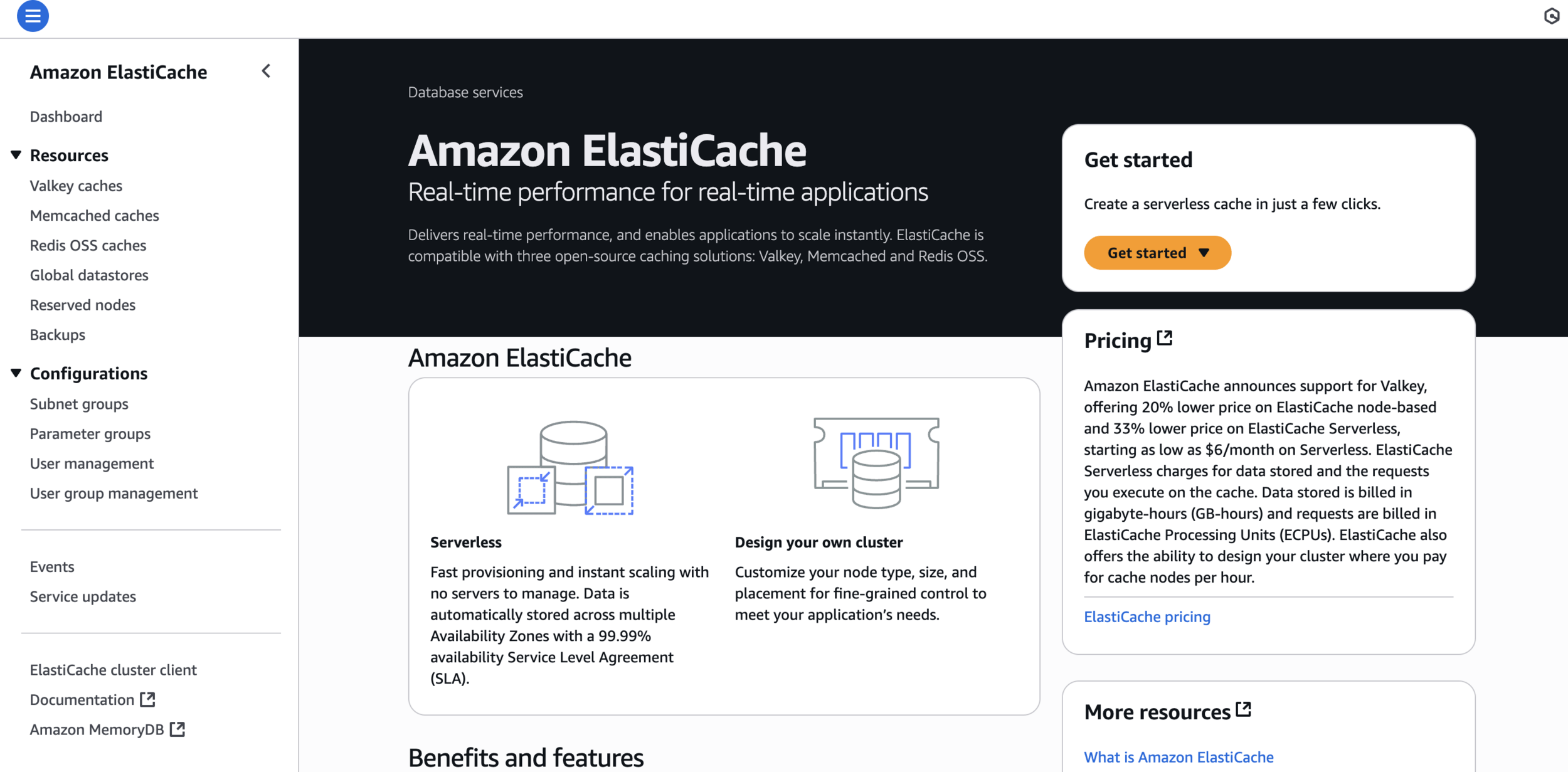

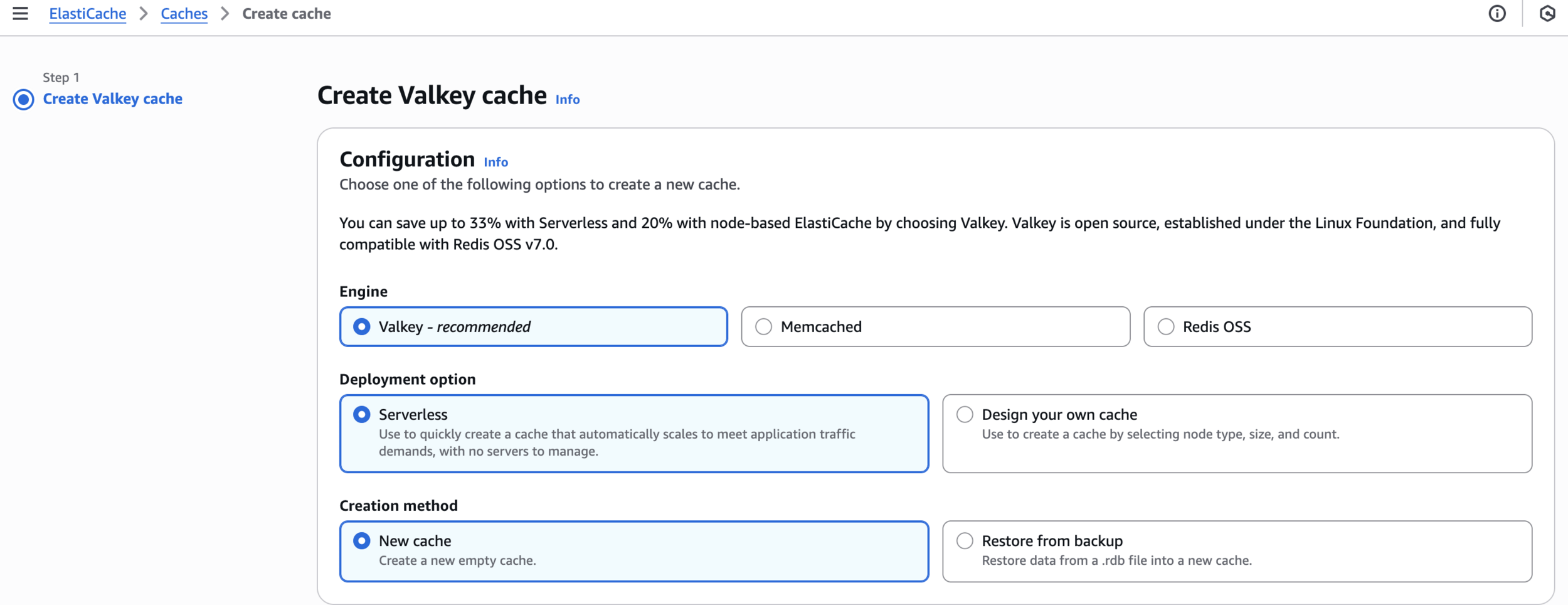

Create Valkey cache

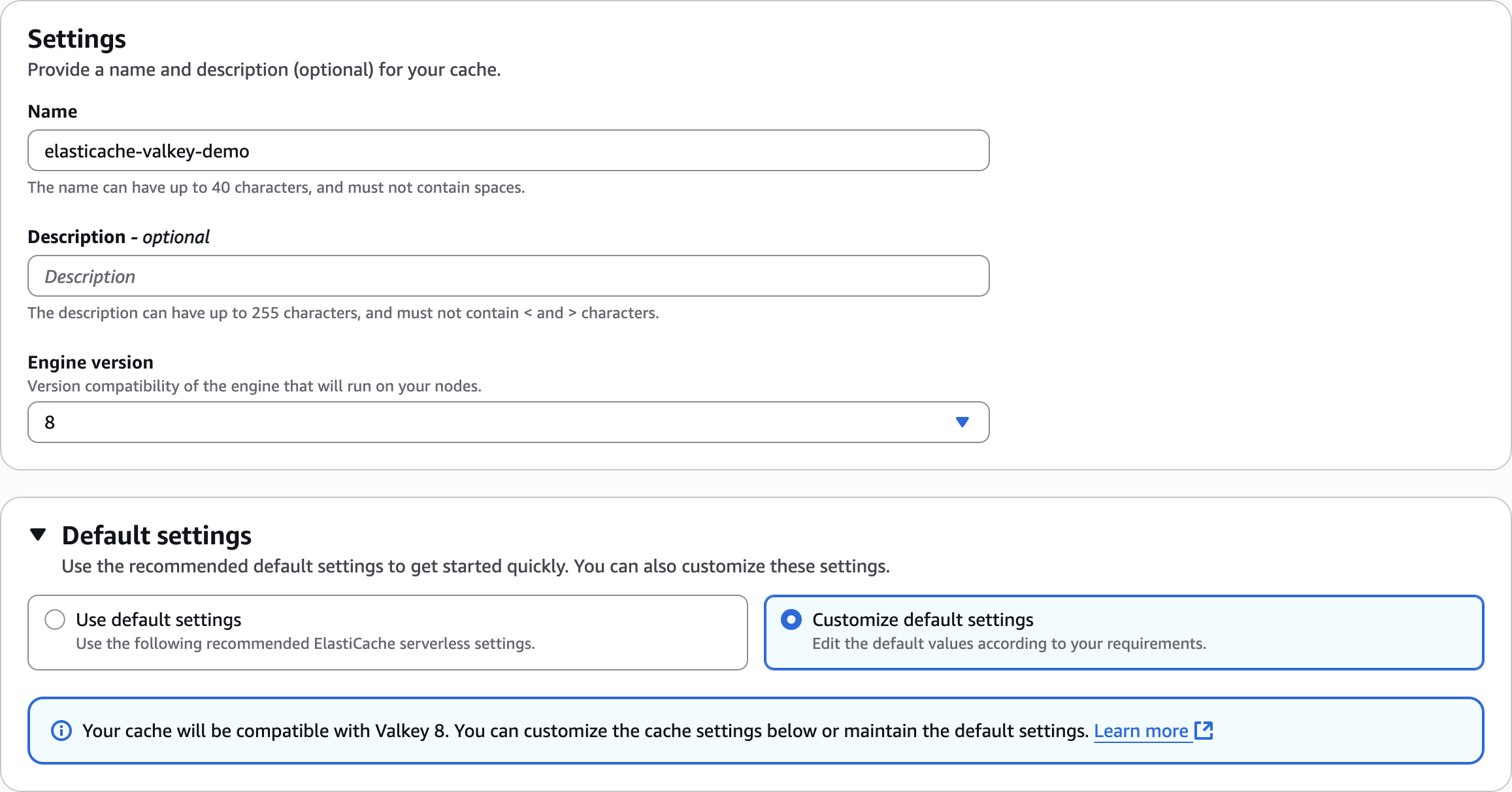

Settings

elasticache-valkey-demo

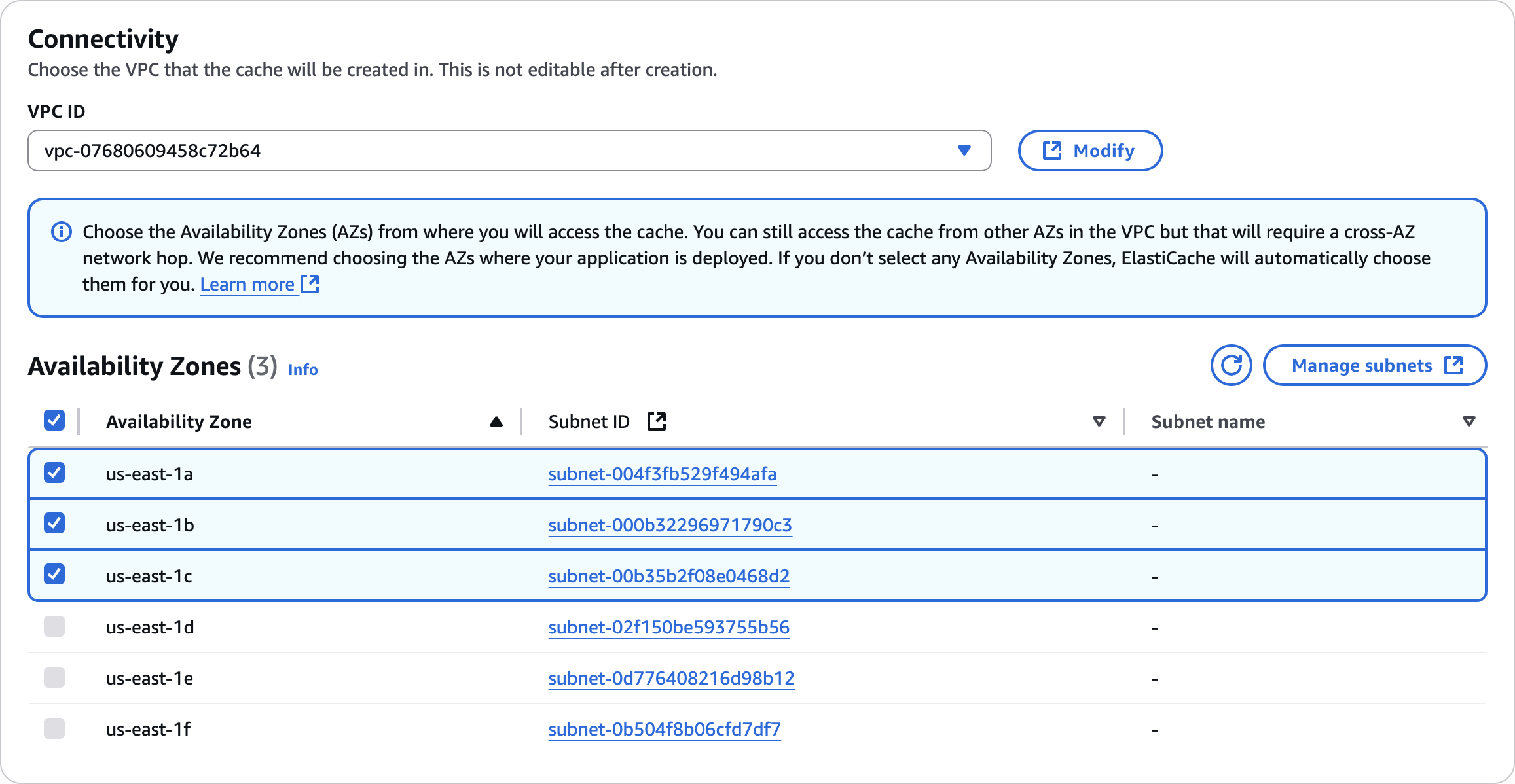

Connectivity

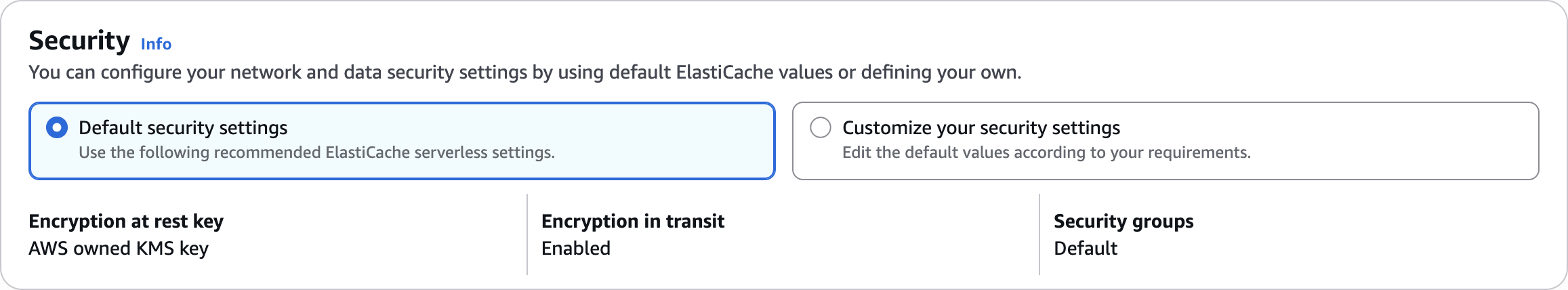

Security

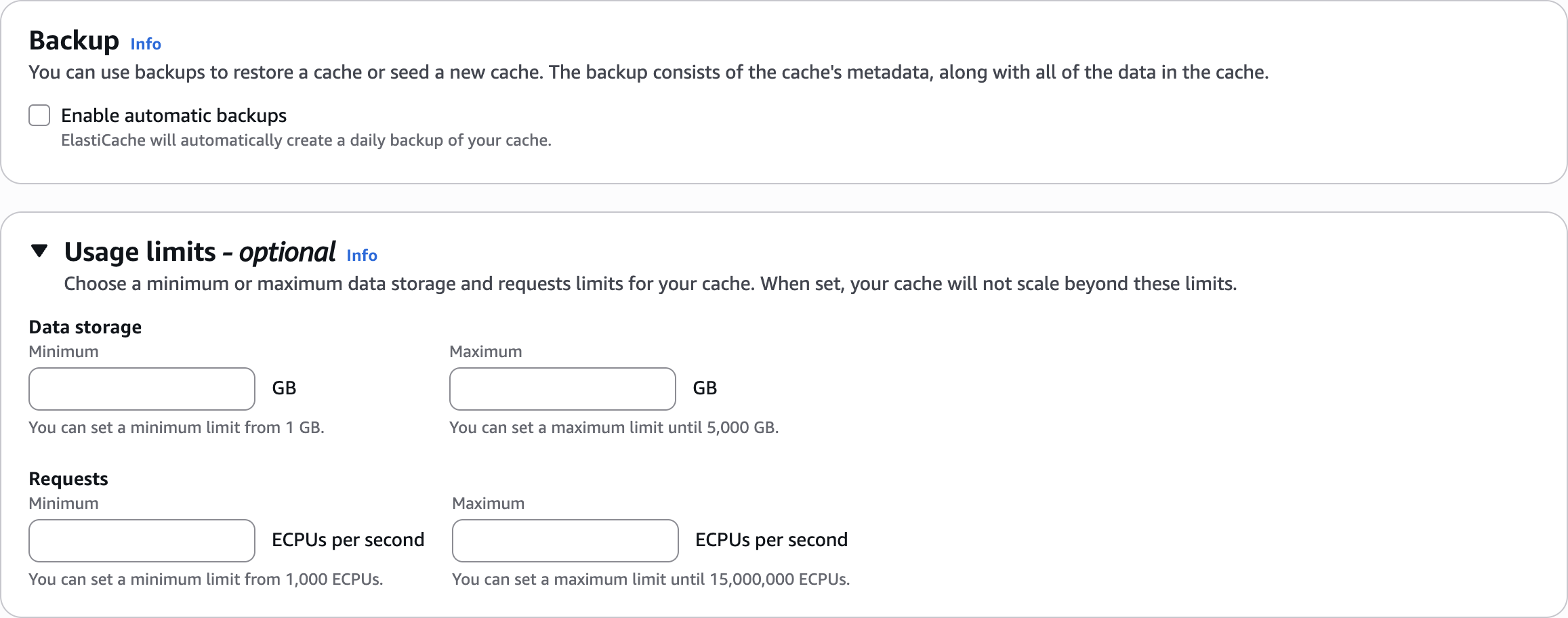

Backup

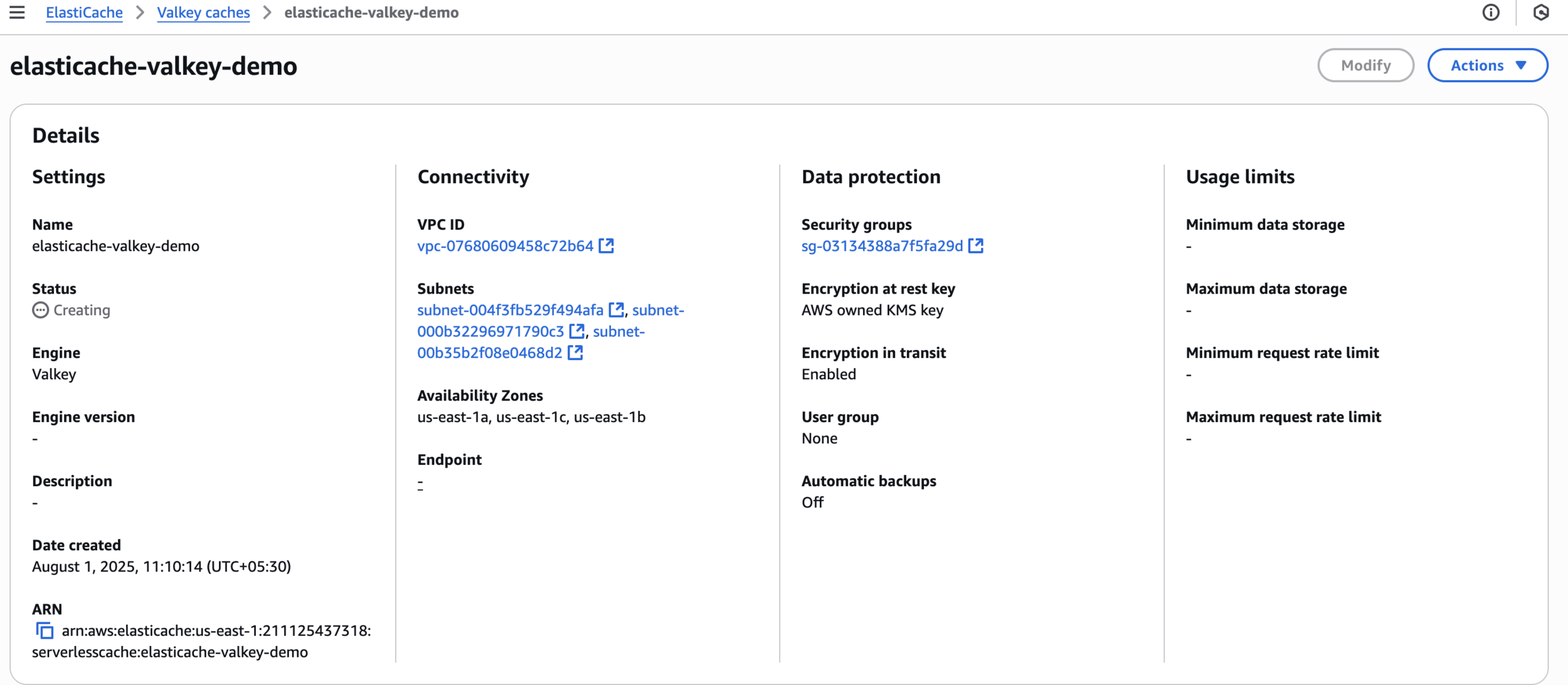

elasticache-valkey-demo

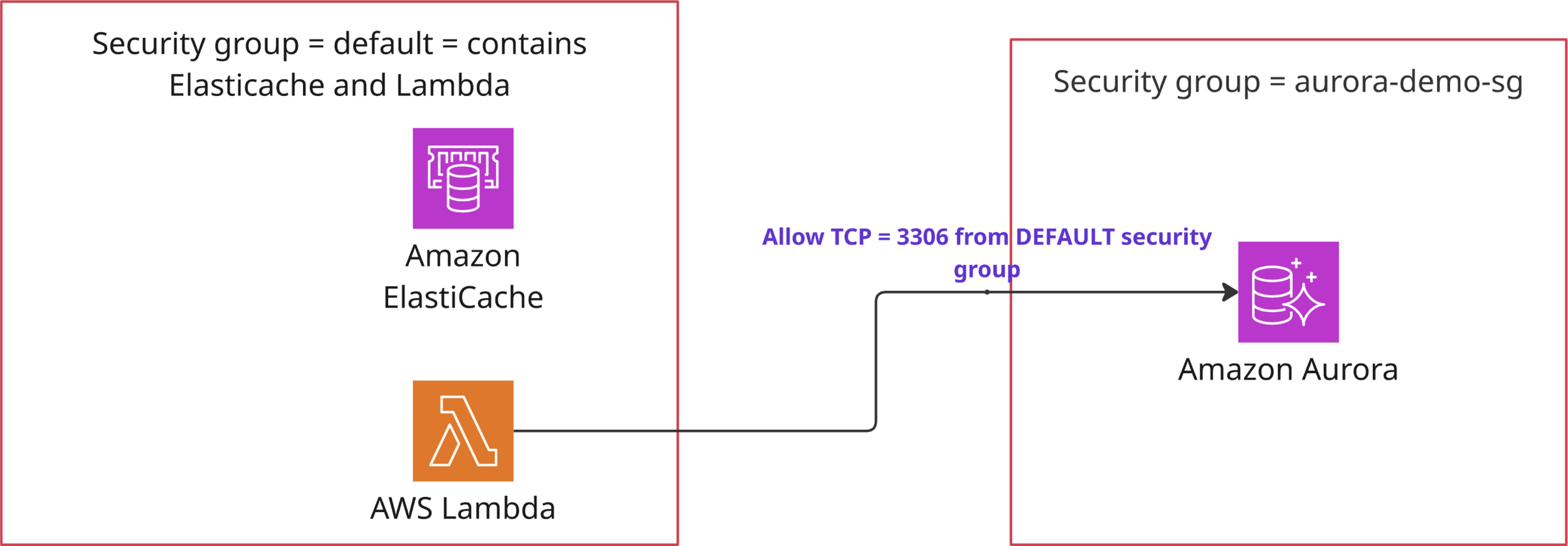

Step 4: Configure VPC Security Groups

Open ports in 2 Security Groups

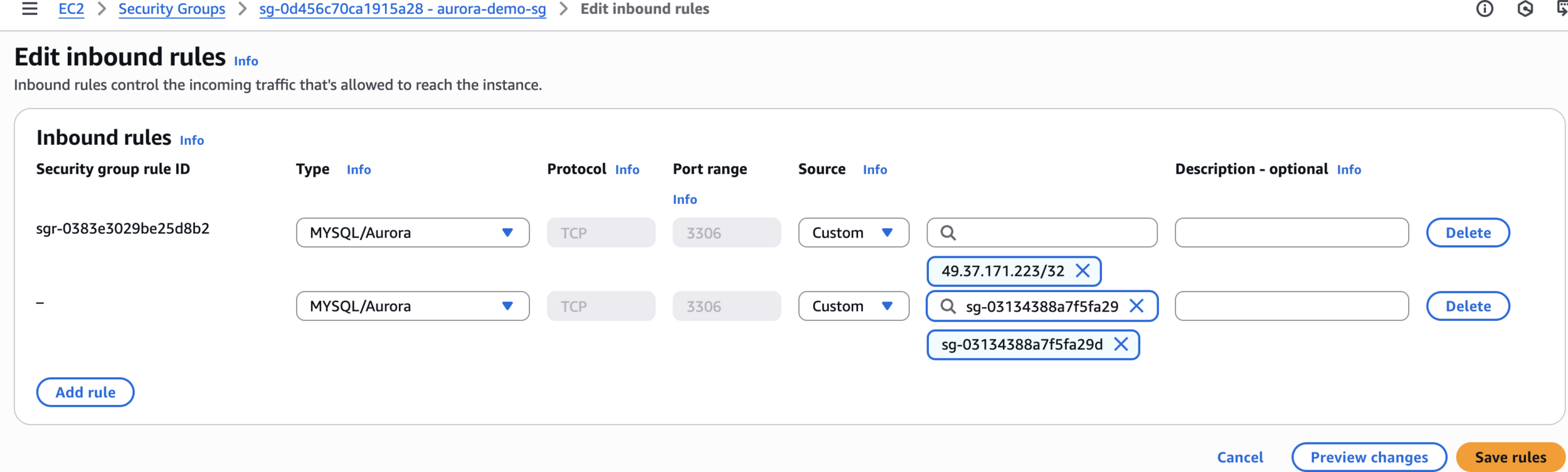

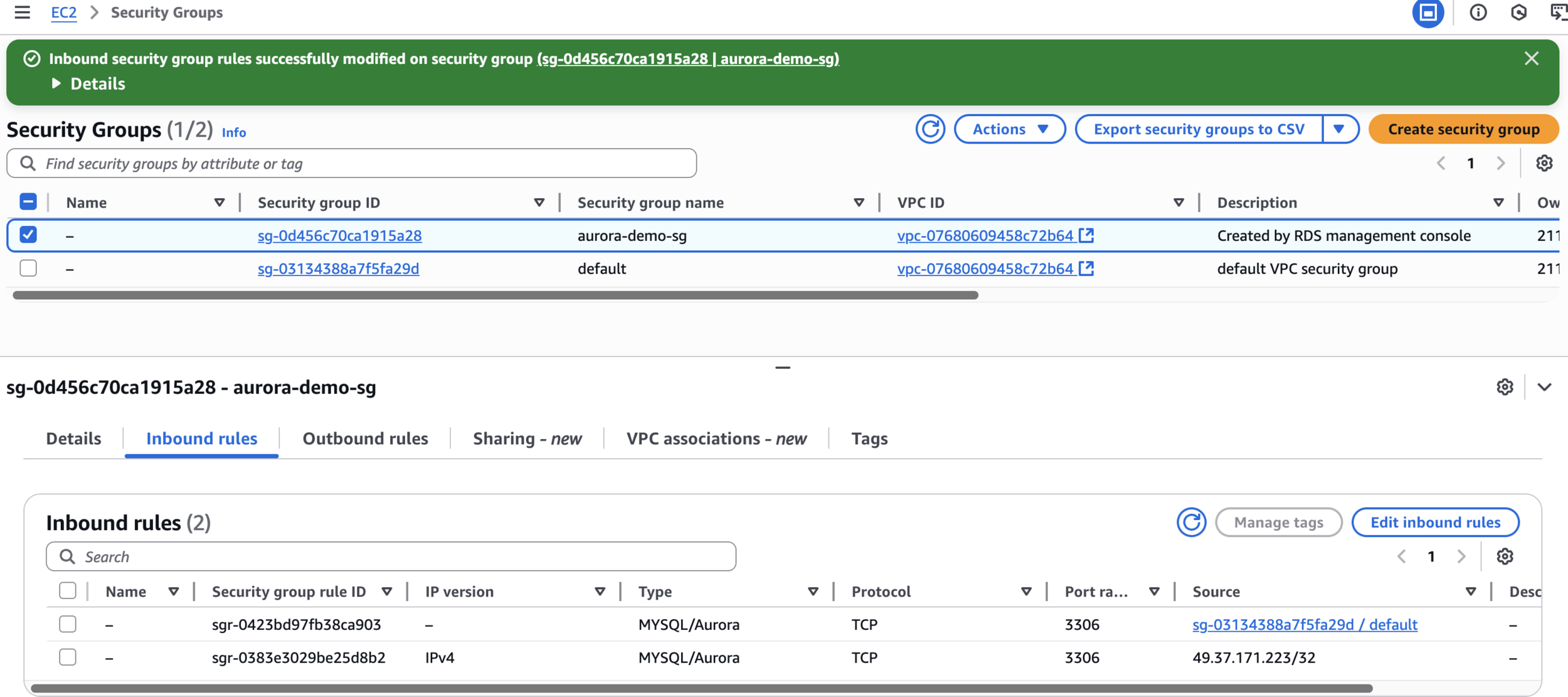

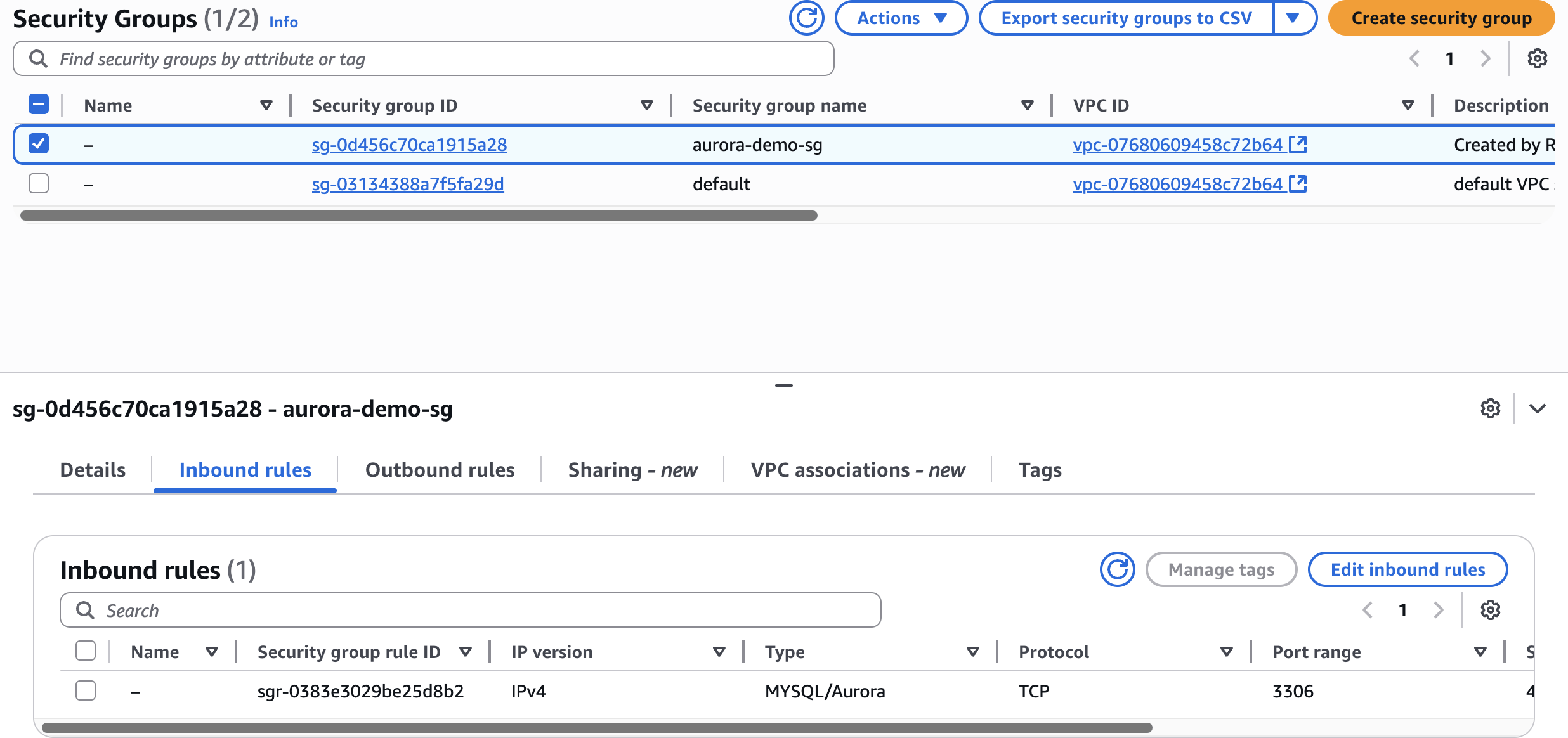

Modify Aurora Security Group

Add Traffic from Elasticache Group

Final Settings

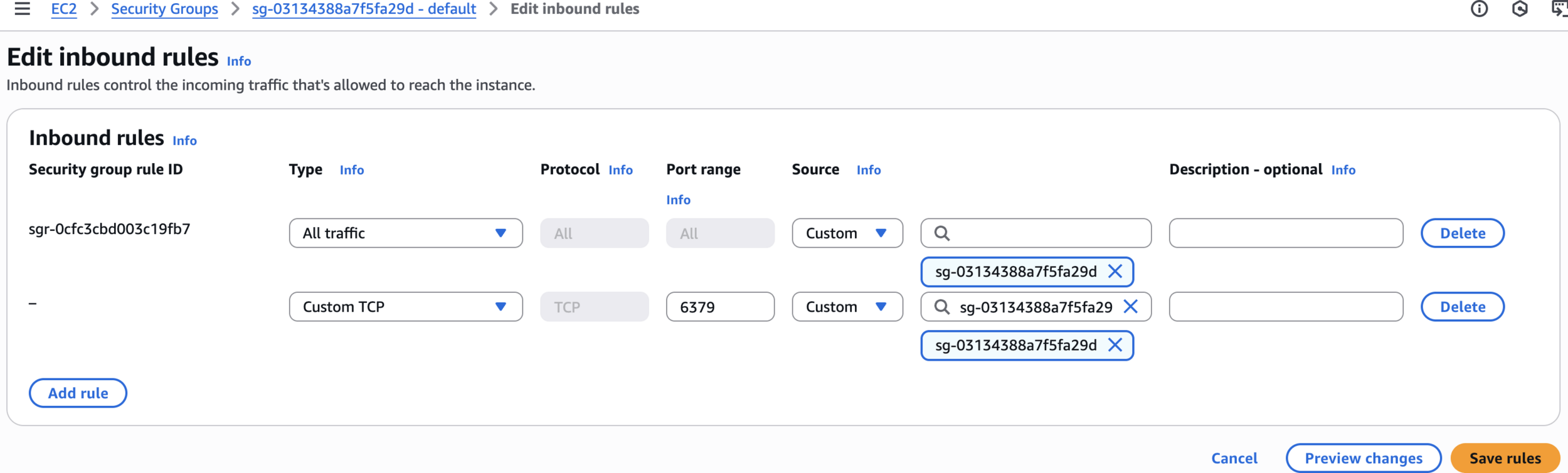

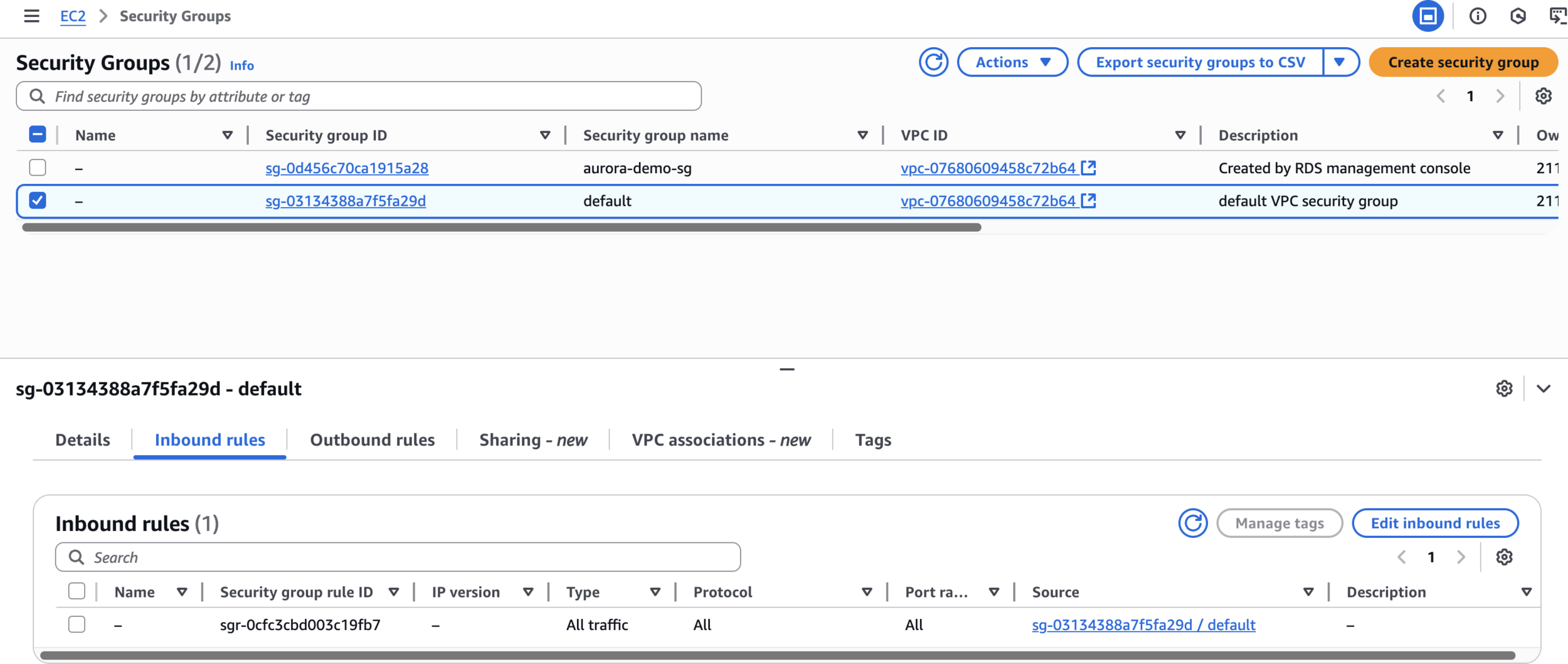

Modify Elasticache Security Group = default

Add 6379 port or It Should be All Traffic

Final Settings

Step 5: Create VPC Endpoints for Lambda

VPC Endpoints

# Get your VPC ID
VPC_ID=$(aws ec2 describe-vpcs --filters \
"Name=is-default,Values=true" \
--query 'Vpcs[0].VpcId' --output text)

# Get subnet IDs
SUBNET_IDS=$(aws ec2 describe-subnets \
--filters "Name=vpc-id,Values=$VPC_ID" \
--query 'Subnets[*].SubnetId' --output text | tr '\t' ' ')

Create VPC Endpoints

# Create VPC endpoint for RDS Data API
aws ec2 create-vpc-endpoint \
  --vpc-id $VPC_ID \
  --service-name com.amazonaws.us-east-1.rds-data \
  --subnet-ids $SUBNET_IDS \
  --security-group-ids $(aws ec2 describe-security-groups \
  --filters "Name=group-name,Values=default" \
  --query 'SecurityGroups[0].GroupId' --output text) \
  --vpc-endpoint-type Interface

# Create VPC endpoint for Secrets Manager
aws ec2 create-vpc-endpoint \
  --vpc-id $VPC_ID \
  --service-name com.amazonaws.us-east-1.secretsmanager \
  --subnet-ids $SUBNET_IDS \
  --security-group-ids $(aws ec2 describe-security-groups \
  --filters "Name=group-name,Values=default" \
  --query 'SecurityGroups[0].GroupId' --output text) \
  --vpc-endpoint-type Interface

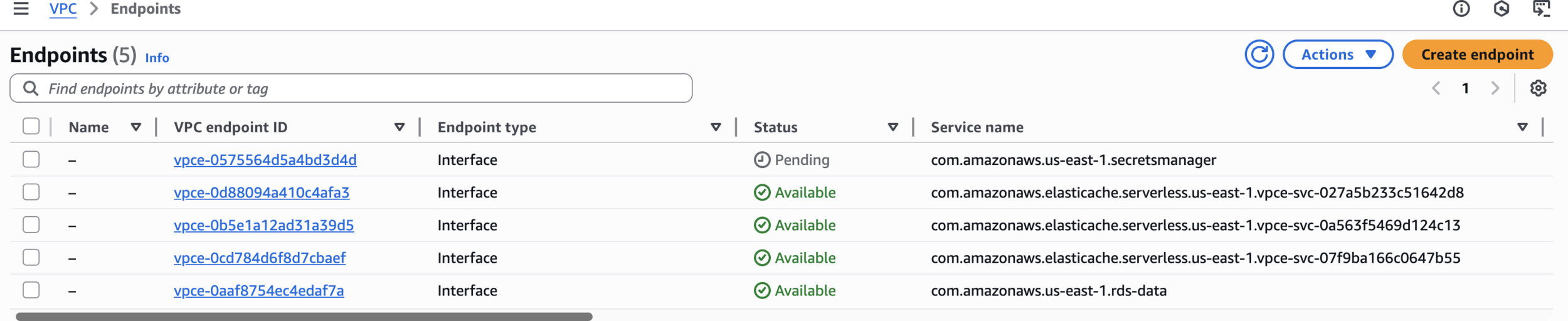

VPC Endpoints

Step 6: Create Lambda Execution Role

Create IAM Role

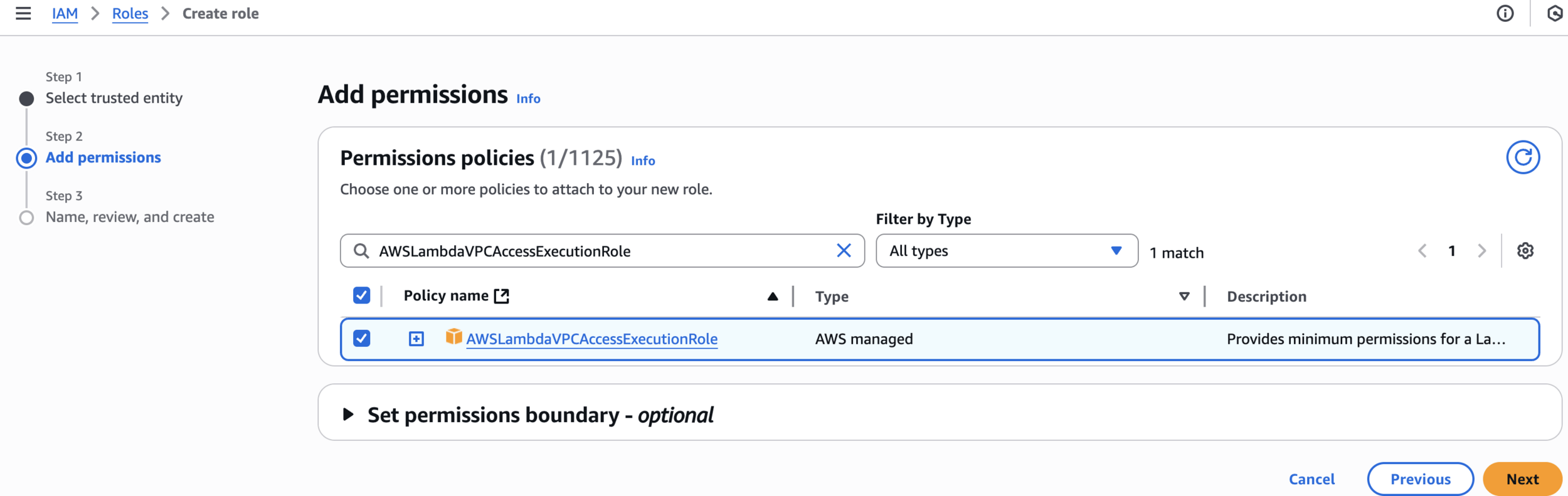

Add permissions

AWSLambdaVPCAccessExecutionRole

AmazonRDSDataFullAccess

Add permissions

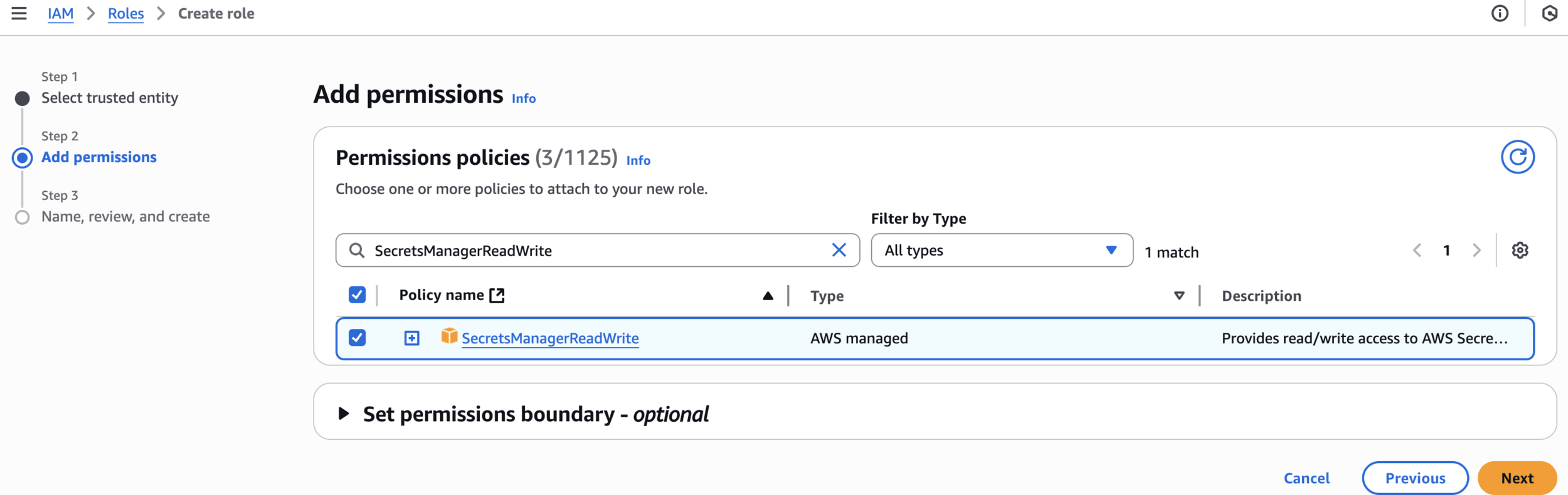

SecretsManagerReadWrite

Add permissions

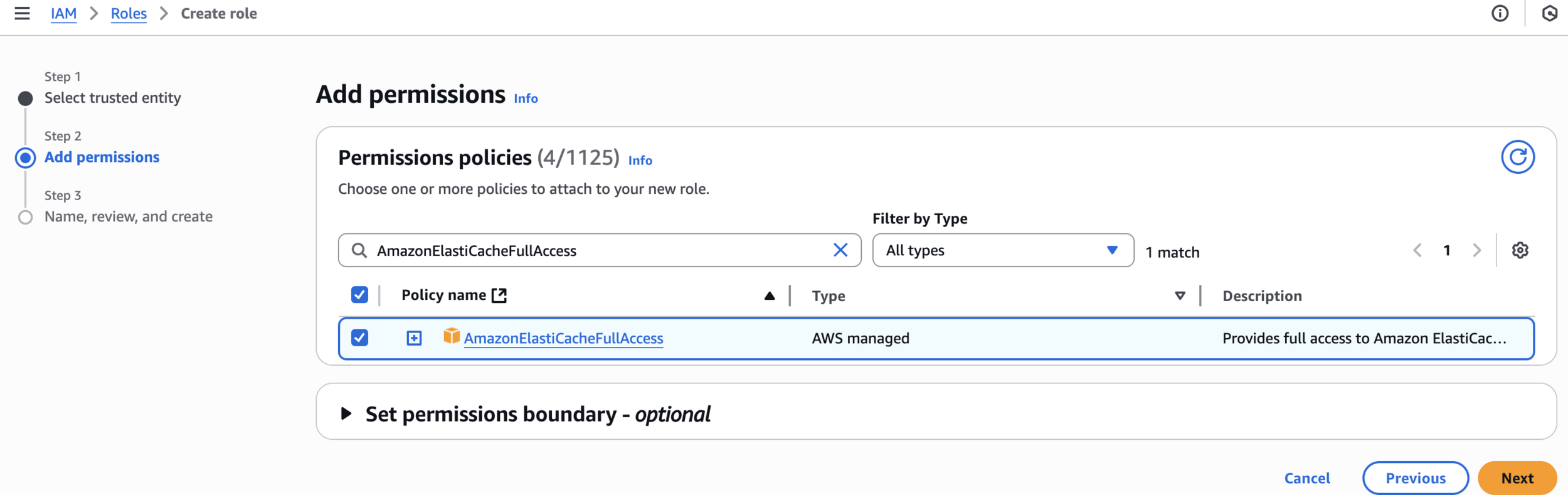

AmazonElastiCacheFullAccess

Add permissions

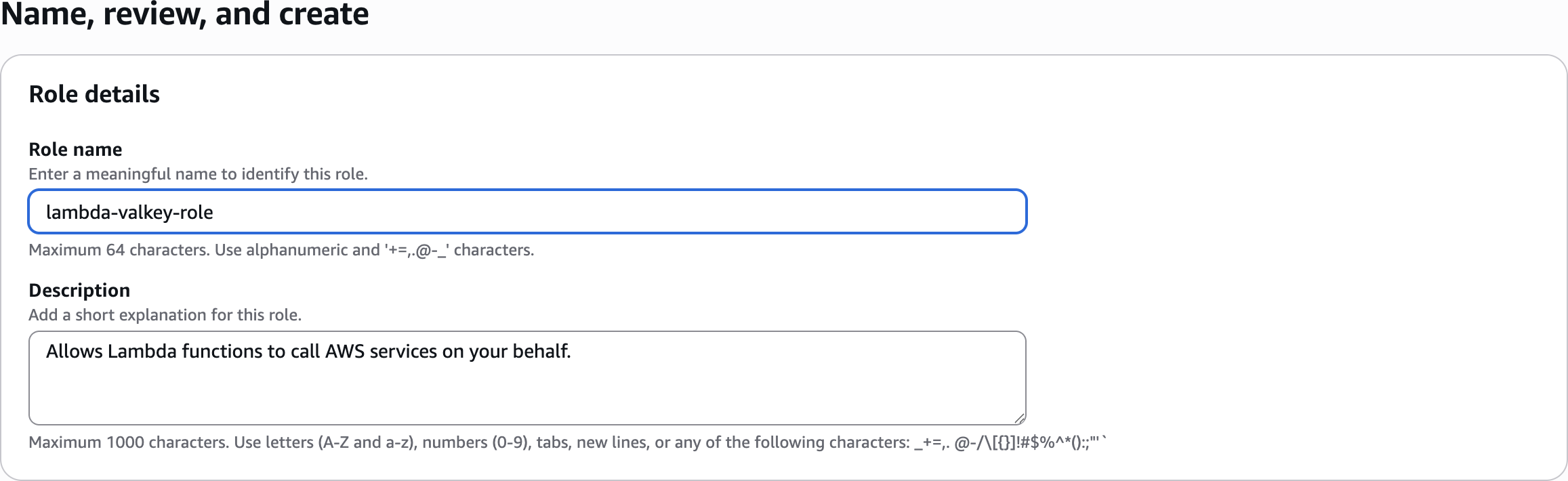

Name, review, and create

lambda-valkey-role

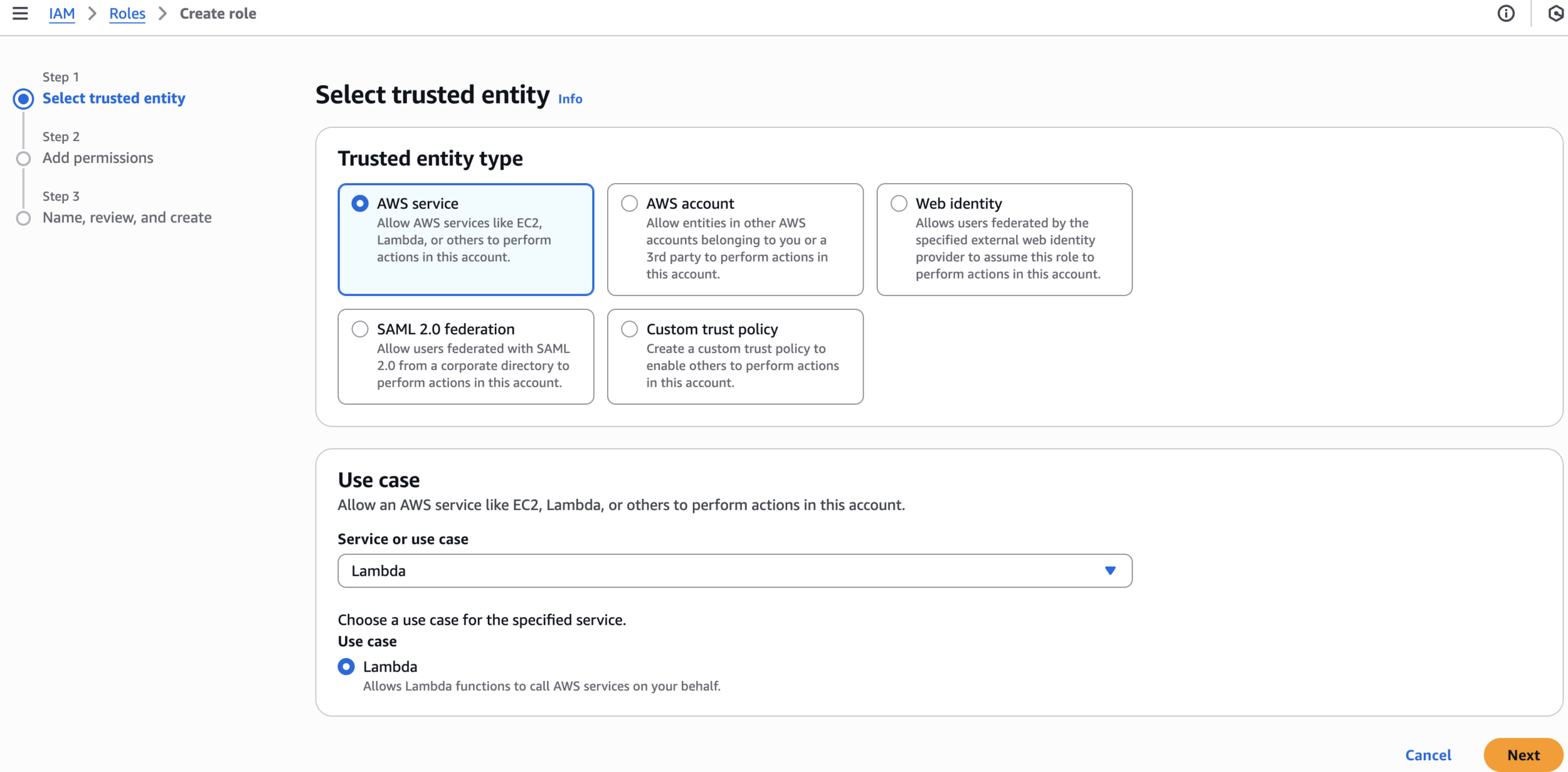

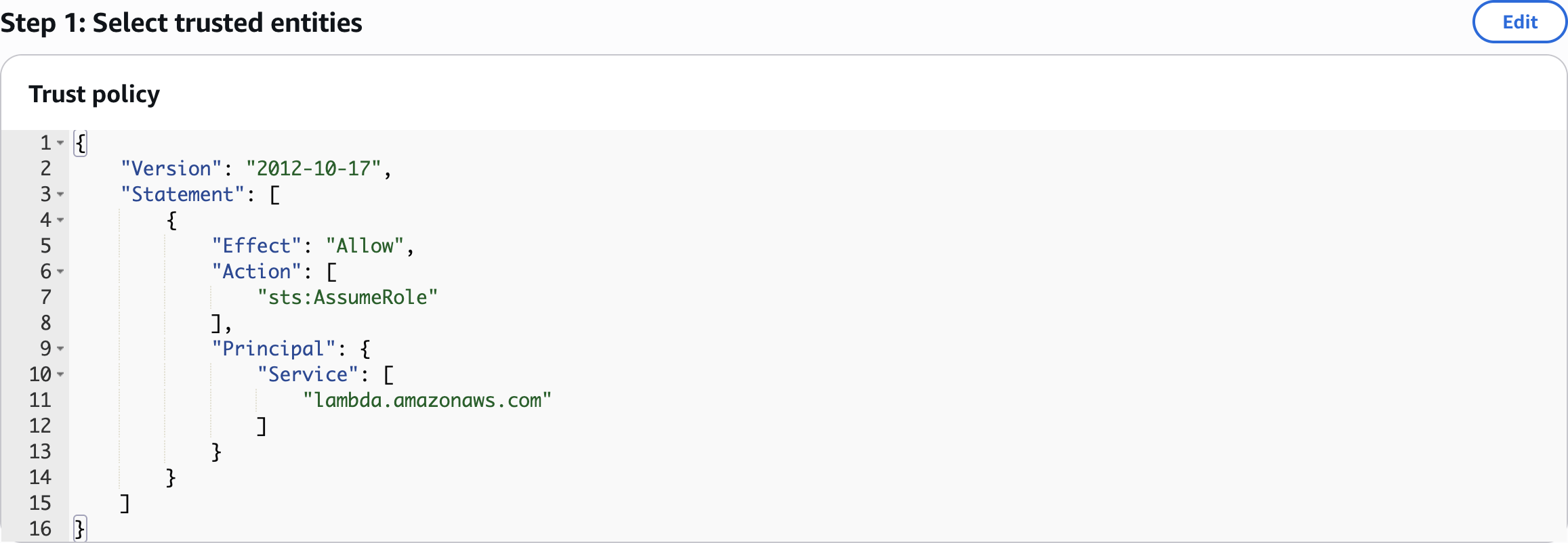

Step 1: Select trusted entities

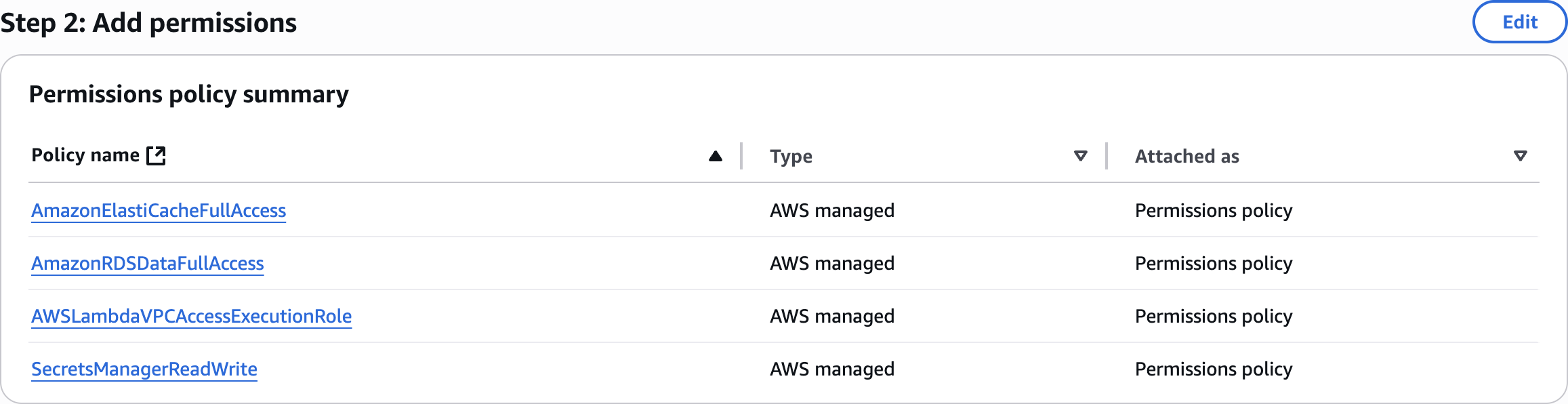

Step 2: Add permissions

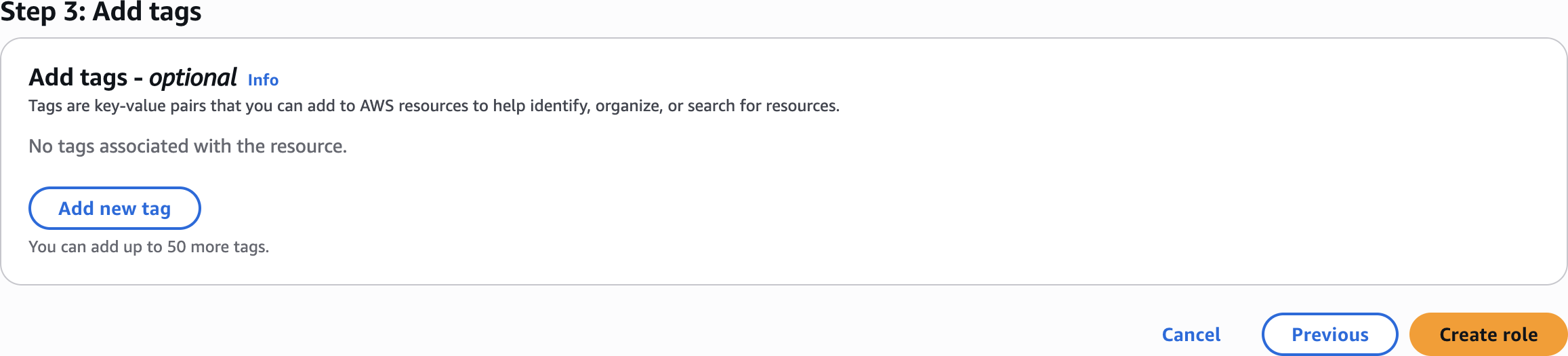

Step 3: Add tags

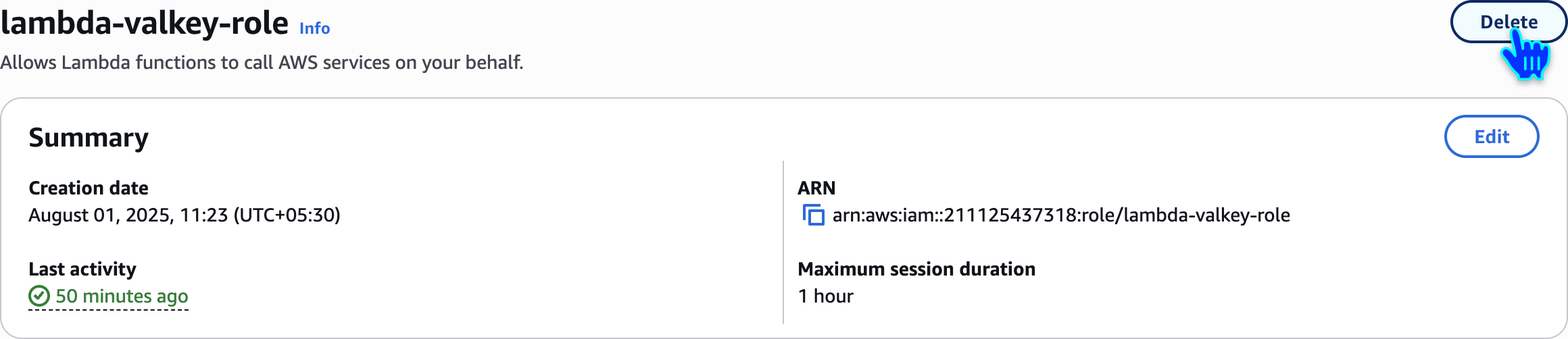

lambda-valkey-role

Step 7: Build and Deploy Lambda Function

# Install Python 3.13 binaries
sudo yum update -y
sudo yum install -y python3.13 python3.13-pip zip

# Verify installation
python3.13 --version
pip3.13 --version

AWS CloudShell

mkdir lambda_build && cd lambda_build

cat > lambda_function.py << EOF
FILE CONTENTS
EOF

python3.13 -m pip install --target . valkey-glide boto3

zip -r function.zip . -x function.zip

Create the Zip

ls -lh function.zip

Download the package from CloudShell:

In CloudShell, click Actions → Download file
Enter: ~/lambda_build/function.zip

~/lambda_build/function.zip

Download the zip file

Create Lambda function

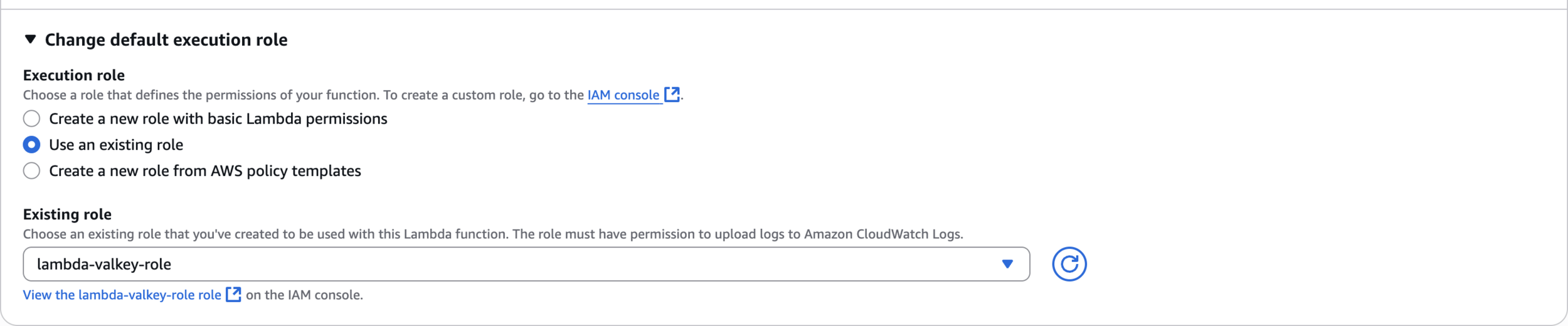

Change default execution role

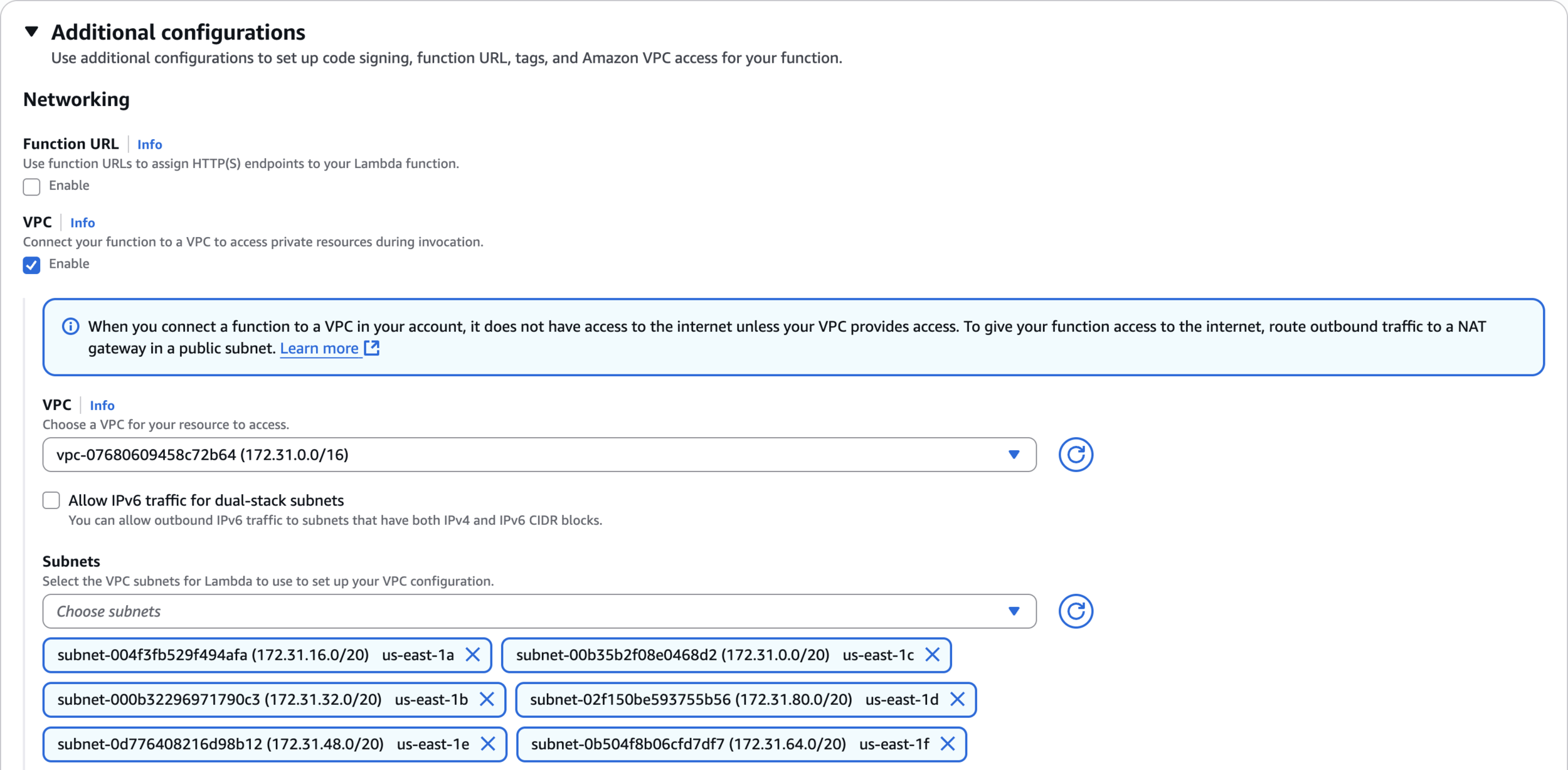

Additional configurations

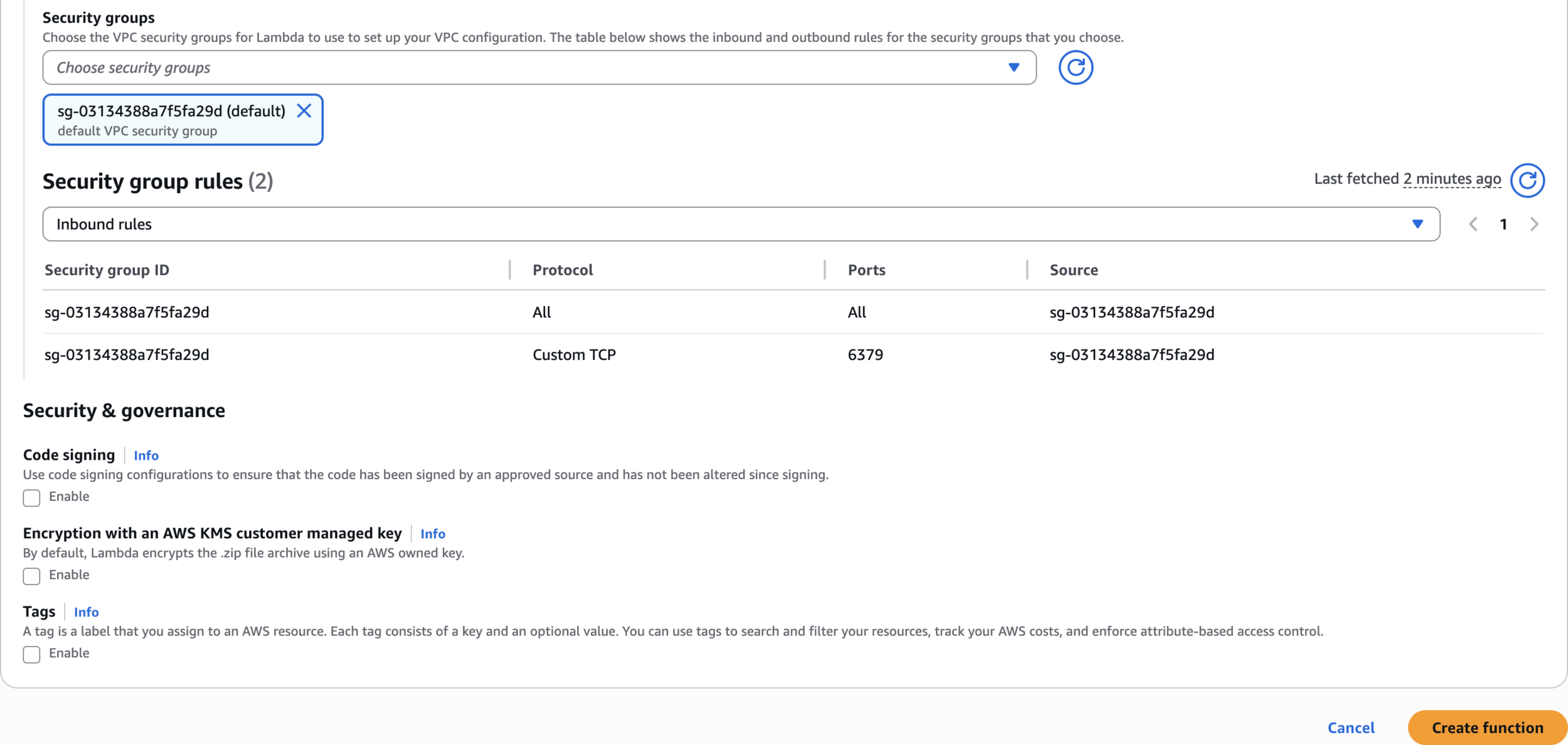

Security groups

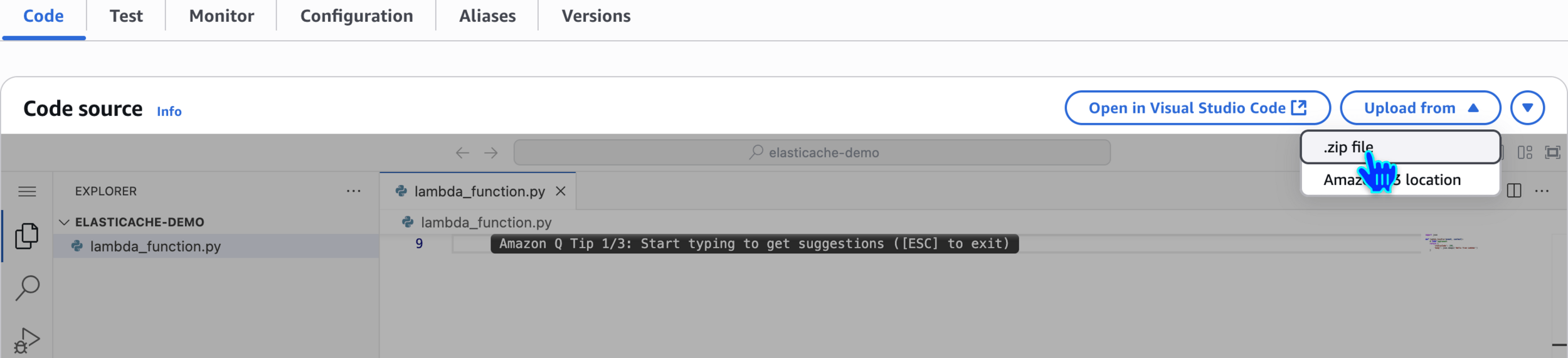

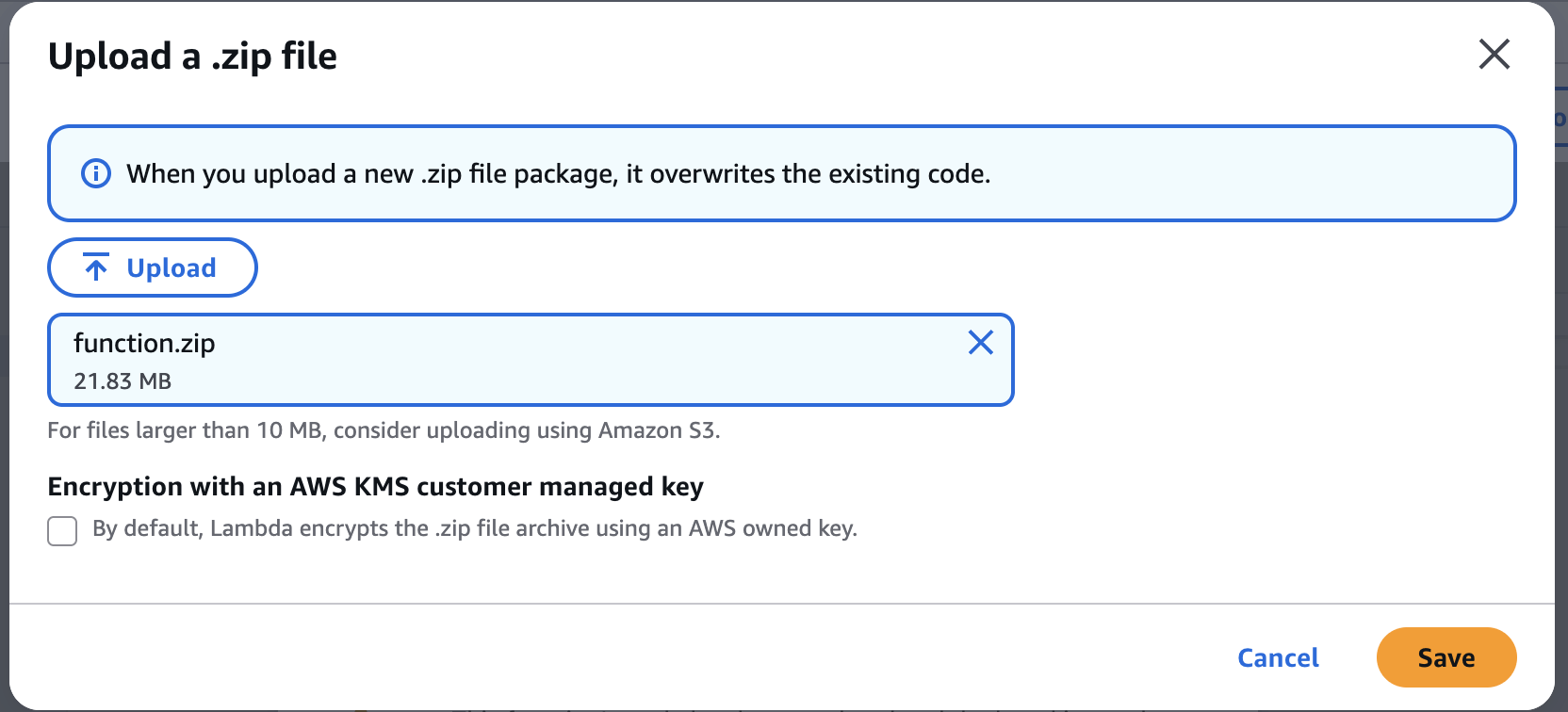

Upload zip file

Upload a zip file

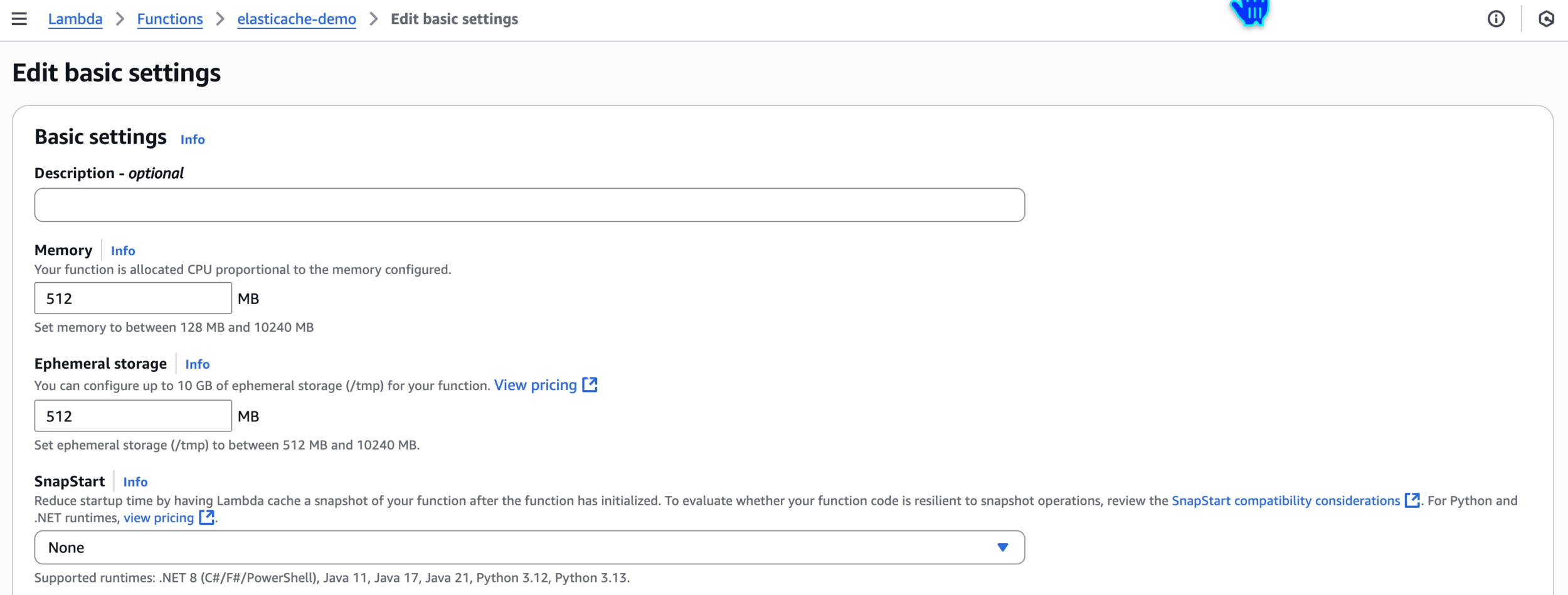

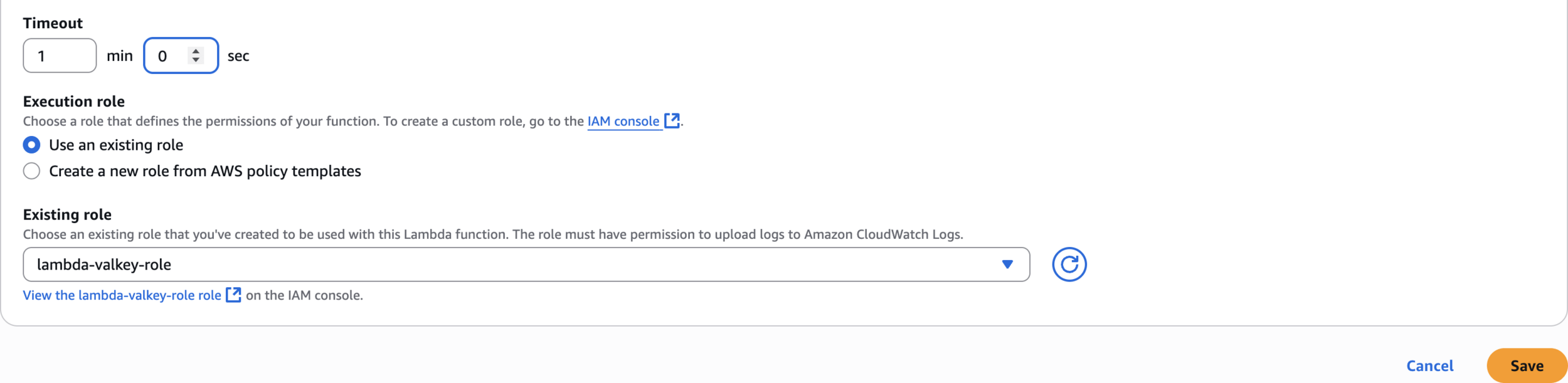

Edit basic settings

Timeout = 1 min

VALKEY_ENDPOINT

DB_ARN

SECRET_ARN

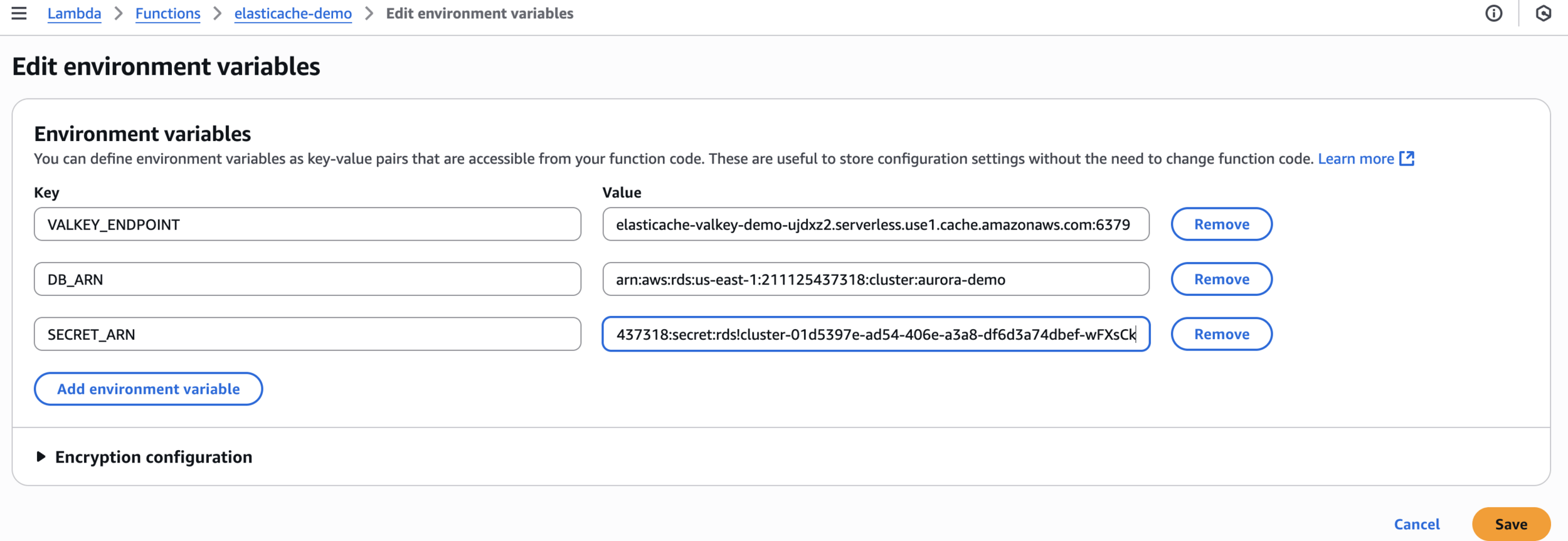

Edit environment variables

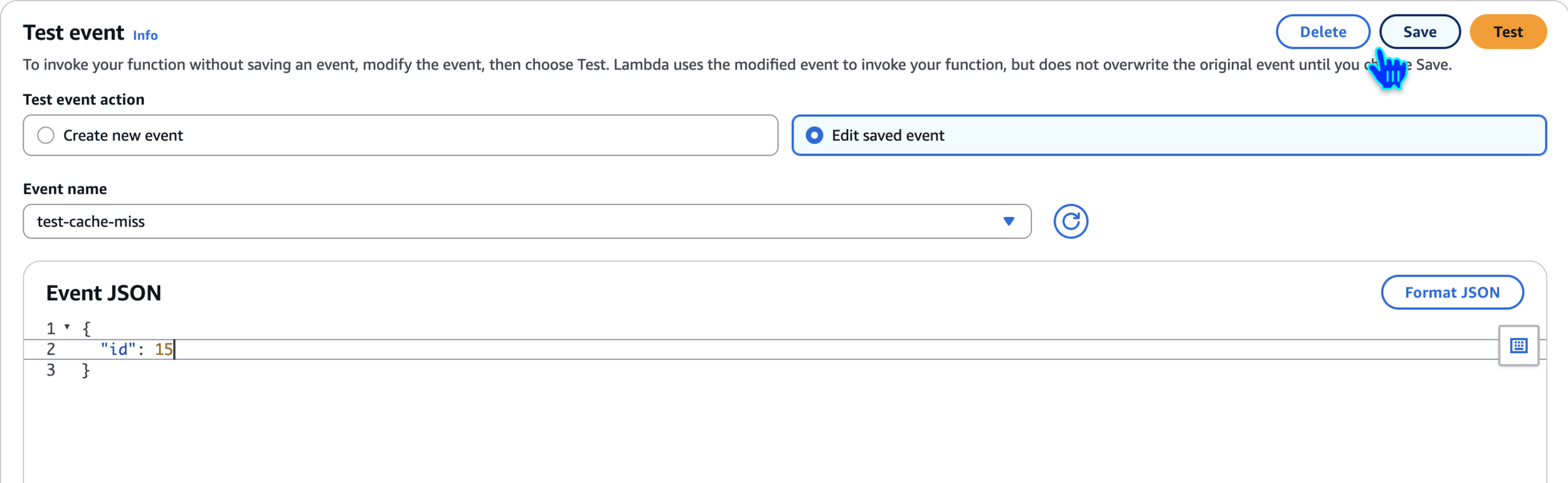

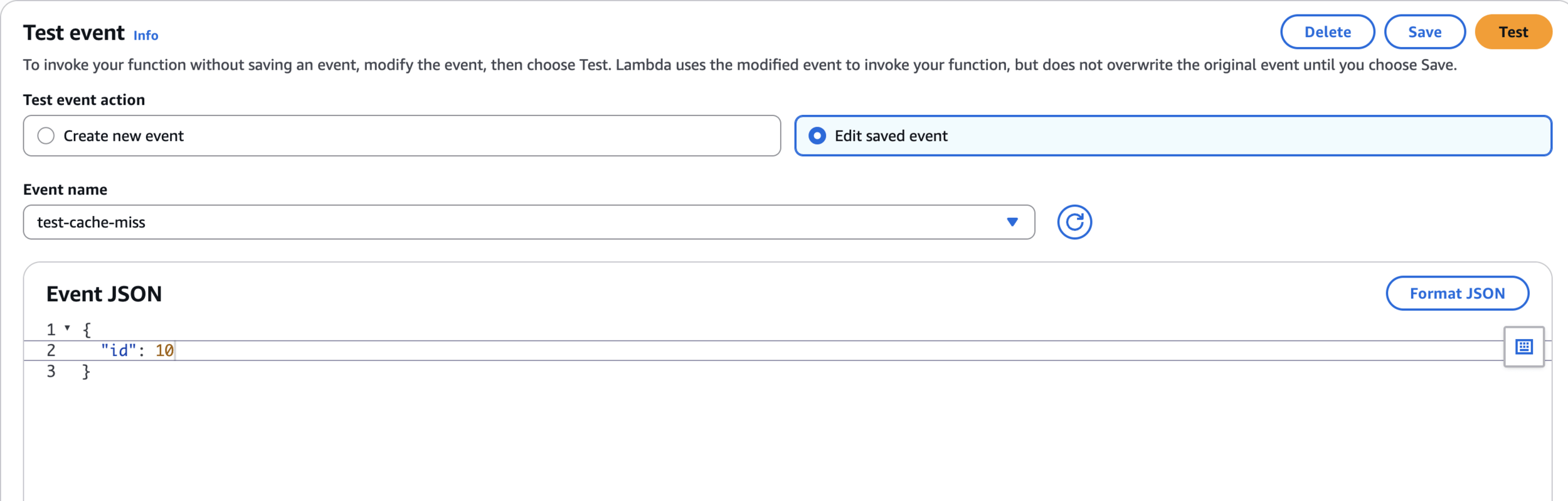

Step 8: Test the Cache-Aside Pattern

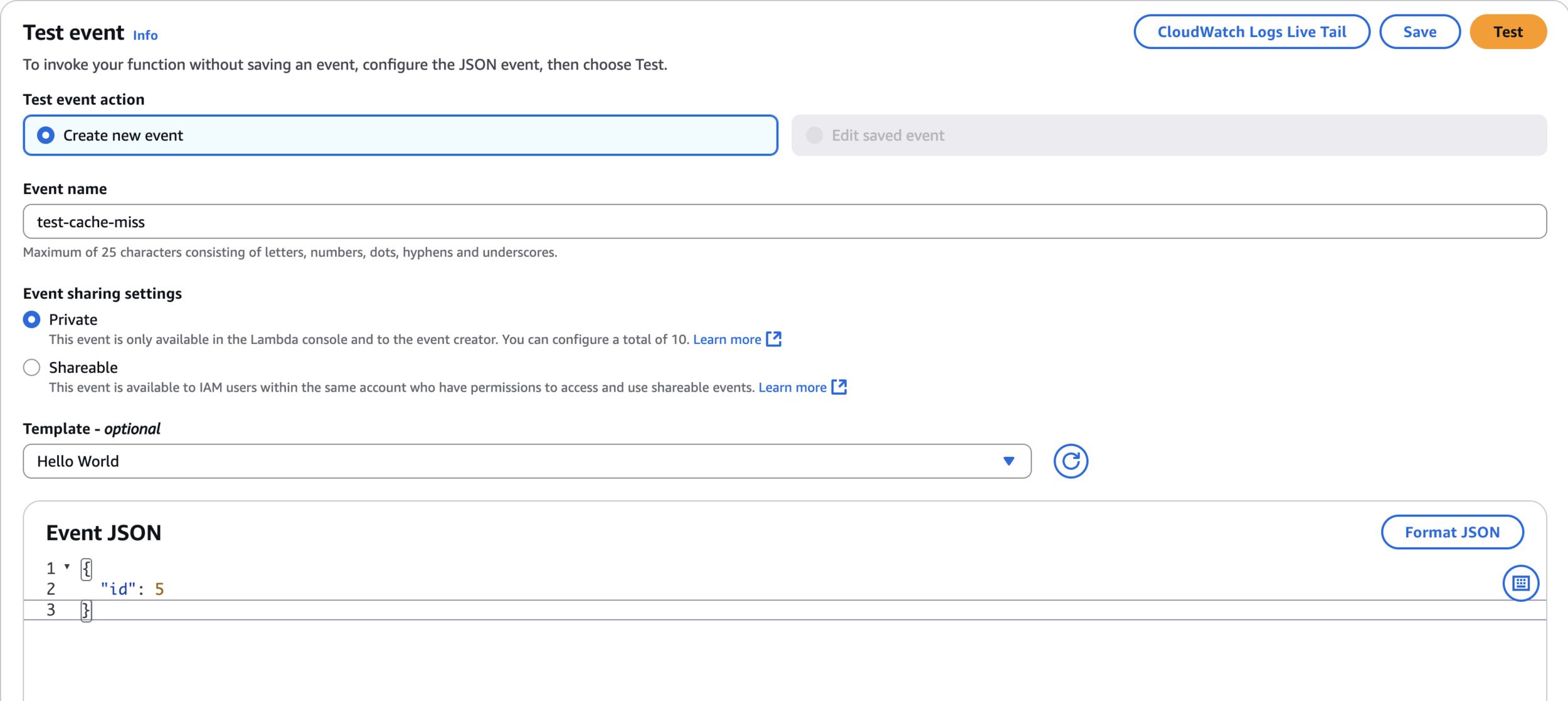

Test

{
  "id": 5
}

test-cache-miss

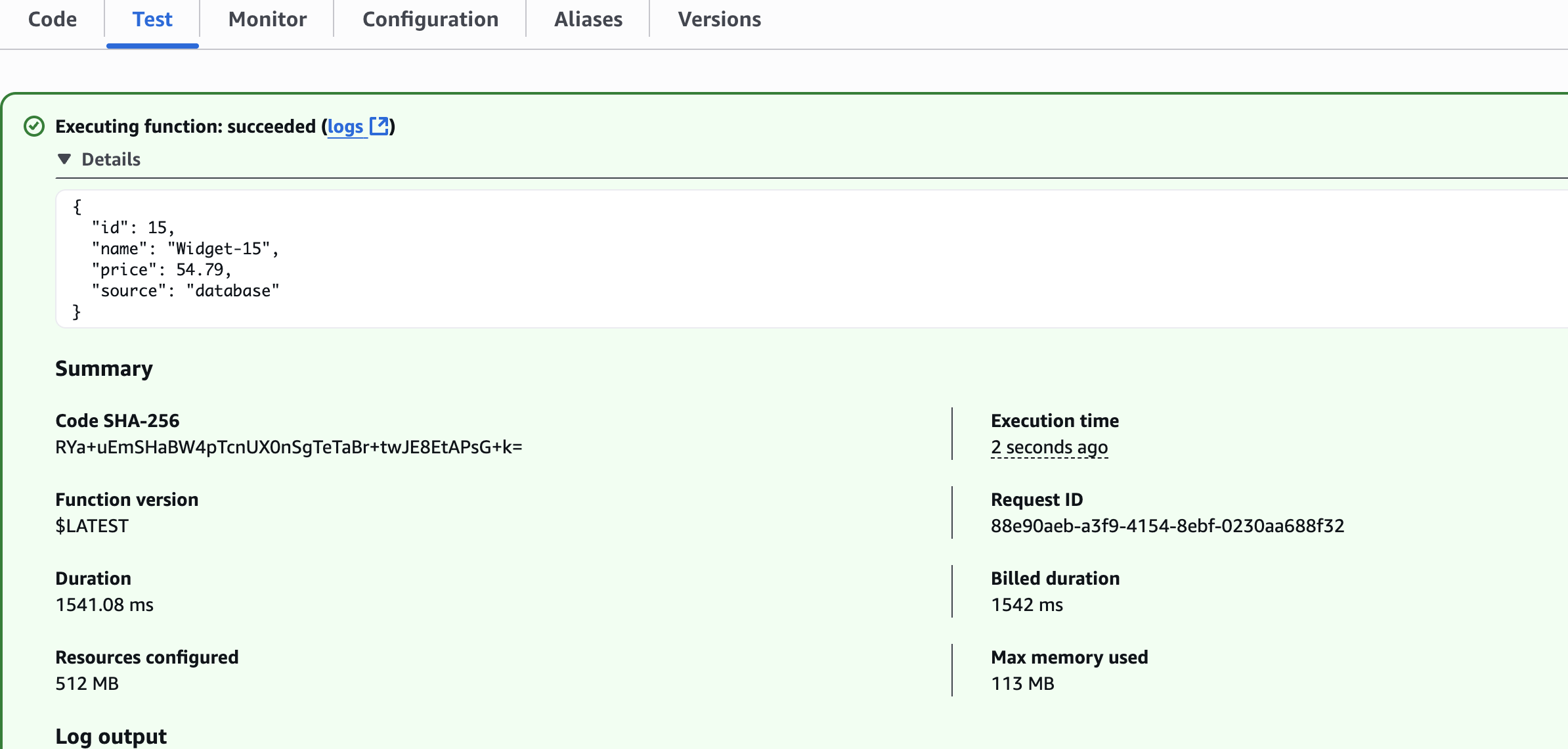

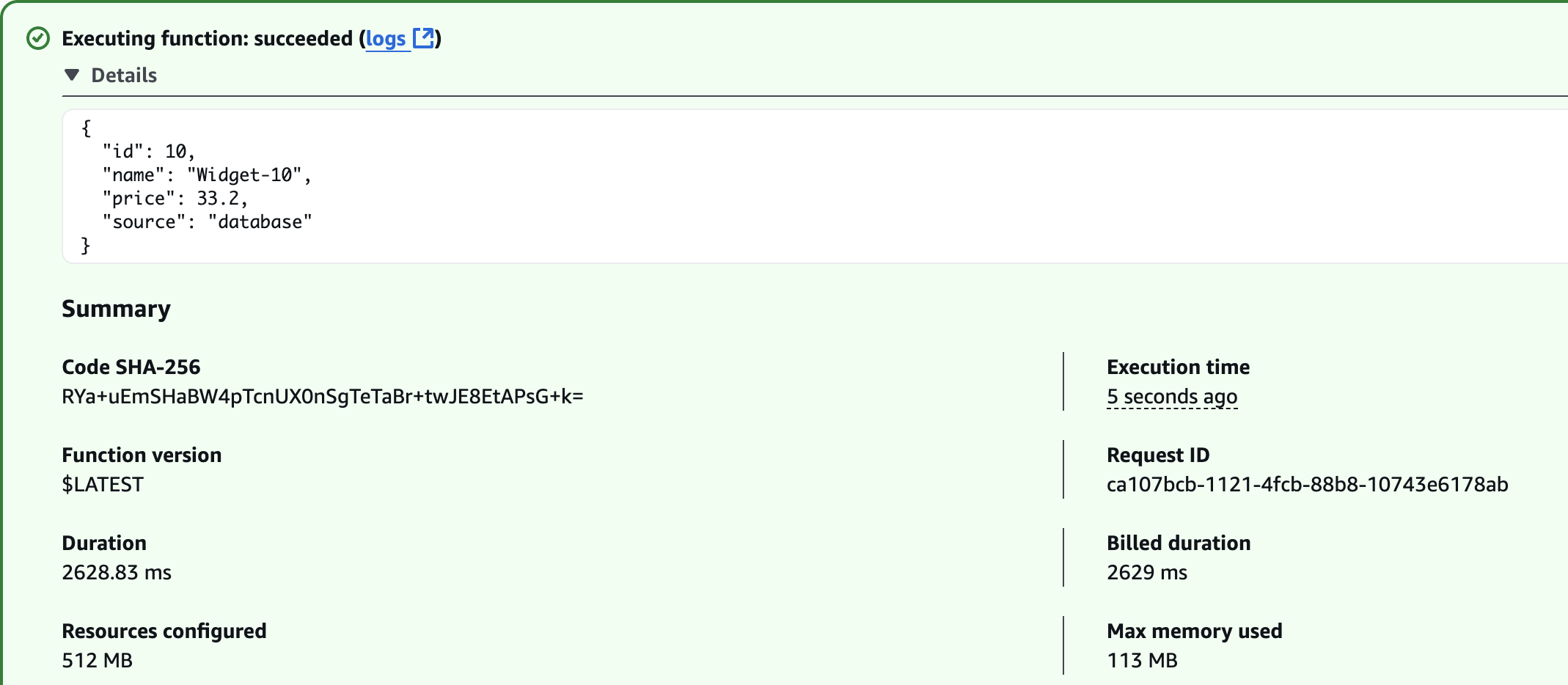

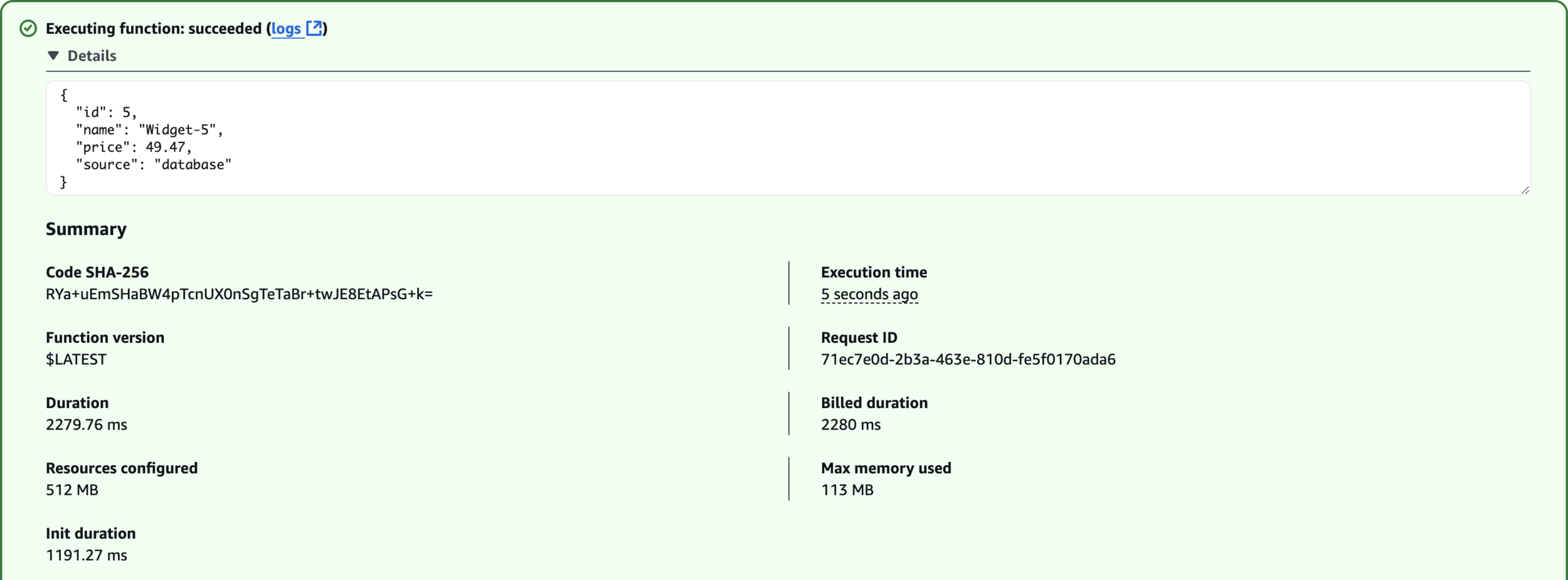

Fetched from Database

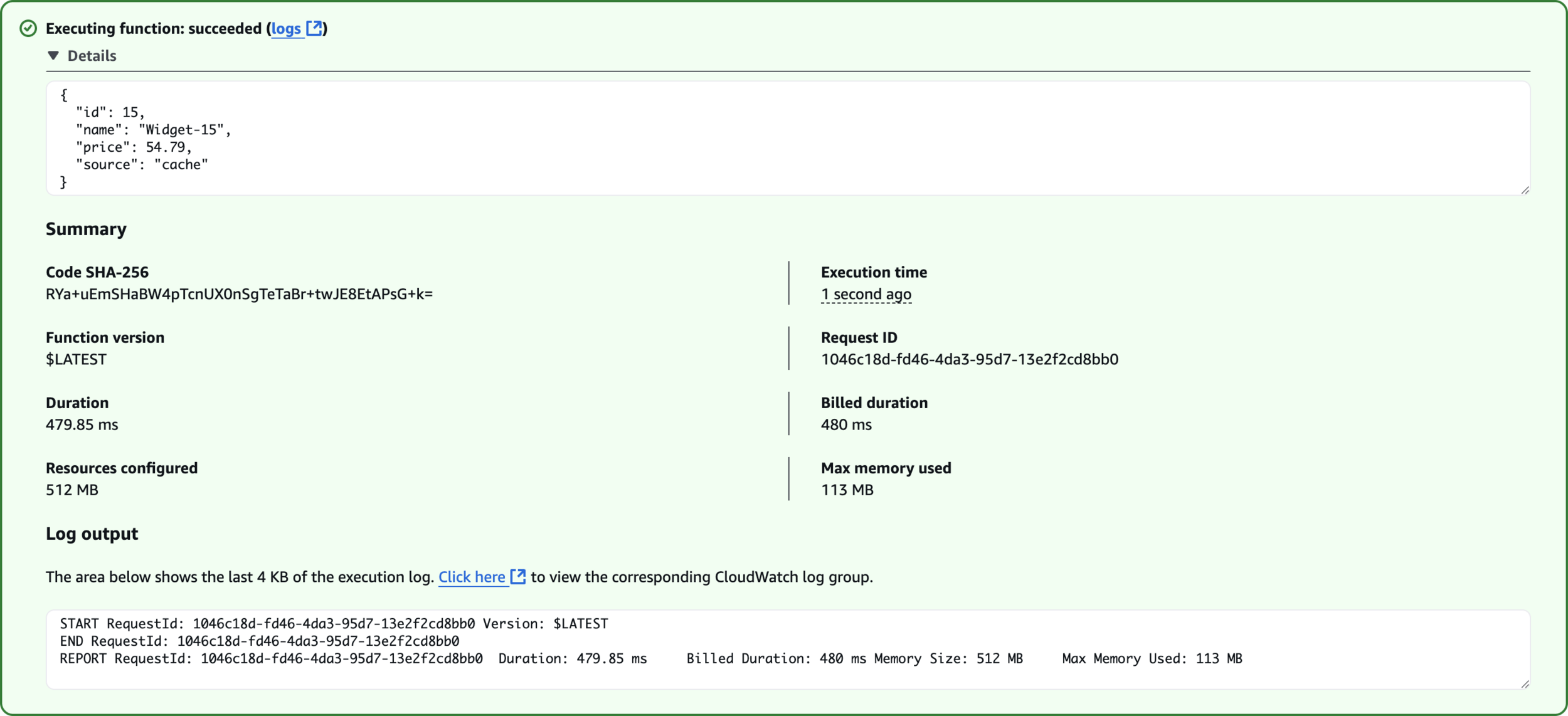

Fetched from Cache

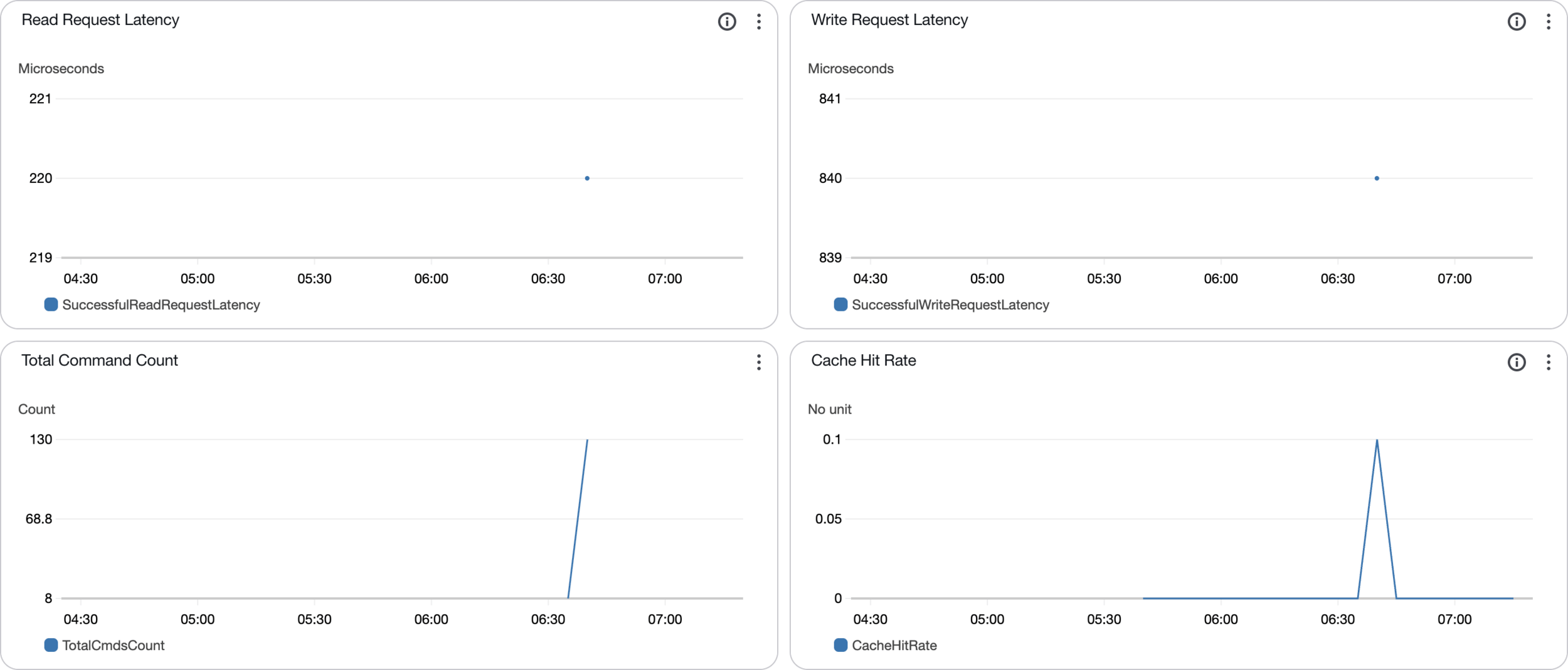

Elasticache Monitoring

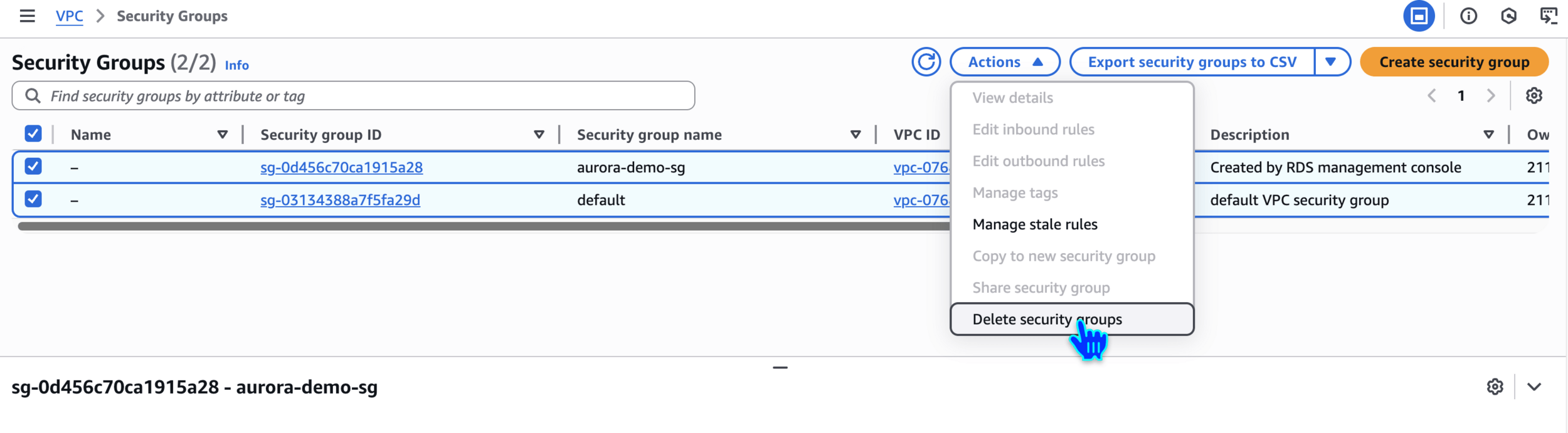

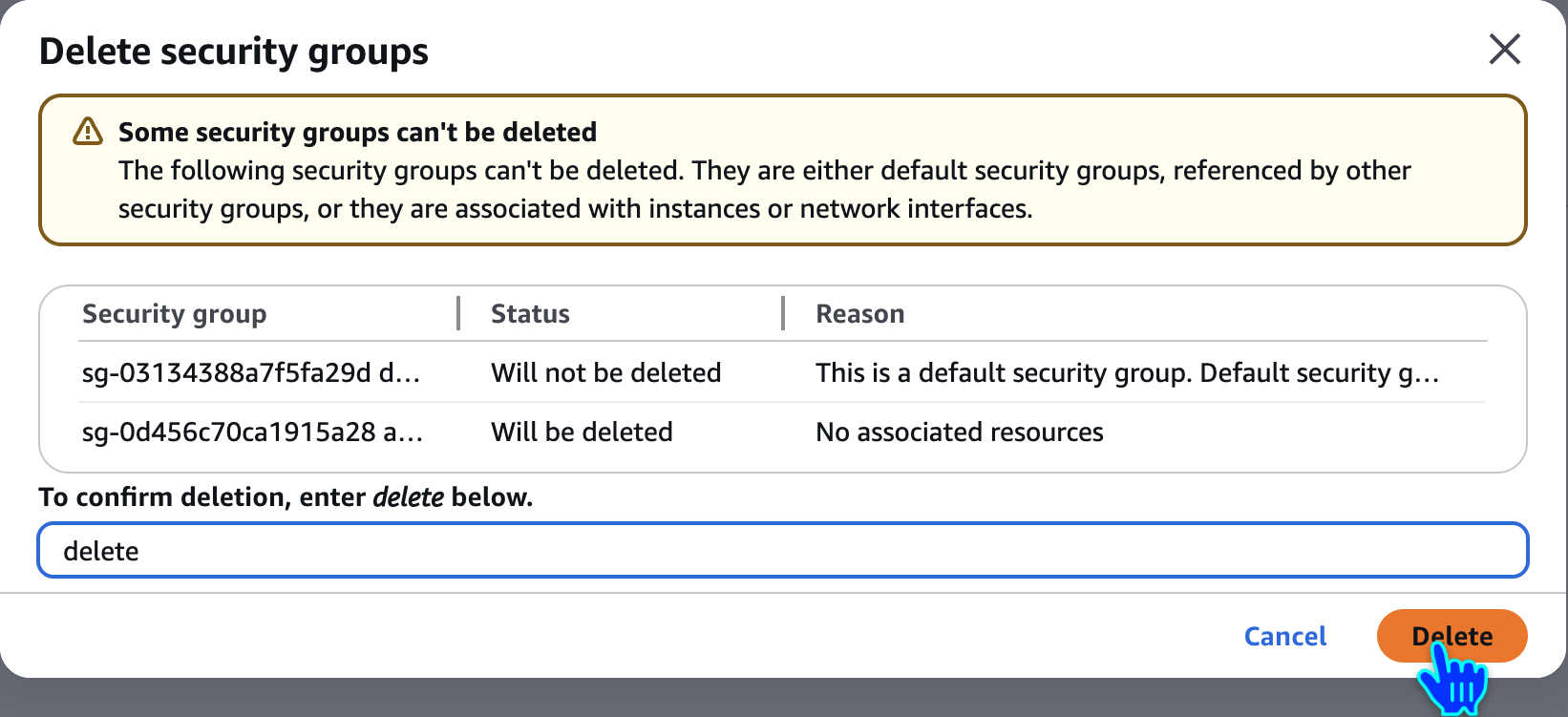

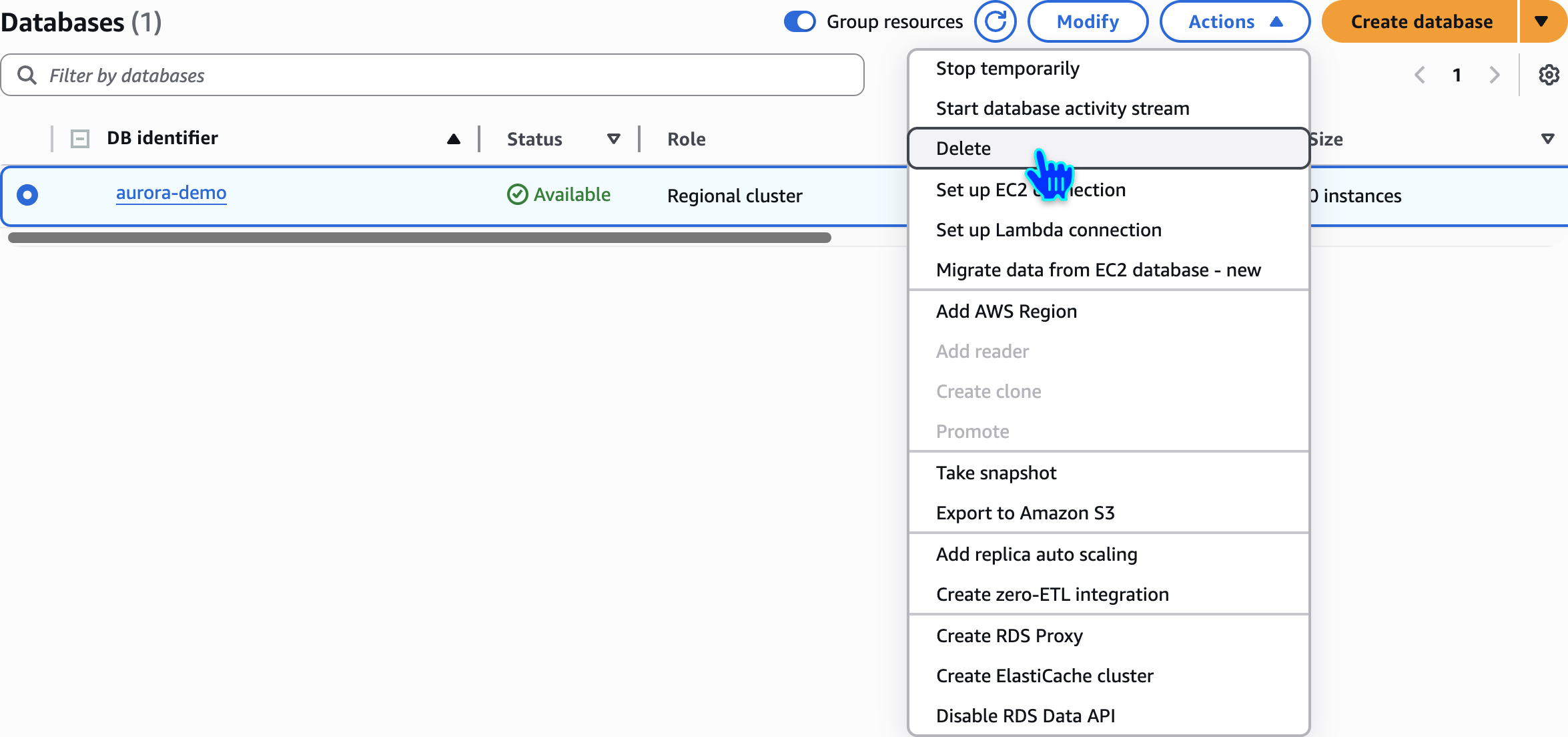

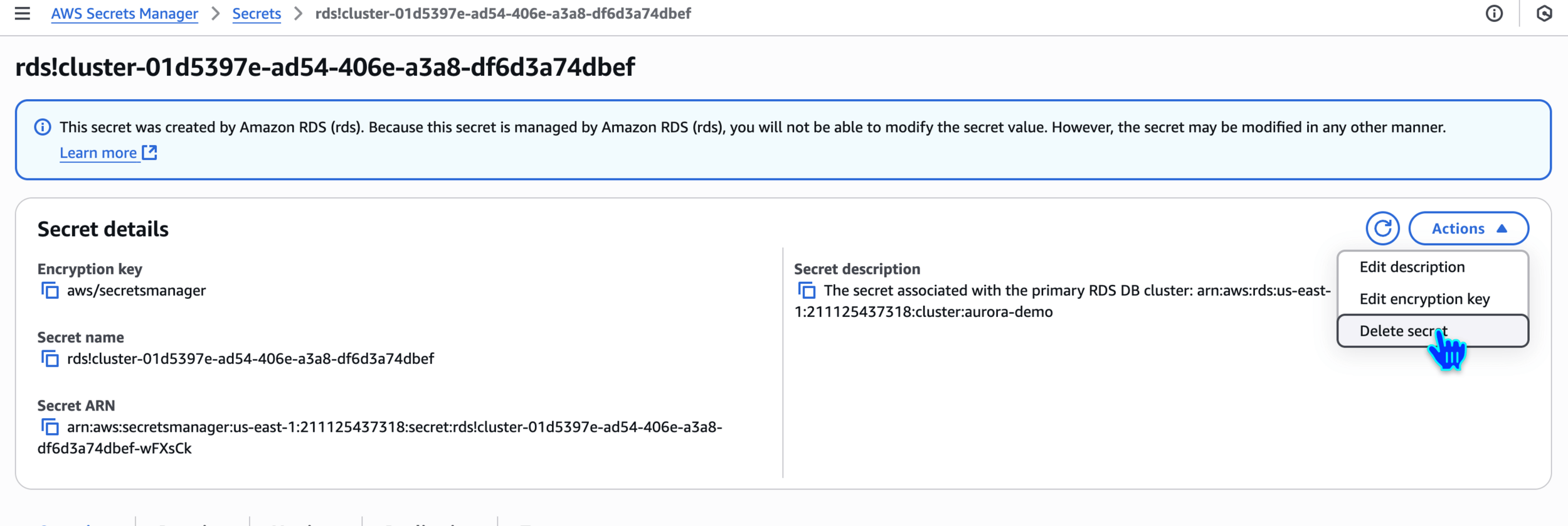

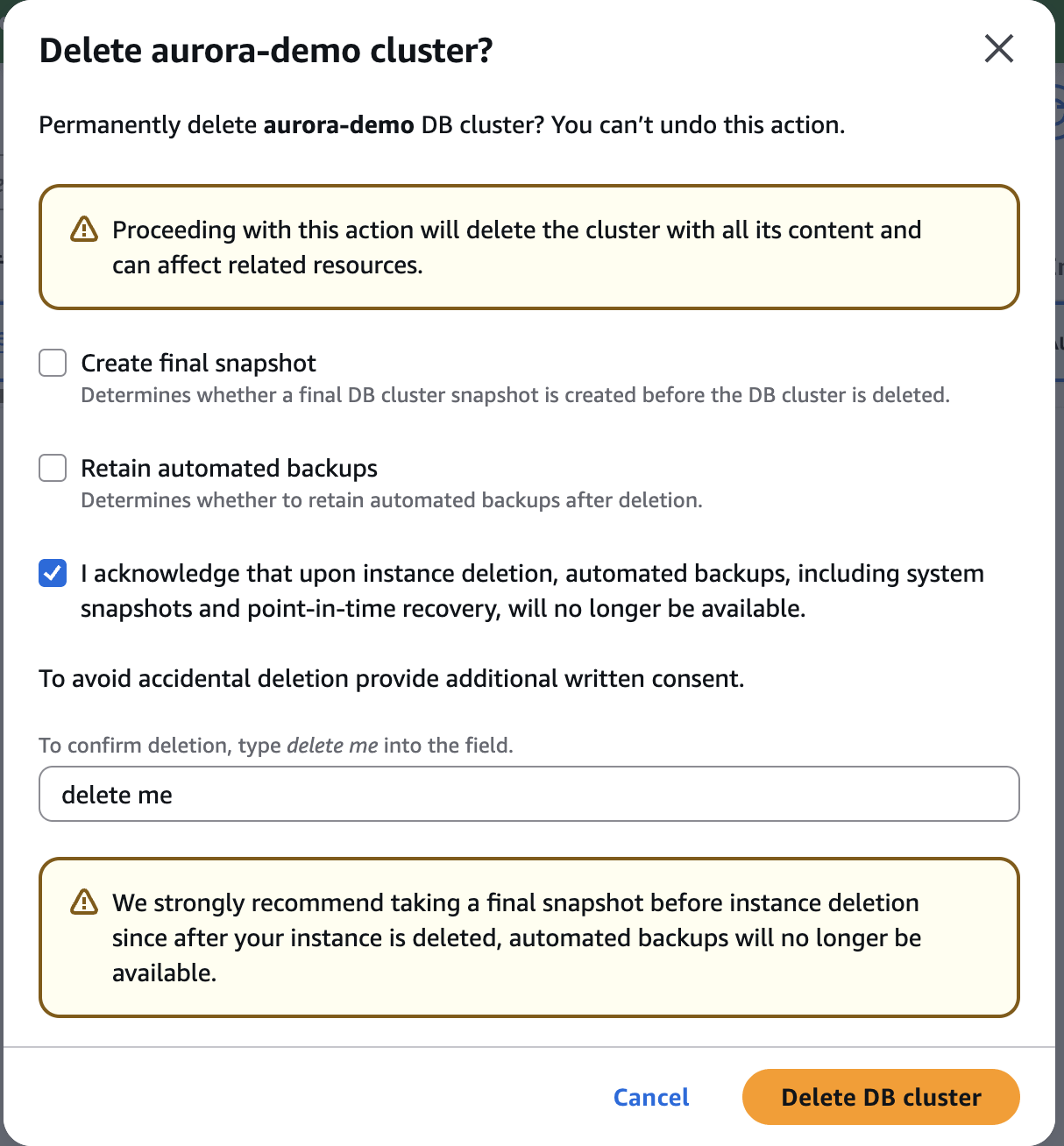

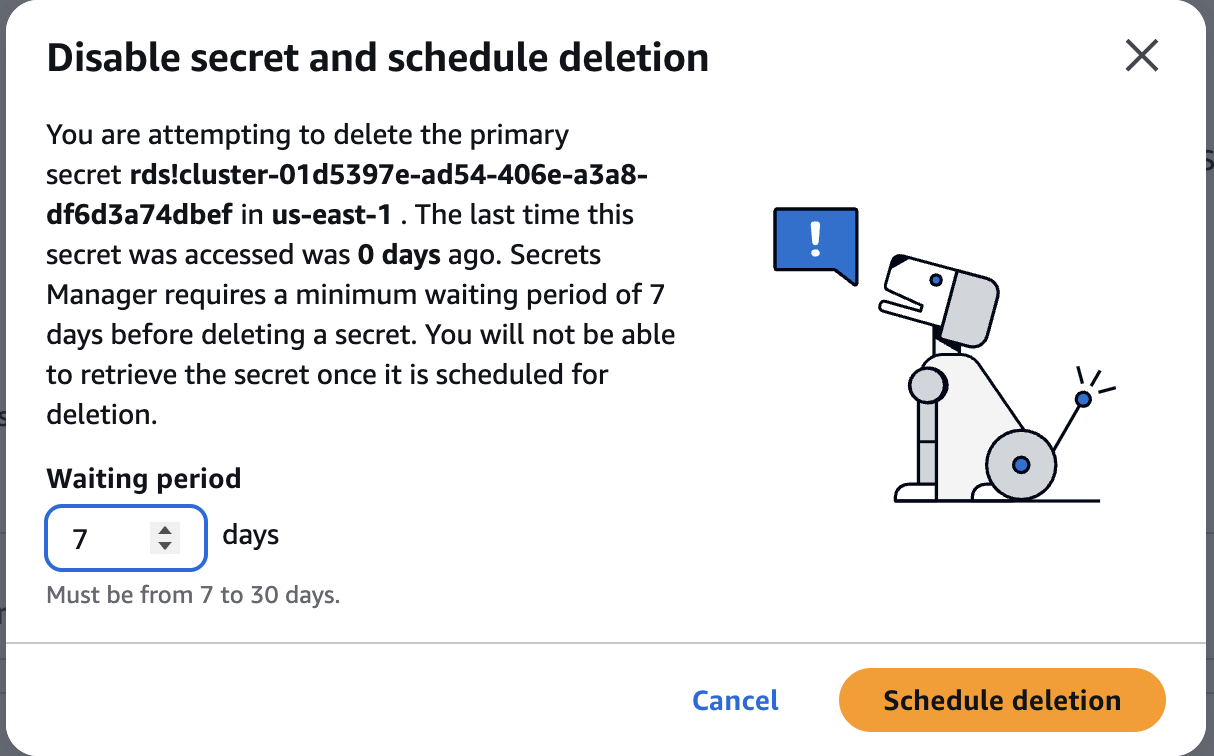

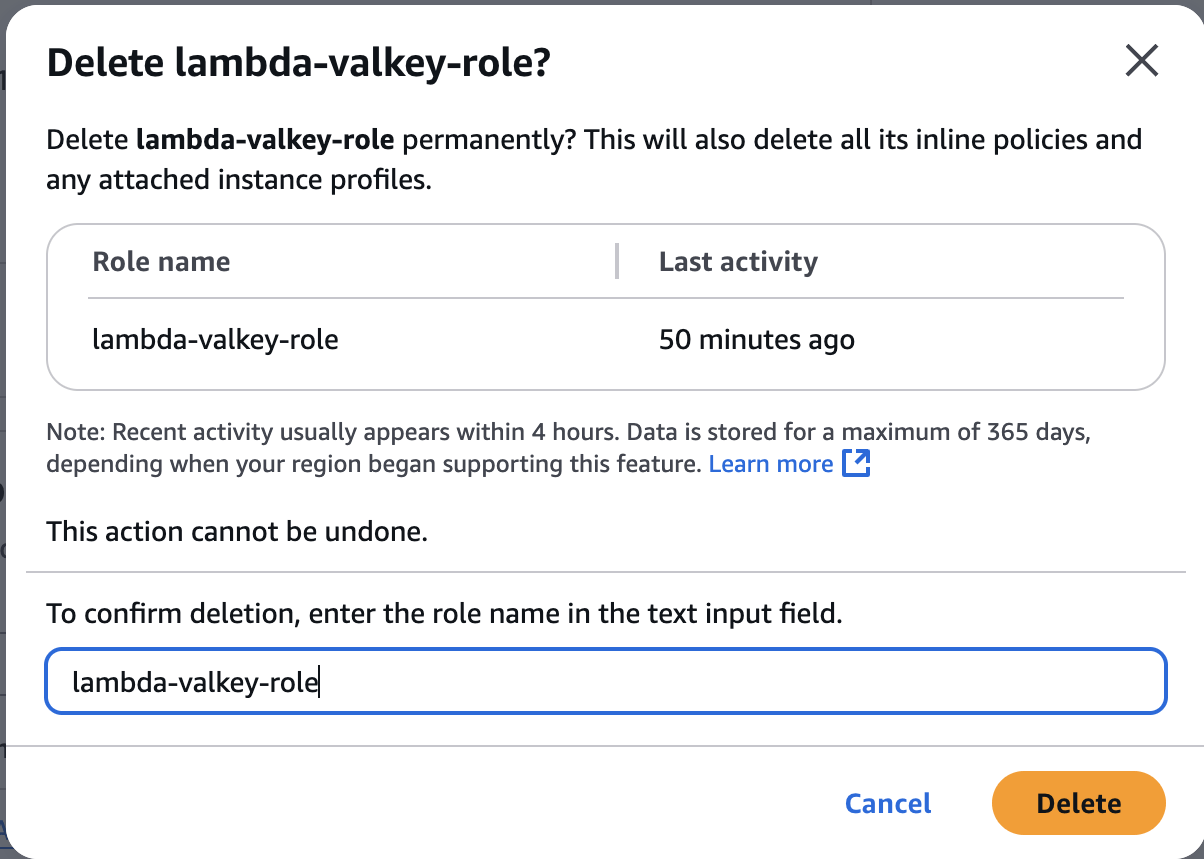

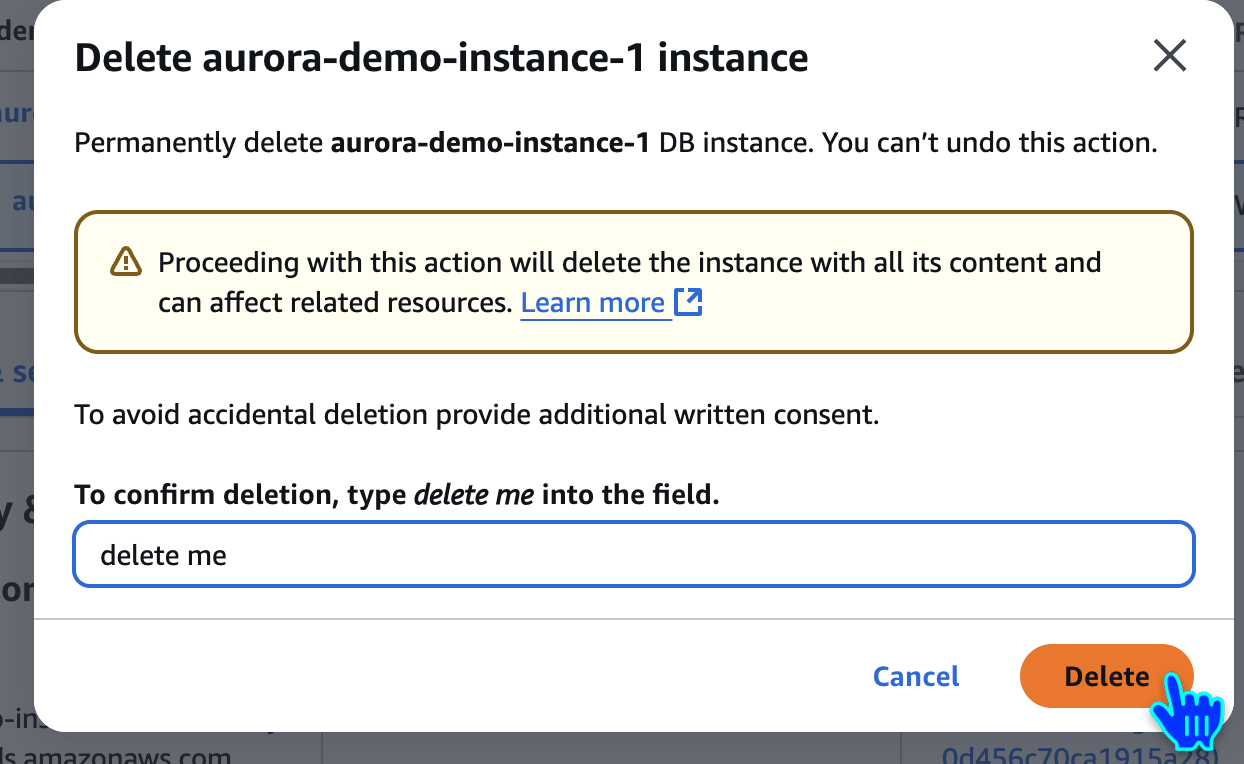

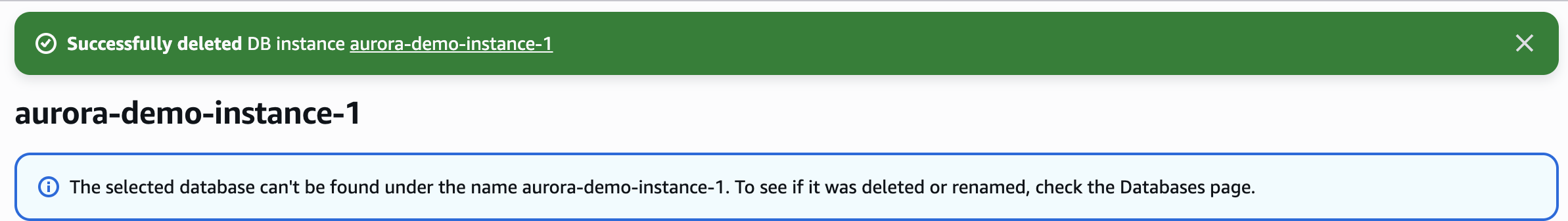

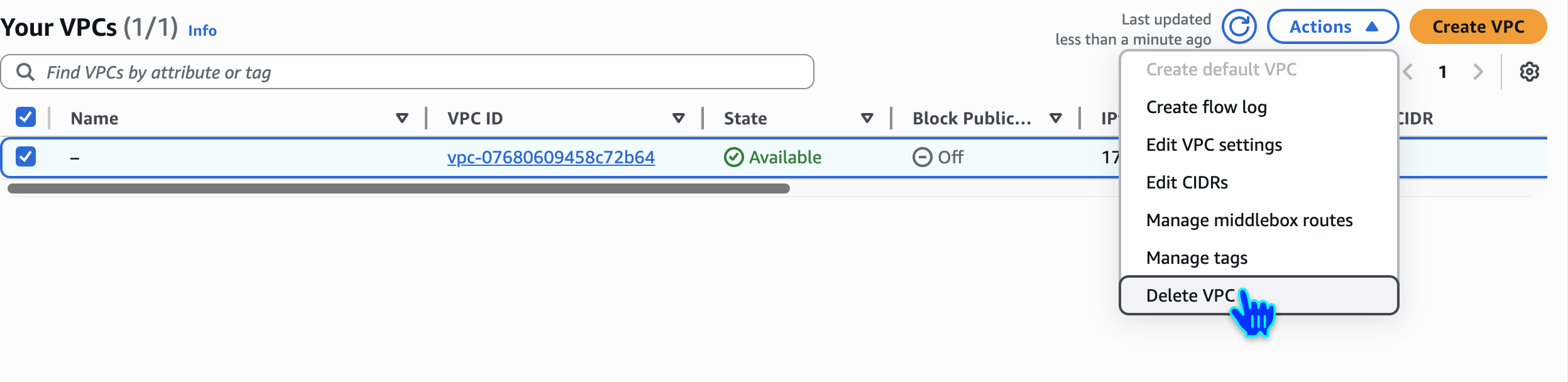

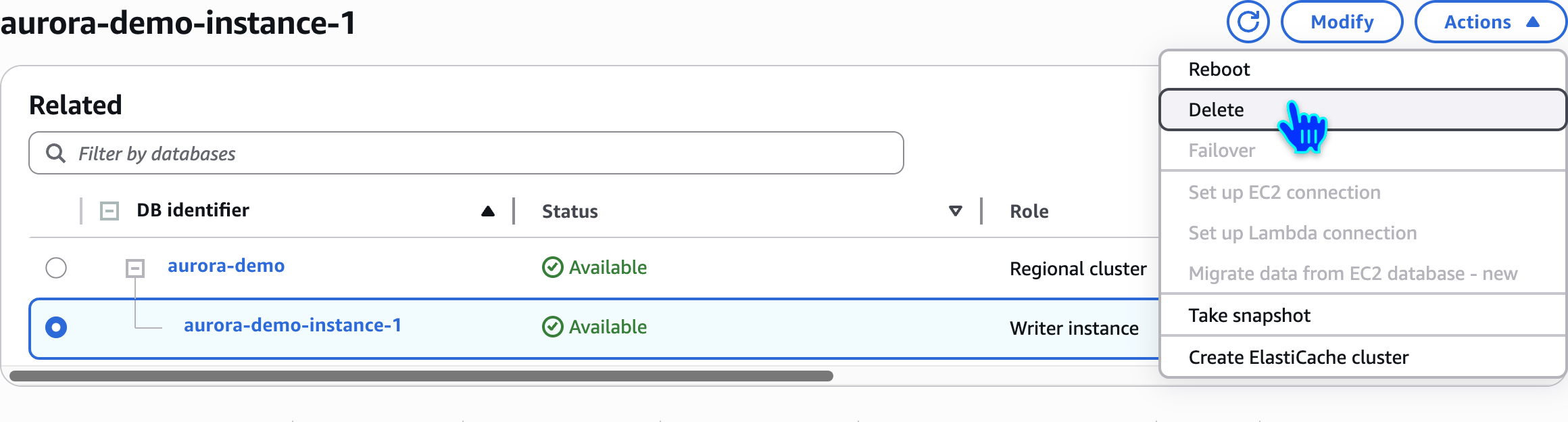

Clean Up

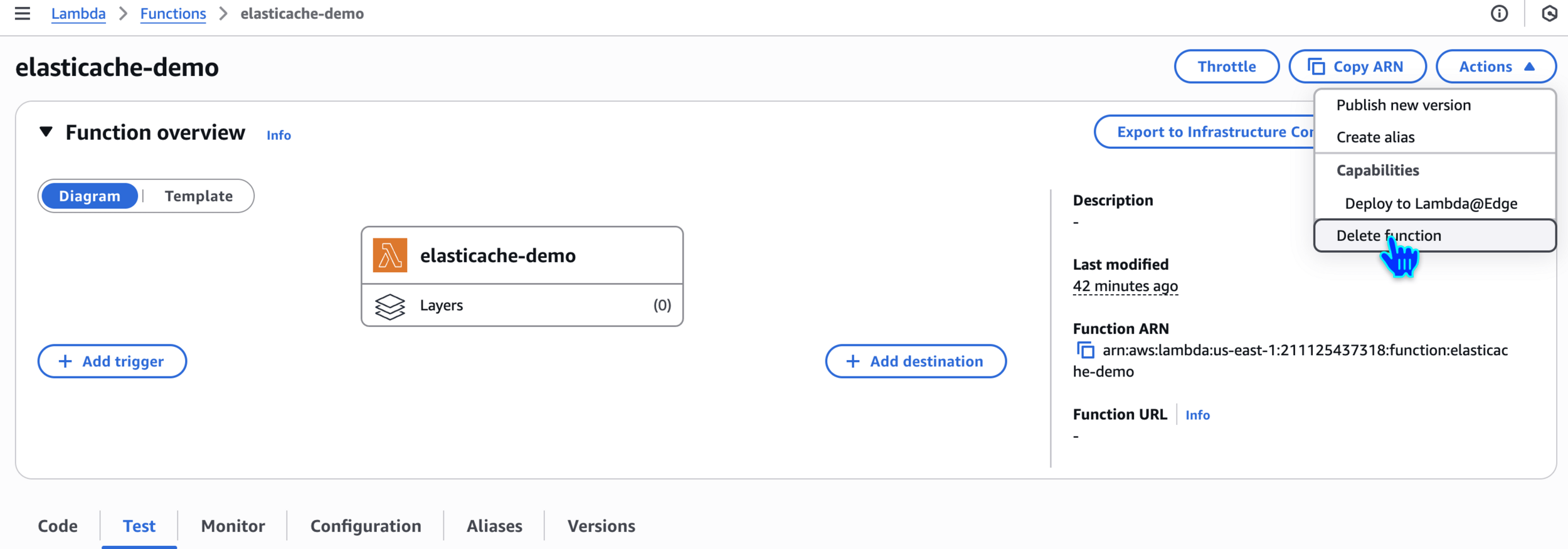

Delete Lambda Function

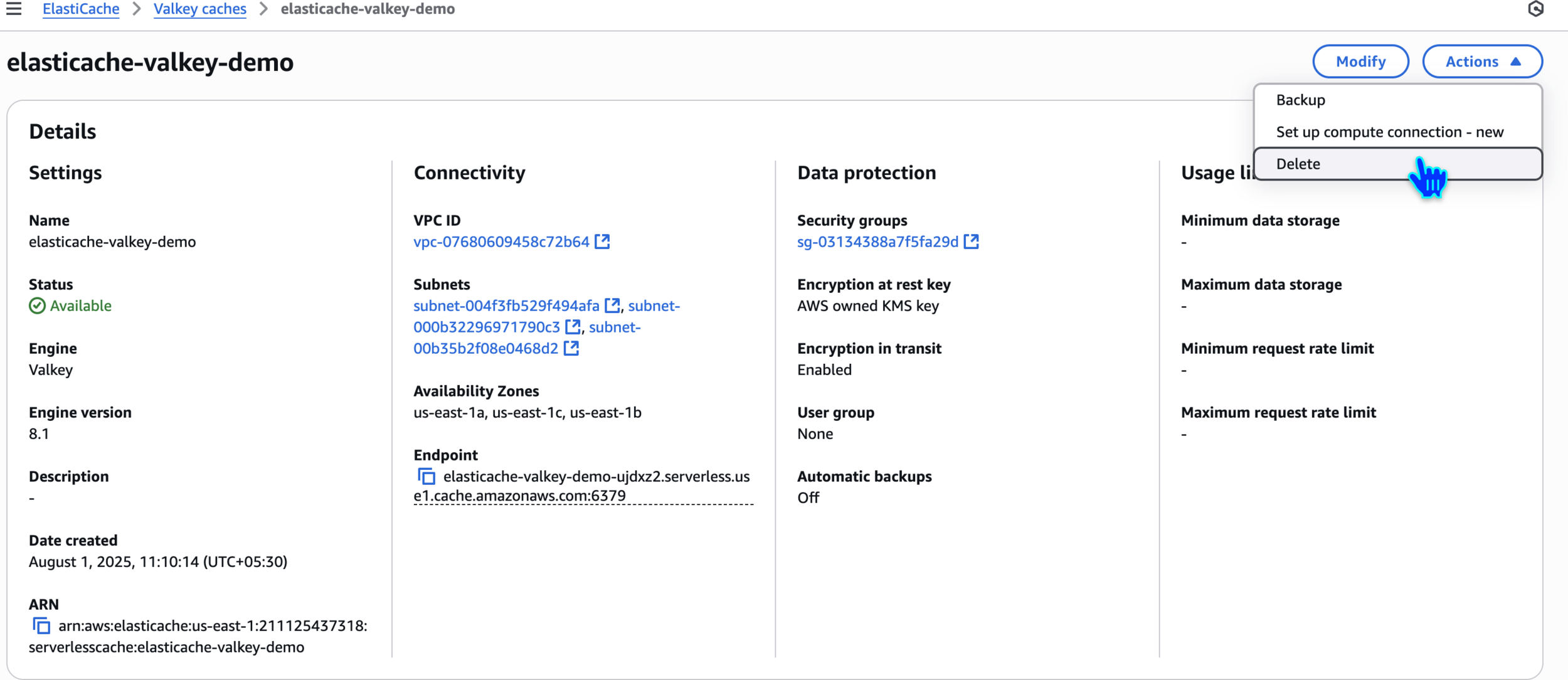

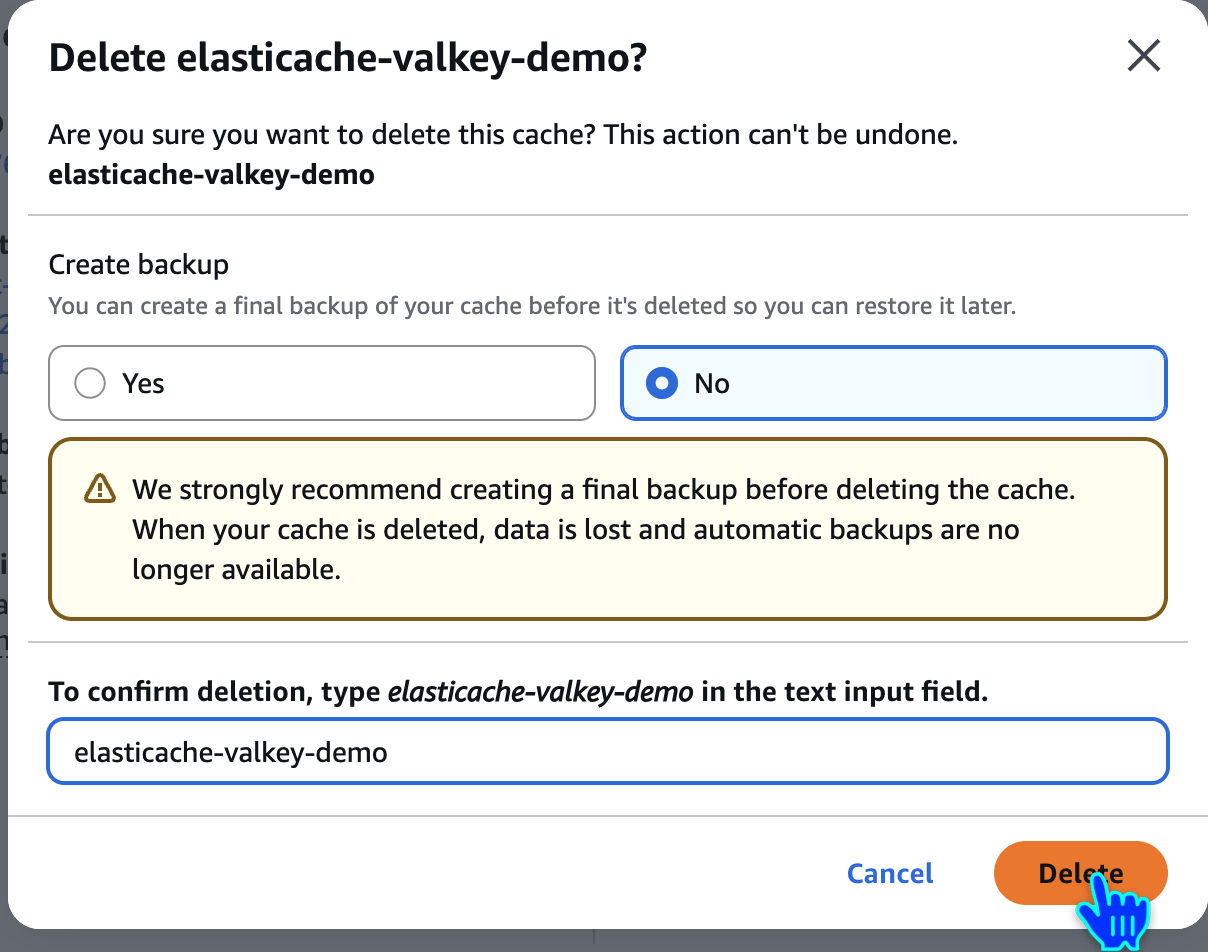

Delete Elasticache Valkey Cache

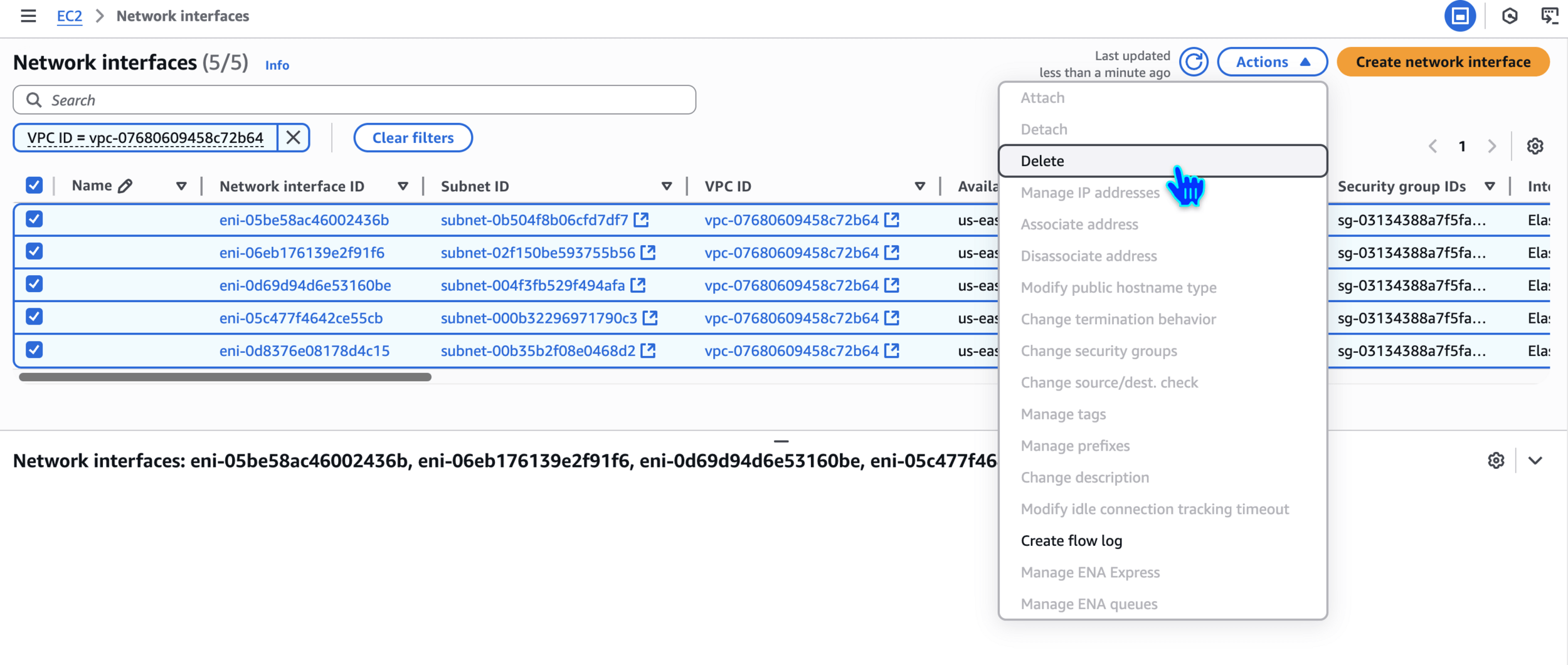

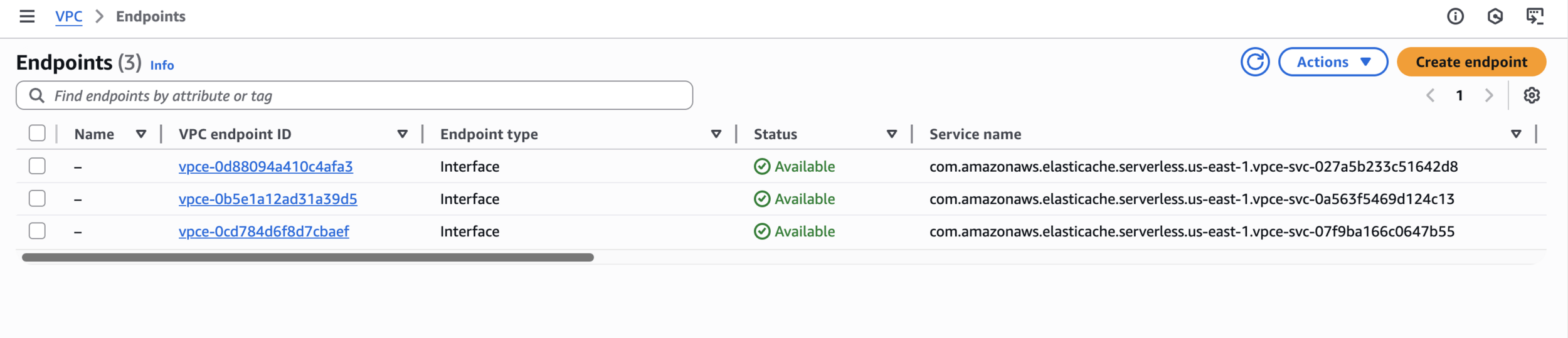

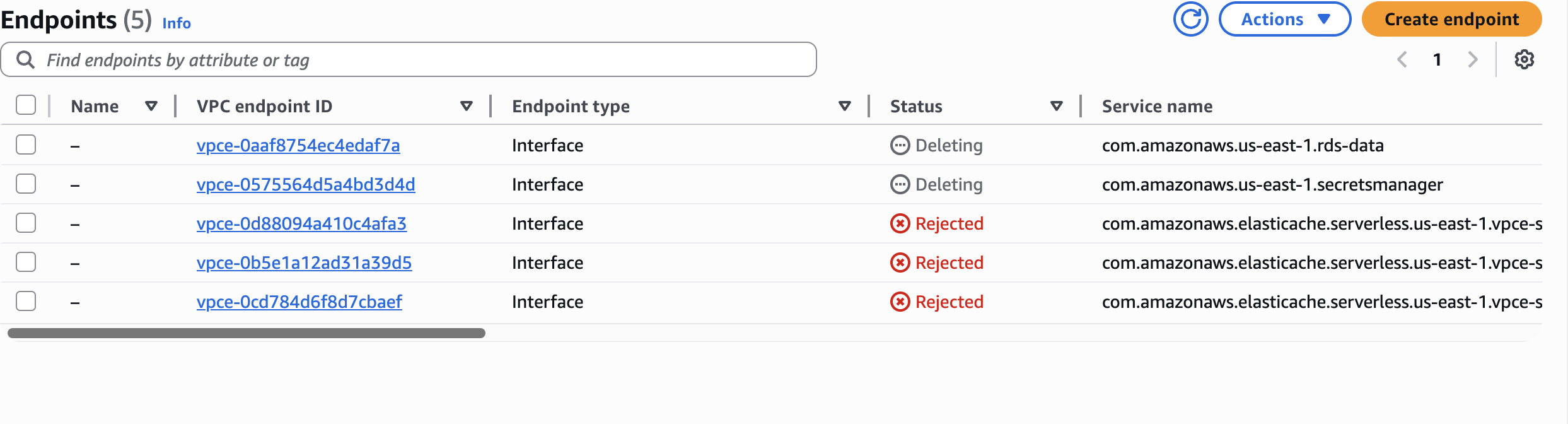

Delete VPC Endpoints

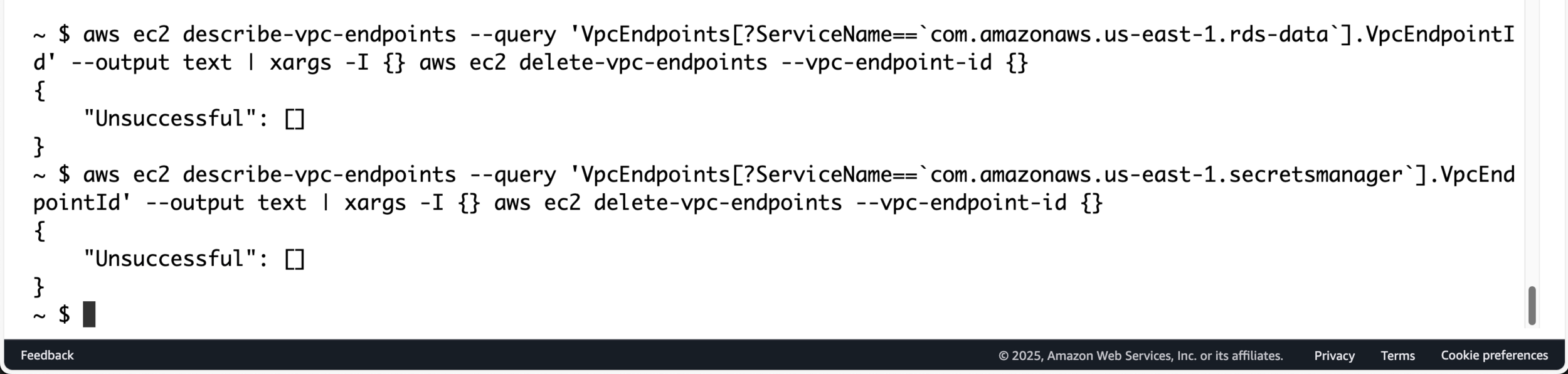

# List and delete VPC endpoints
aws ec2 describe-vpc-endpoints \
--query 'VpcEndpoints[?ServiceName==`com.amazonaws.us-east-1.rds-data`].VpcEndpointId' \
--output text | xargs -I {} aws ec2 delete-vpc-endpoints --vpc-endpoint-id {}

aws ec2 describe-vpc-endpoints \
--query 'VpcEndpoints[?ServiceName==`com.amazonaws.us-east-1.secretsmanager`].VpcEndpointId' \
--output text | xargs -I {} aws ec2 delete-vpc-endpoints --vpc-endpoint-id {}
