Amazon Fraud Detector

Hands-On

Demo

In this demo, we will:

Set up IAM roles and permissions for Amazon Fraud Detector
Create and upload training data to S3
Create variables, entity types, and labels
Create event type for new account registration
Build and train the machine learning model
Review model performance and deploy the model
Create outcomes and business rules for risk-based decisions
Build and publish the fraud detector
Test the detector with CloudShell using different risk scenarios
Monitor predictions and analyze results

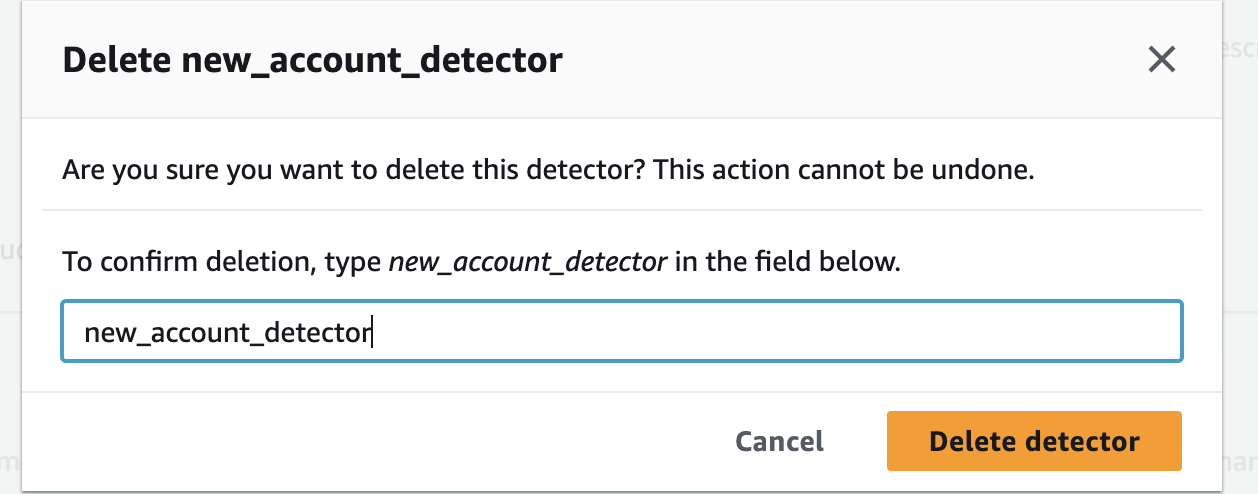

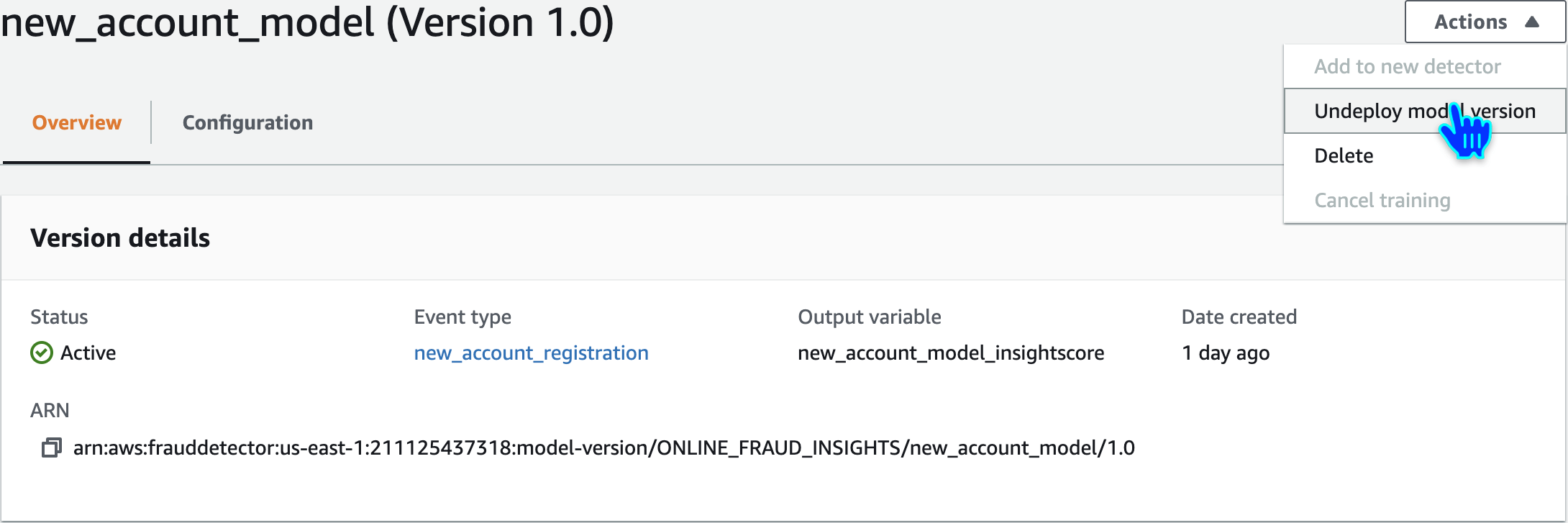

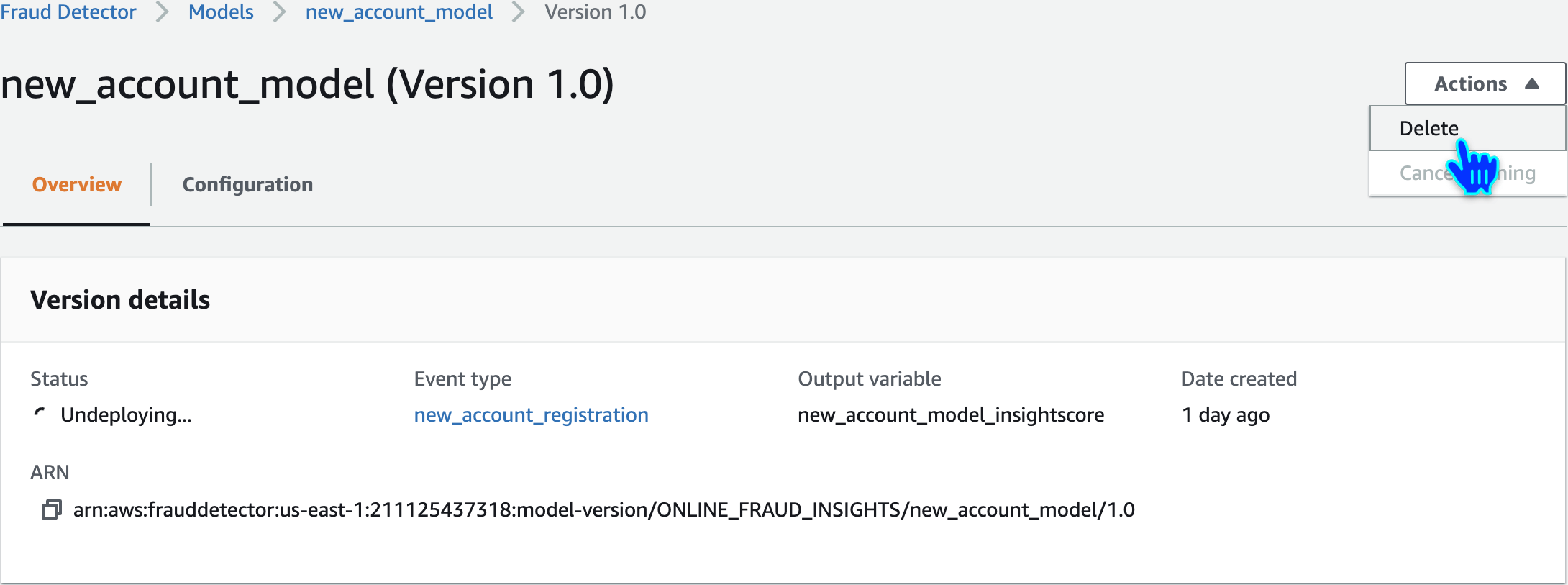

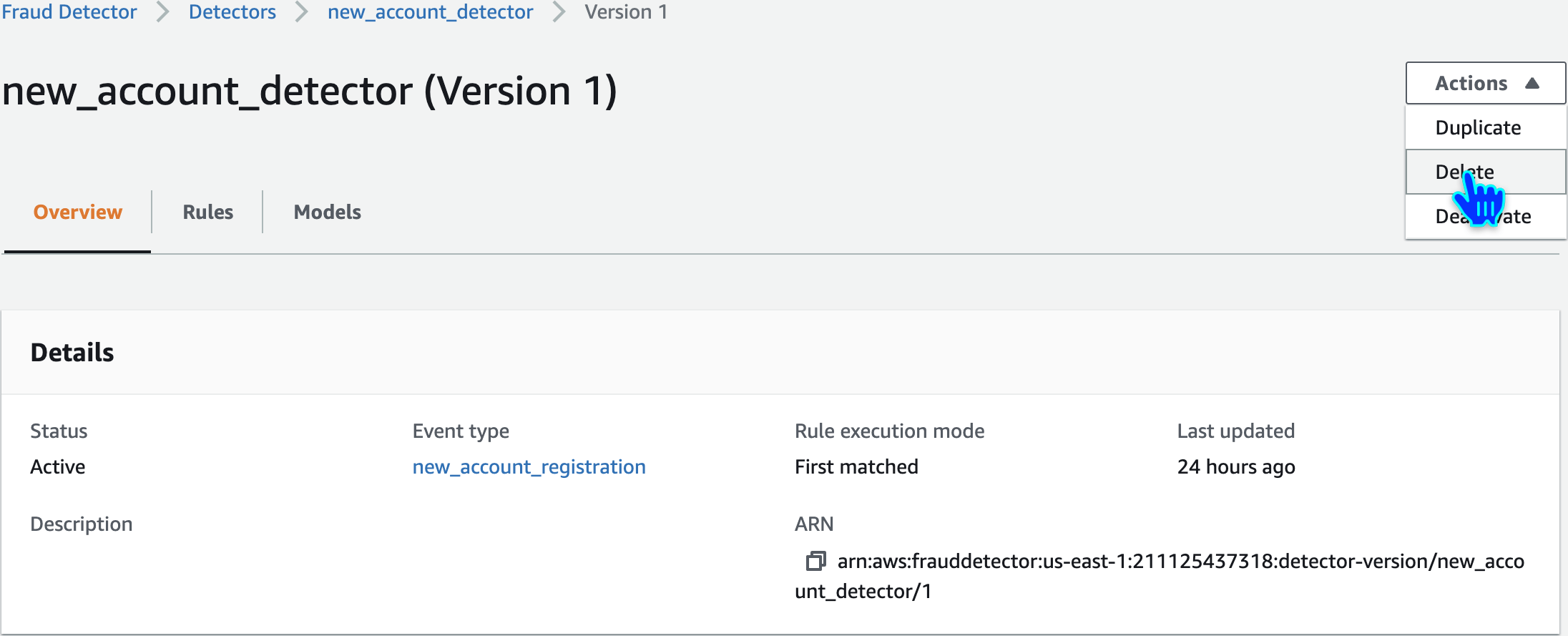

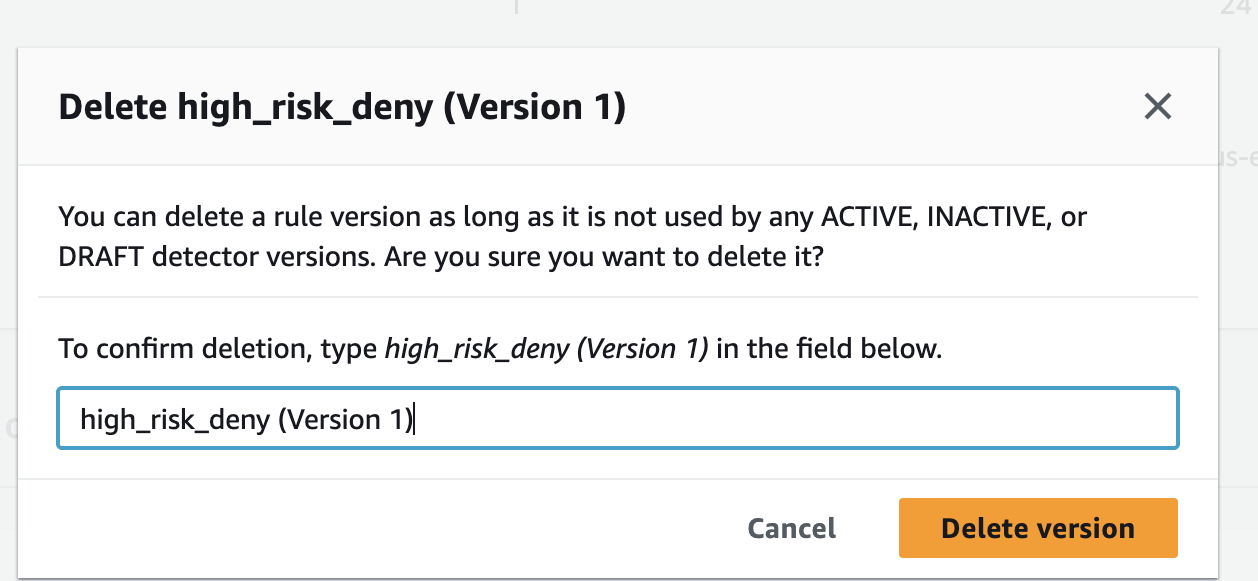

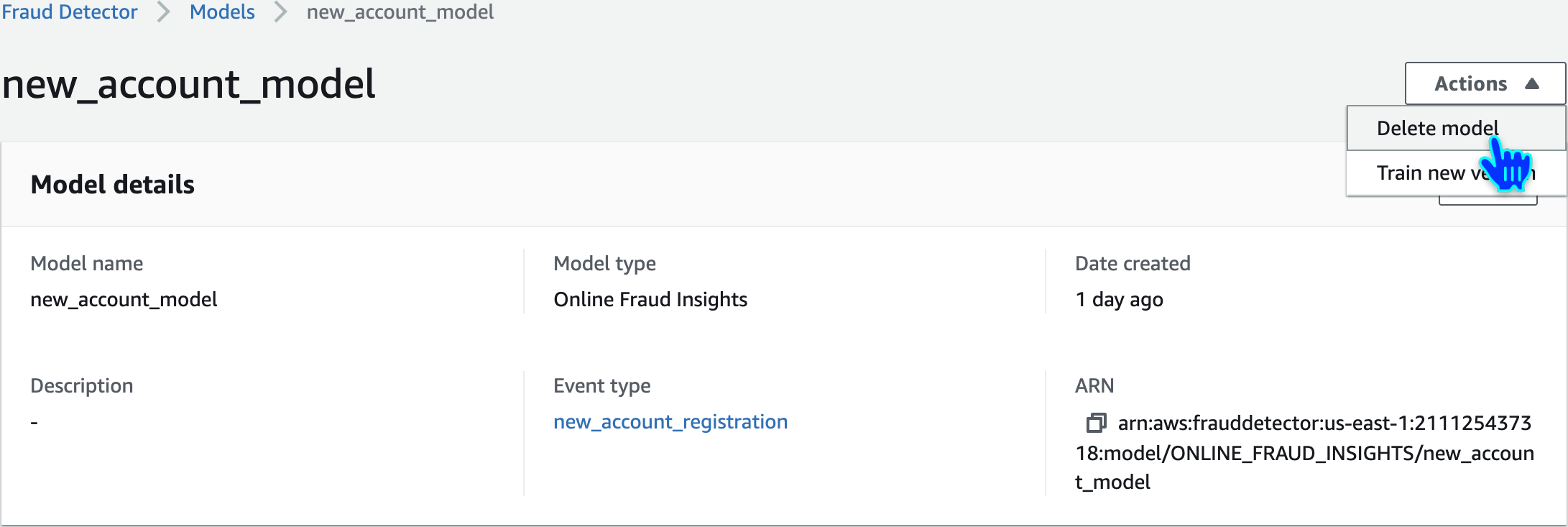

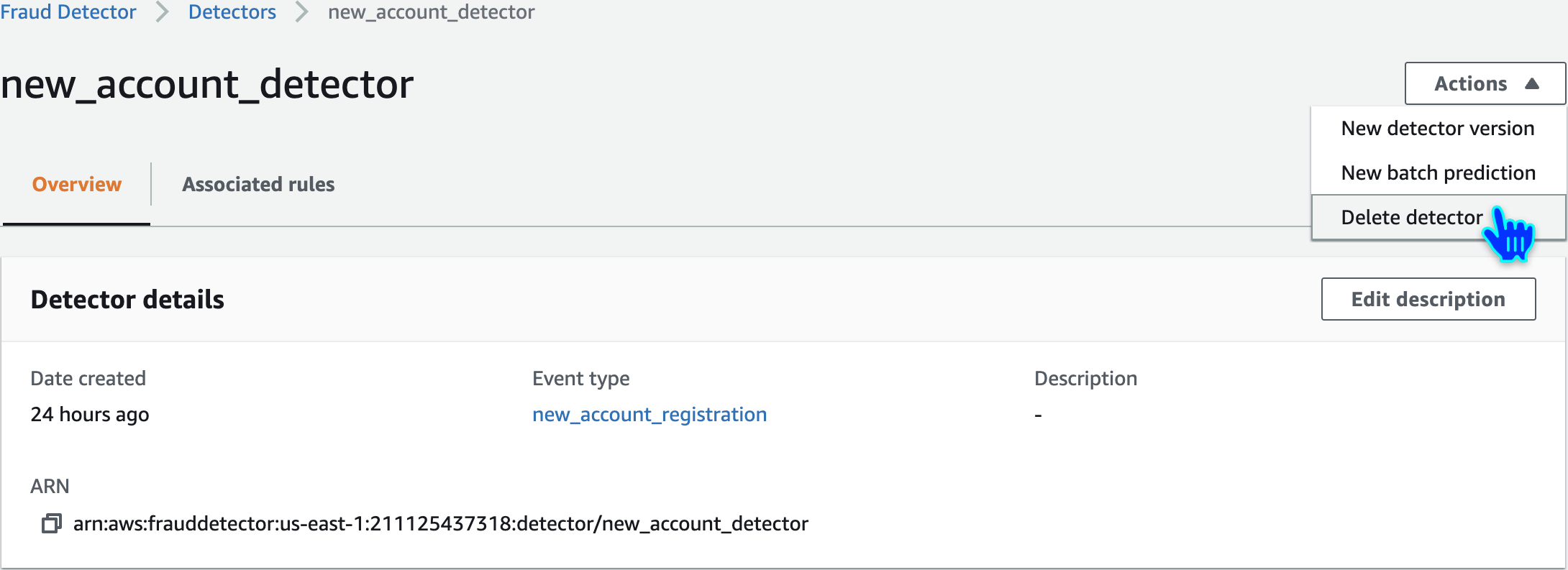

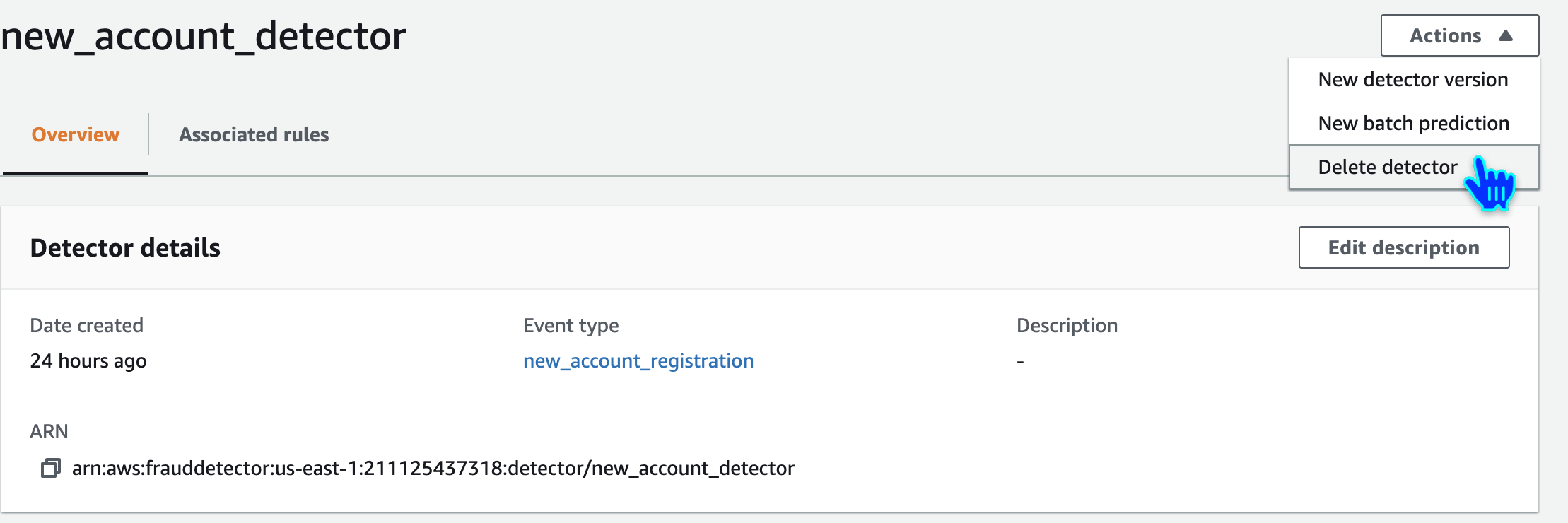

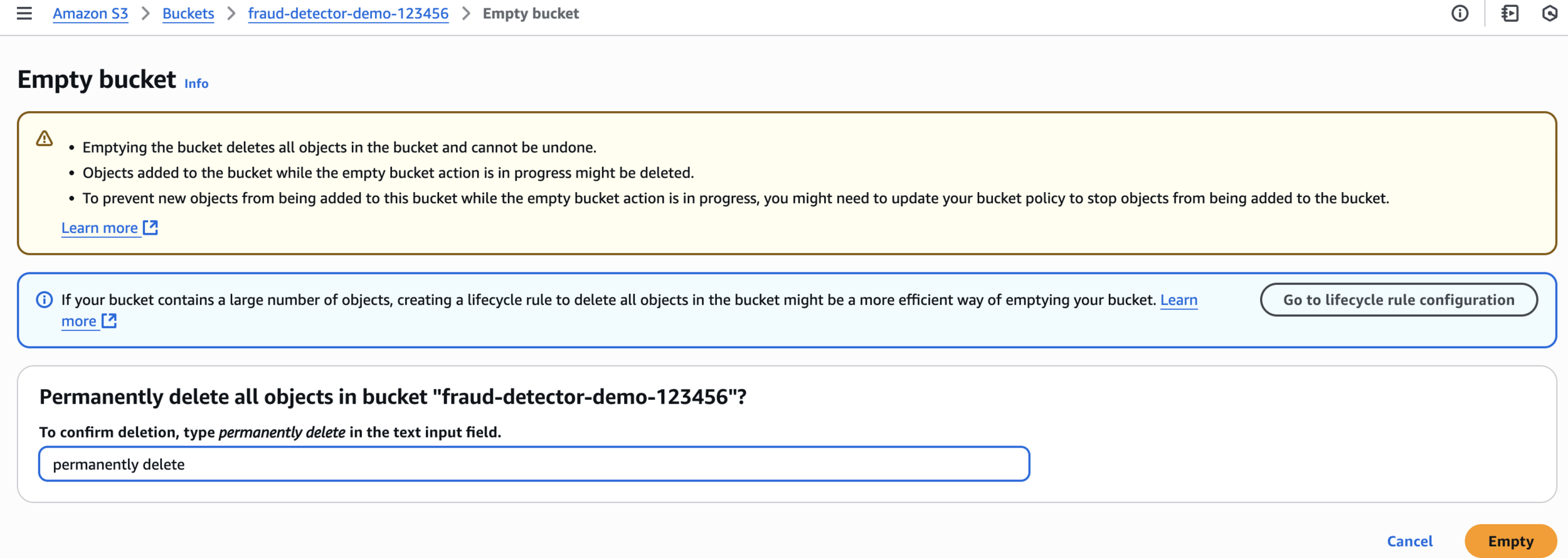

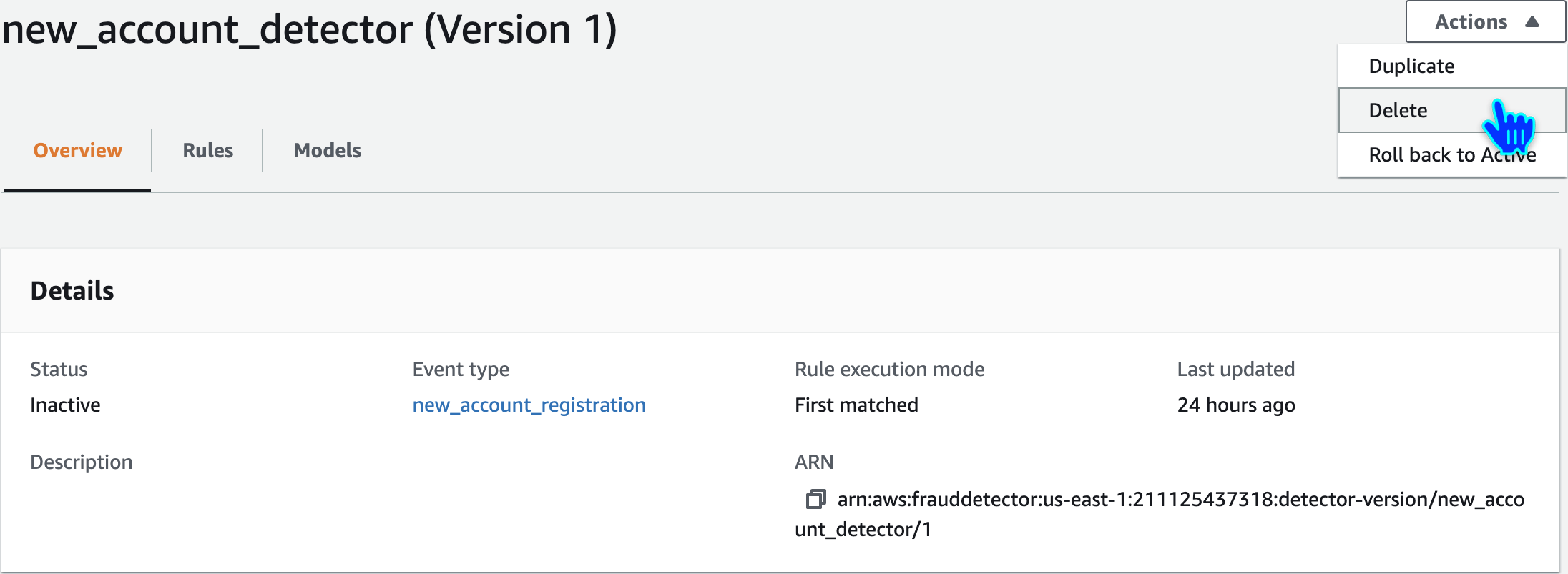

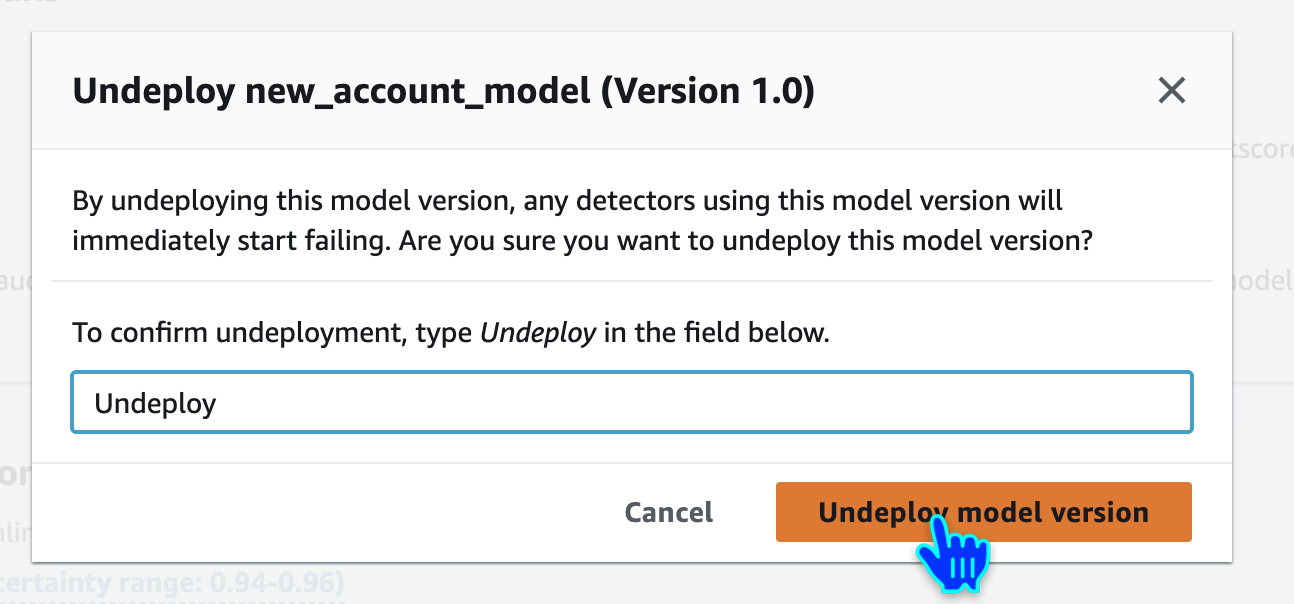

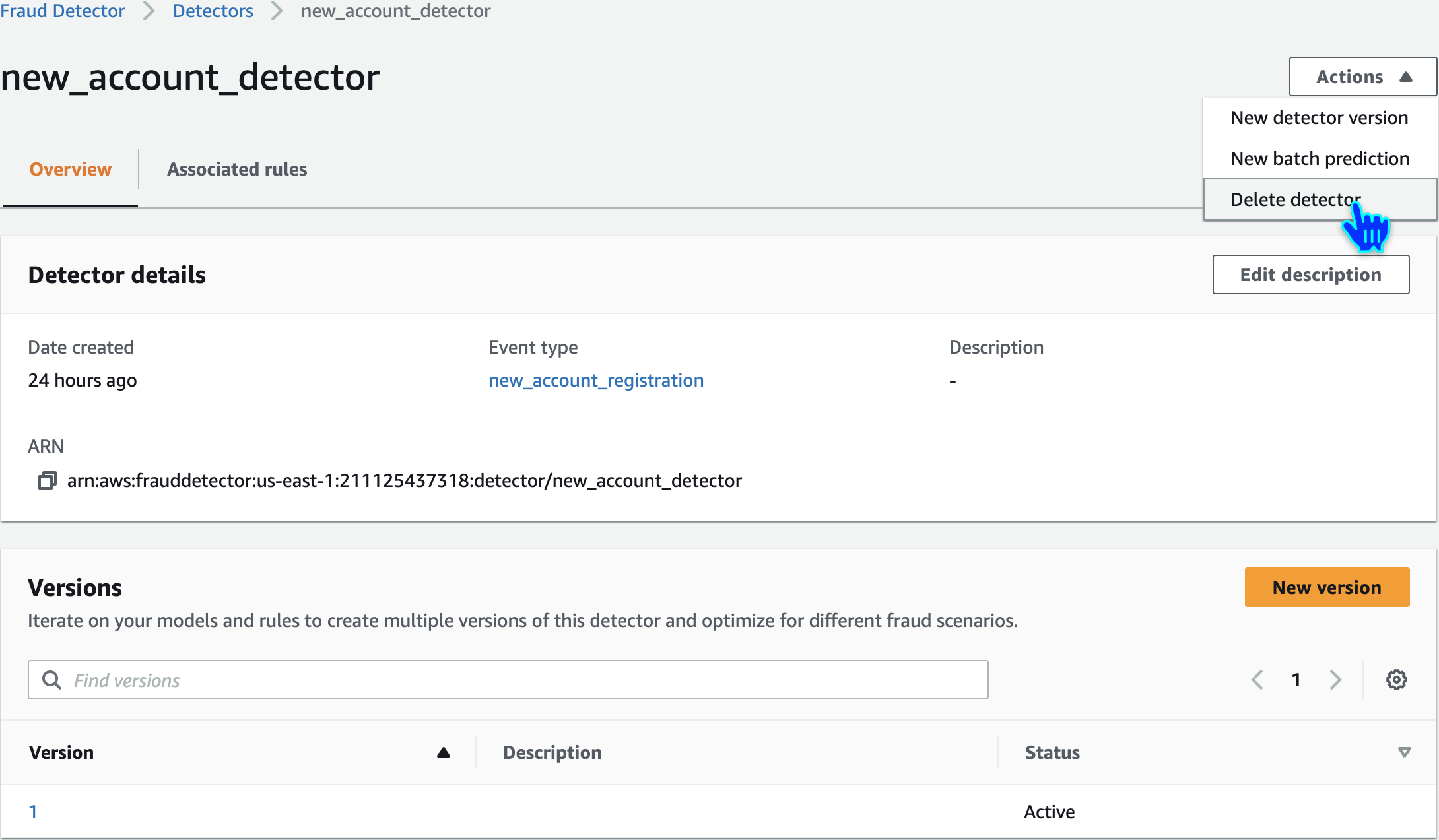

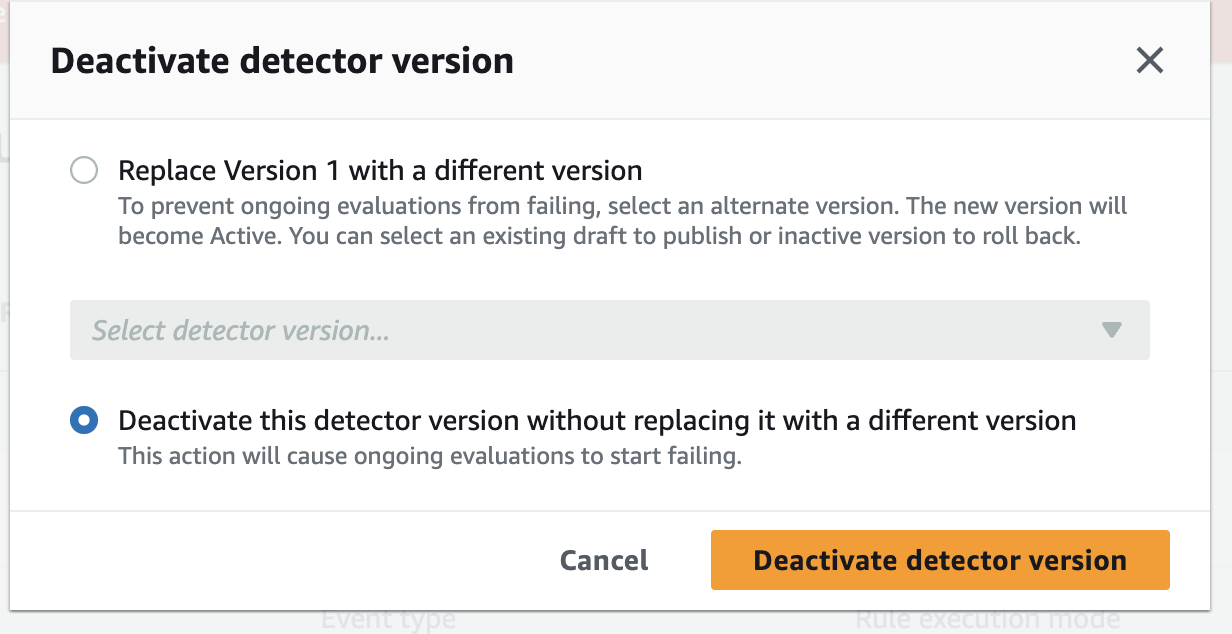

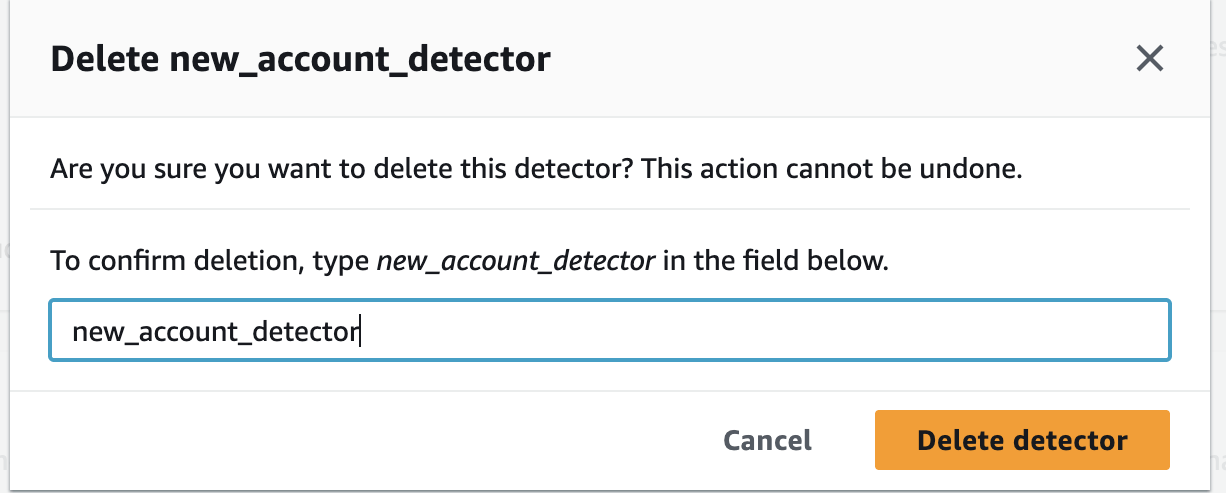

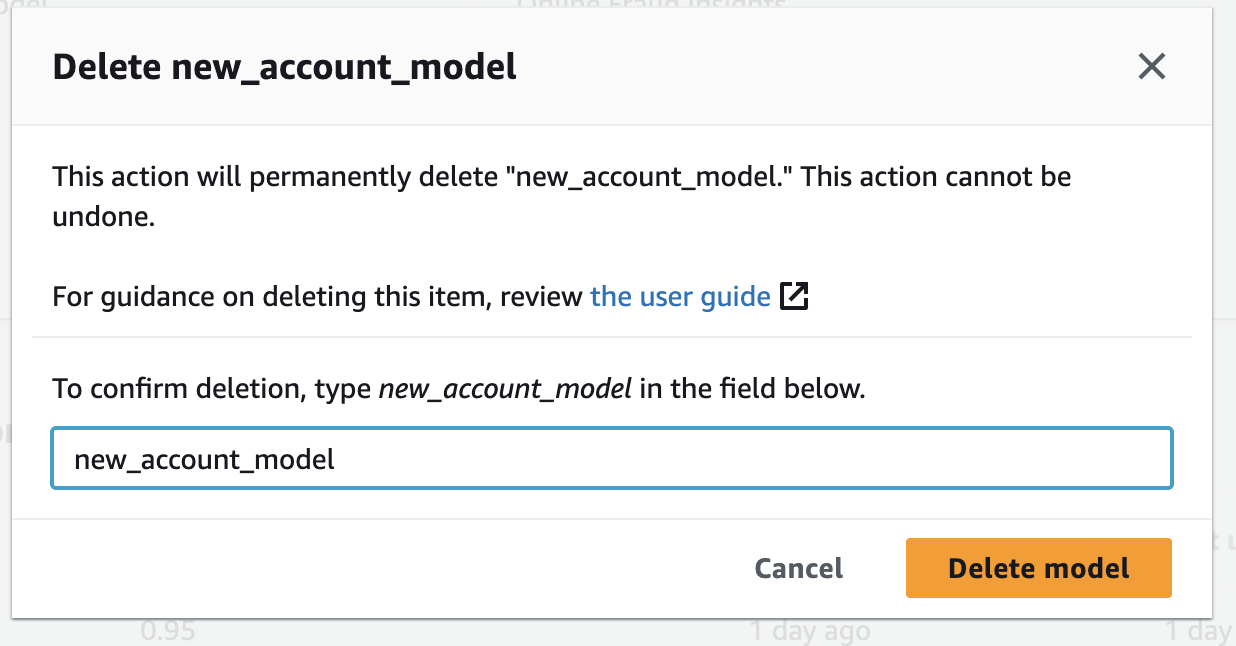

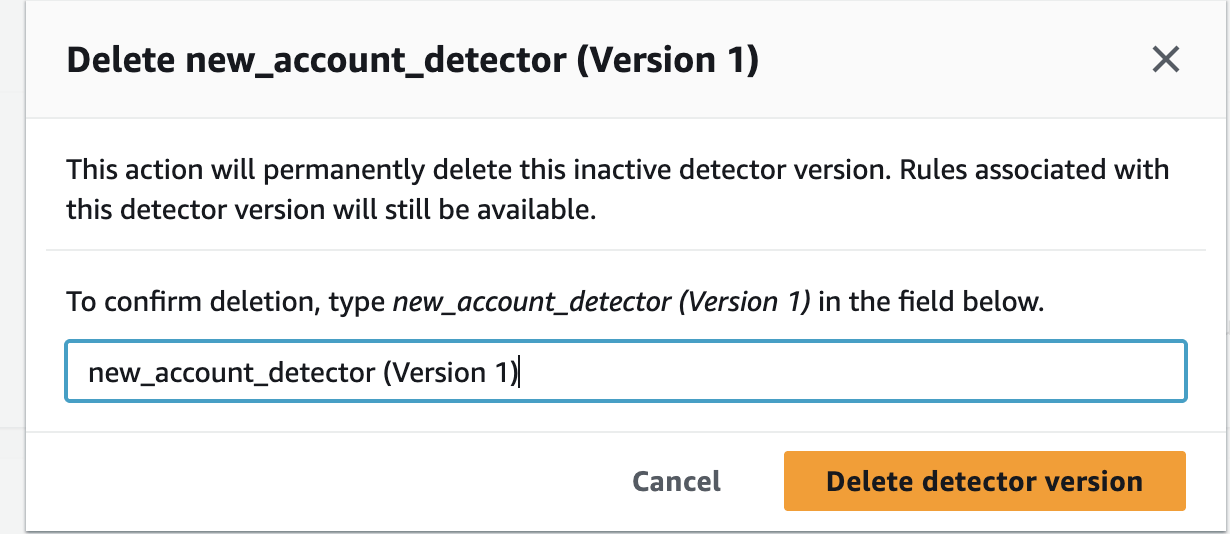

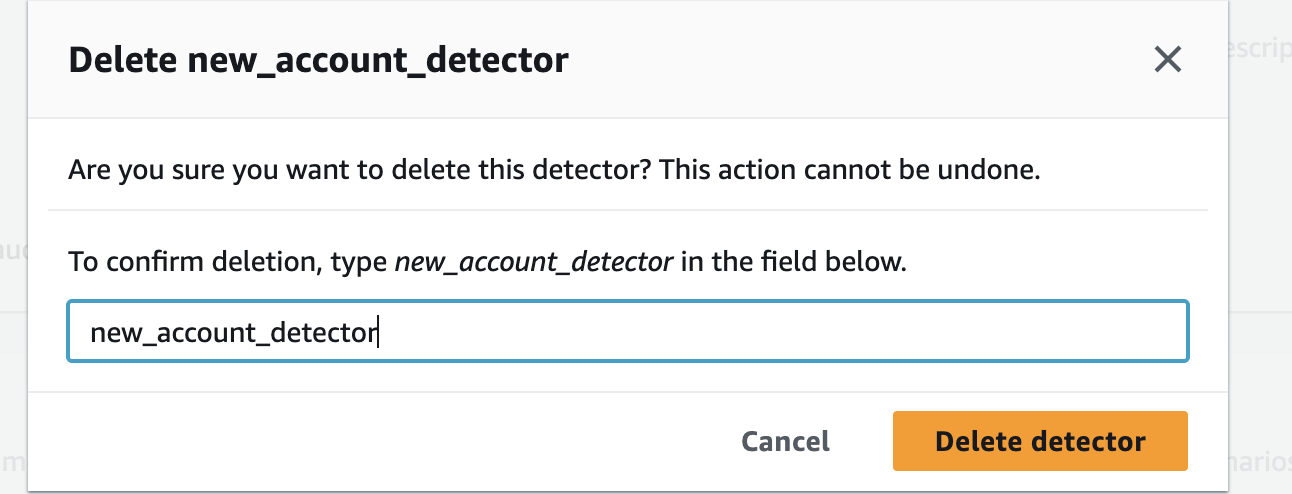

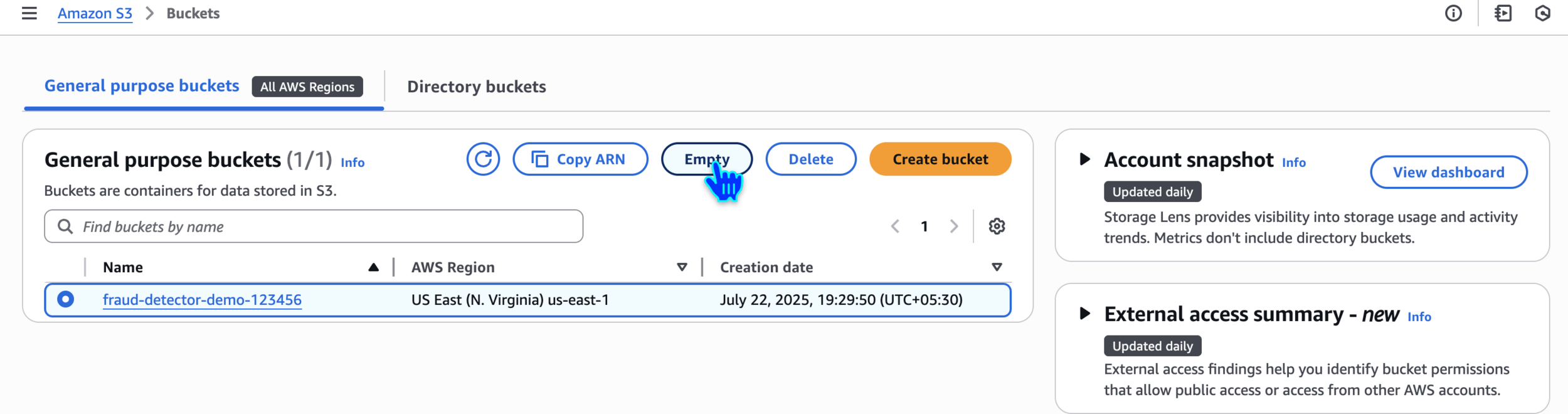

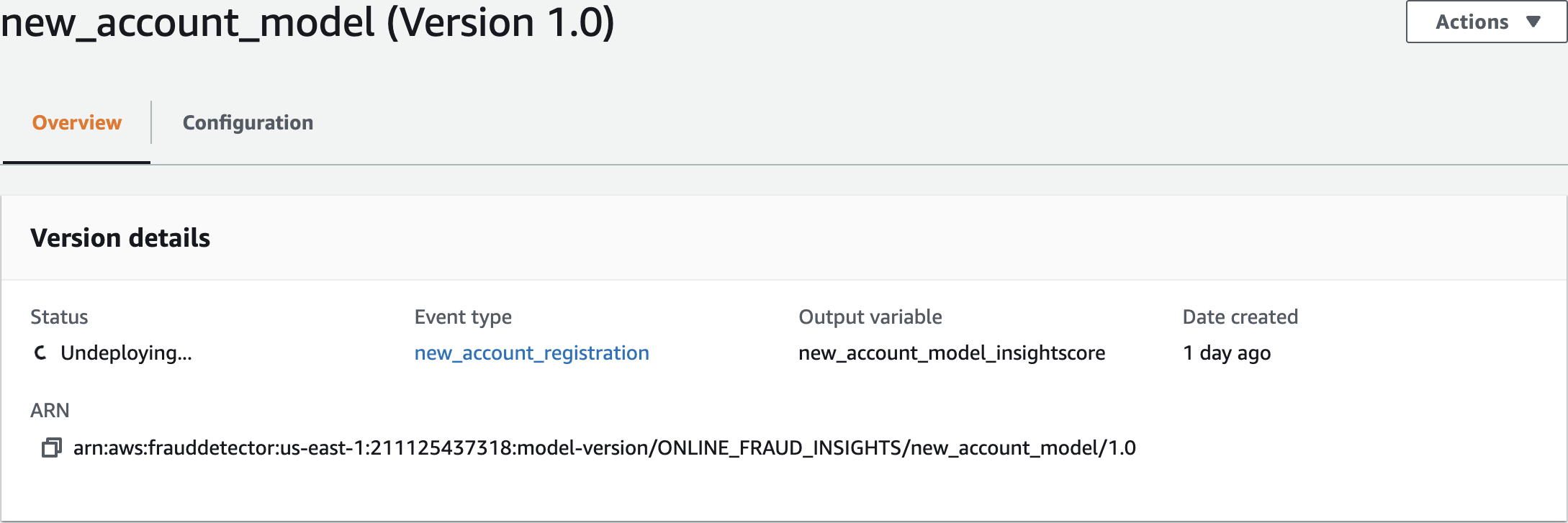

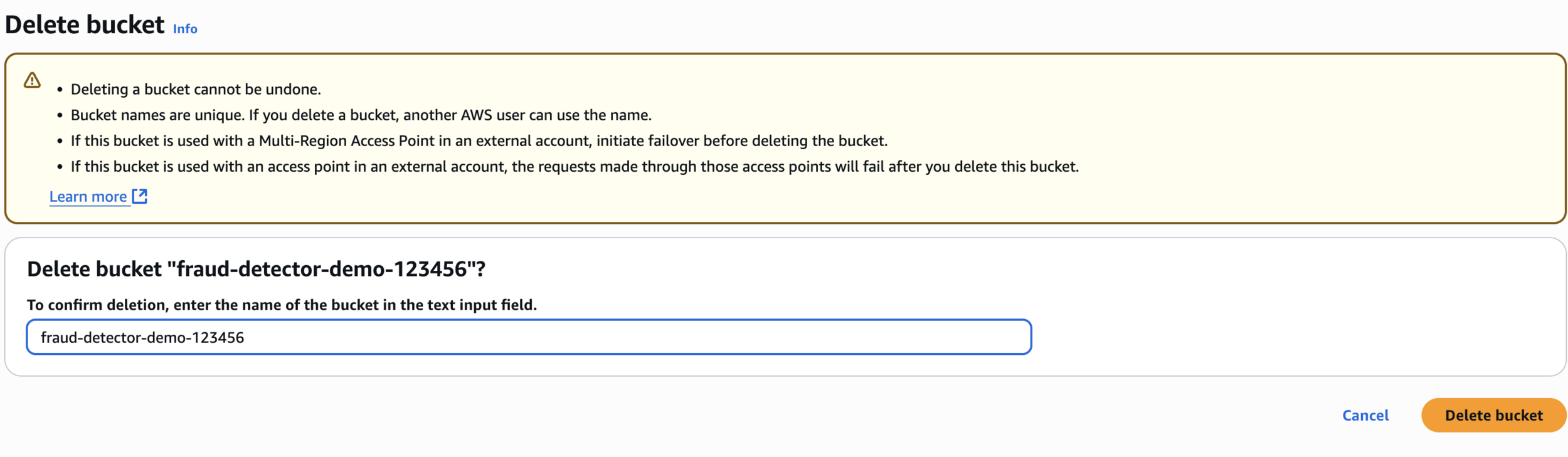

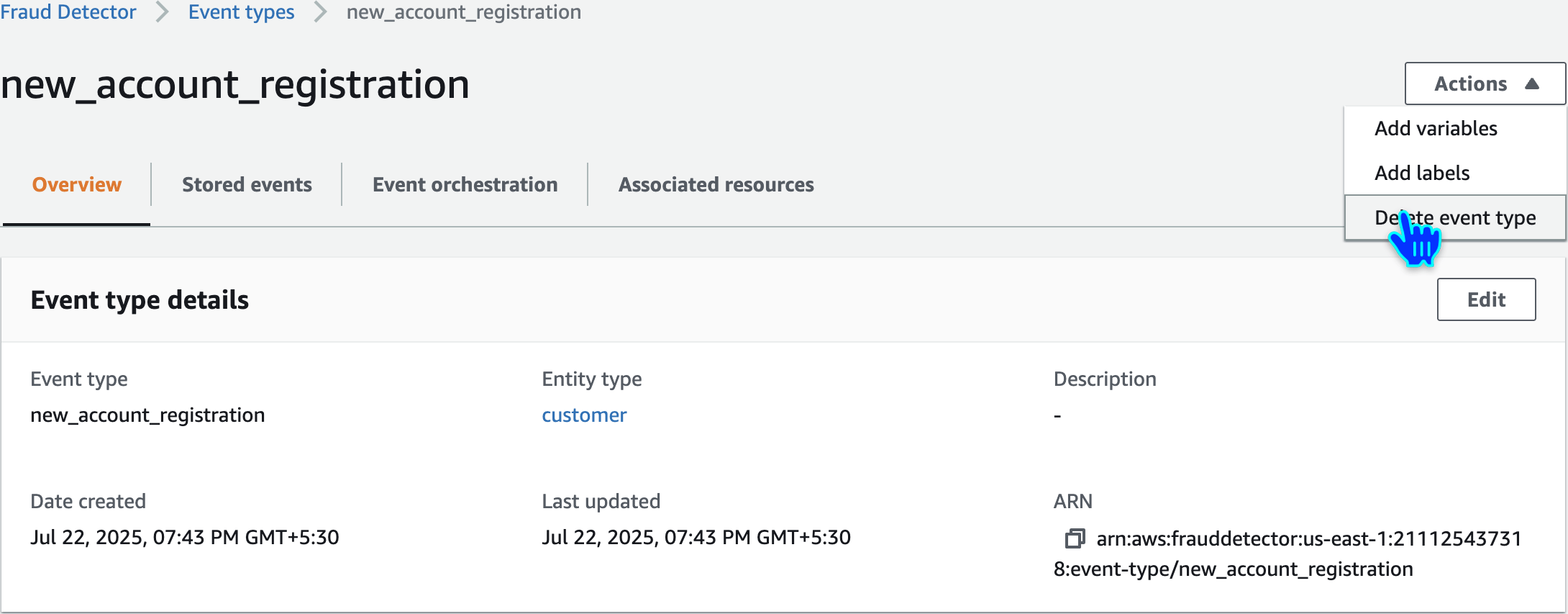

Clean up all resources

Agenda

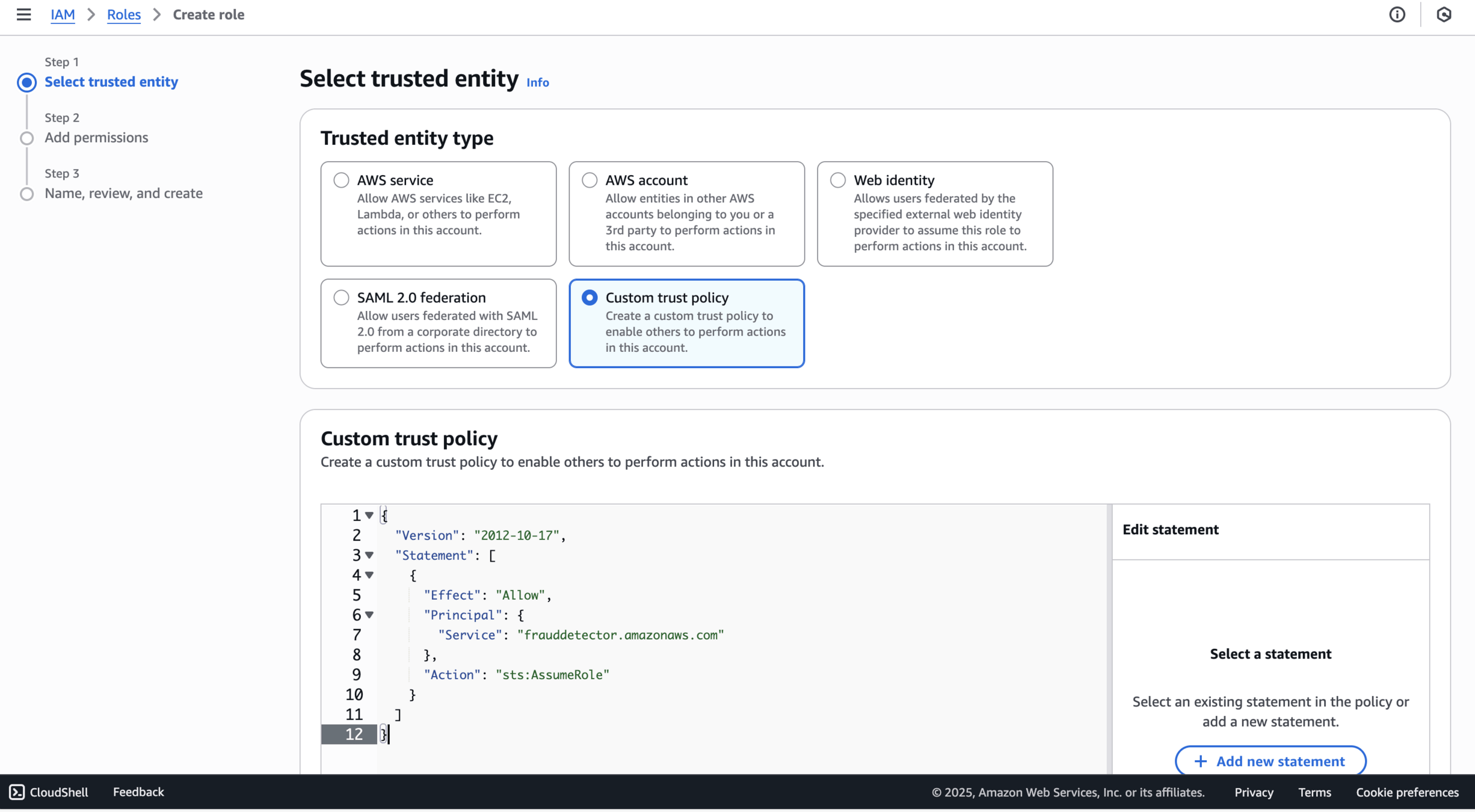

Create IAM Role

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "frauddetector.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

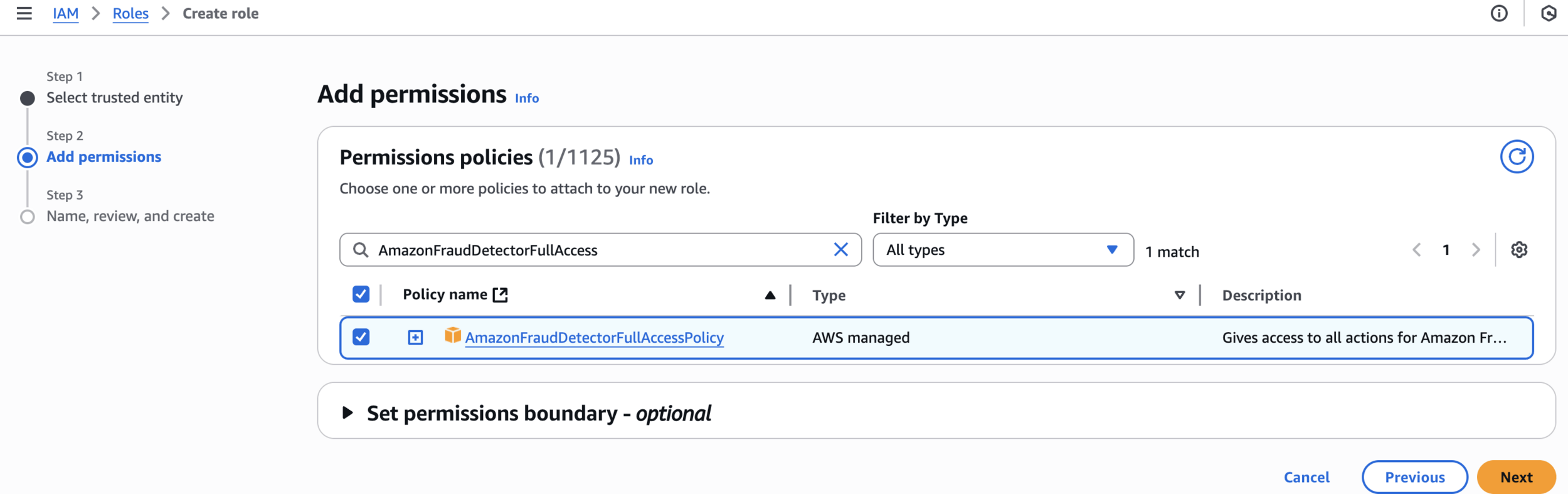

Add permissions

AmazonFraudDetectorFullAccess

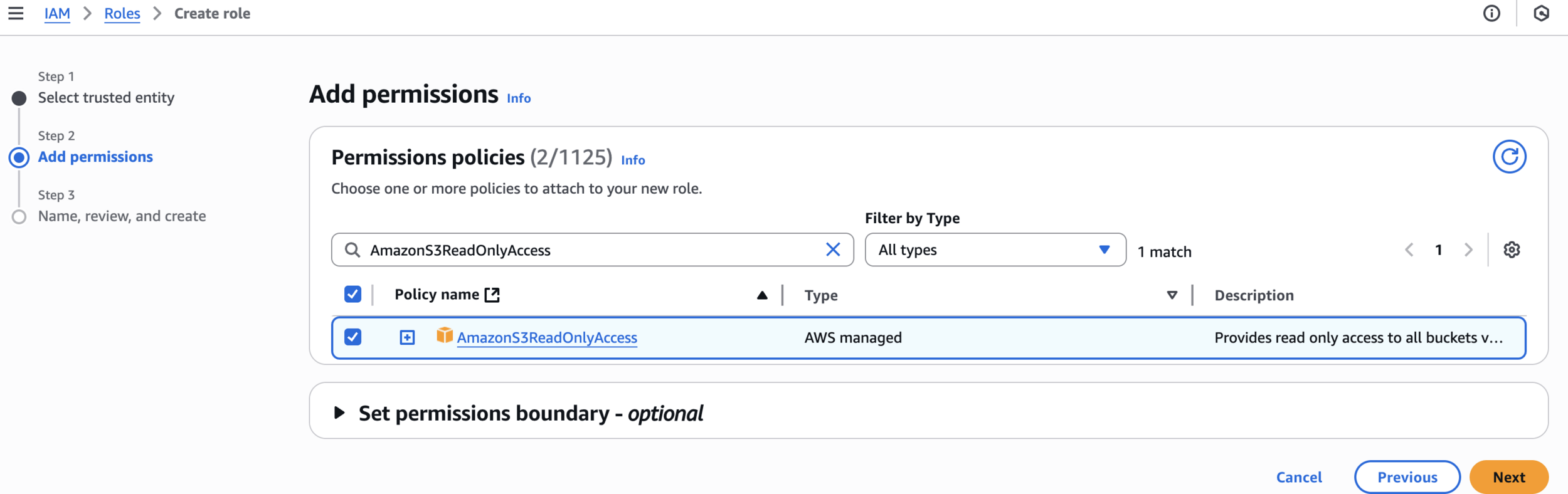

Add permissions

AmazonS3ReadOnlyAccess

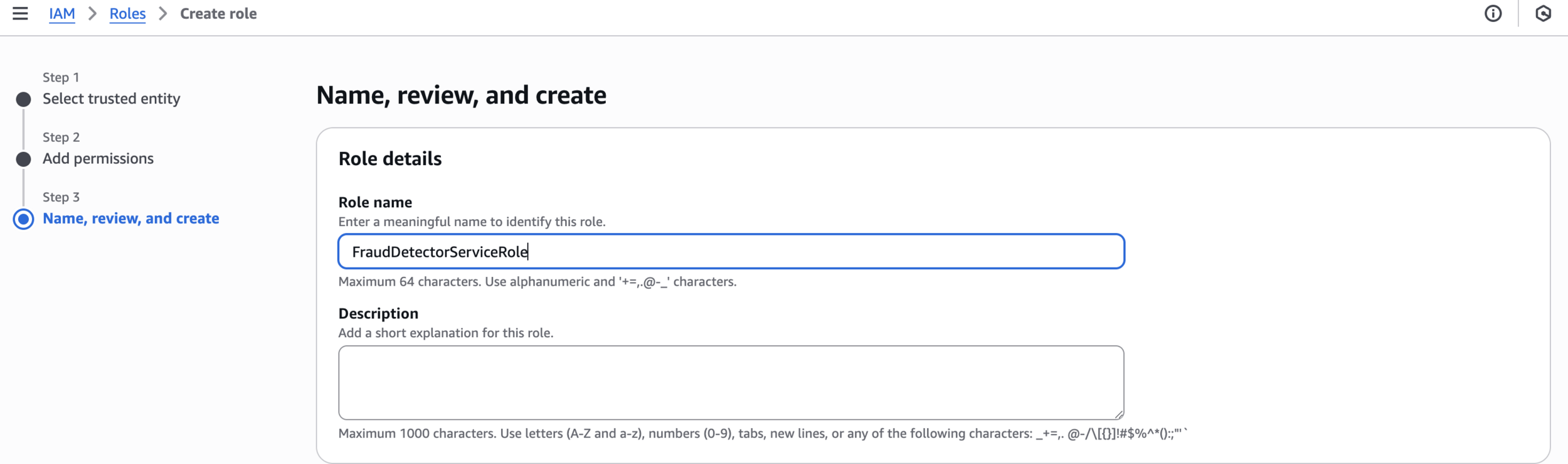

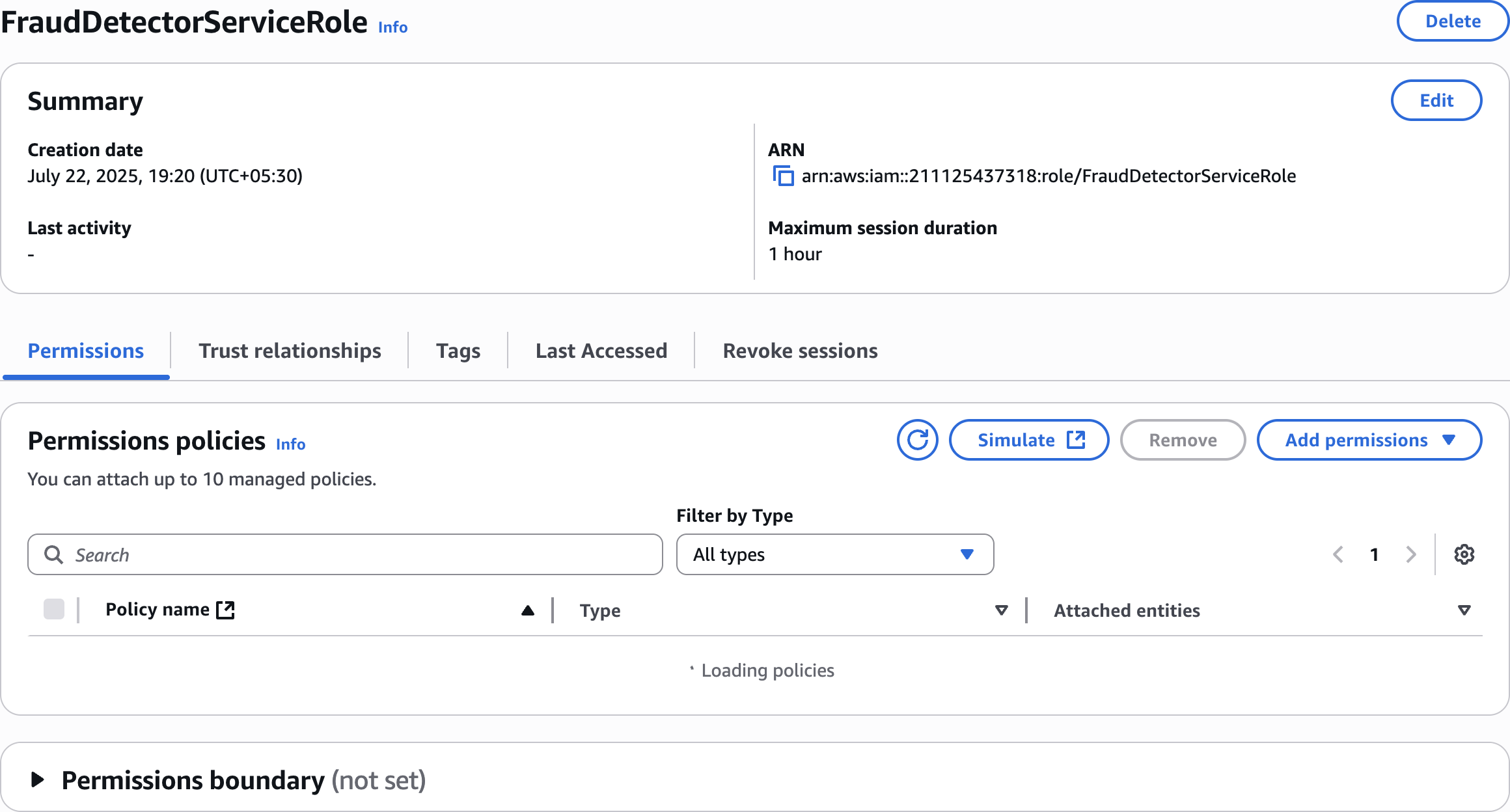

Name, review, and create

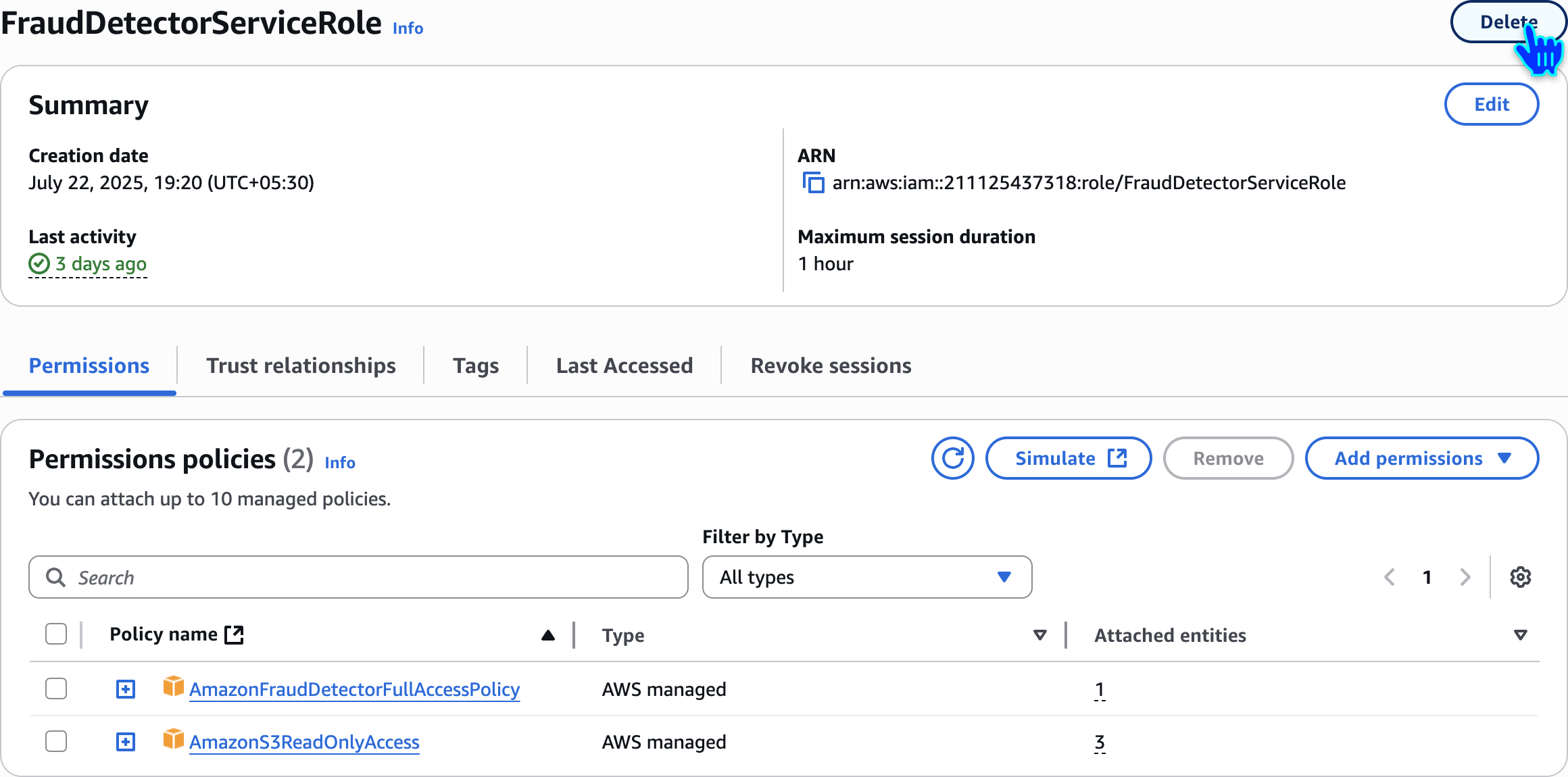

FraudDetectorServiceRole

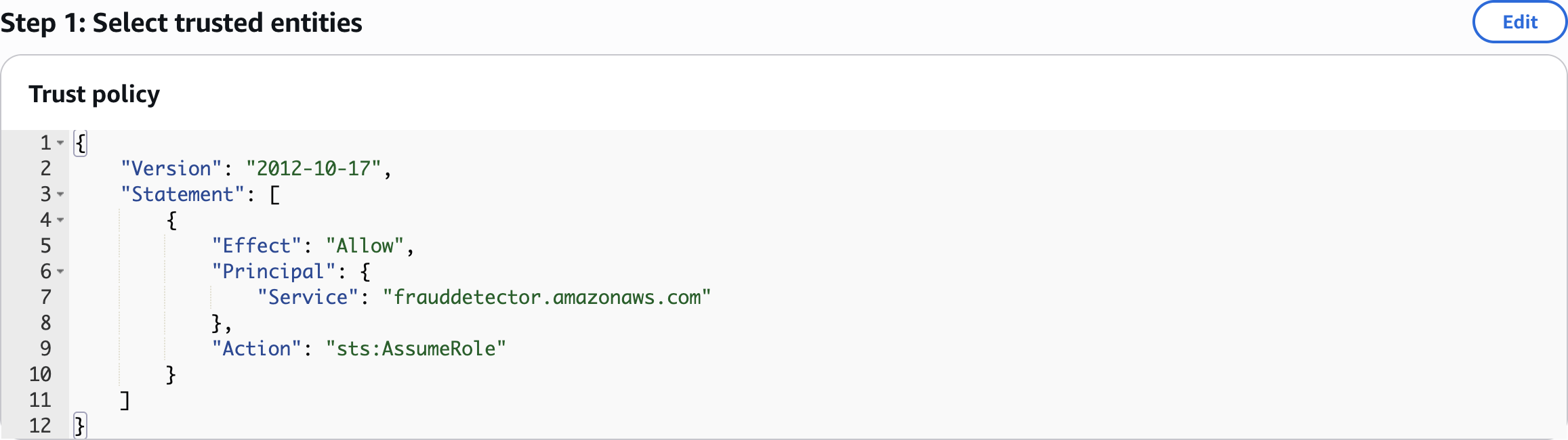

Step 1: Select trusted entities

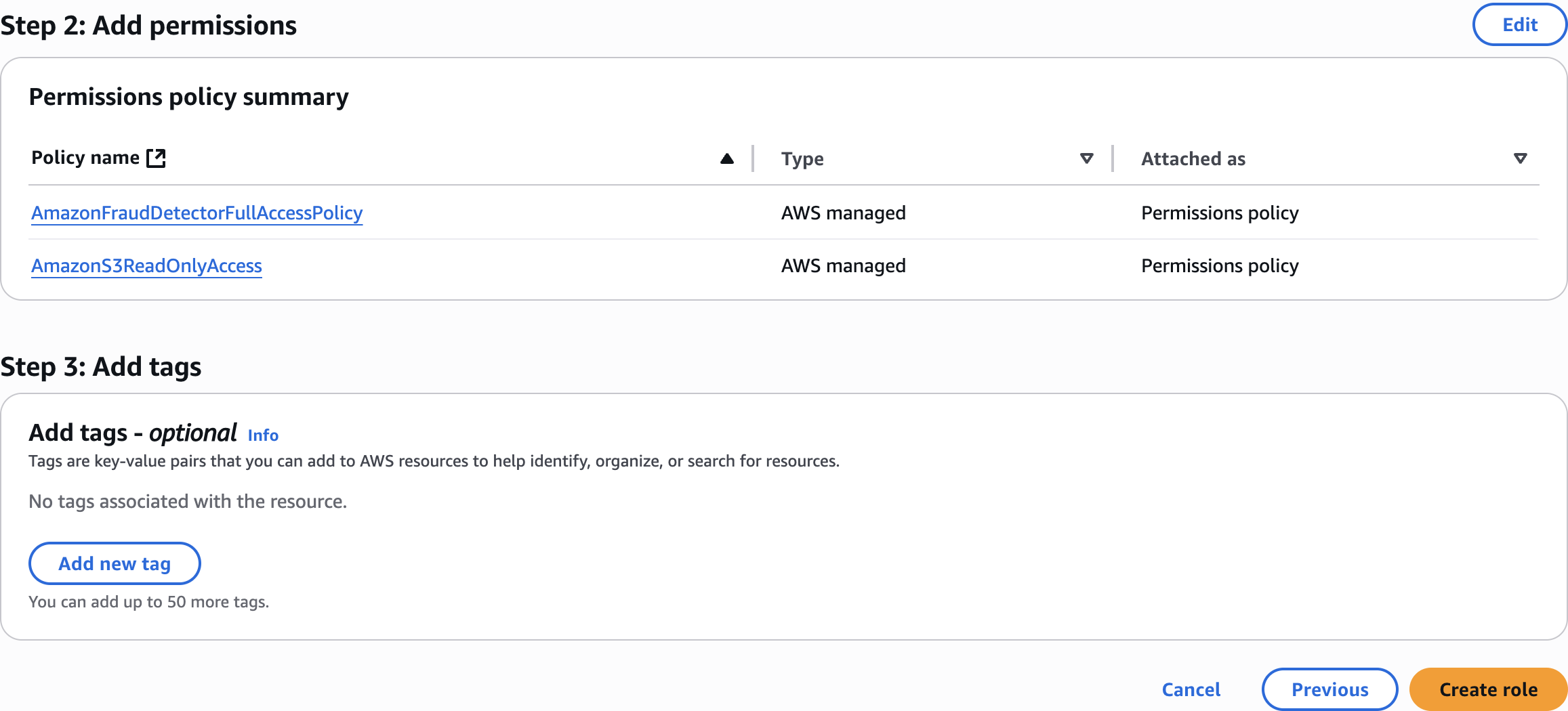

Step 2: Add permissions

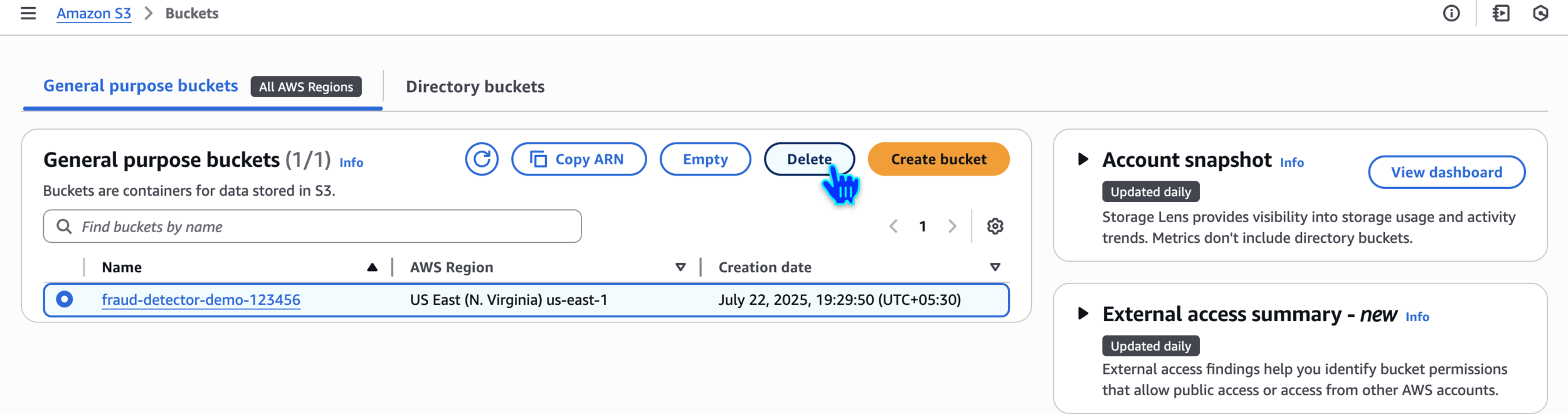

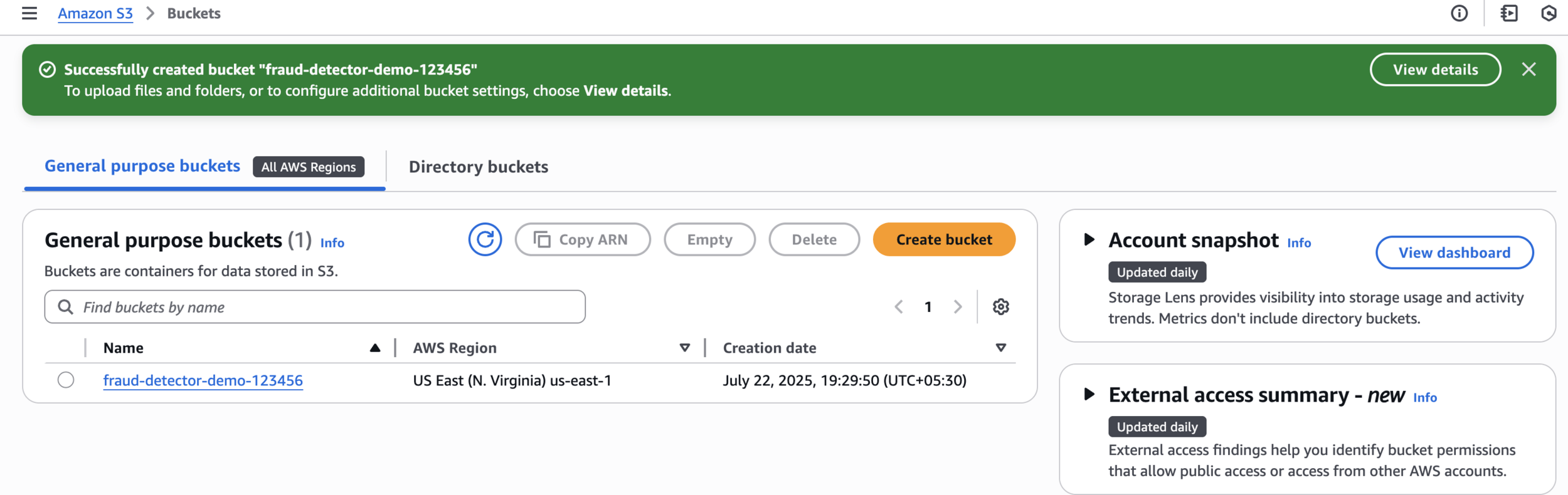

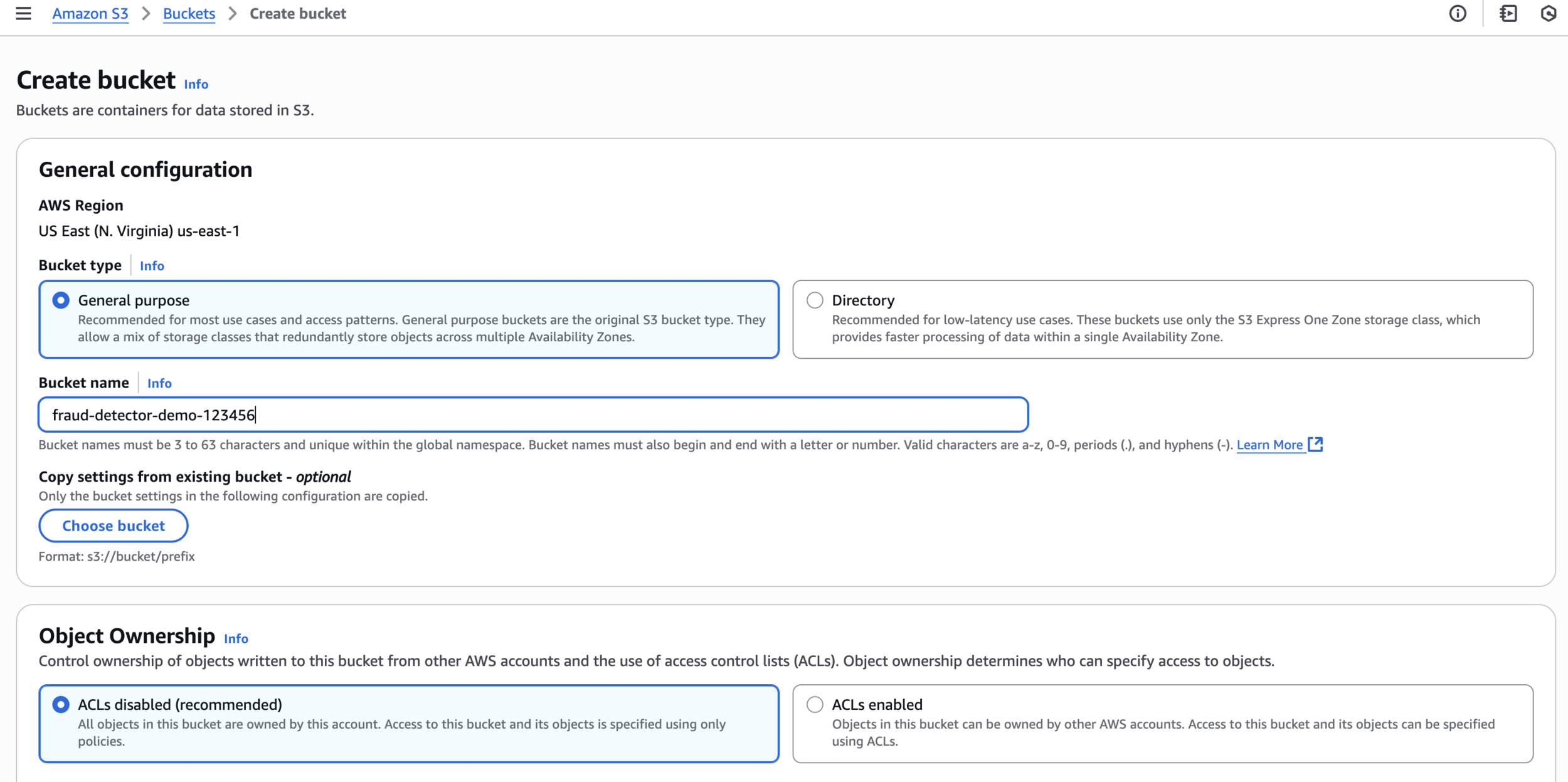

Create S3 Bucket

fraud-detector-demo-123456

Successfully created bucket "fraud-detector-demo-123456"

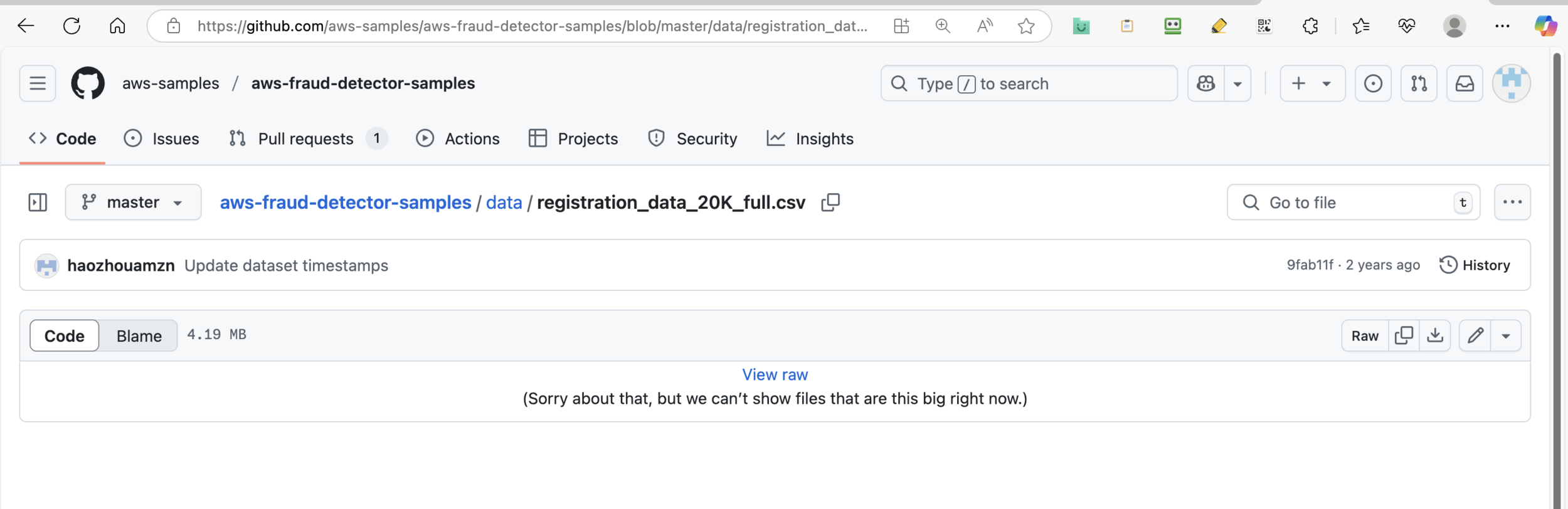

https://github.com/aws-samples/aws-fraud-detector-samples/blob/master/data/registration_data_20K_full.csv

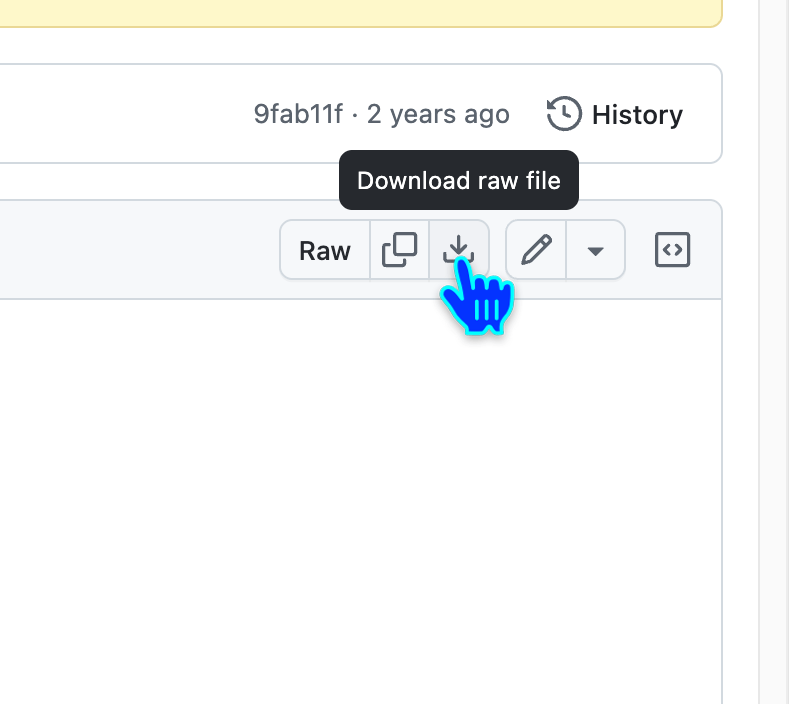

Download raw file

ip_address,email_address,billing_state,user_agent,billing_postal,phone_number,EVENT_TIMESTAMP,billing_address,EVENT_LABEL
112.136.132.151,fake_cgonzales@example.net,NC,"Mozilla/5.0 (iPad; CPU iPad OS 10_3_3 like Mac OS X) AppleWebKit/532.2 (KHTML, like Gecko) CriOS/34.0.827.0 Mobile/13K063 Safari/532.2",34491,(555)333 - 9246,2022-10-14T00:28:30Z,12351 Amanda Knolls Fake St.,legit
192.169.234.143,fake_dustin64@example.net,CO,"Mozilla/5.0 (Windows; U; Windows NT 6.1) AppleWebKit/532.44.3 (KHTML, like Gecko) Version/4.0.3 Safari/532.44.3",34555,(555)779 - 5604,2022-11-29T22:19:40Z,691 Deborah Estate Fake St.,legit
185.112.224.79,fake_samuel59@example.net,CO,"Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10_7_0 rv:5.0; mr-IN) AppleWebKit/532.25.5 (KHTML, like Gecko) Version/4.0 Safari/532.25.5",33611,(555)948 - 9198,2023-02-18T09:16:19Z,28583 Joseph Tunnel Fake St.,legit
68.73.183.186,fake_tinalopez@example.net,TN,"Mozilla/5.0 (Linux; Android 7.1.1) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/59.0.807.0 Safari/535.1",33520,(555)477 - 7885,2022-12-19T09:13:35Z,019 Linda Via Fake St.,legit

Sample File

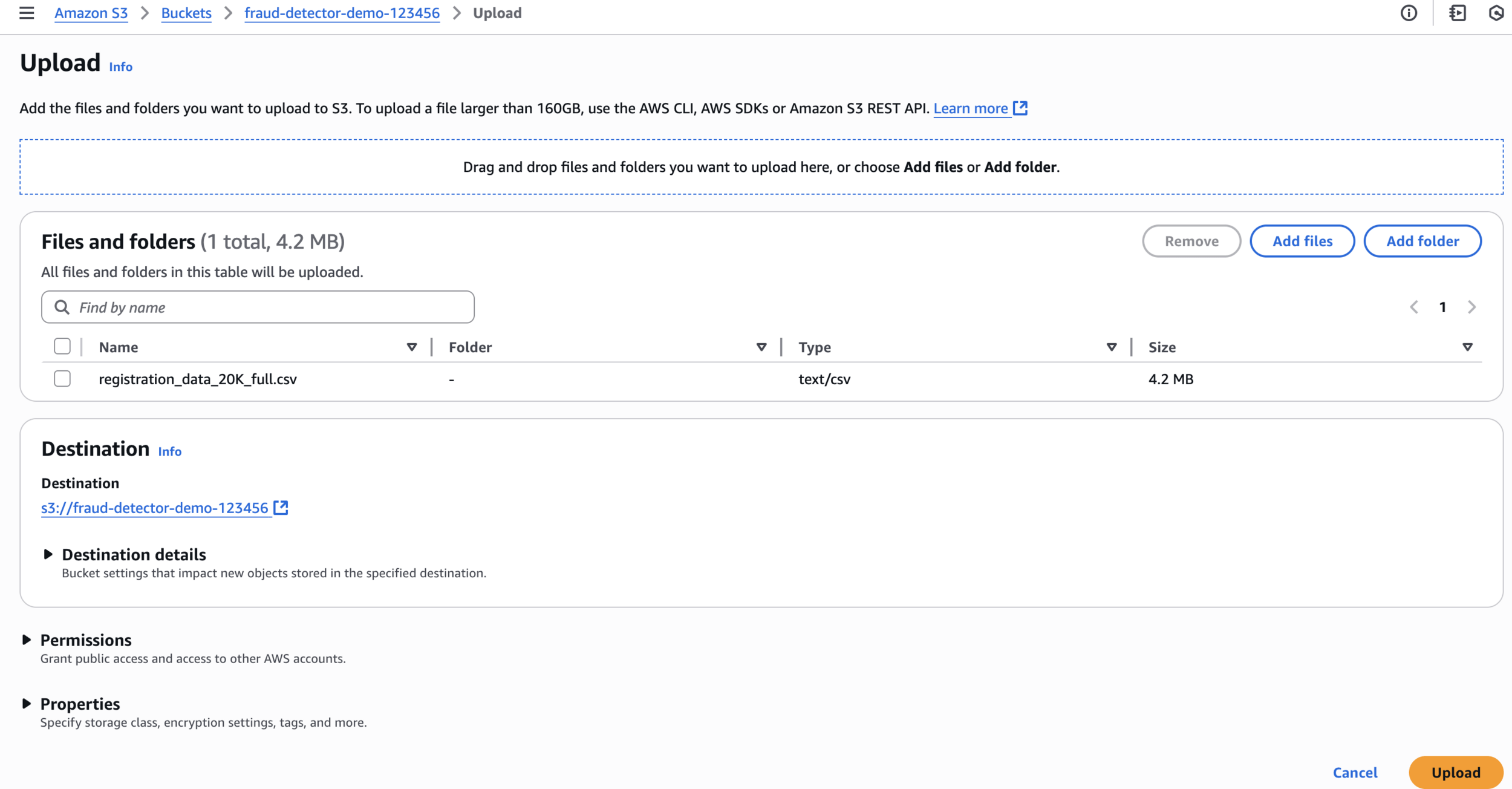

Upload file

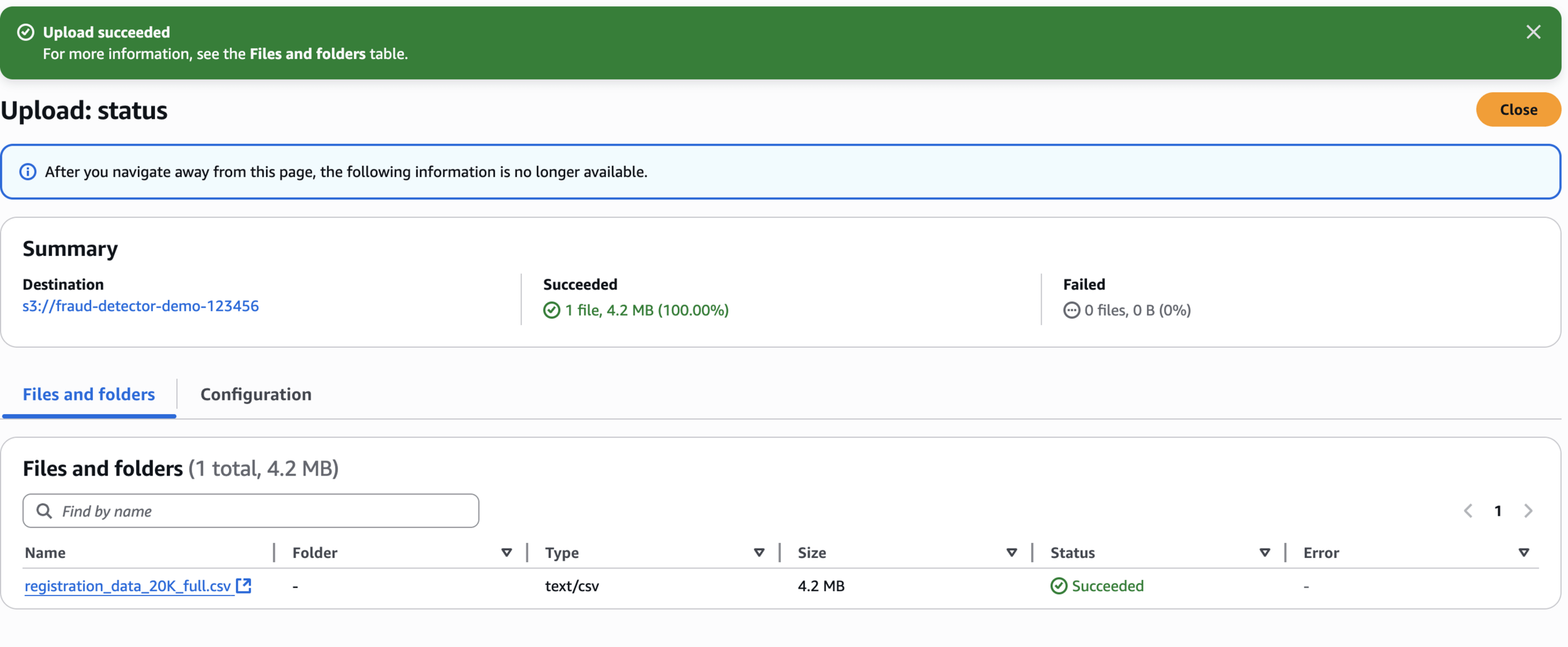

Upload succeeded

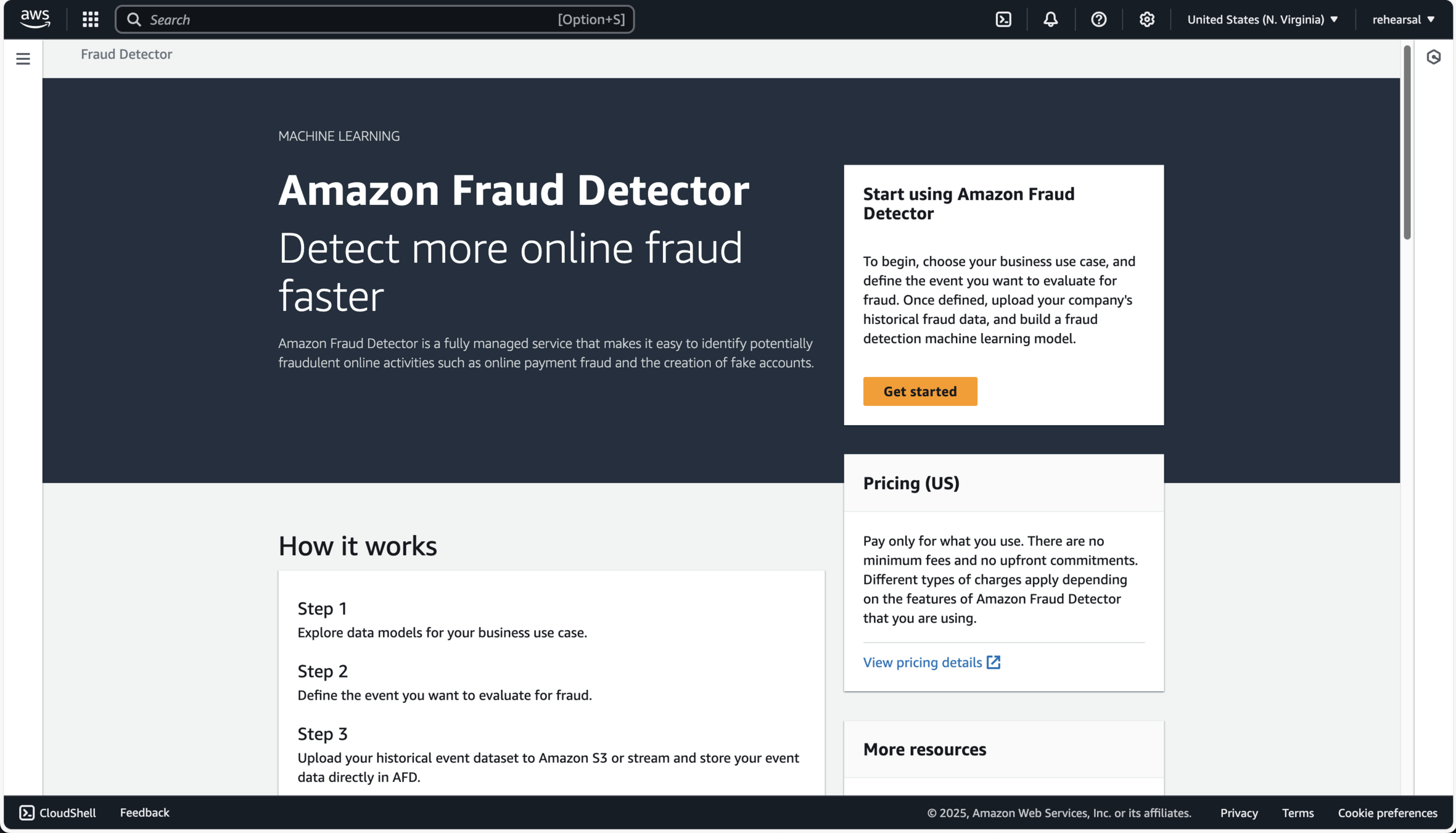

Amazon Fraud Detector

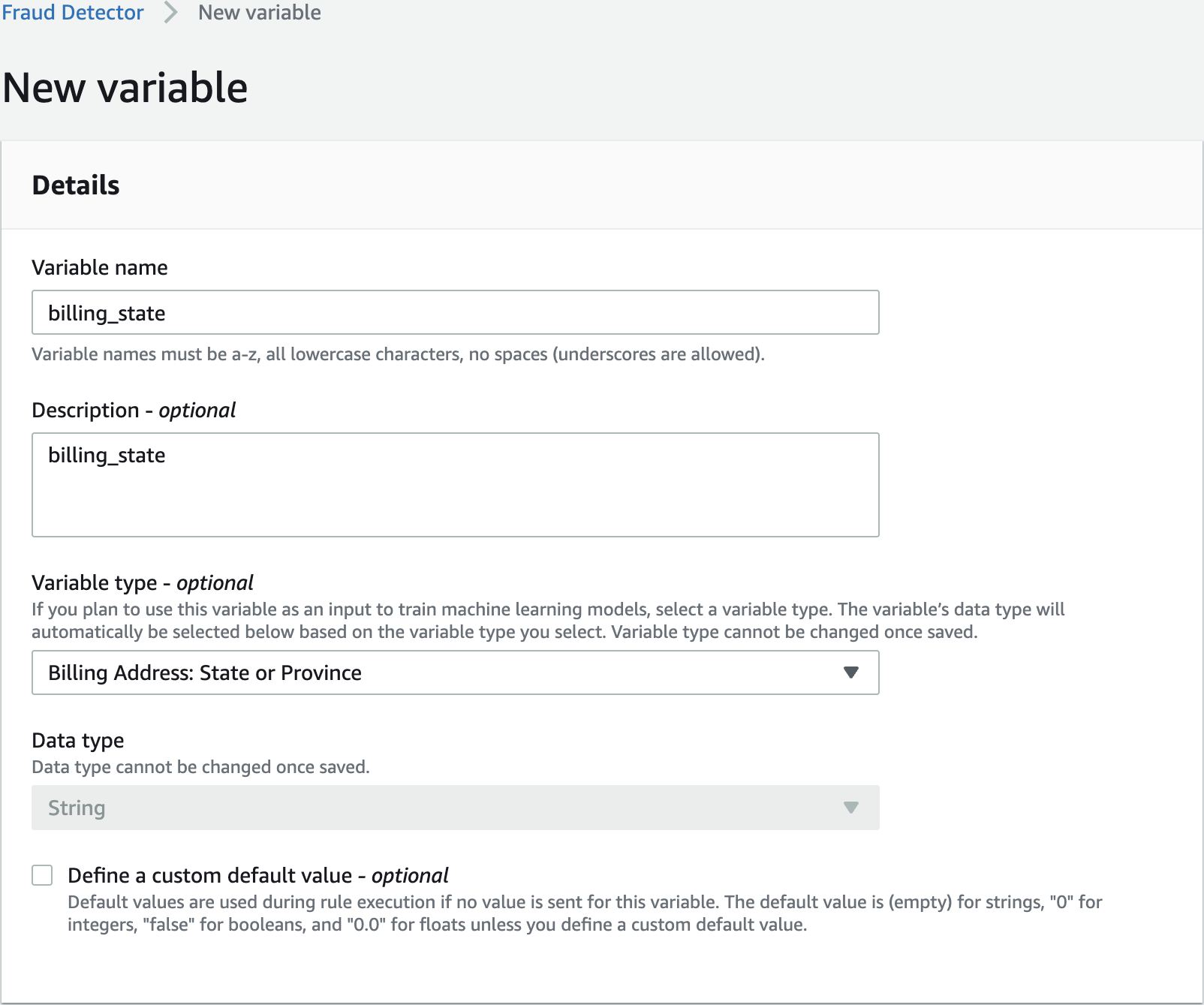

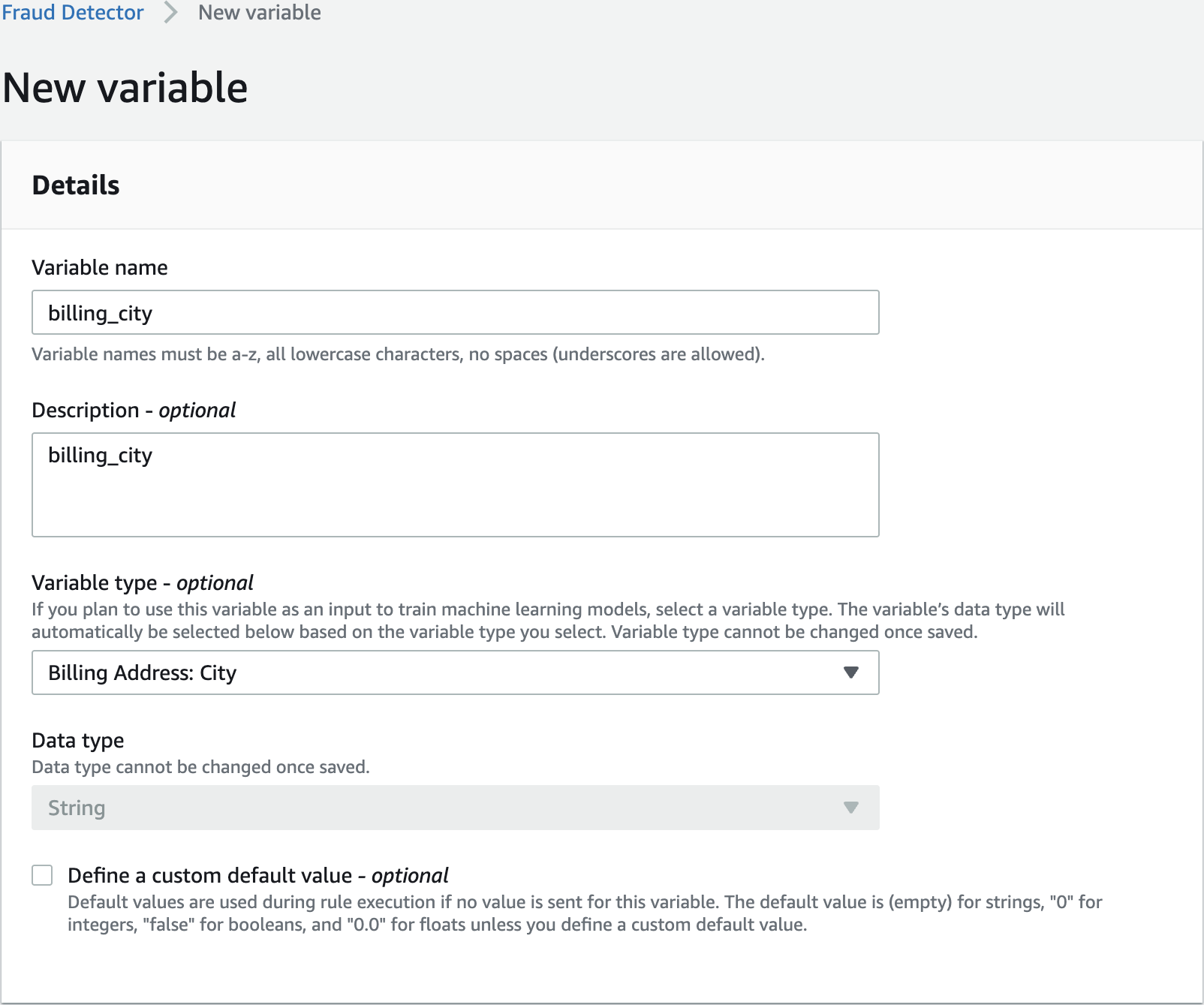

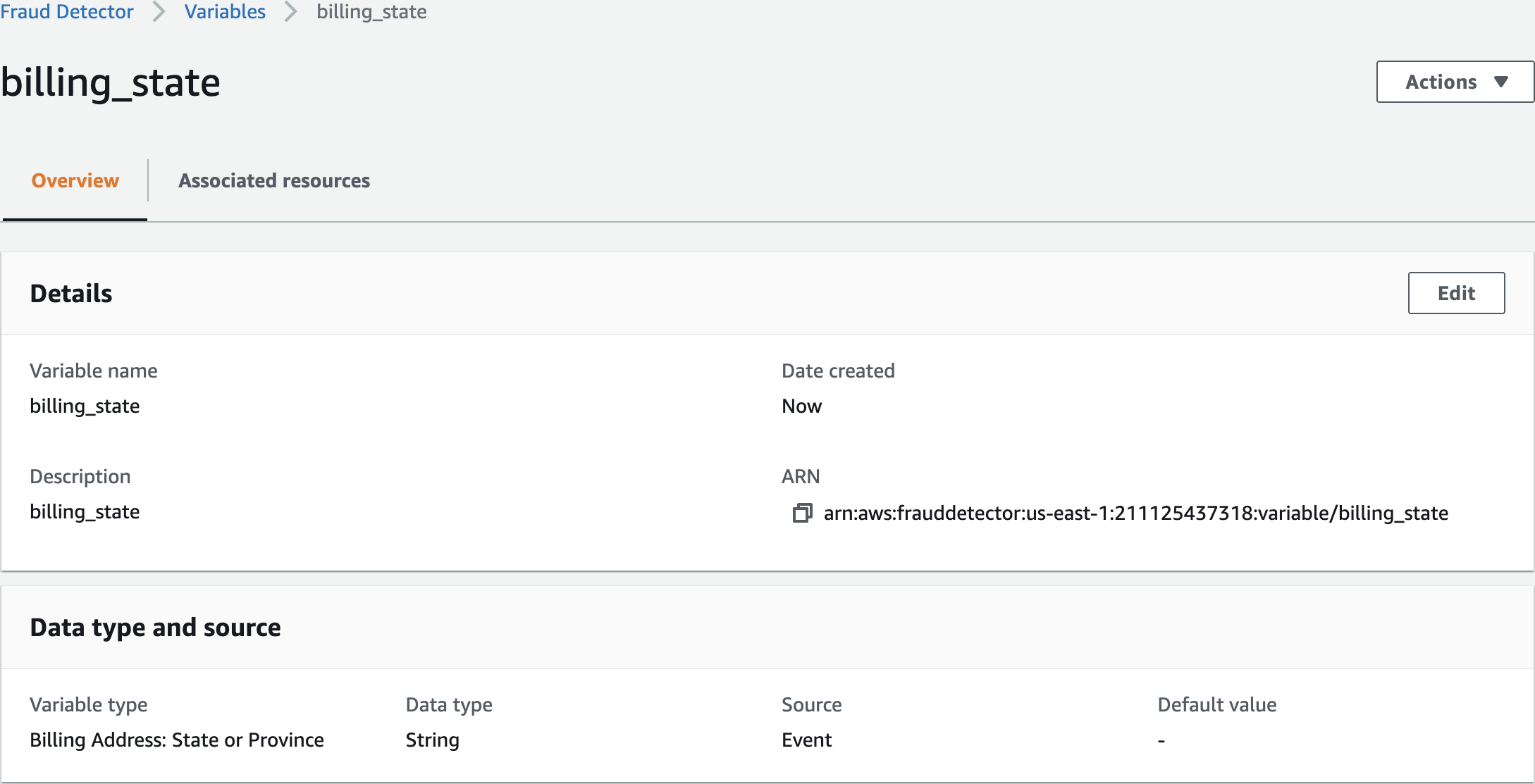

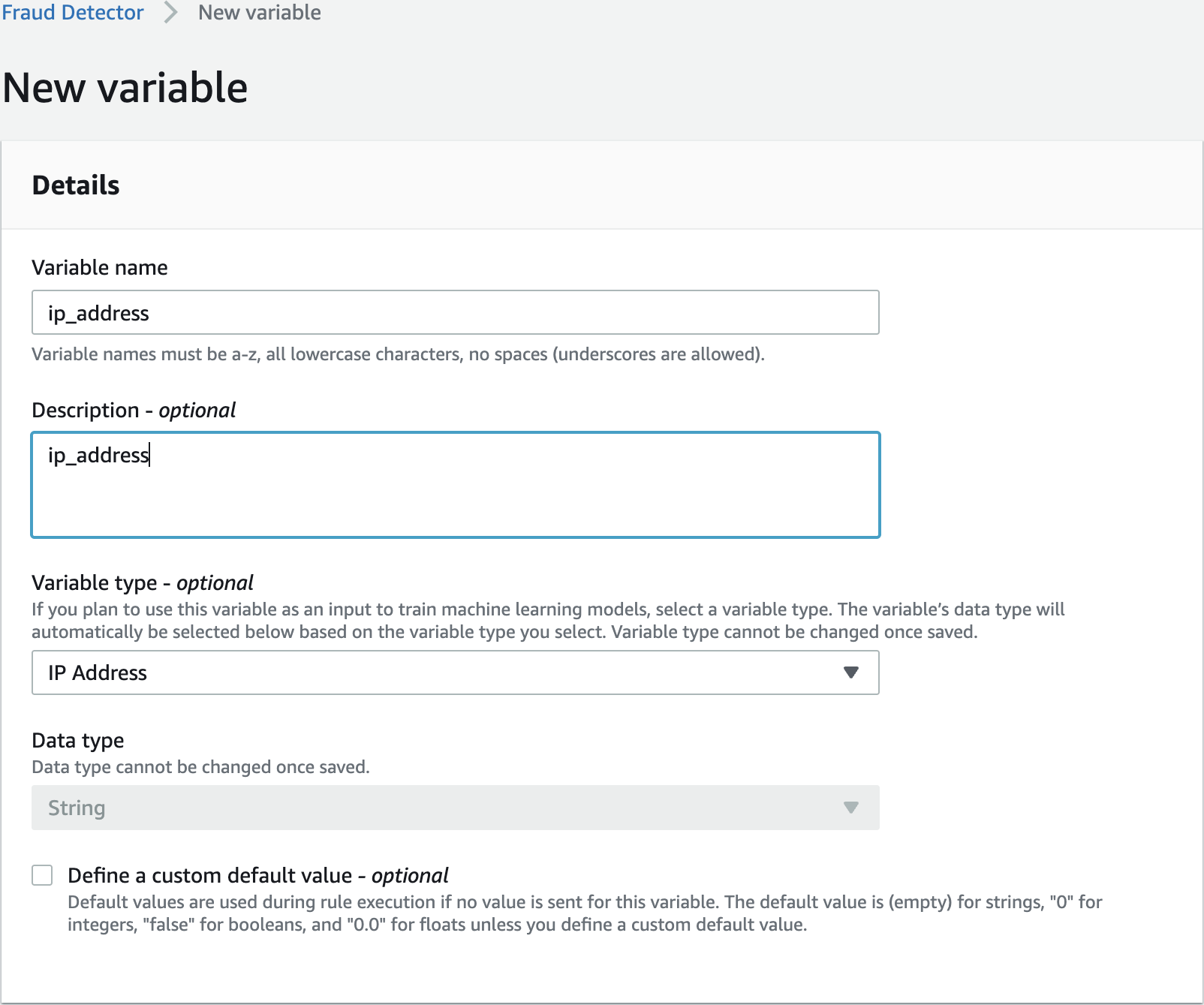

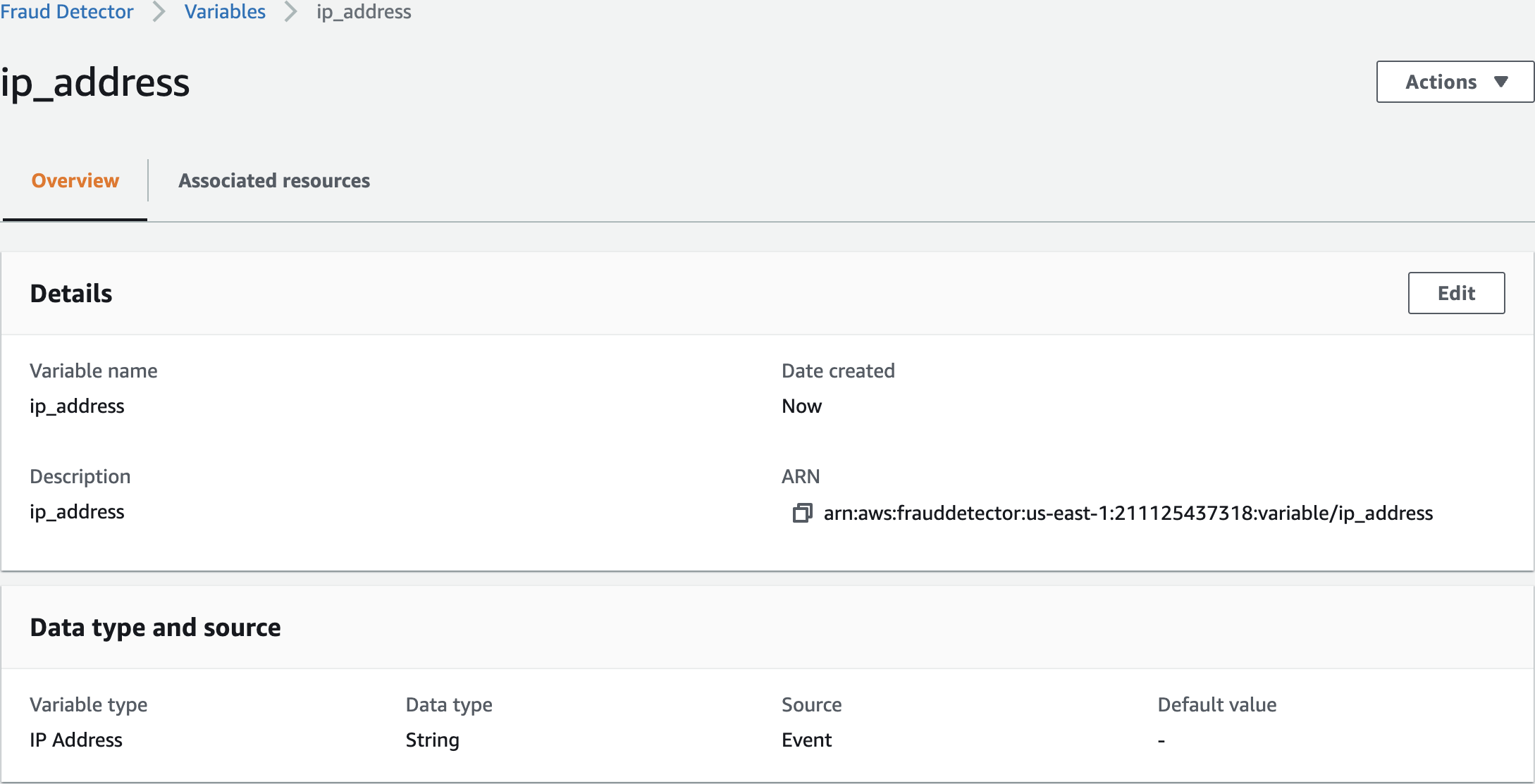

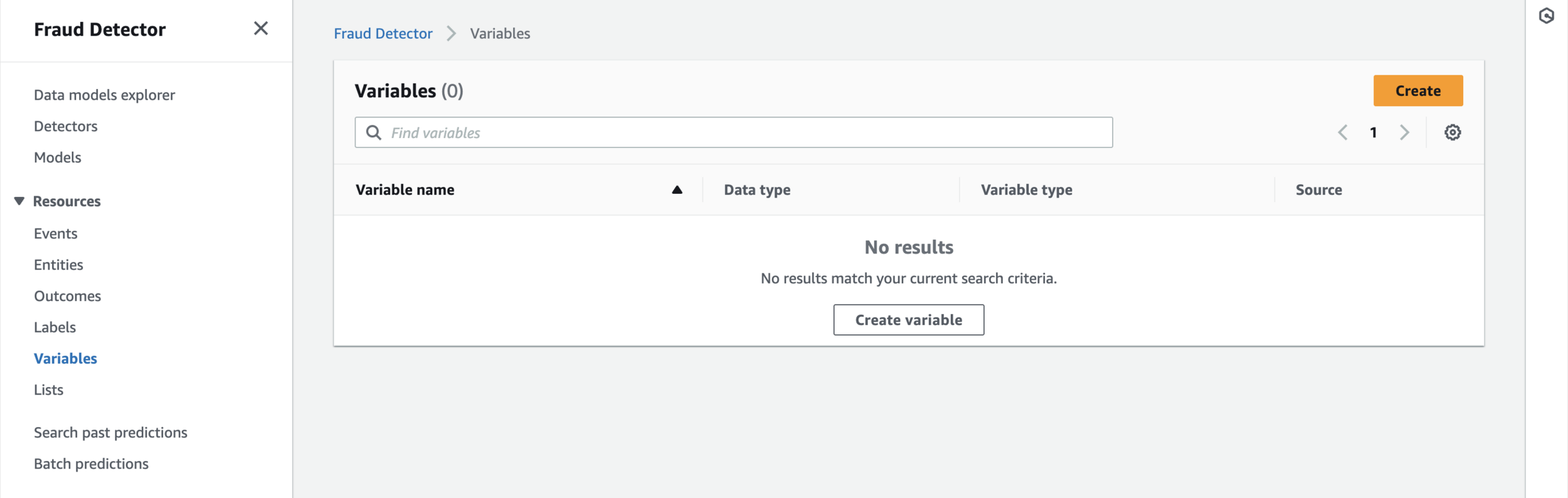

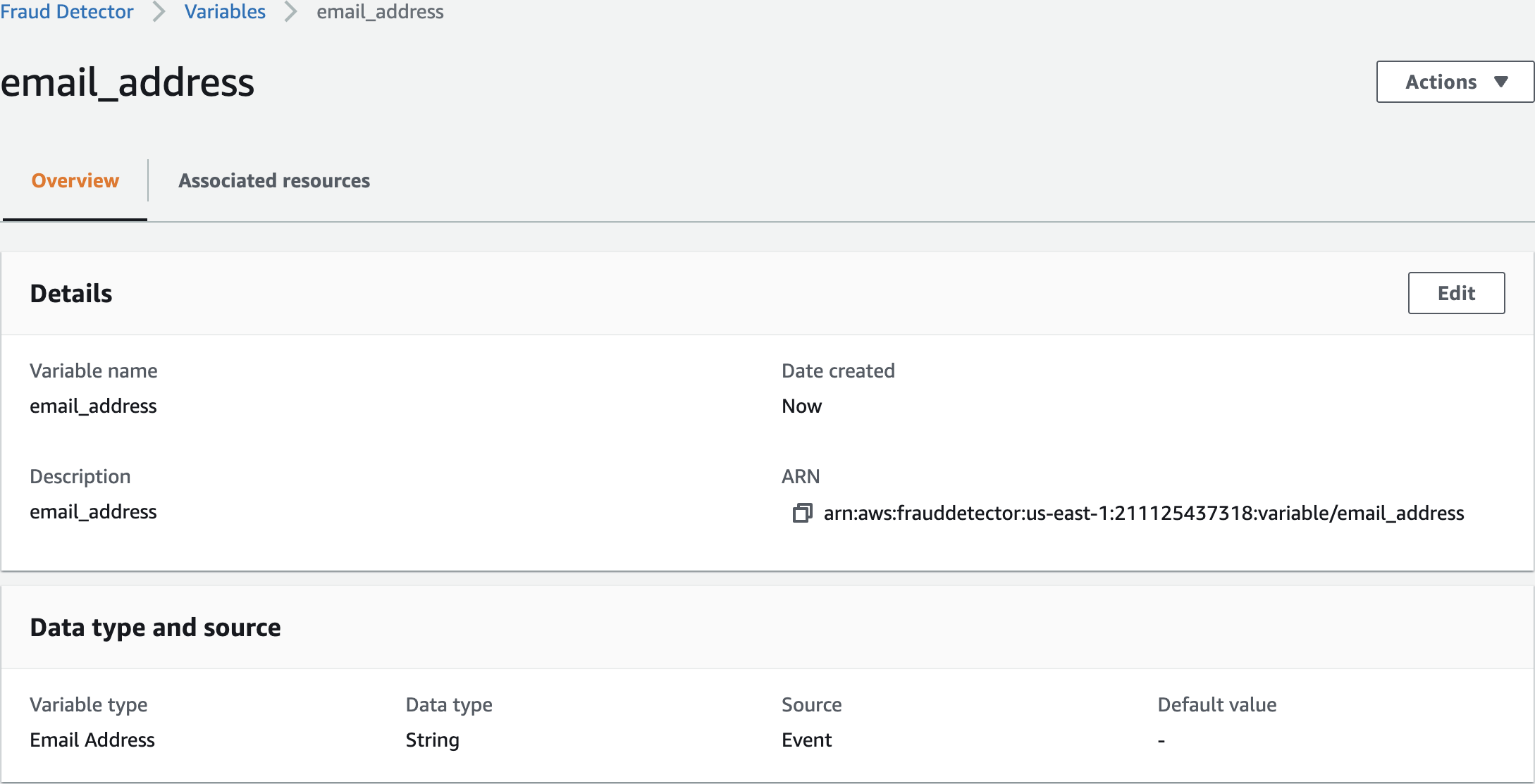

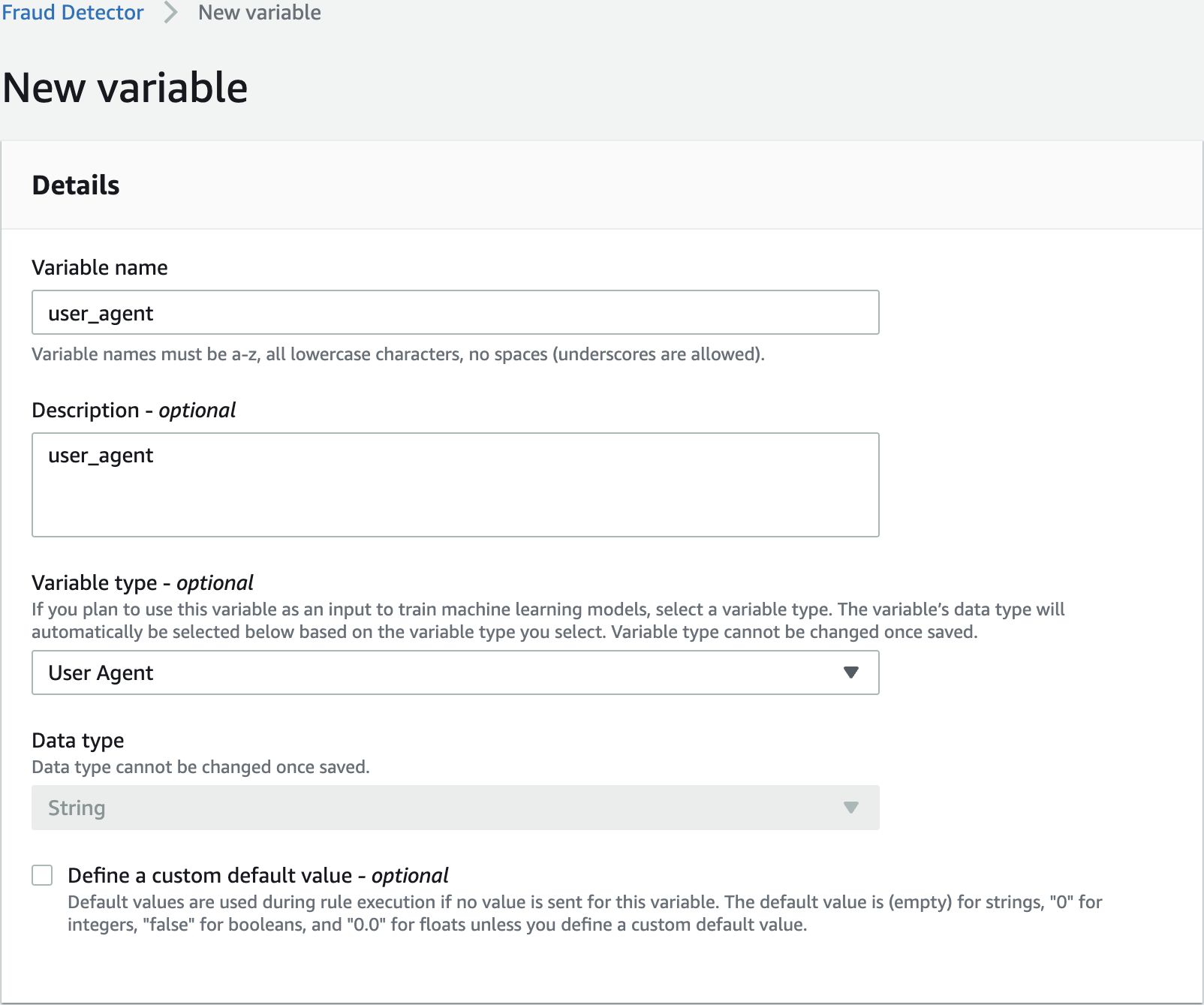

Create Variables

ip_address

email_address

user_agent

billing_city

billing_state

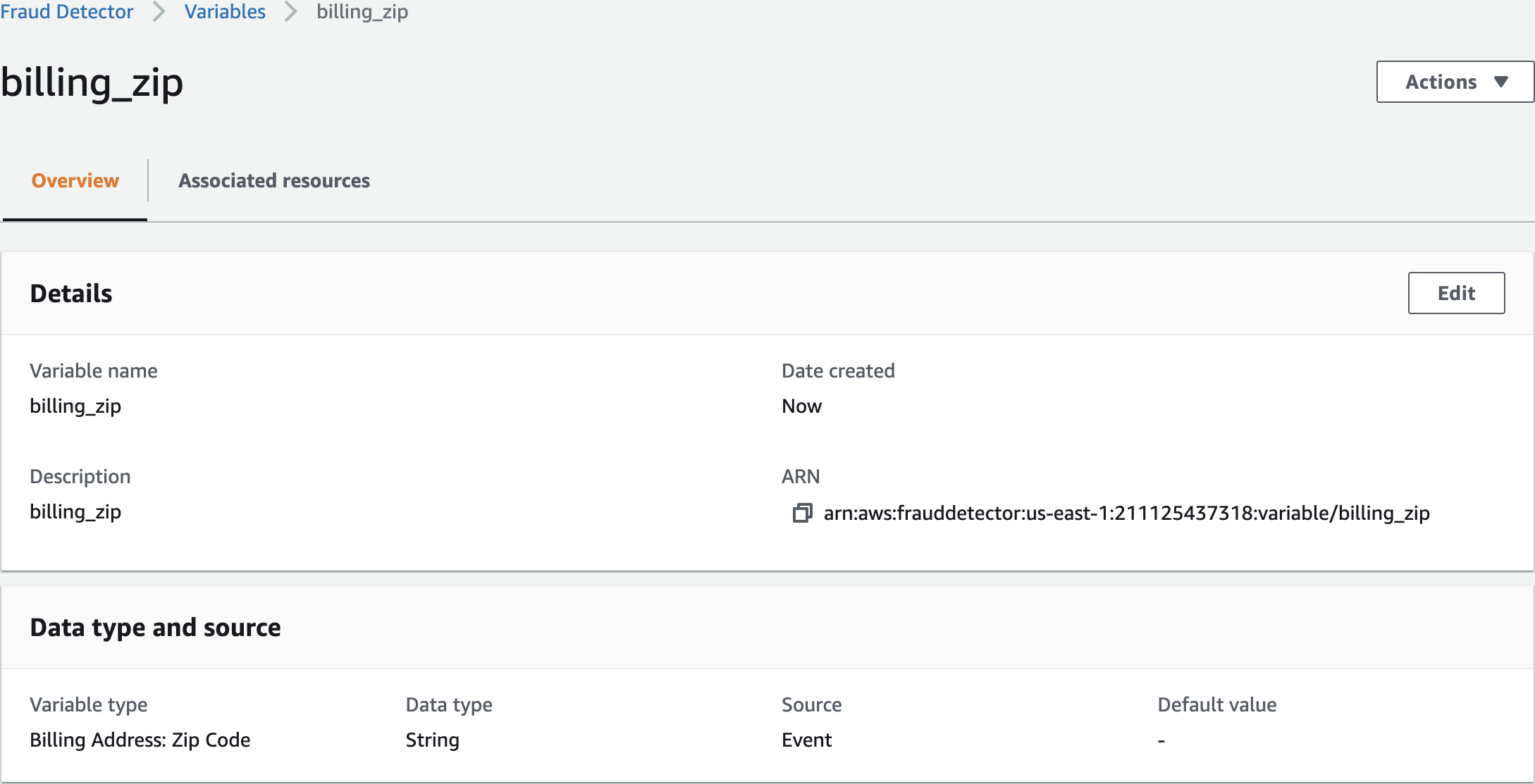

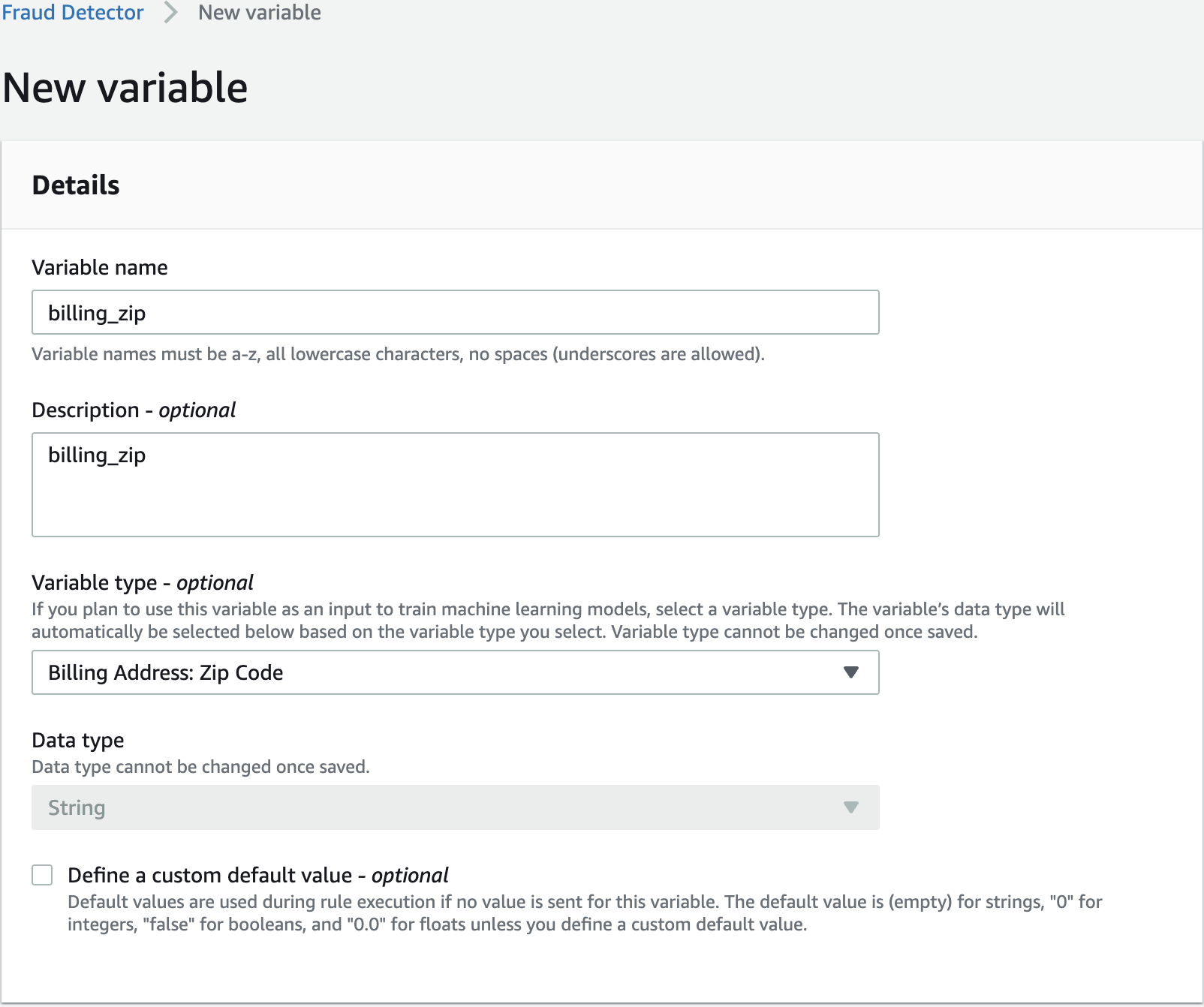

billing_zip

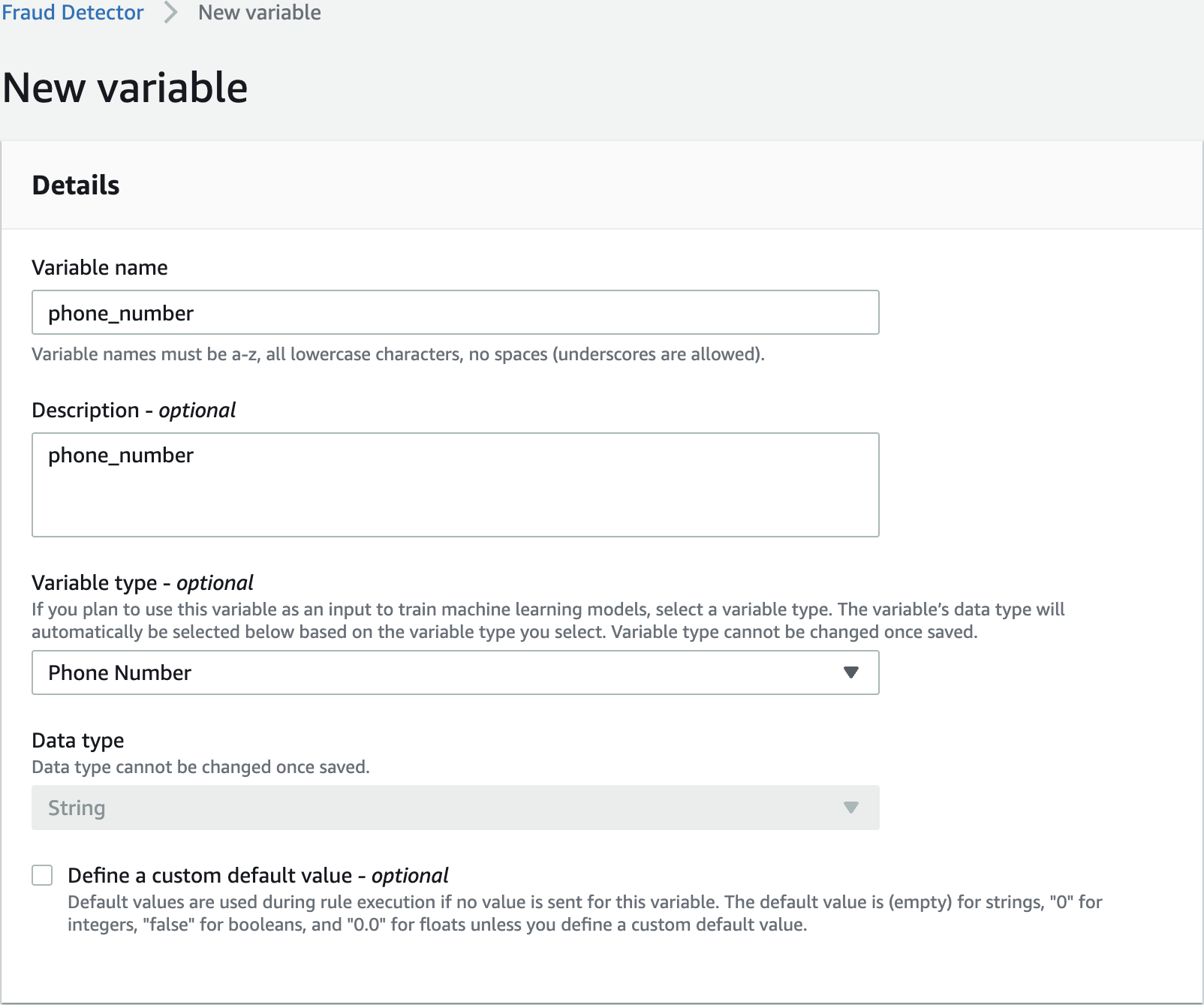

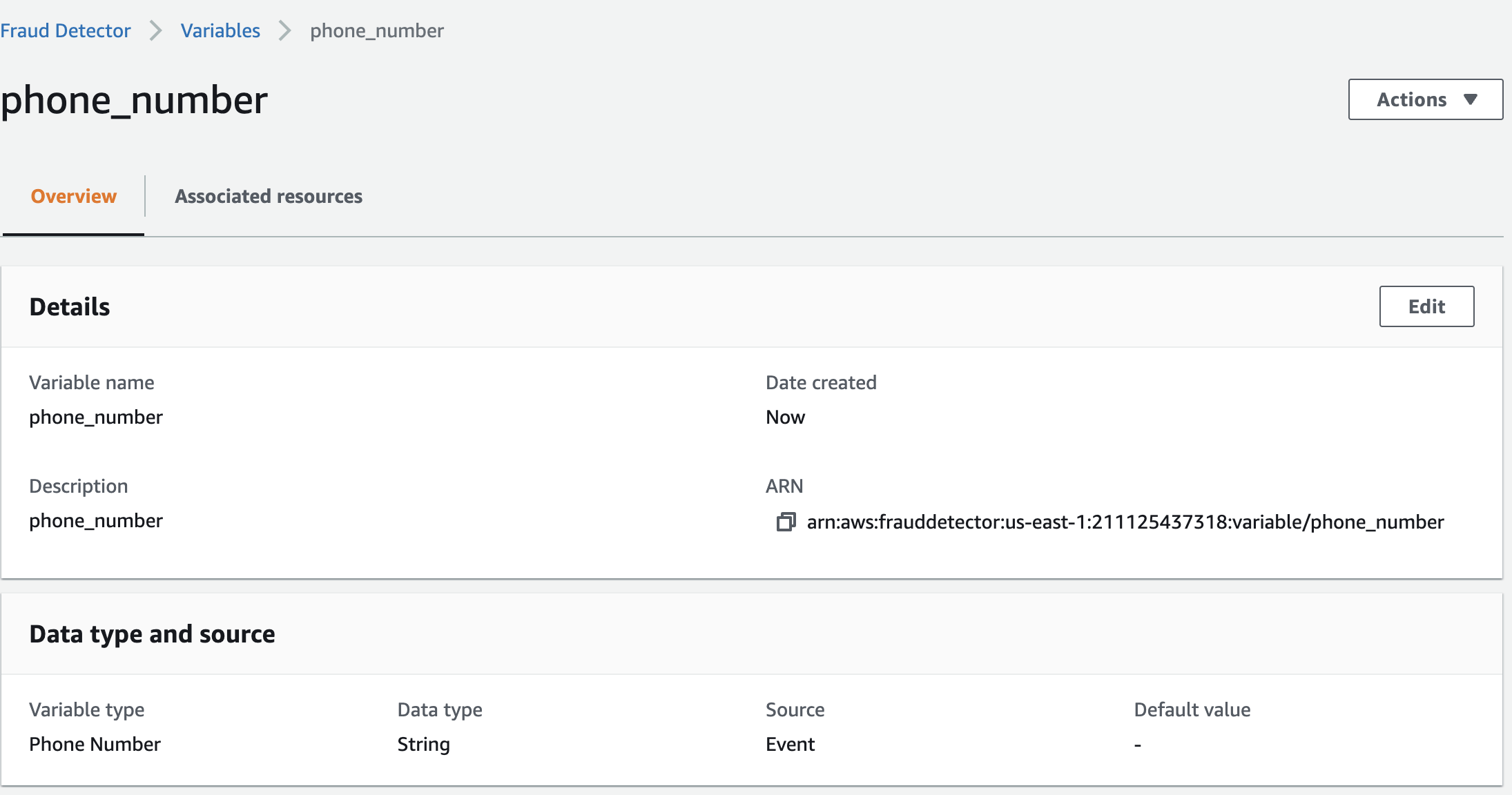

phone_number

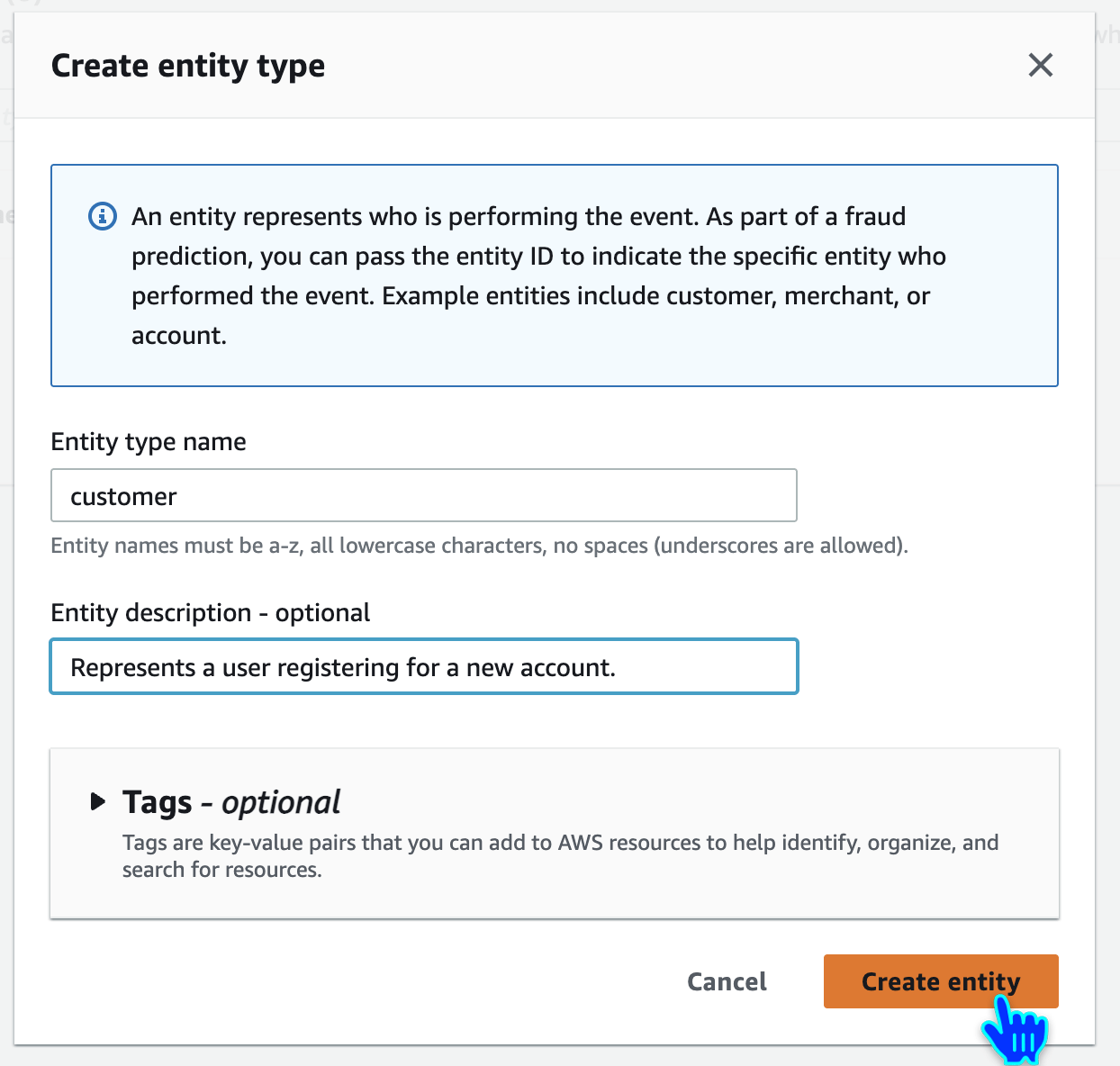

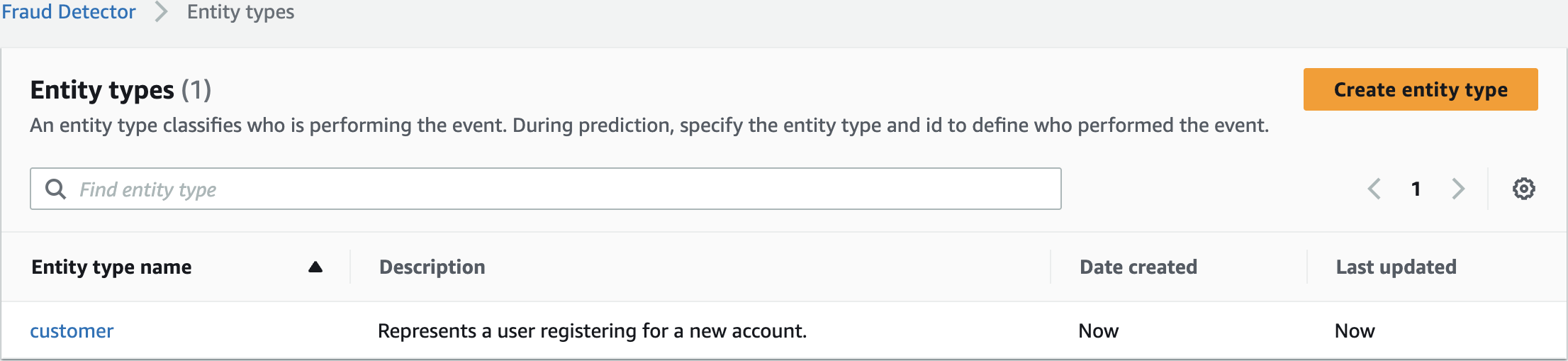

Create entity type

customer

Create entity type

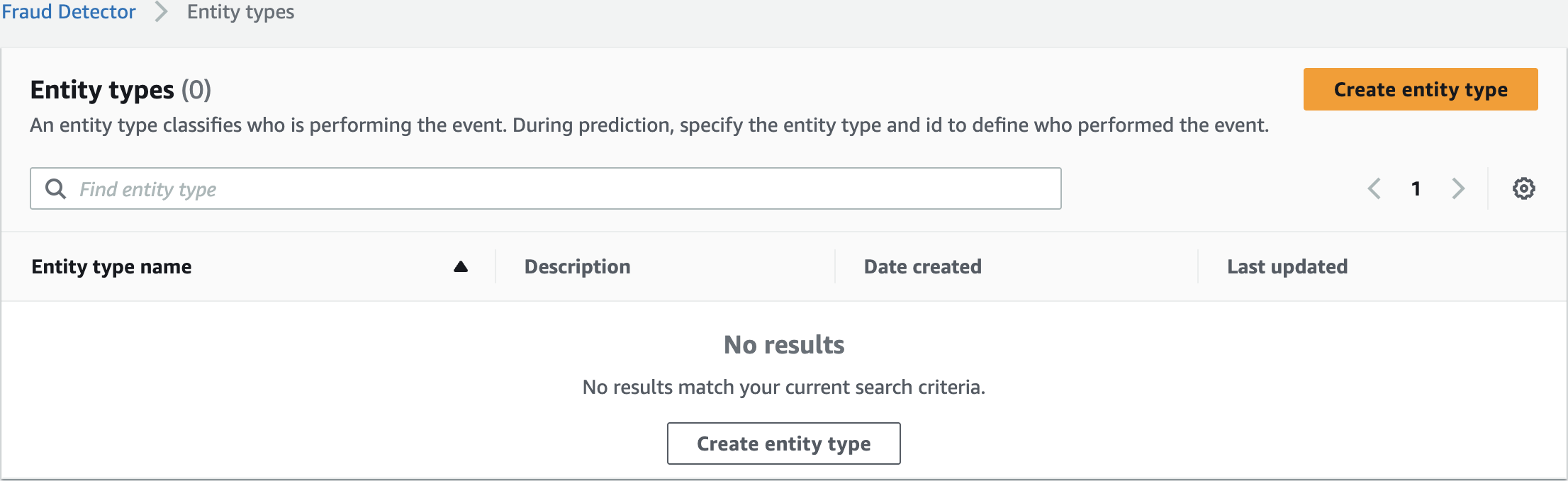

Entity types

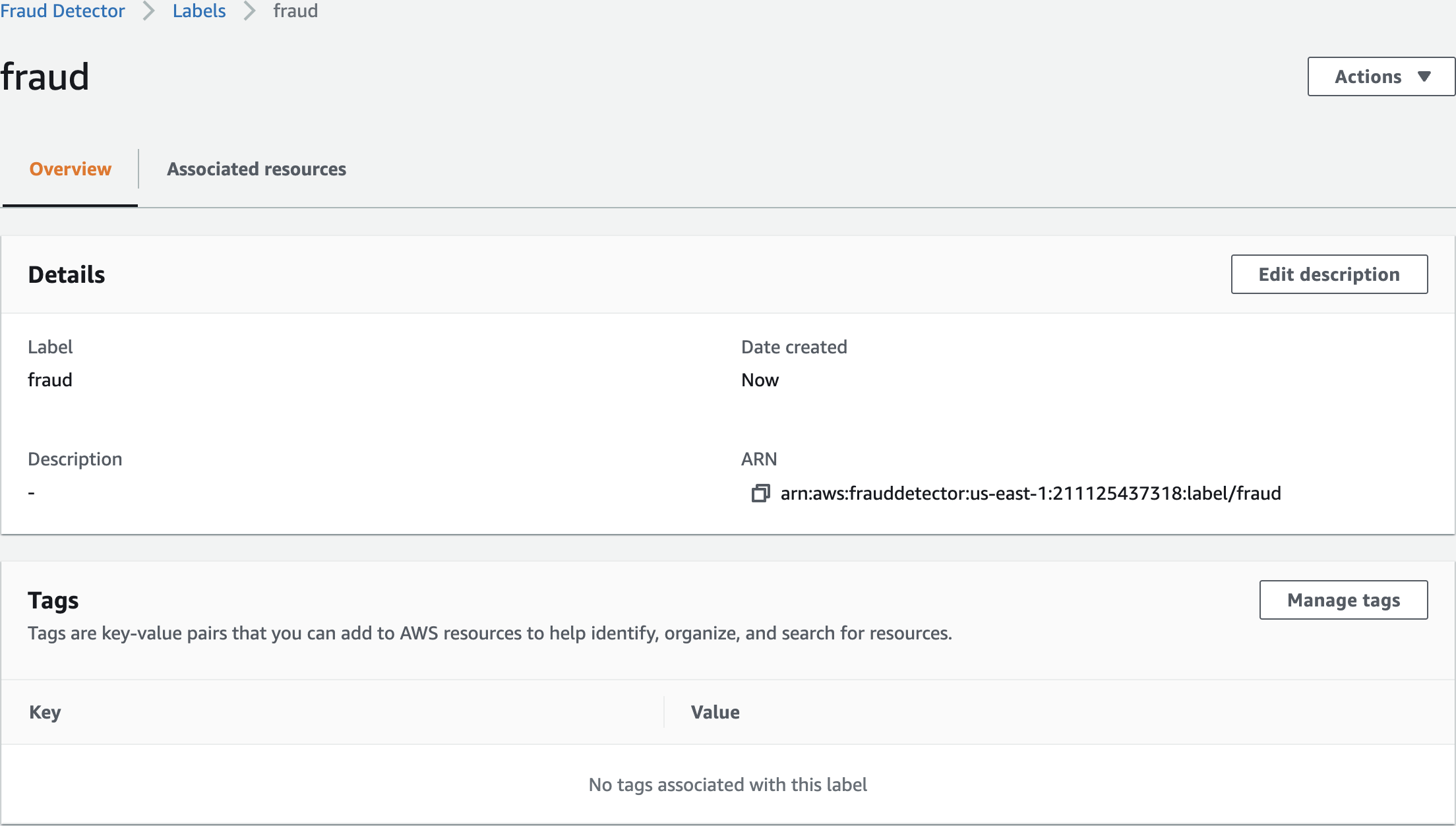

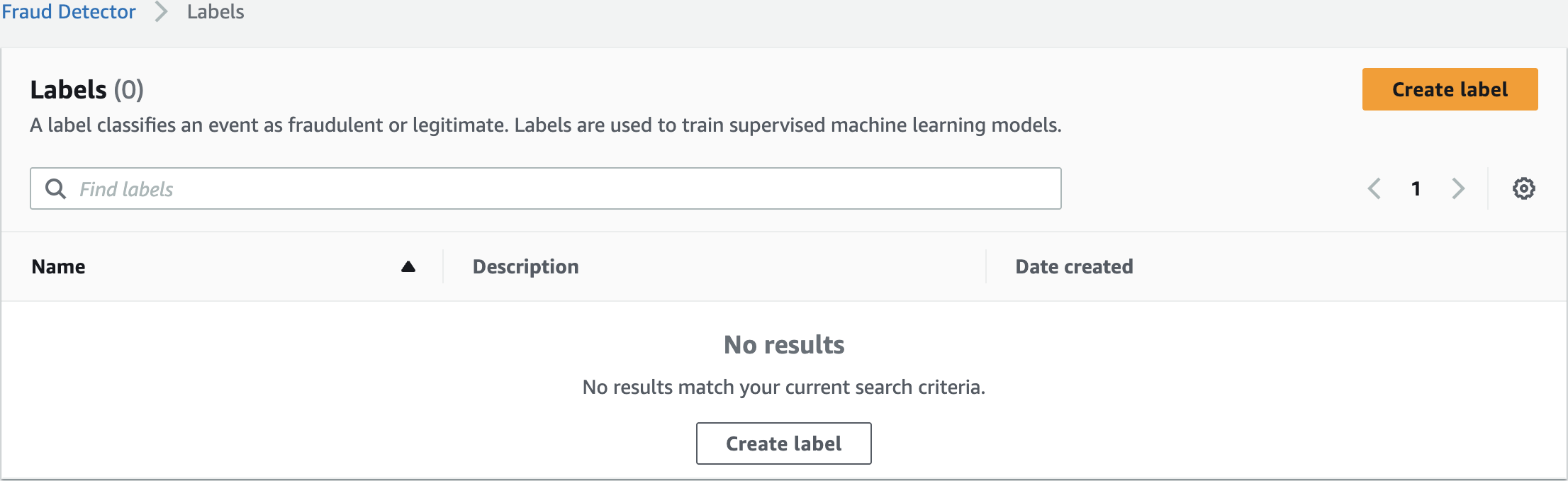

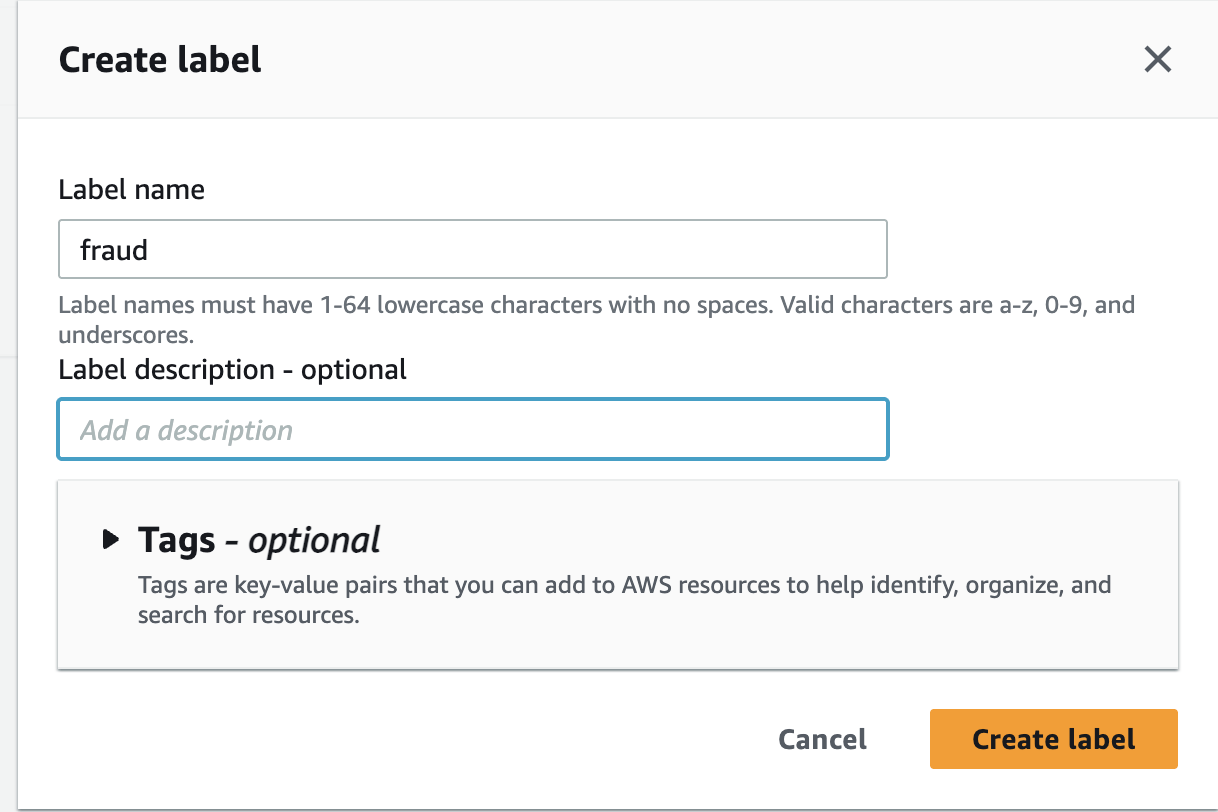

Create labels

fraud

Create label

fraud

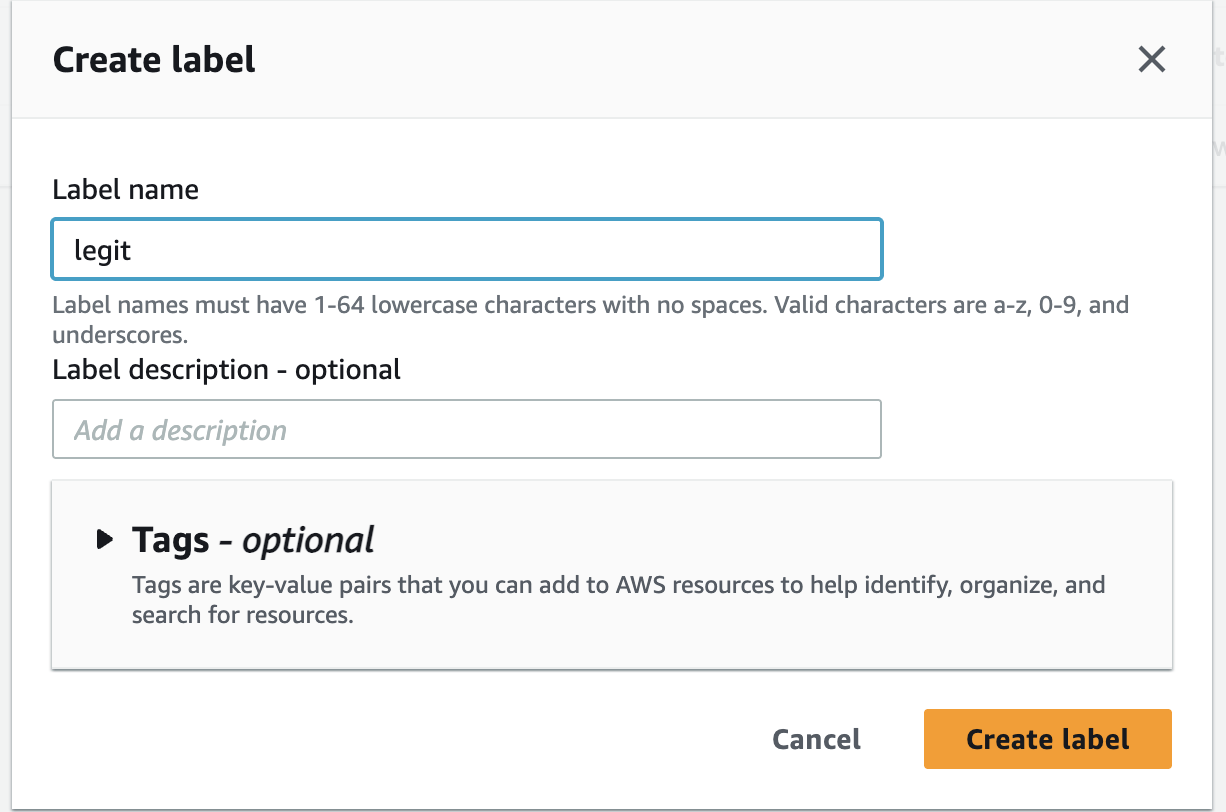

Create label

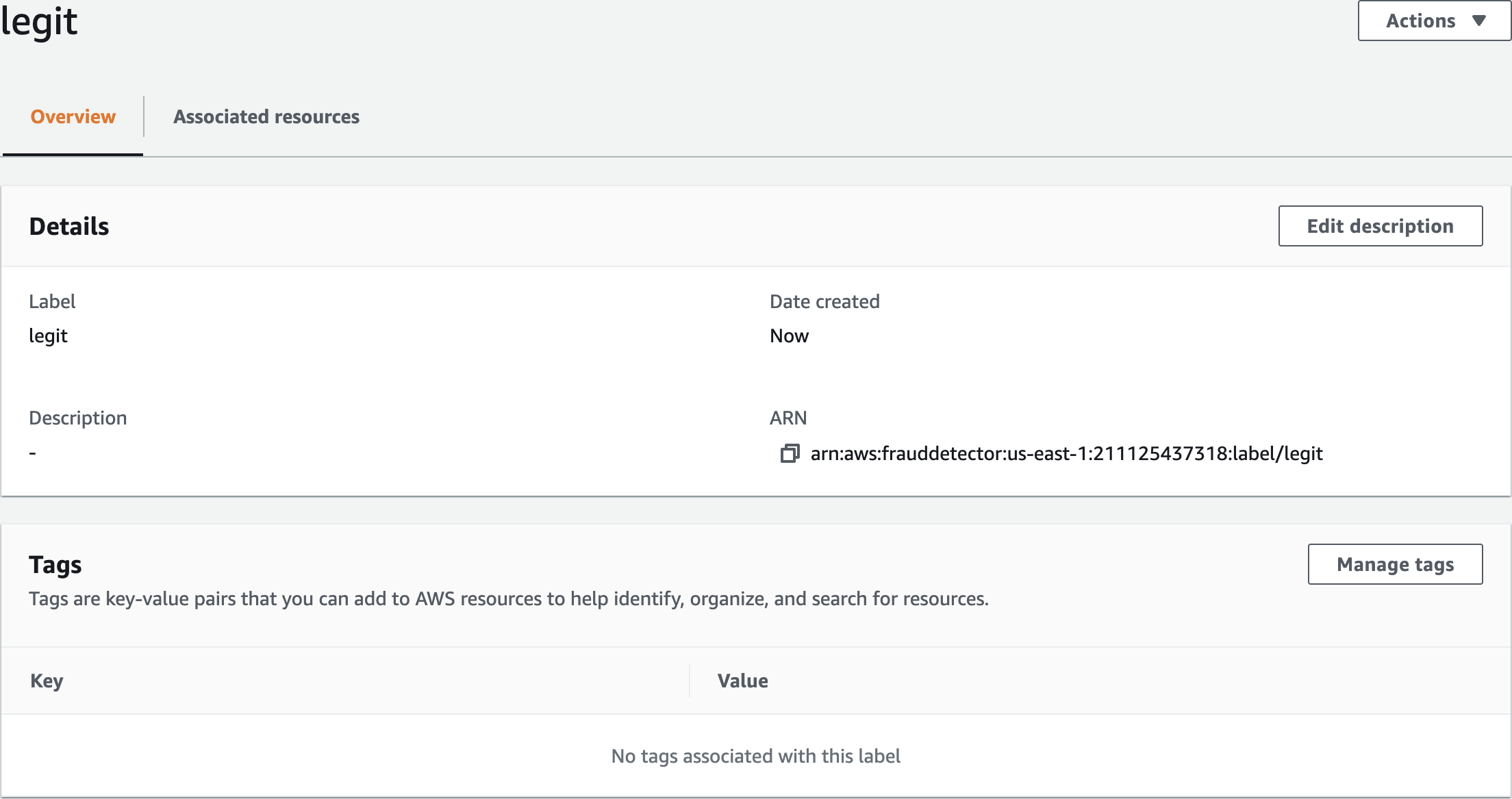

legit

legit

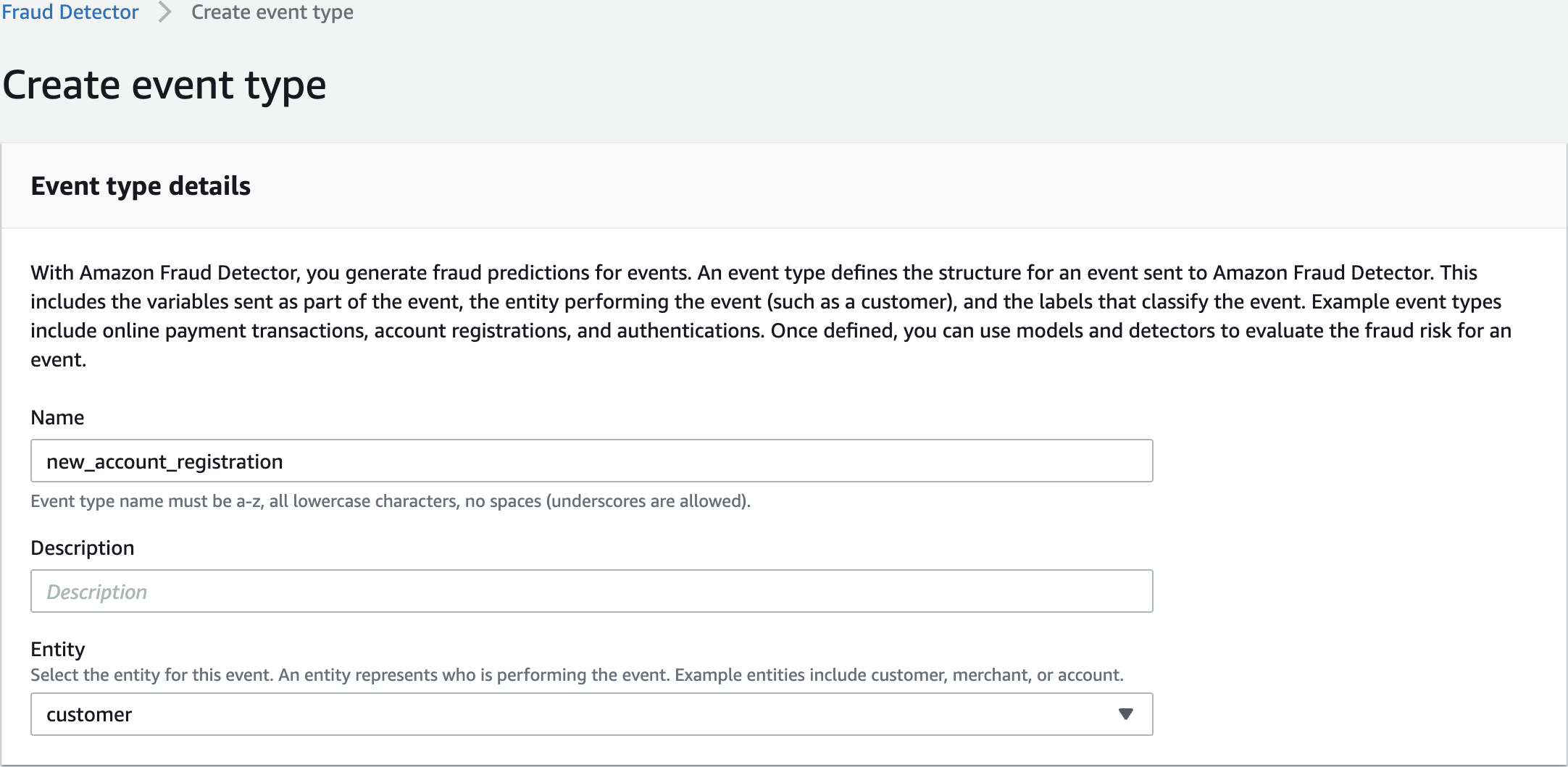

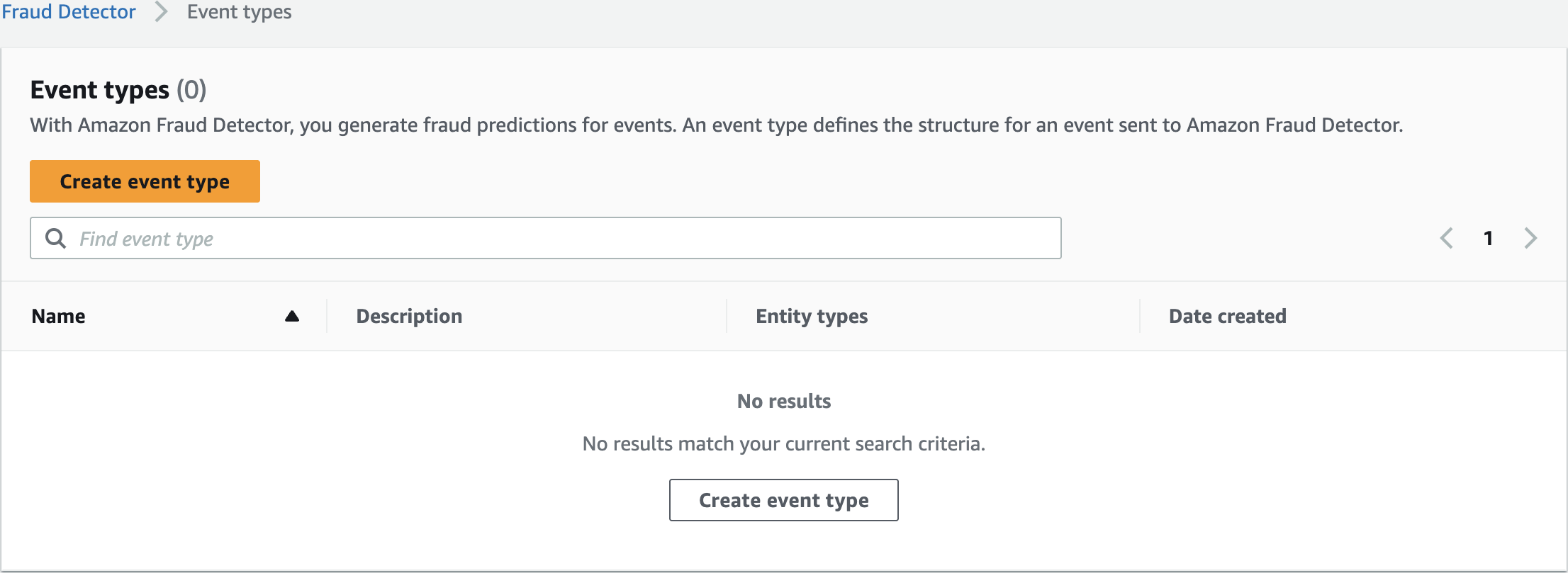

Create event type

new_account_registration

Create event type

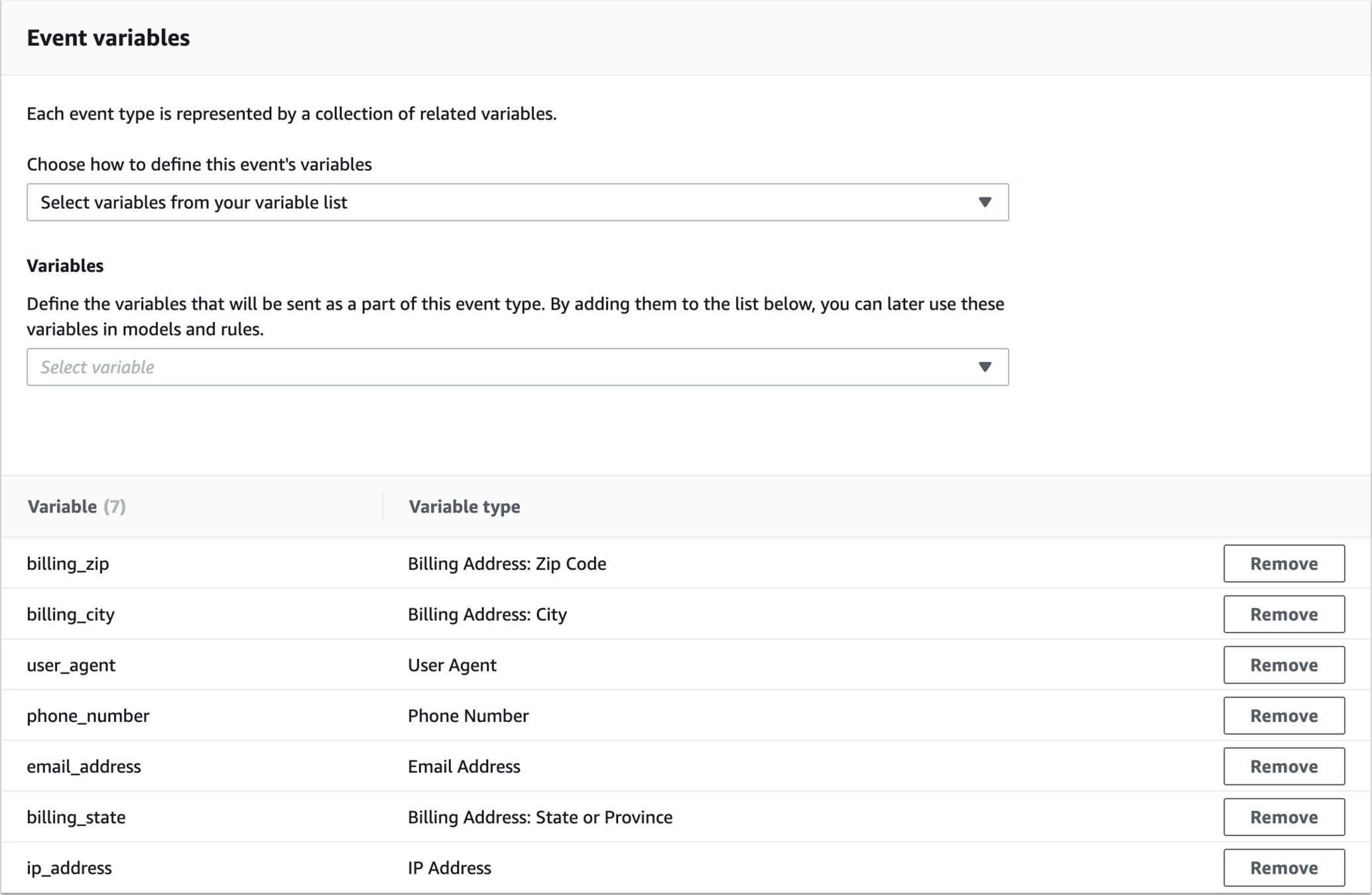

Event variables

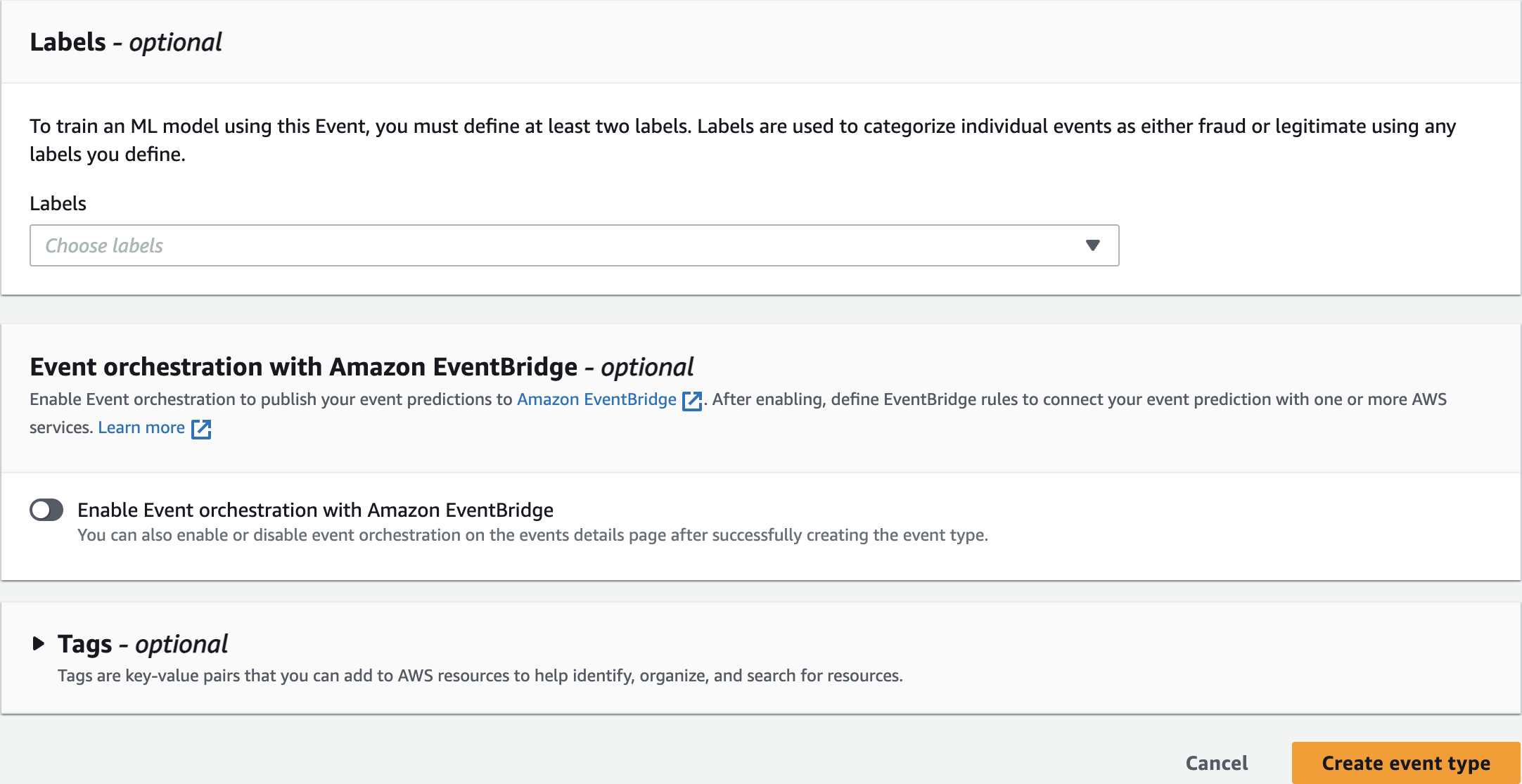

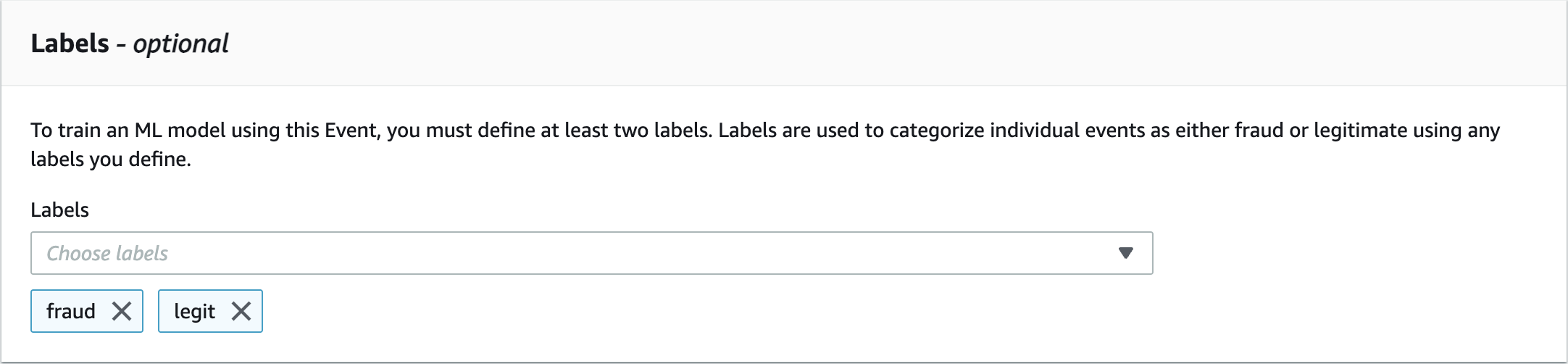

Labels

Add Labels

Labels

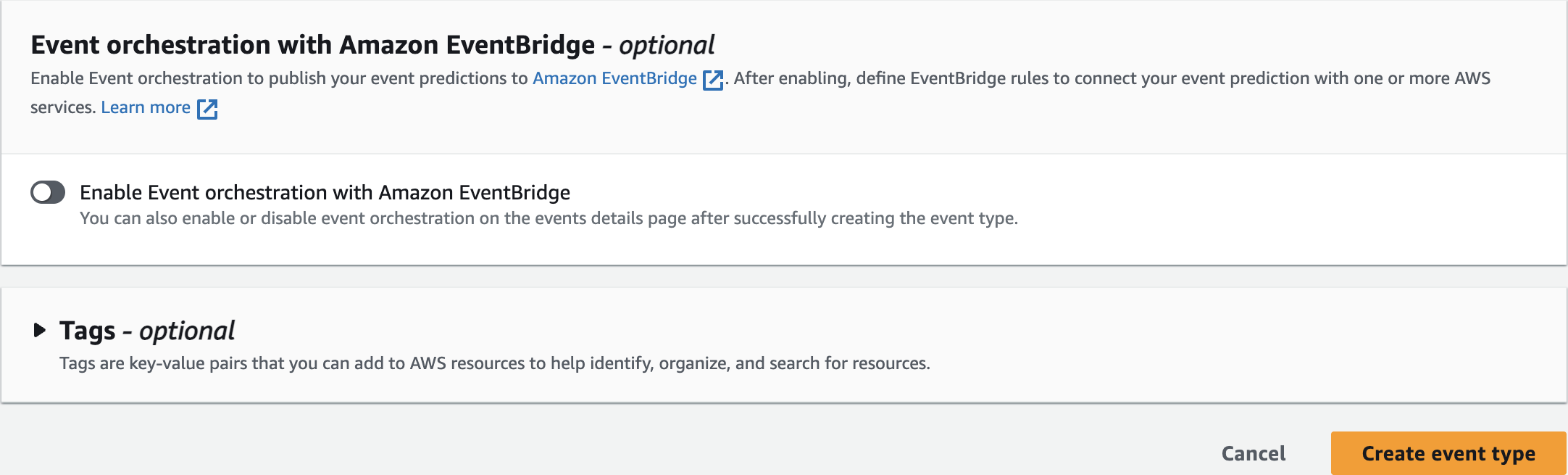

Create event type

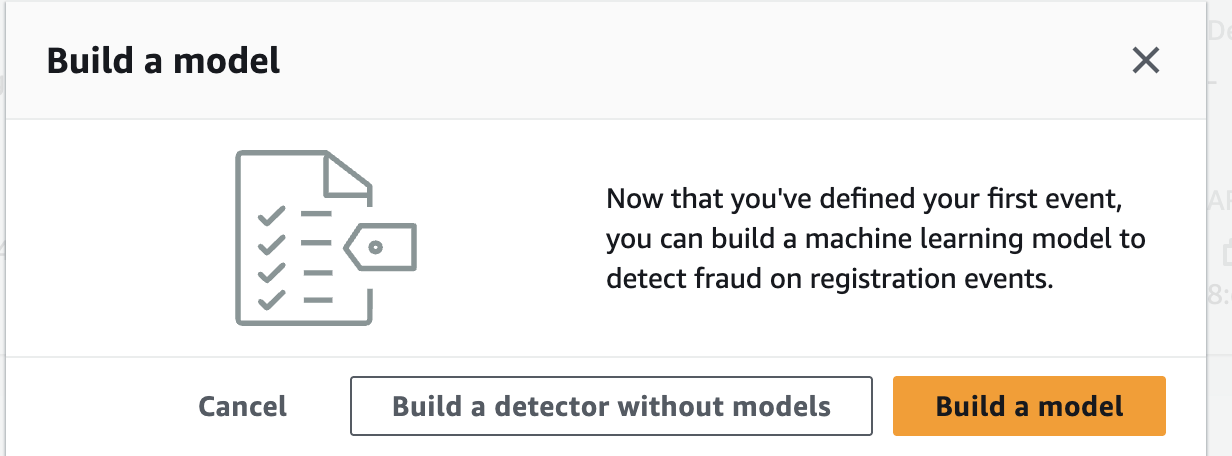

Build a model

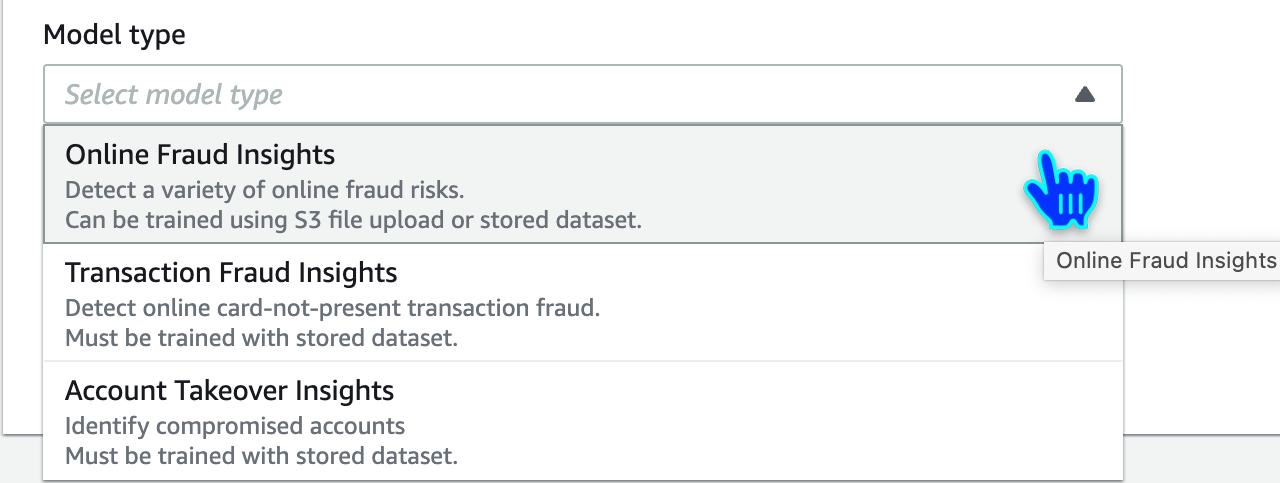

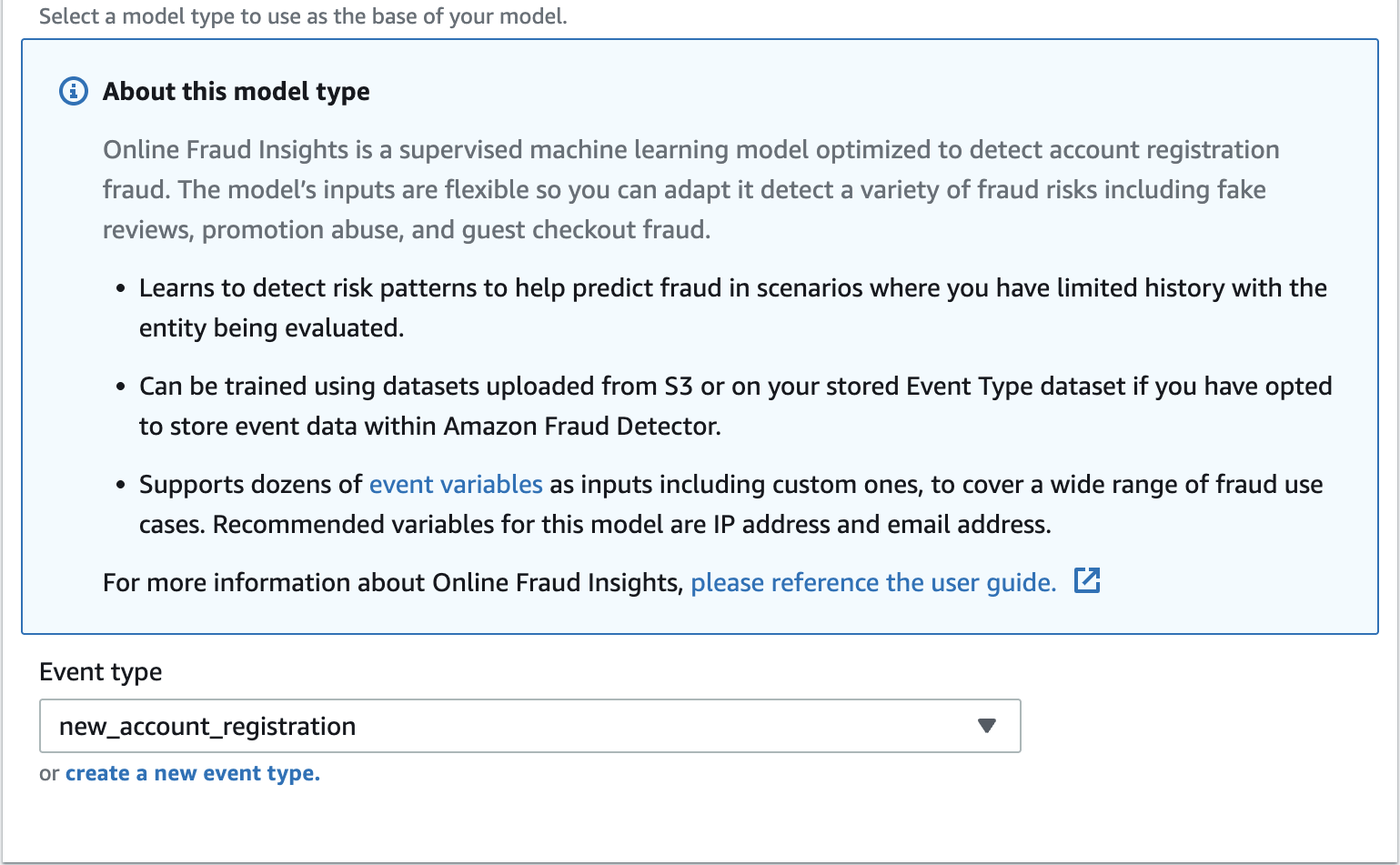

Model type

Choose data file in S3

Copy the IAM Role ARN

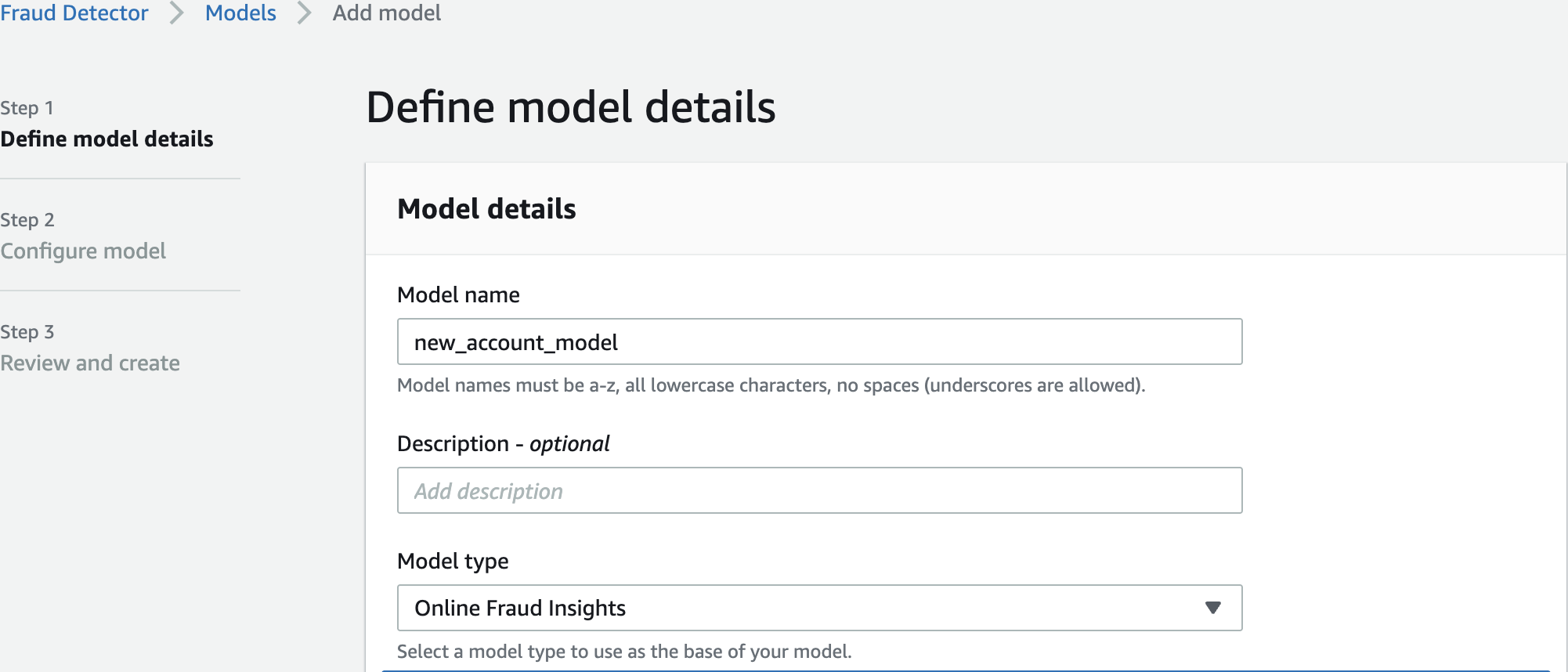

Define model details

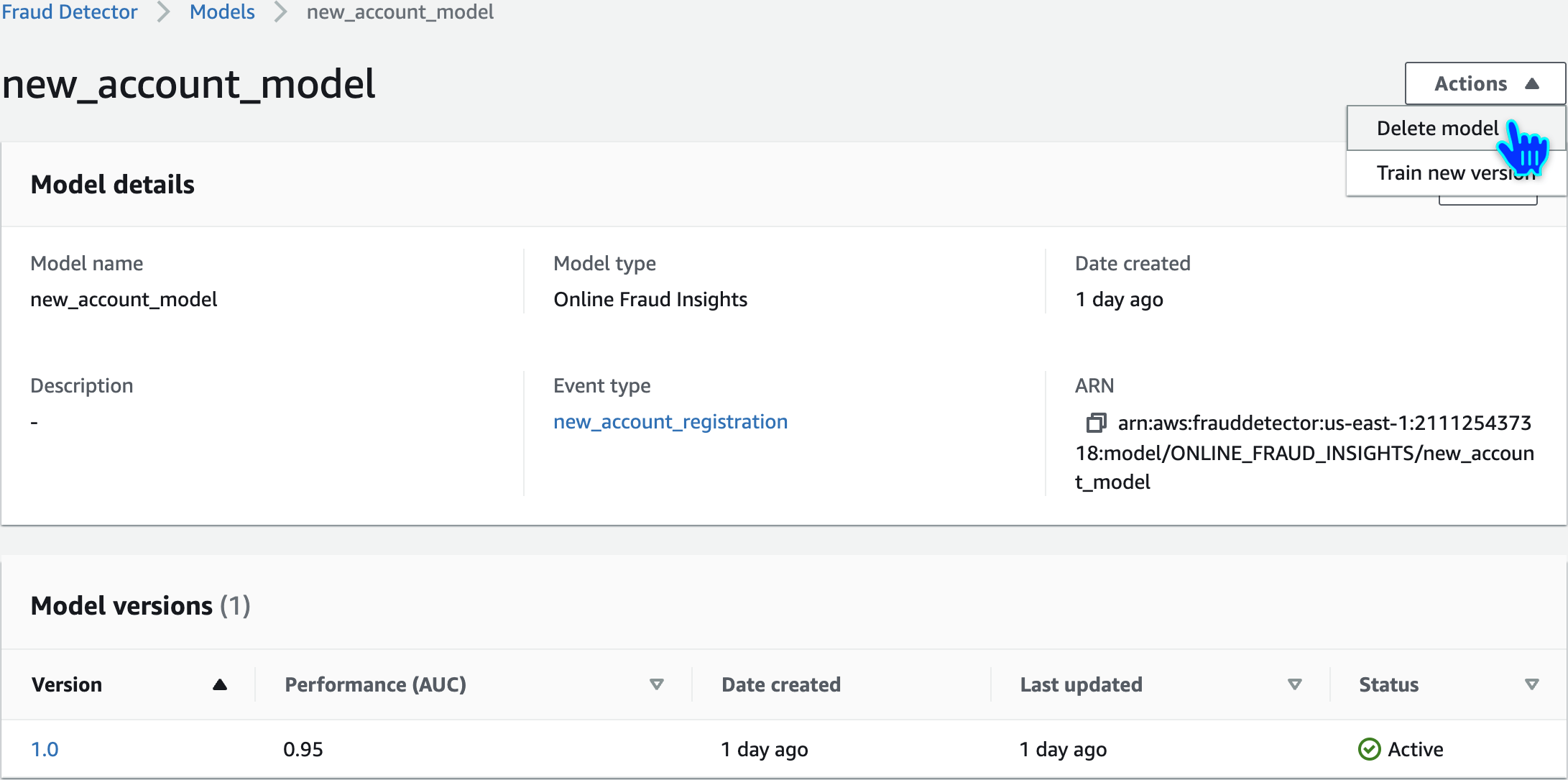

new_account_model

Event type

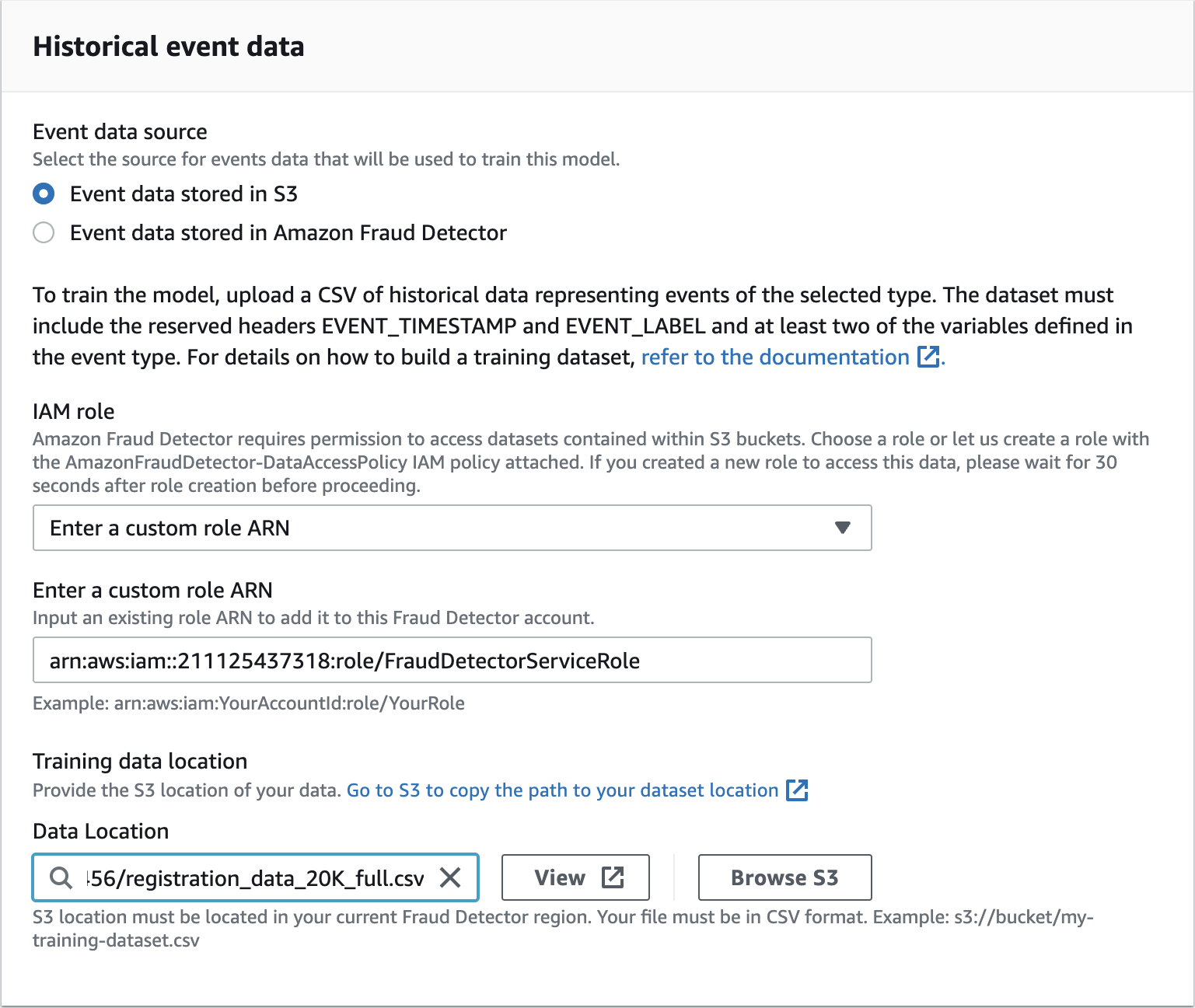

Role ARN & S3 Data Location

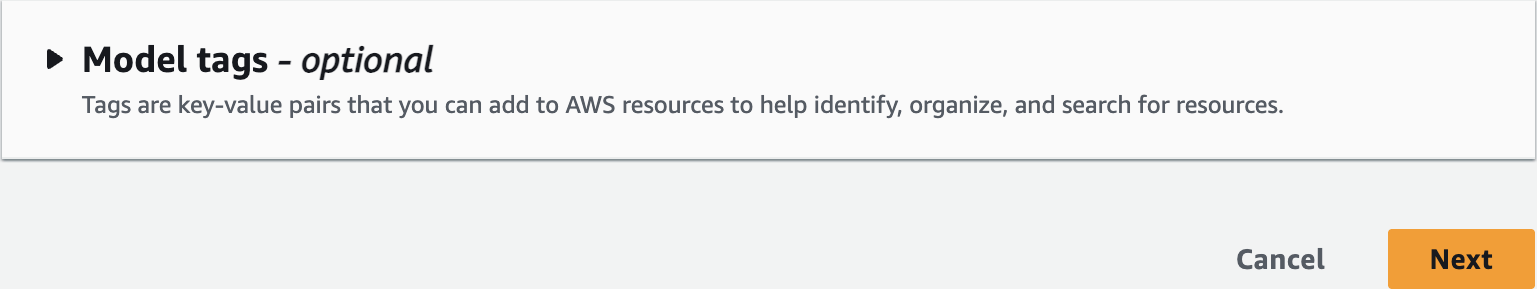

Model tags

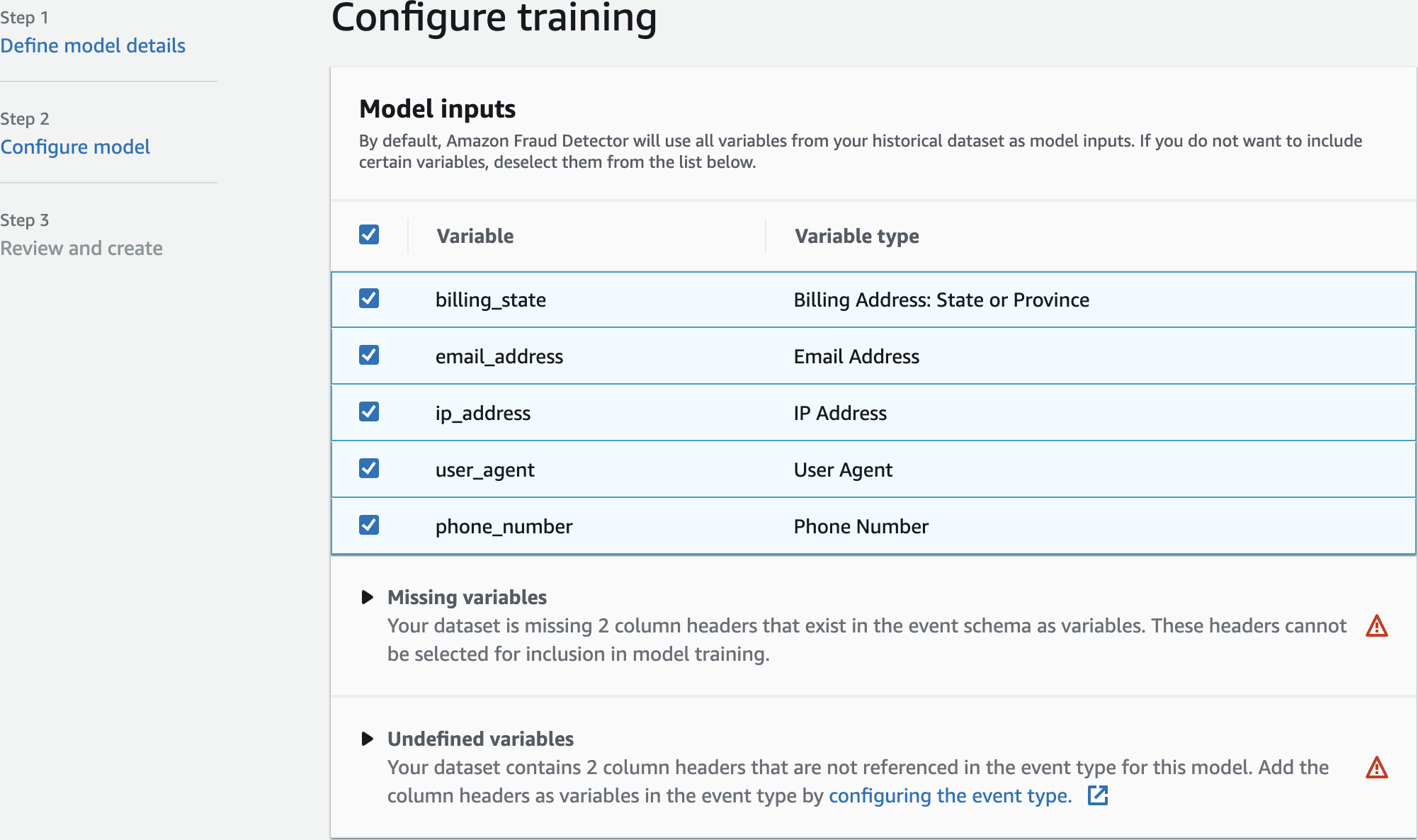

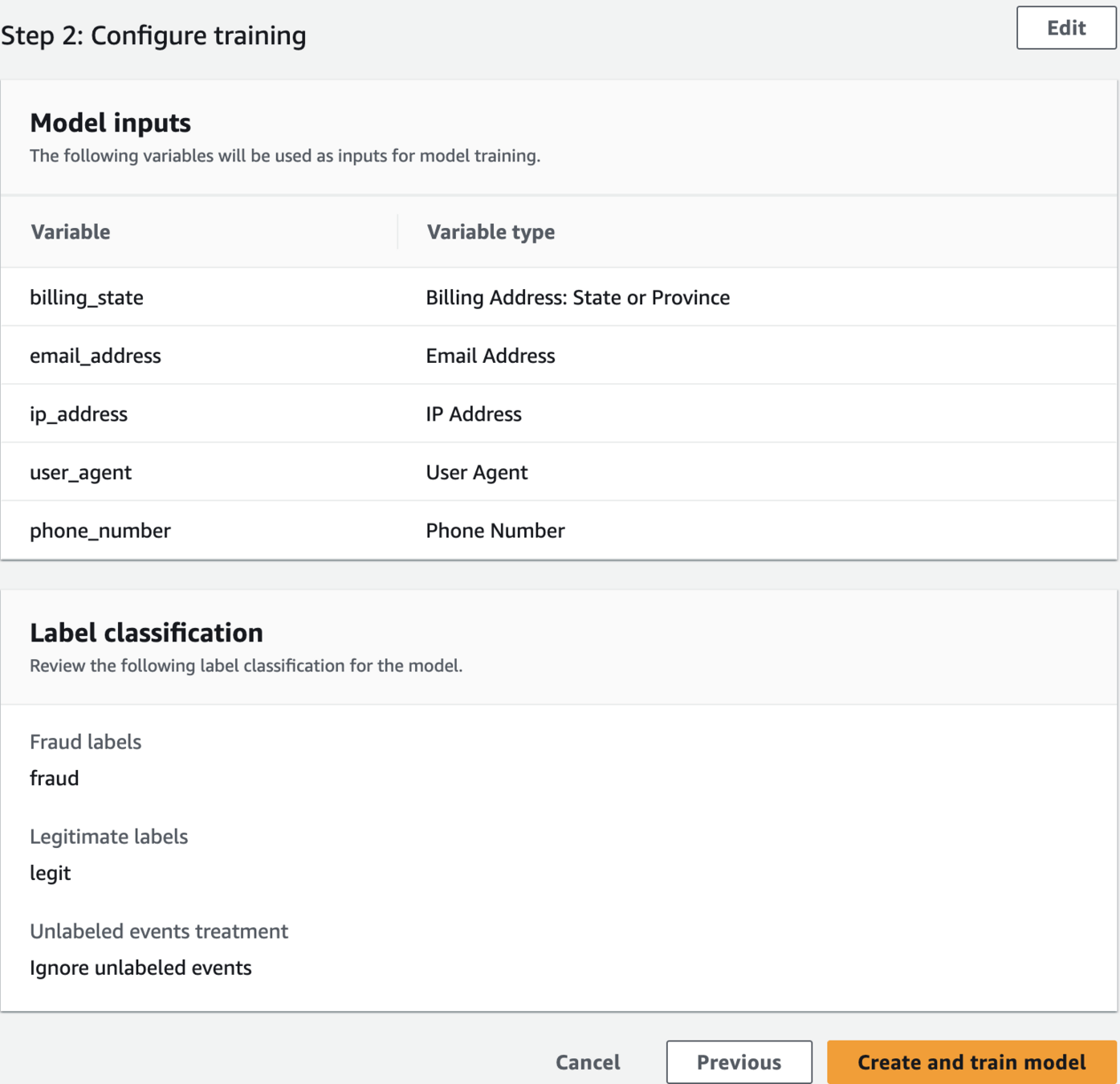

Model inputs

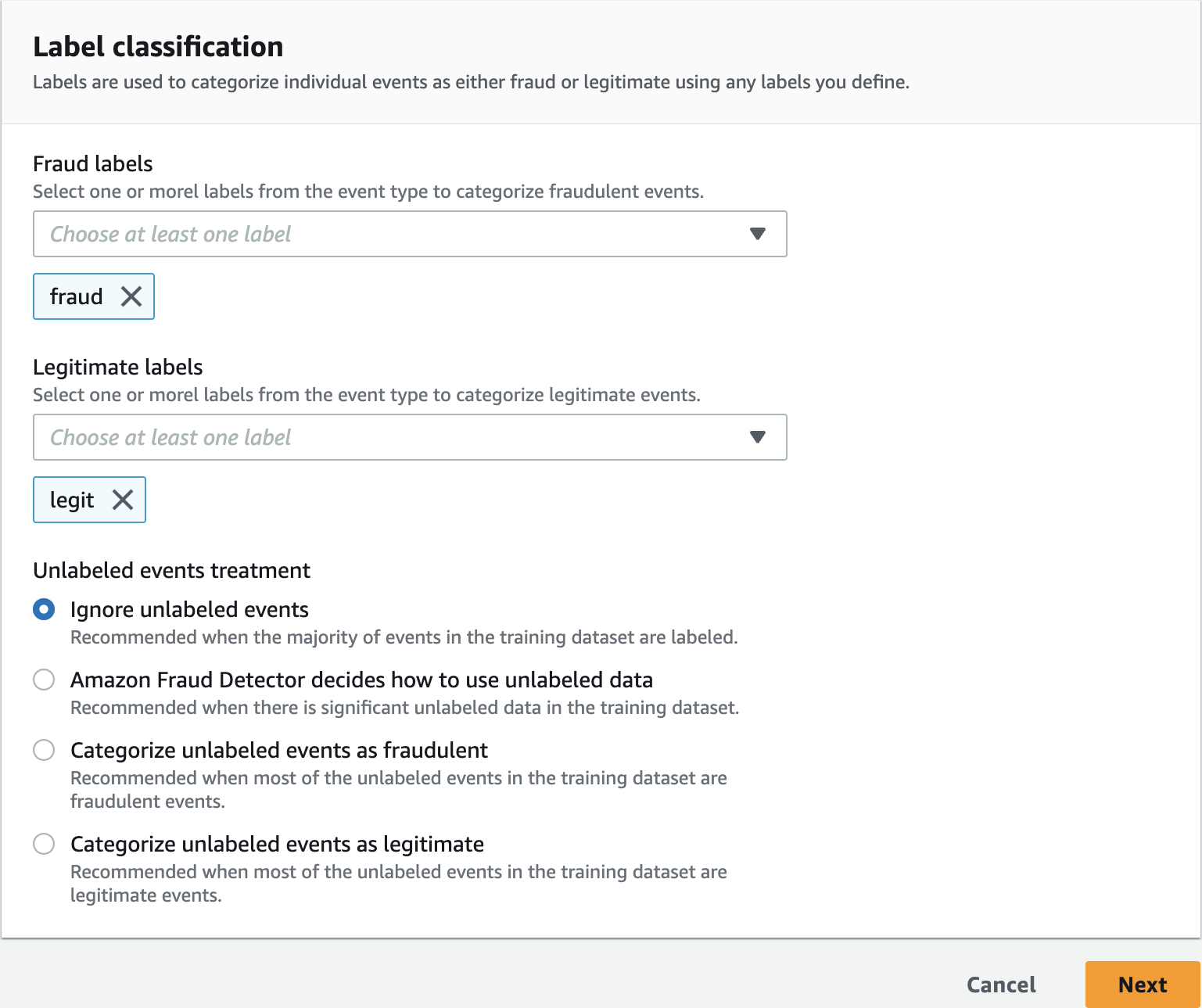

Label classification

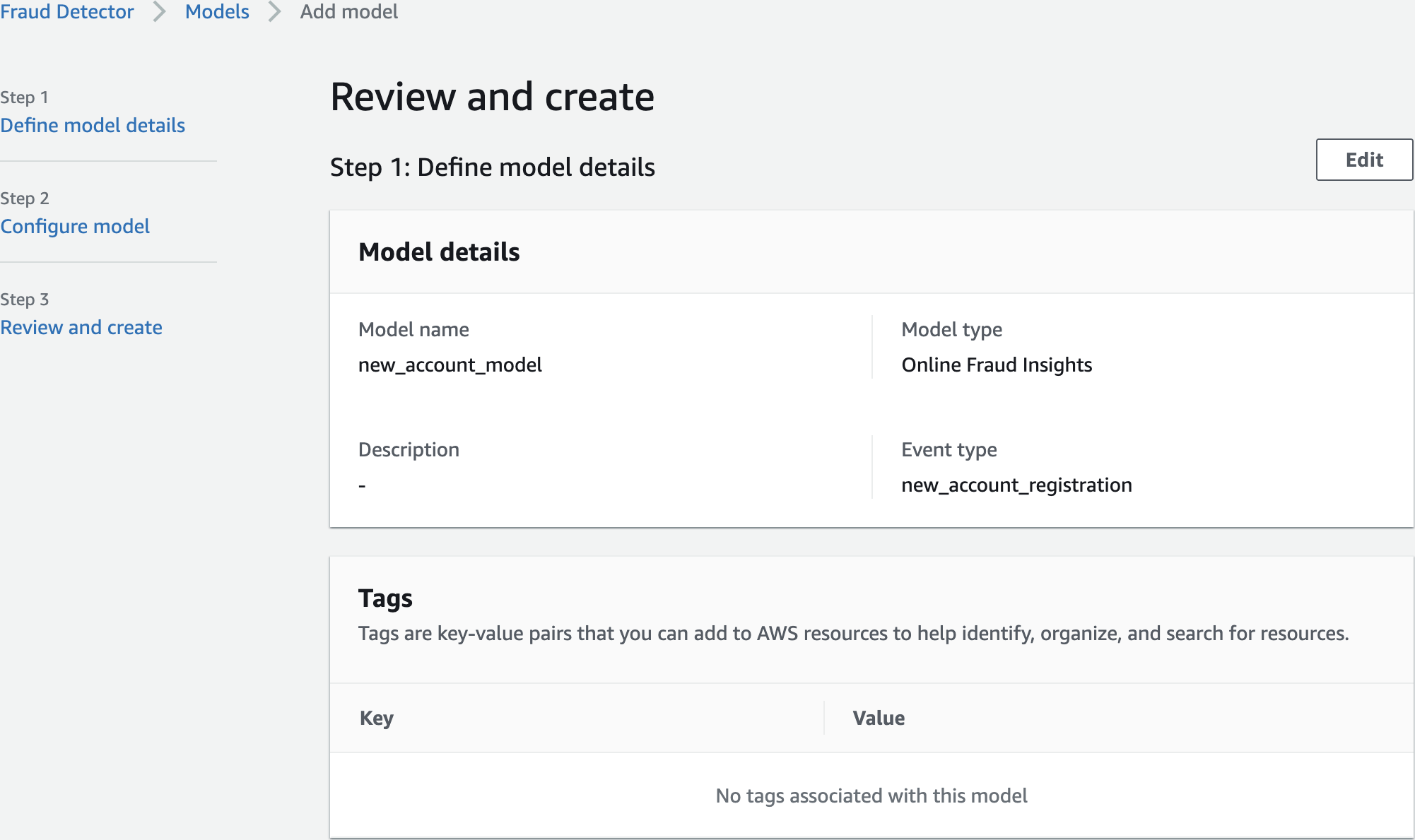

Review and create

Create and train model

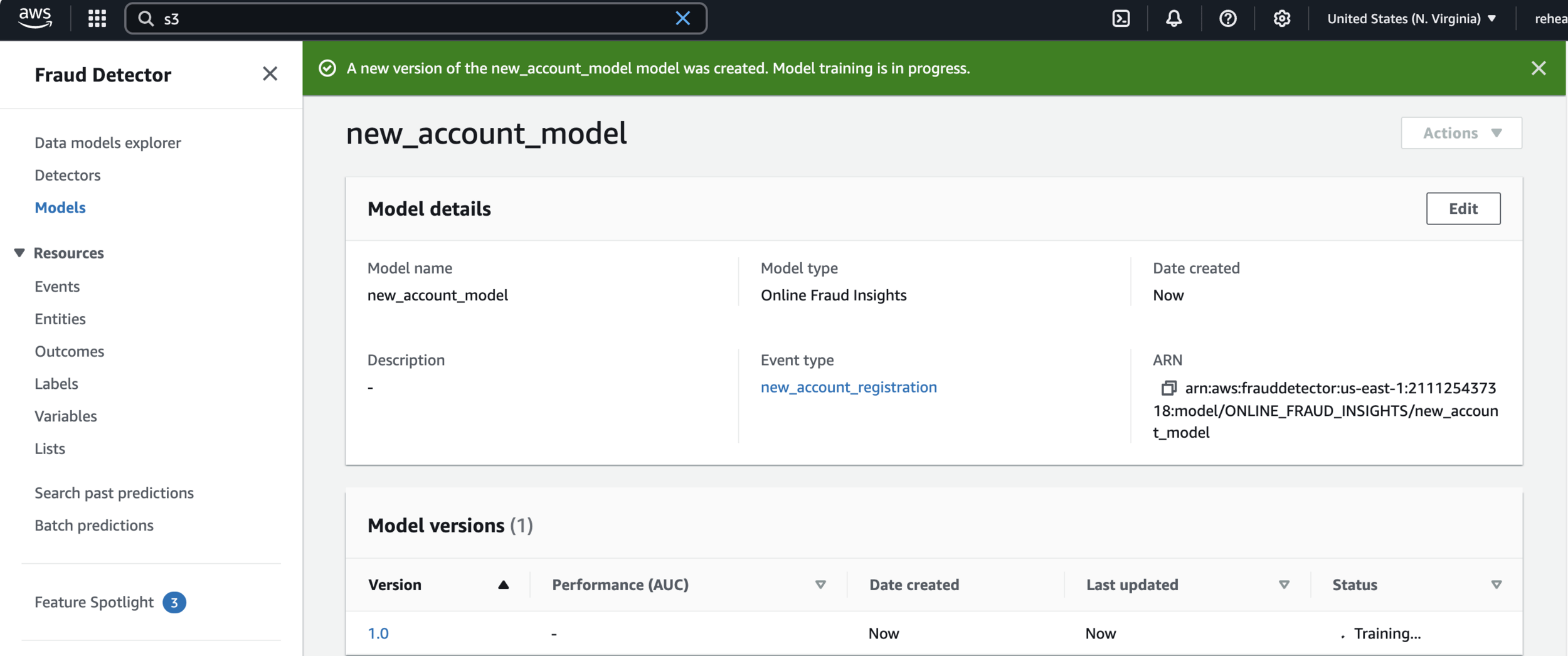

Model training is in progress

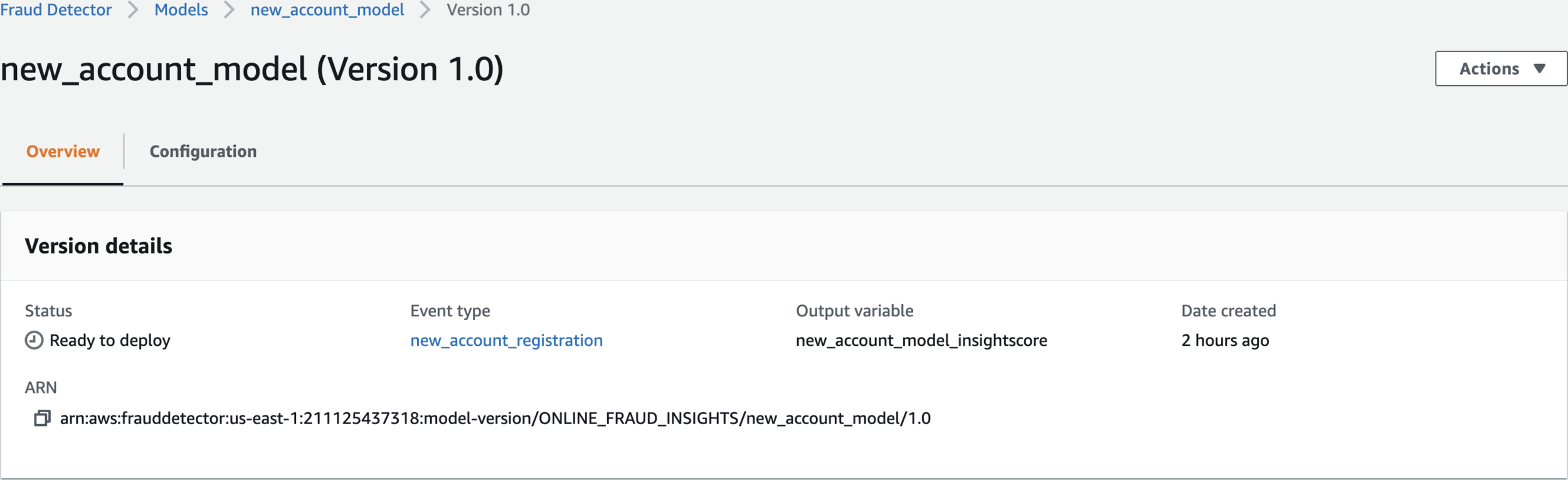

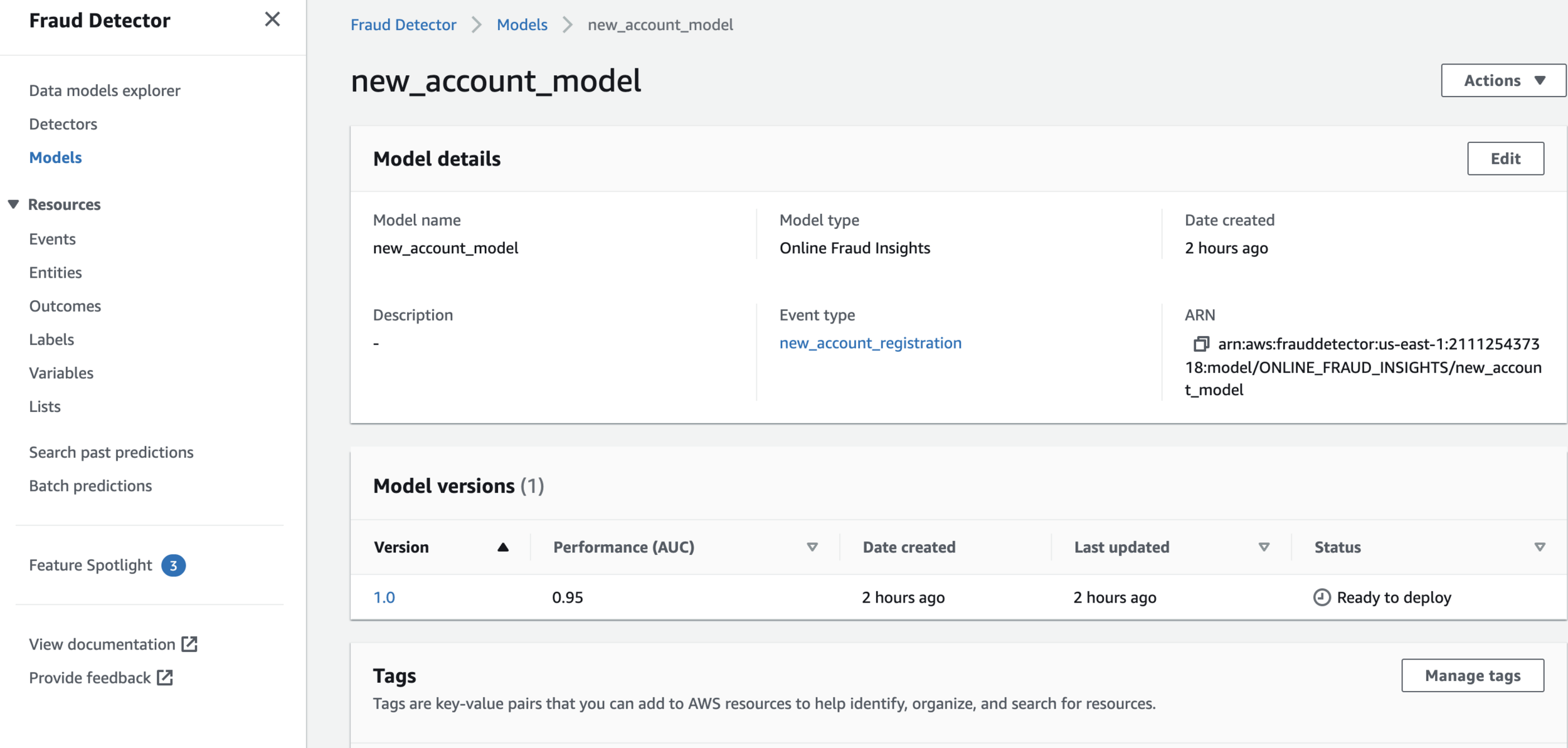

Ready to deploy

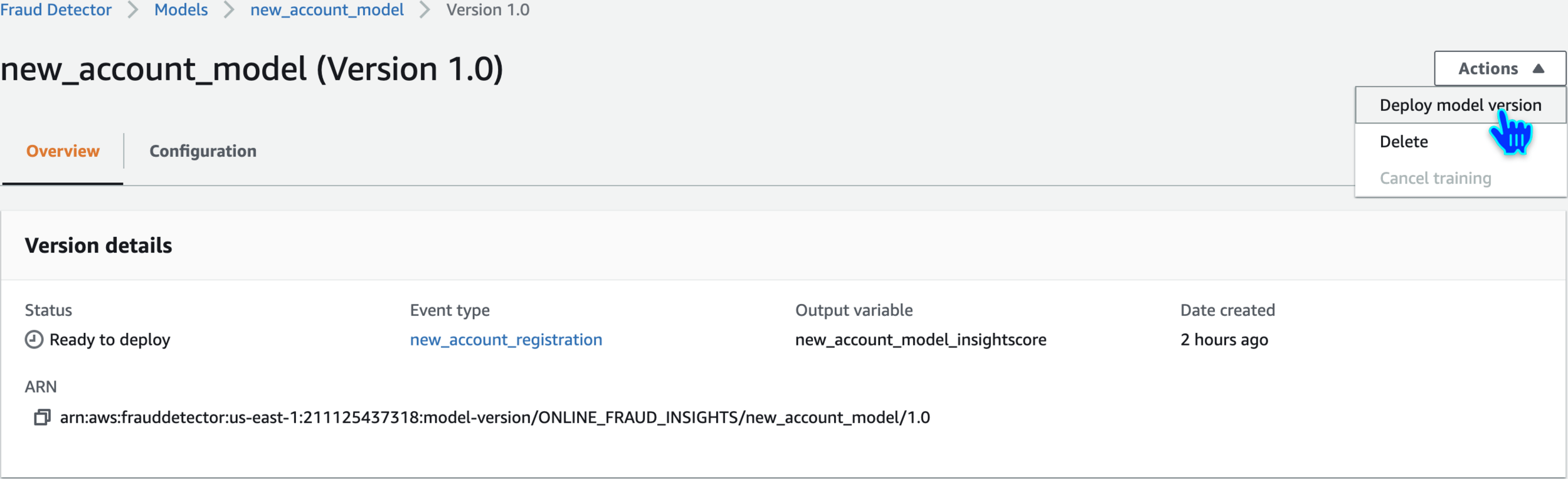

Deploy the model

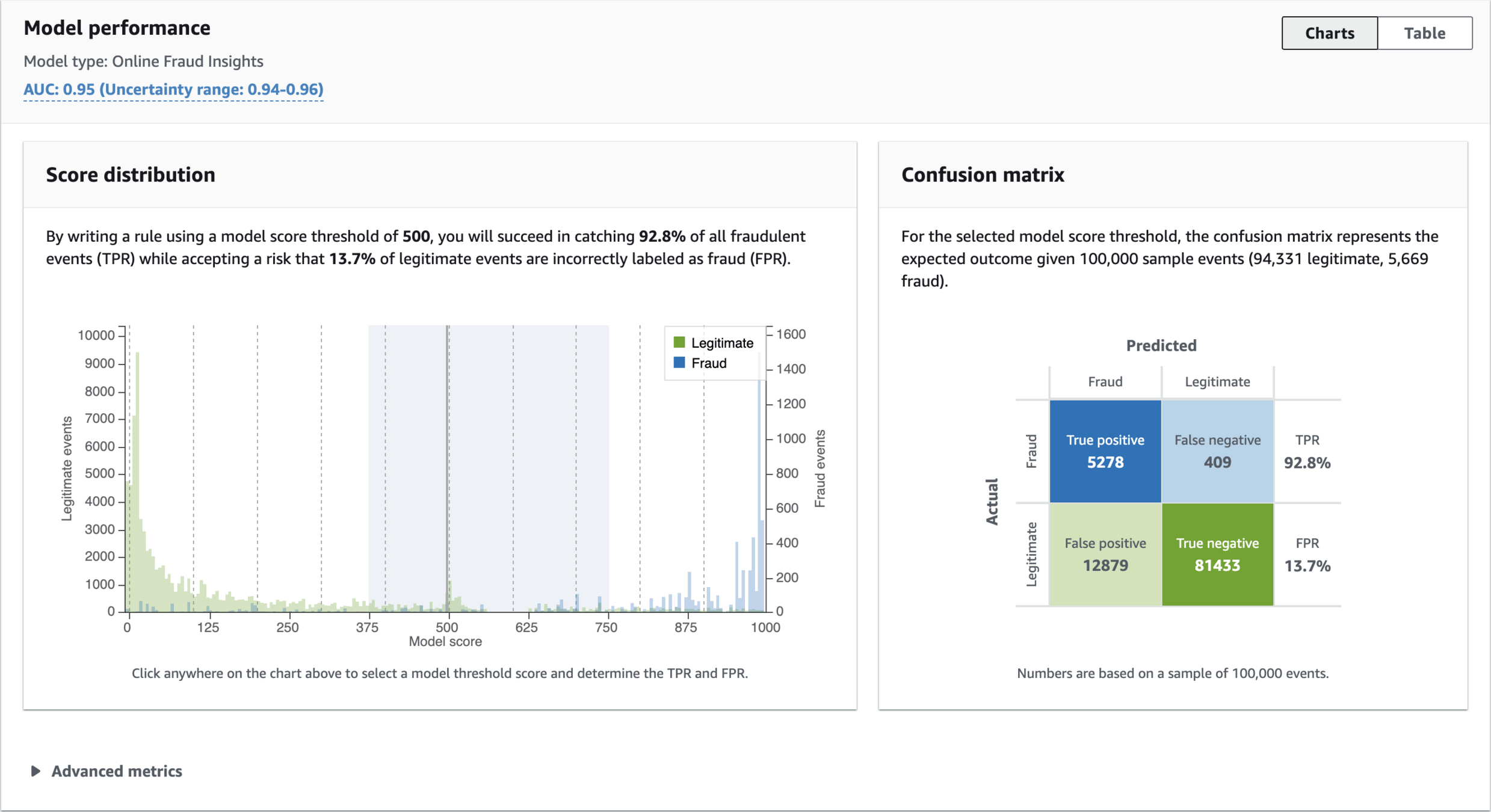

Model performance

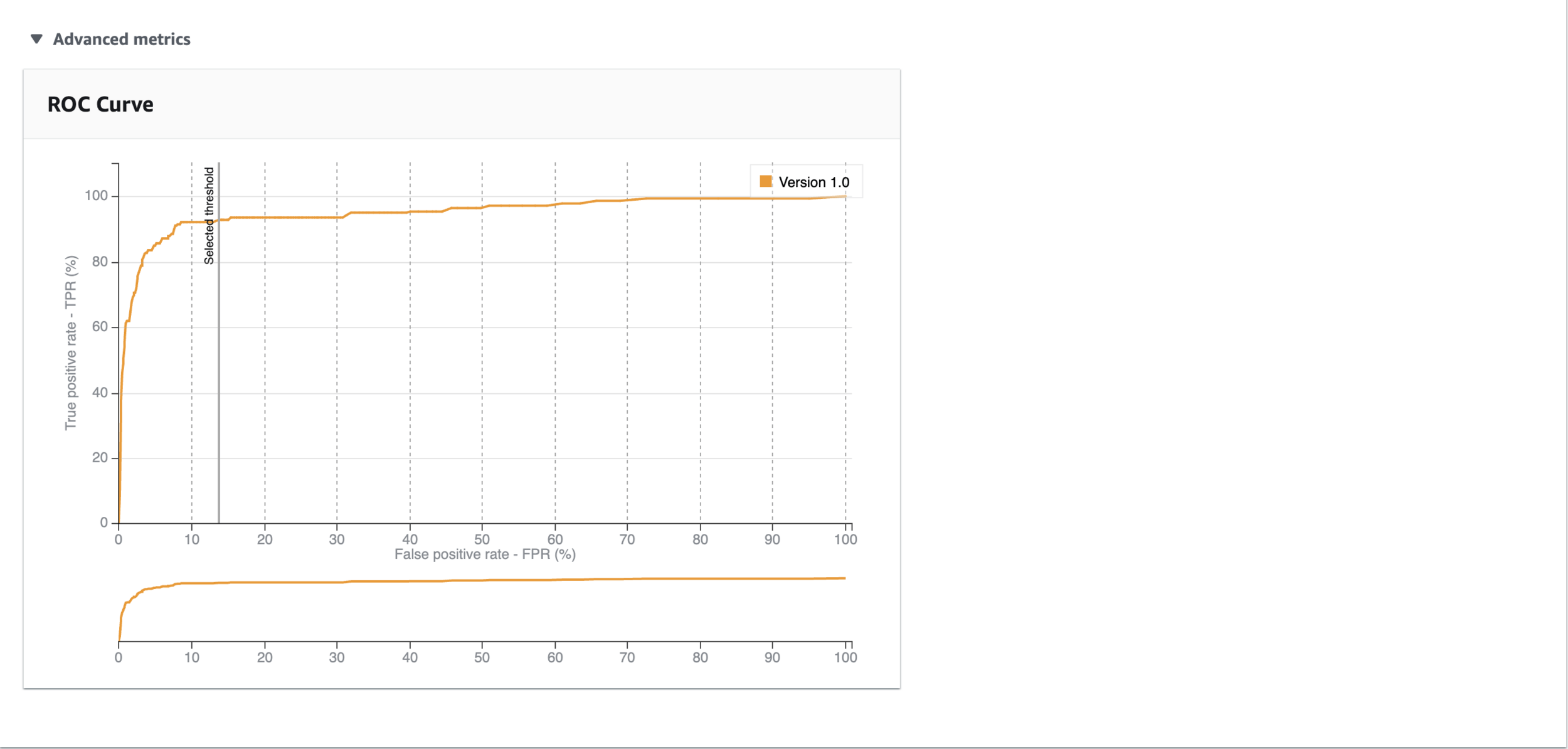

ROC Curve

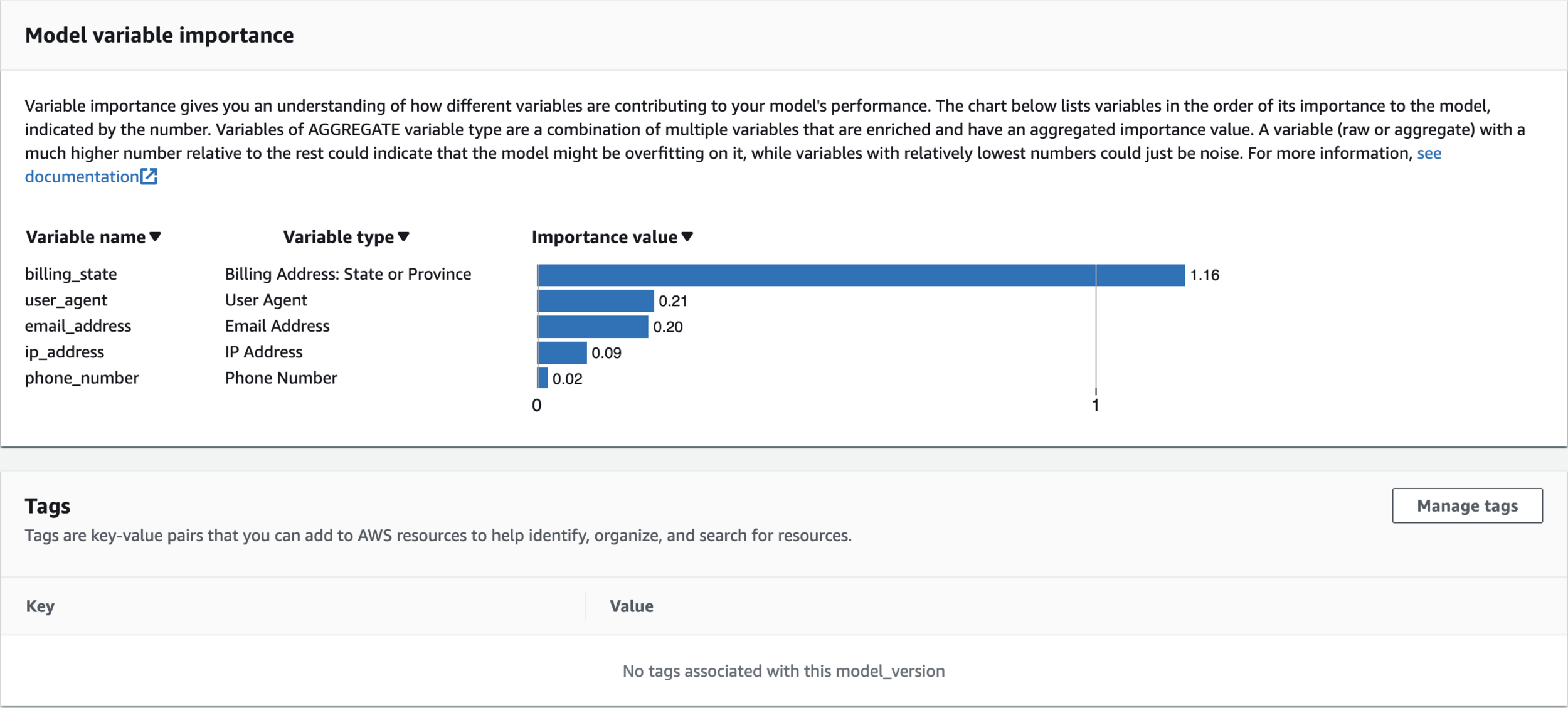

Model variable importance

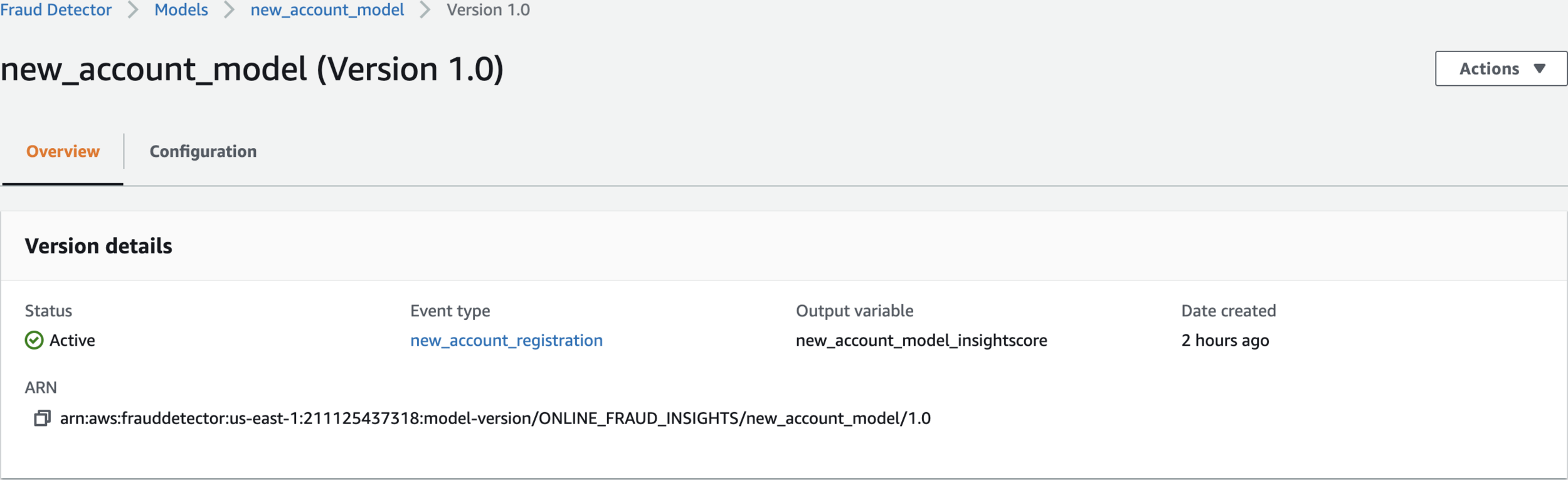

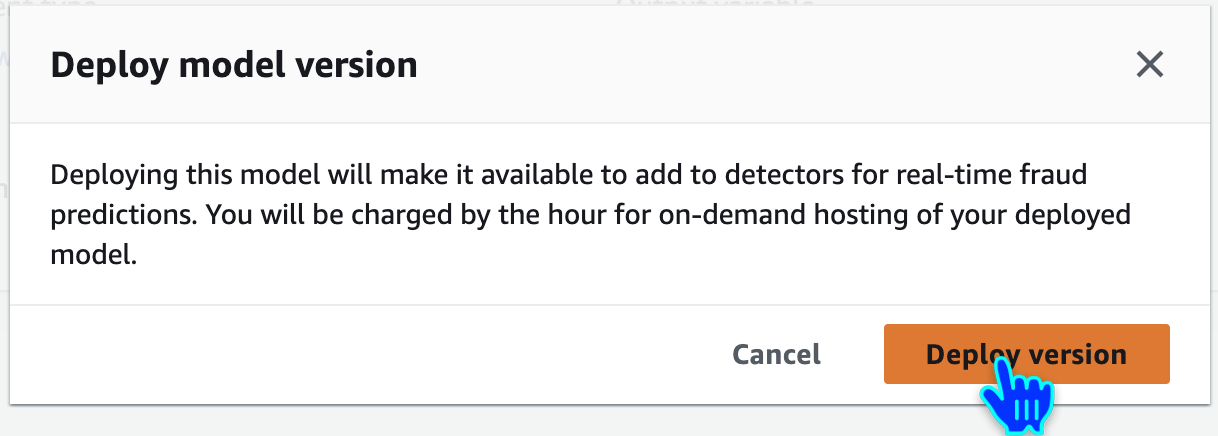

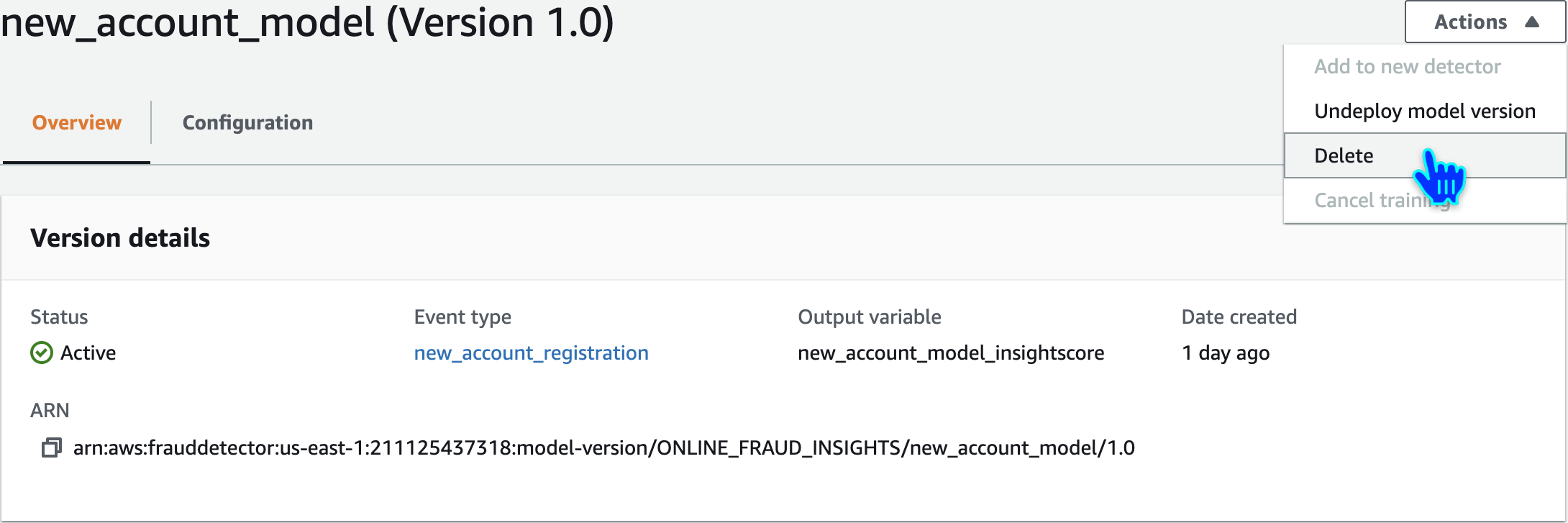

Deploy model version

Active

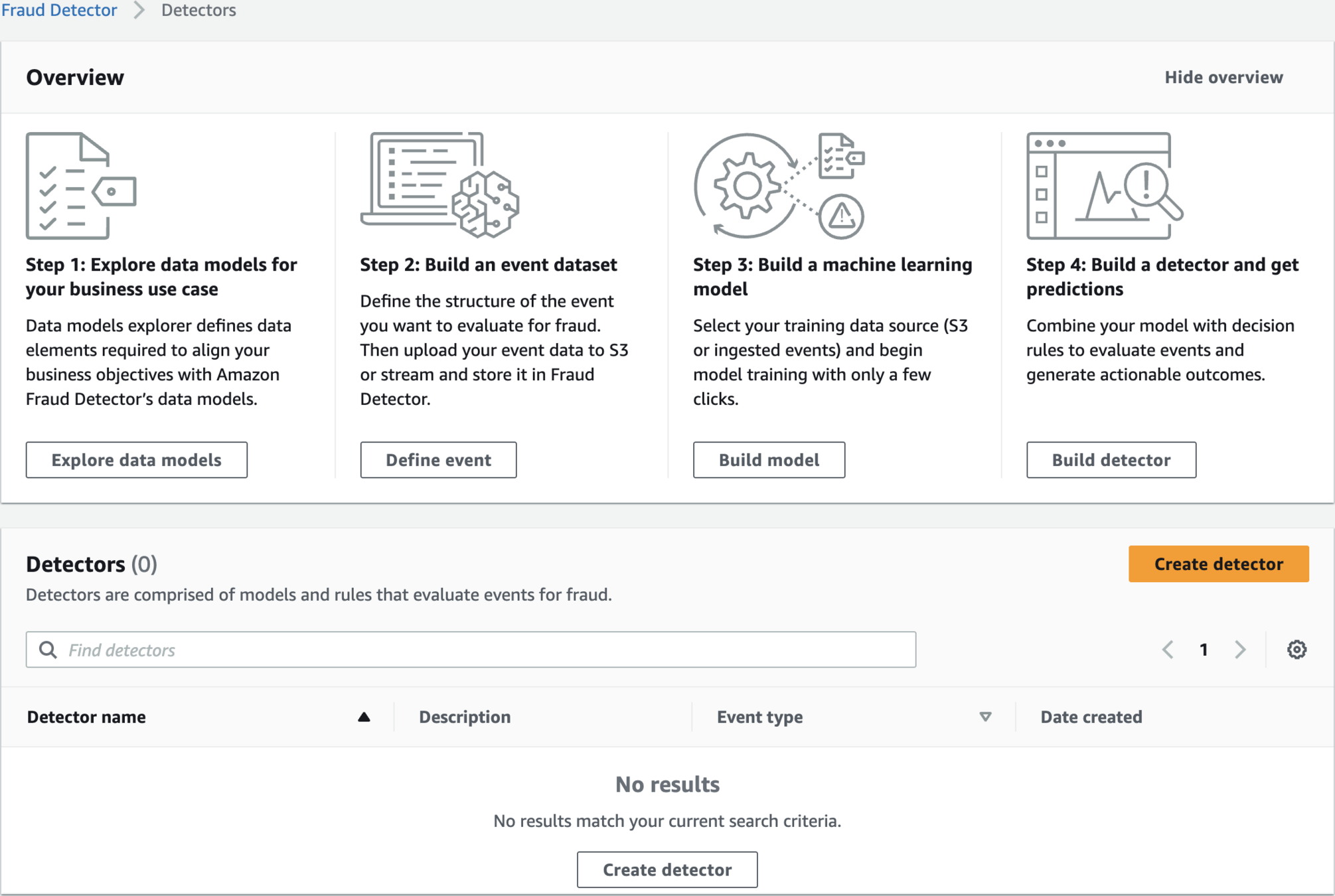

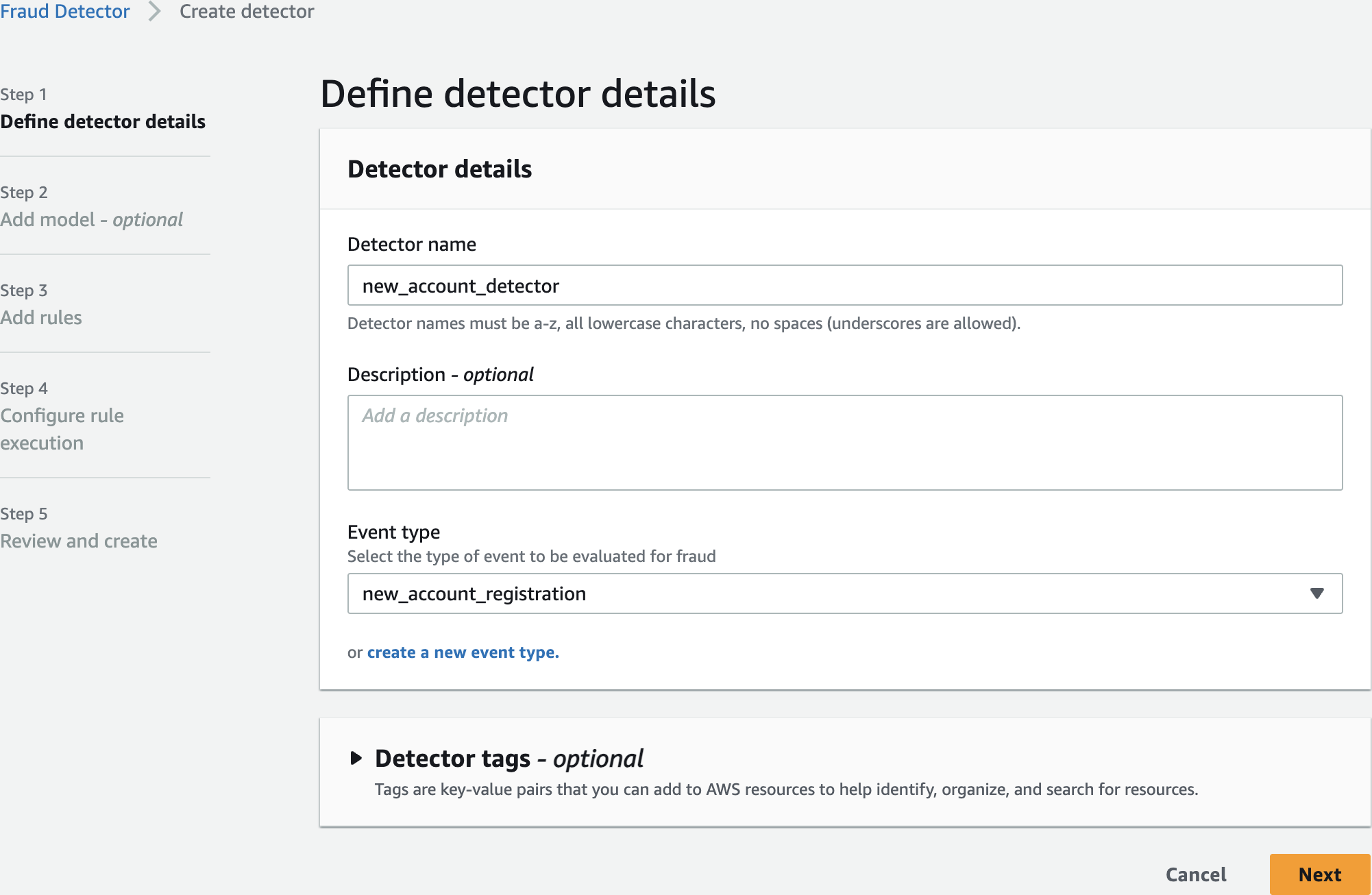

Create detector

new_account_detector

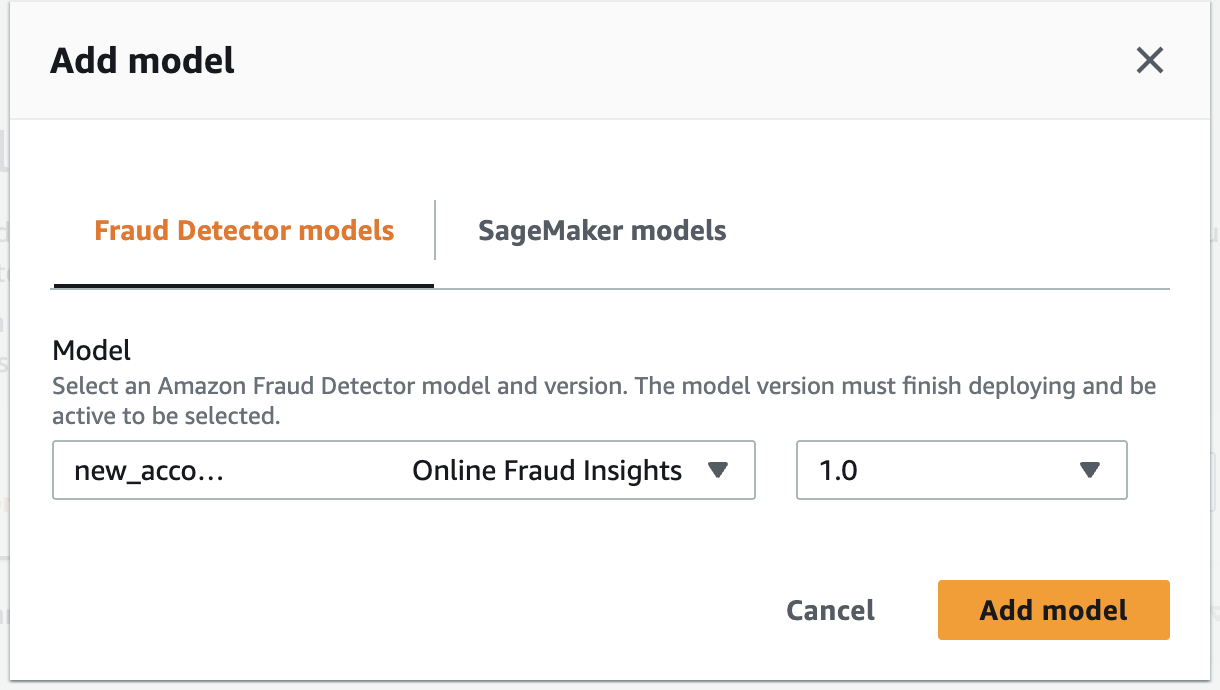

Add model

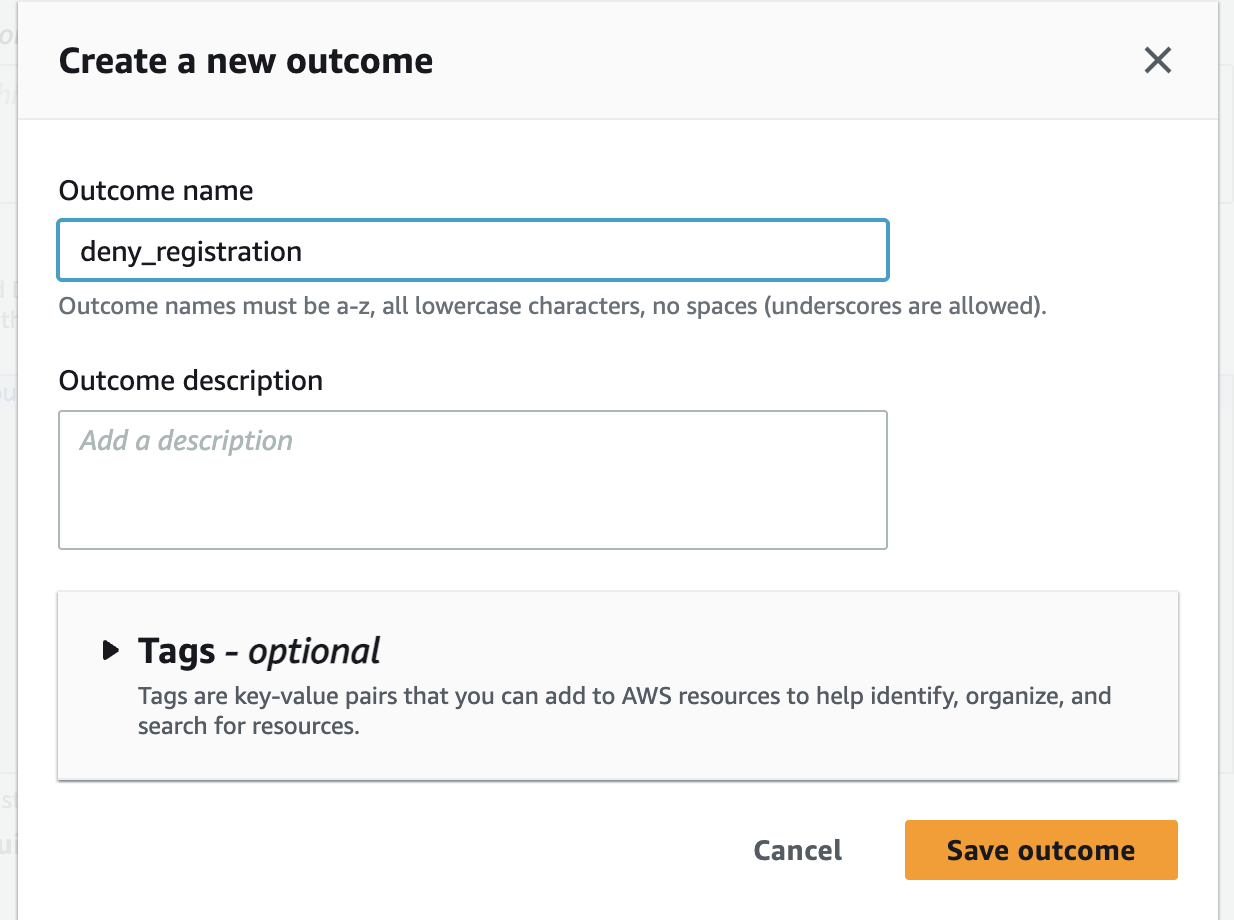

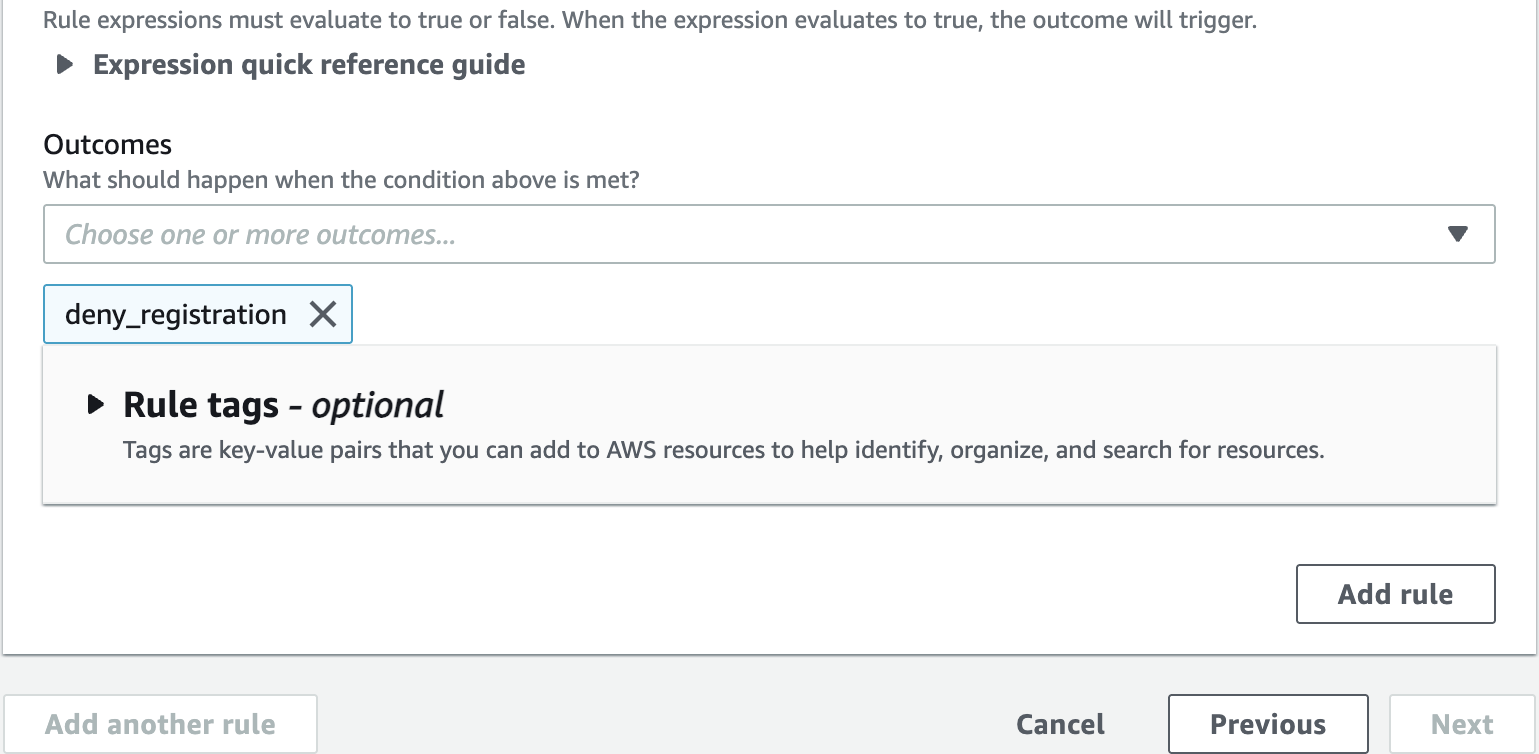

Create a 1st outcome

deny_registration

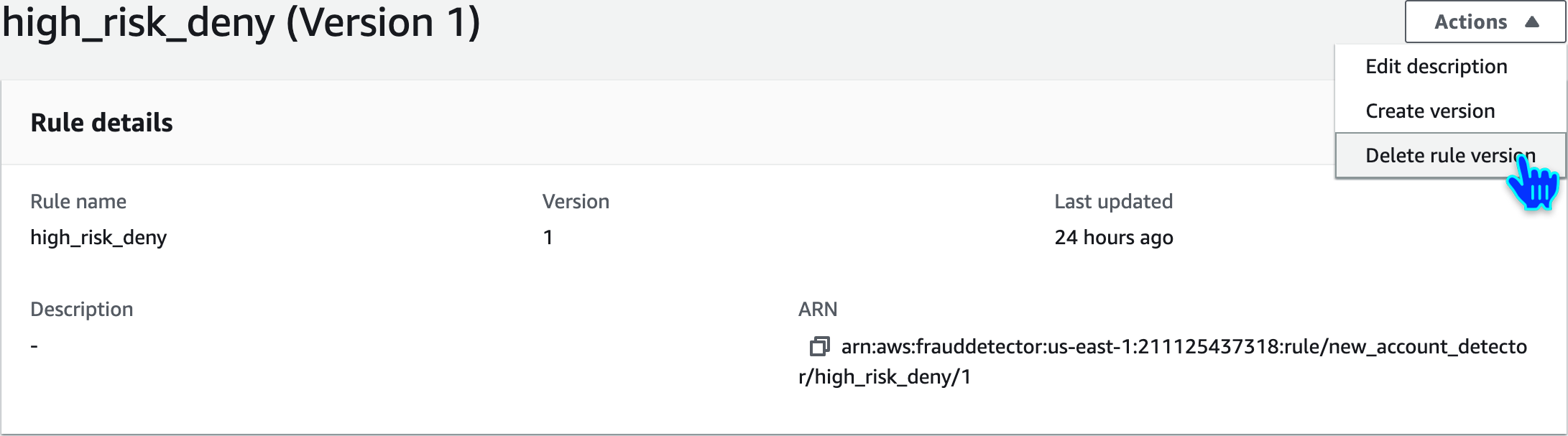

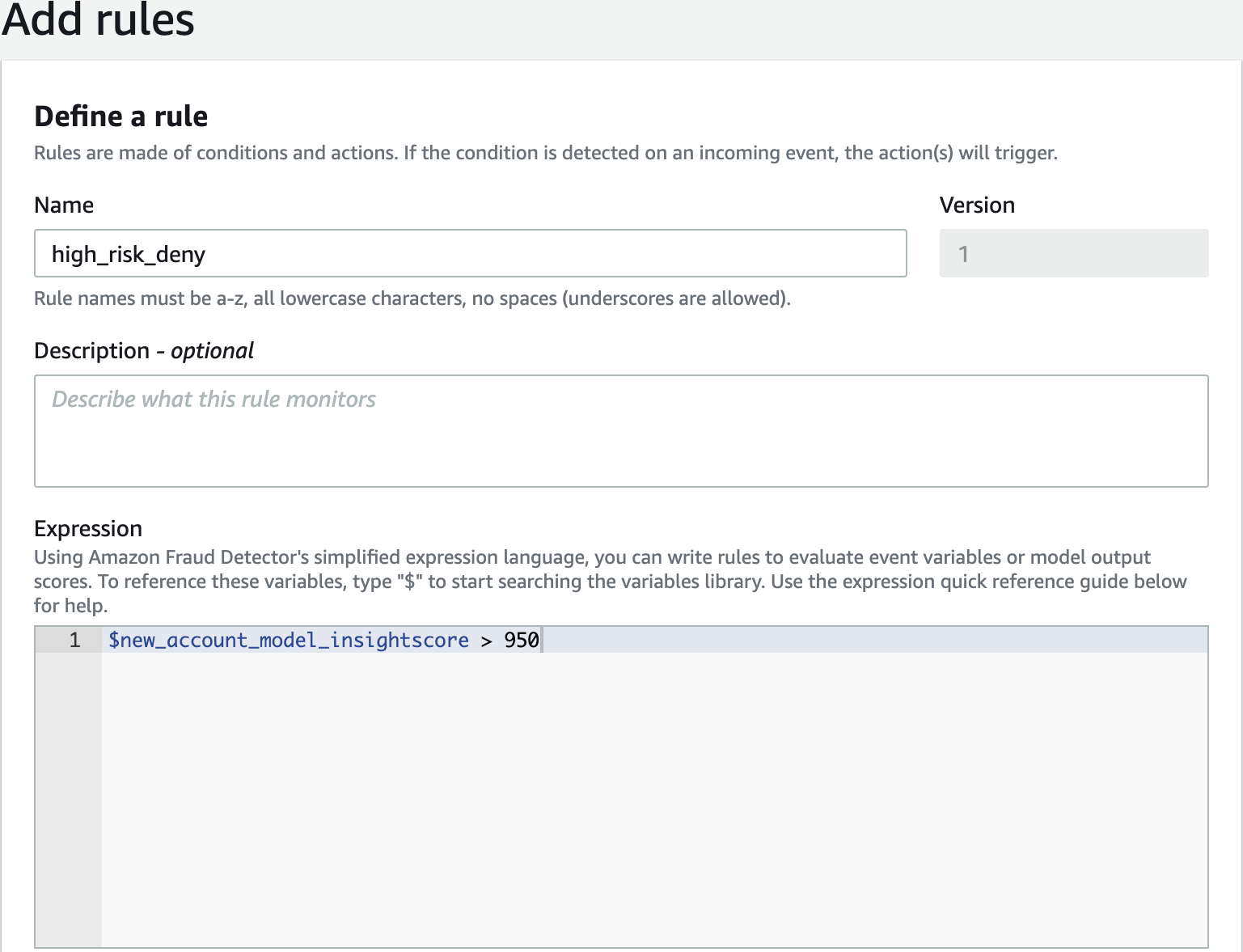

high_risk_deny

$new_account_model_insightscore > 950

Outcomes

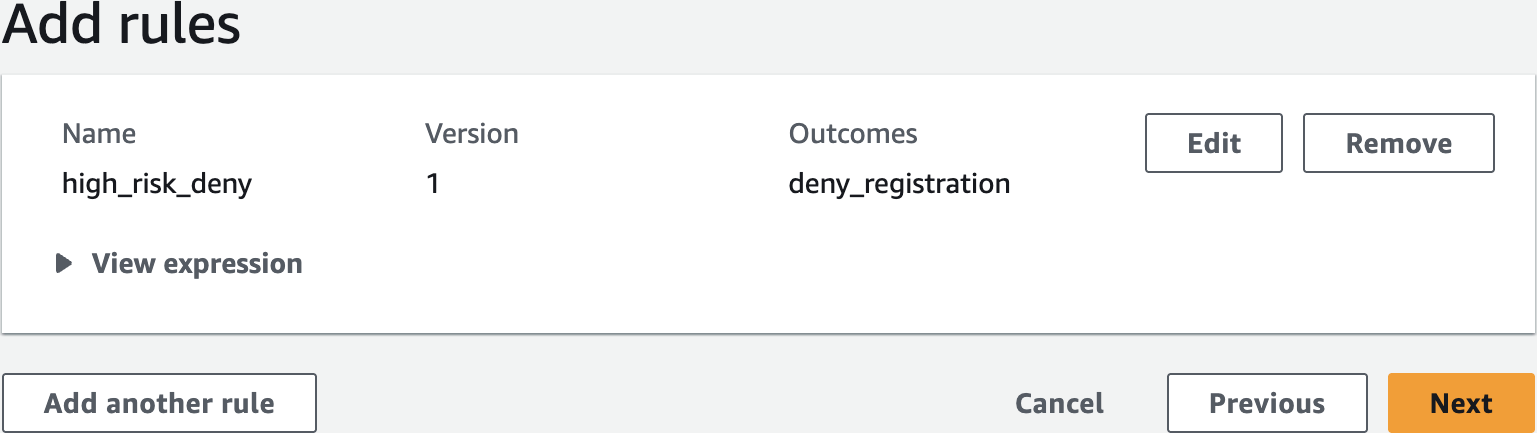

Add another rule

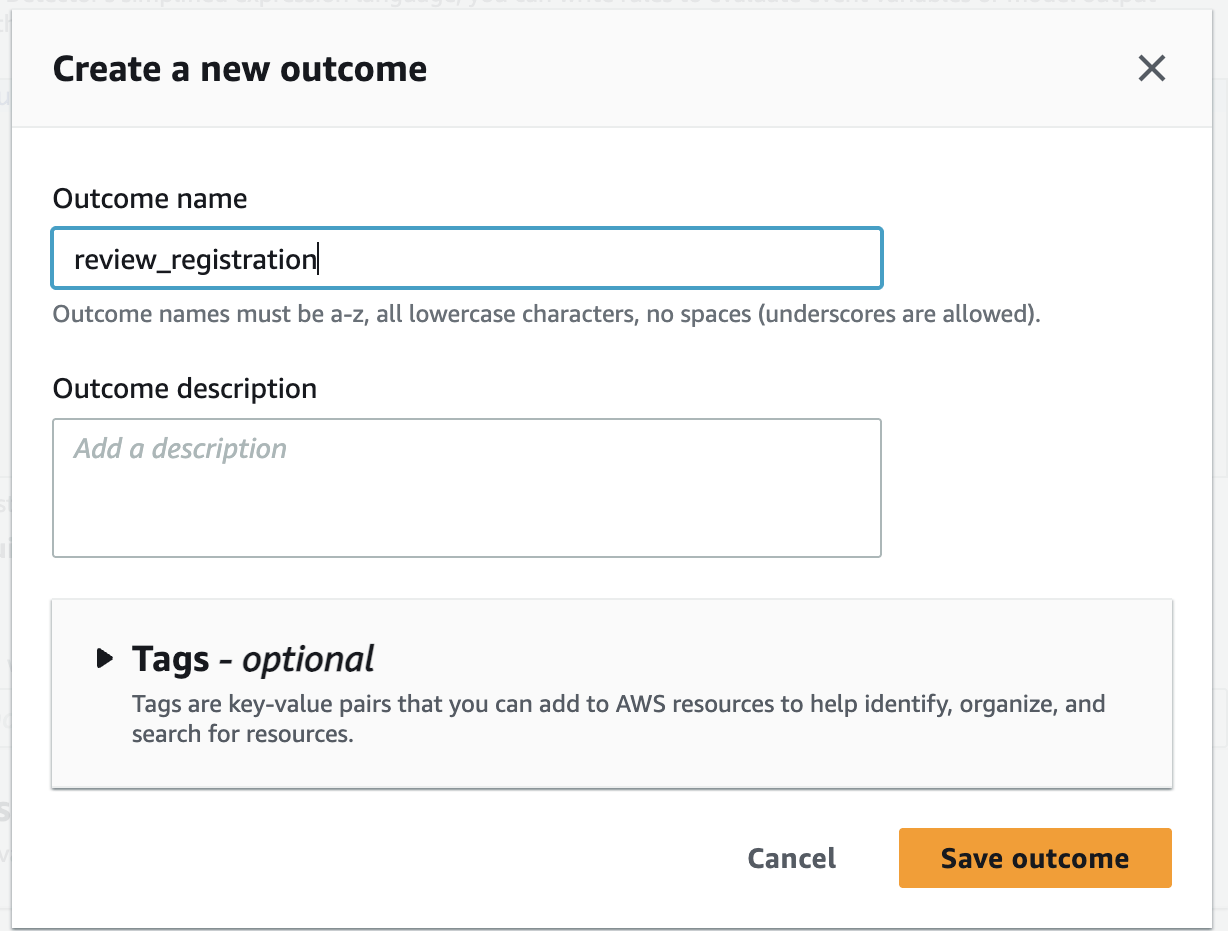

Create a 2nd outcome

review_registration

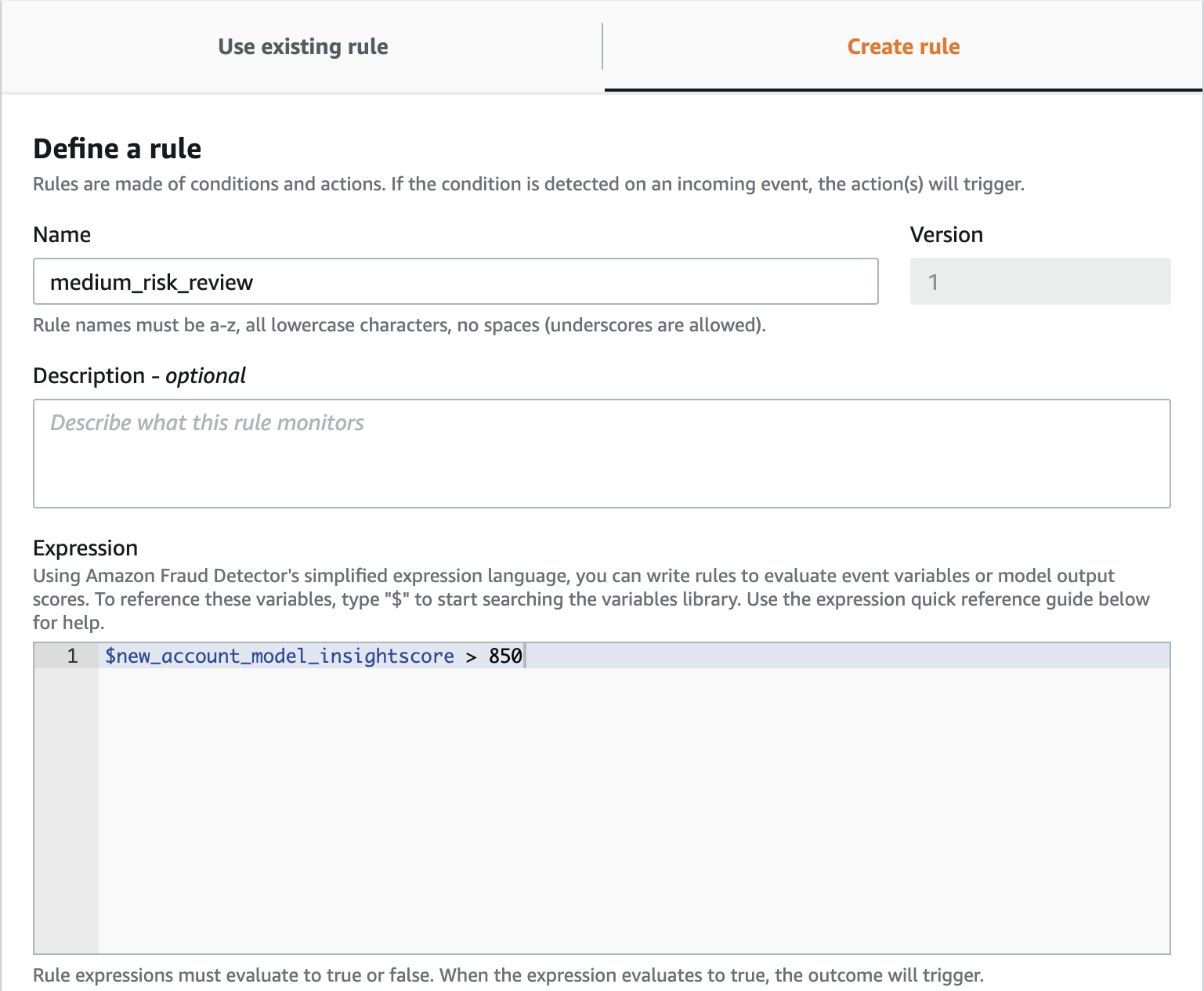

Create rule

medium_risk_review

$new_account_model_insightscore > 850

Outcomes

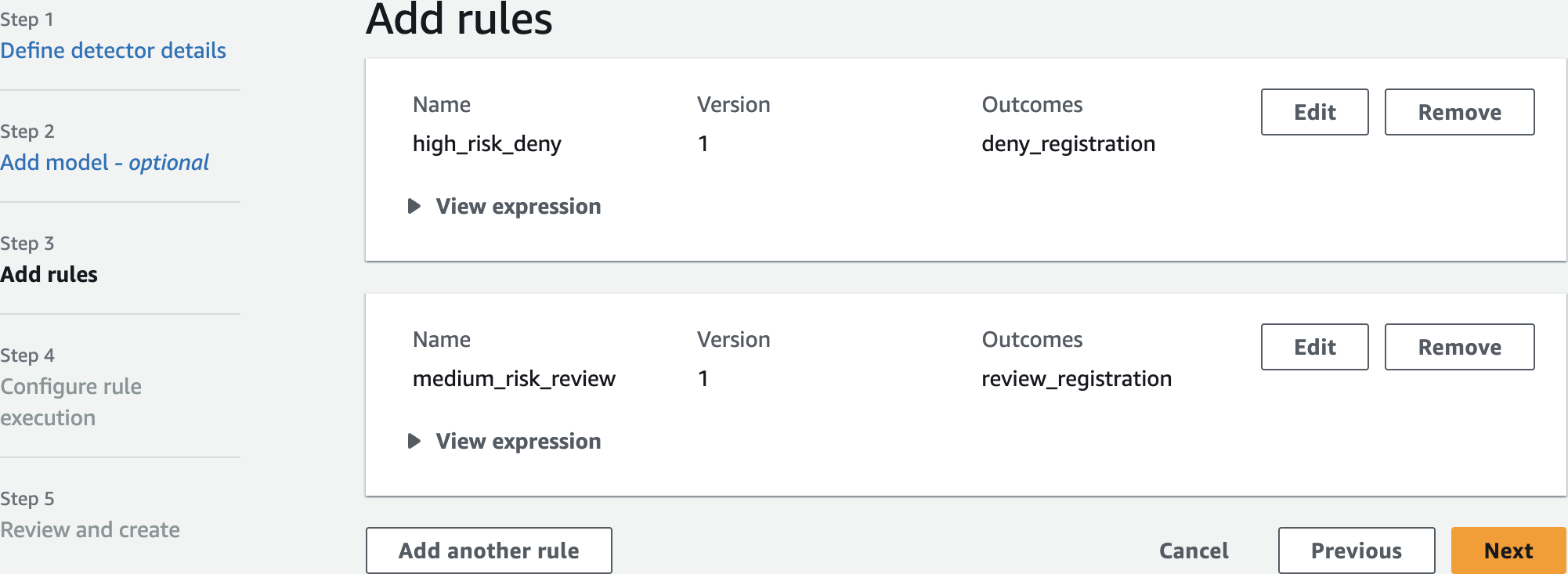

Add another rule

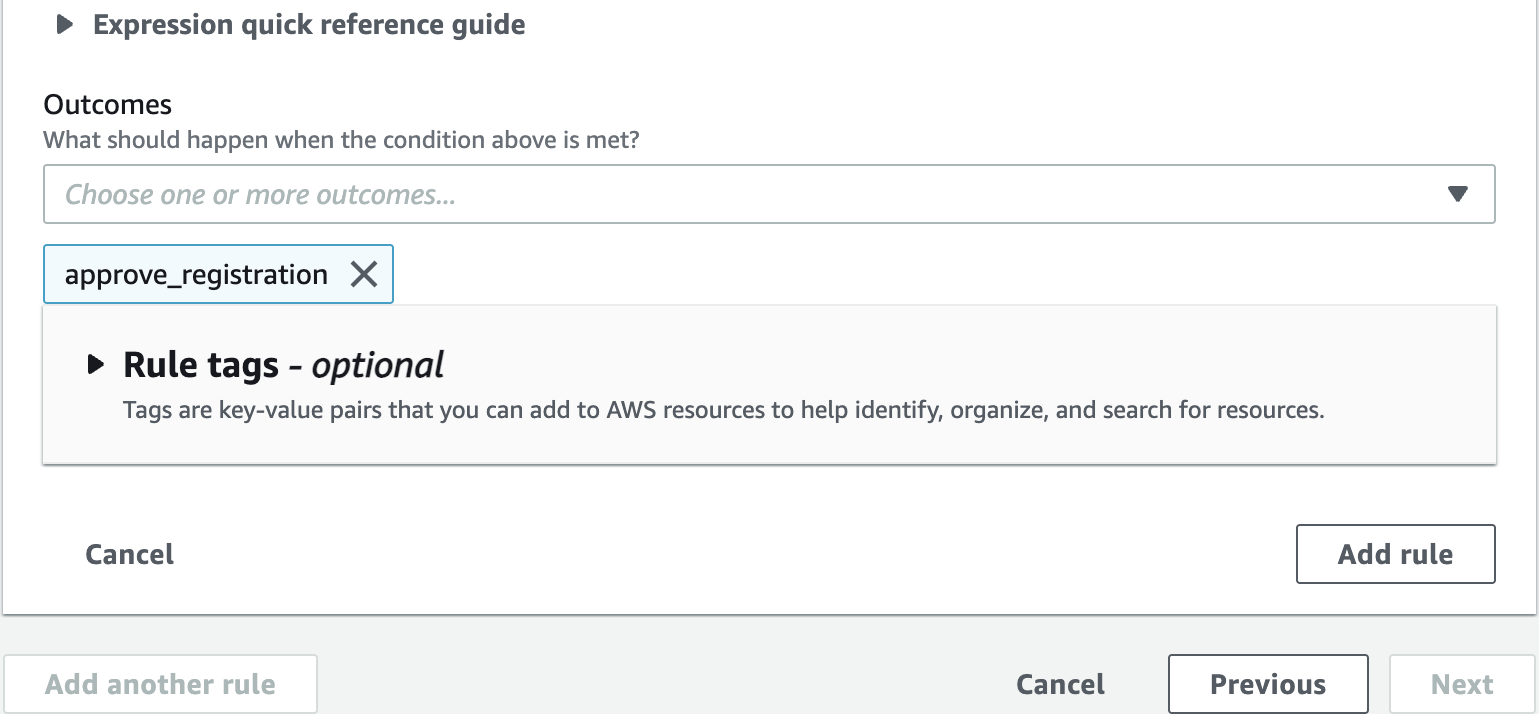

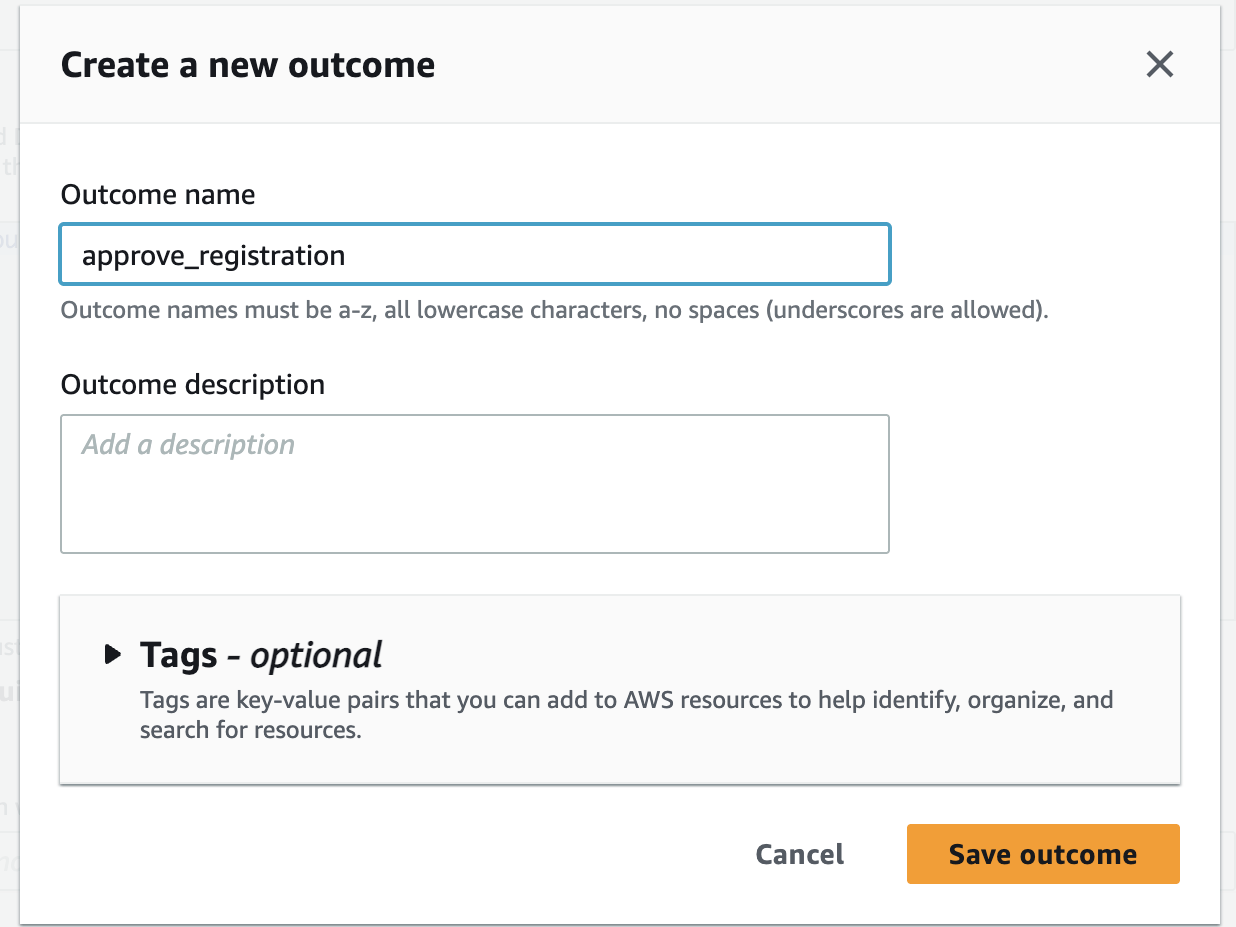

approve_registration

Create a 3rd outcome

Create rule

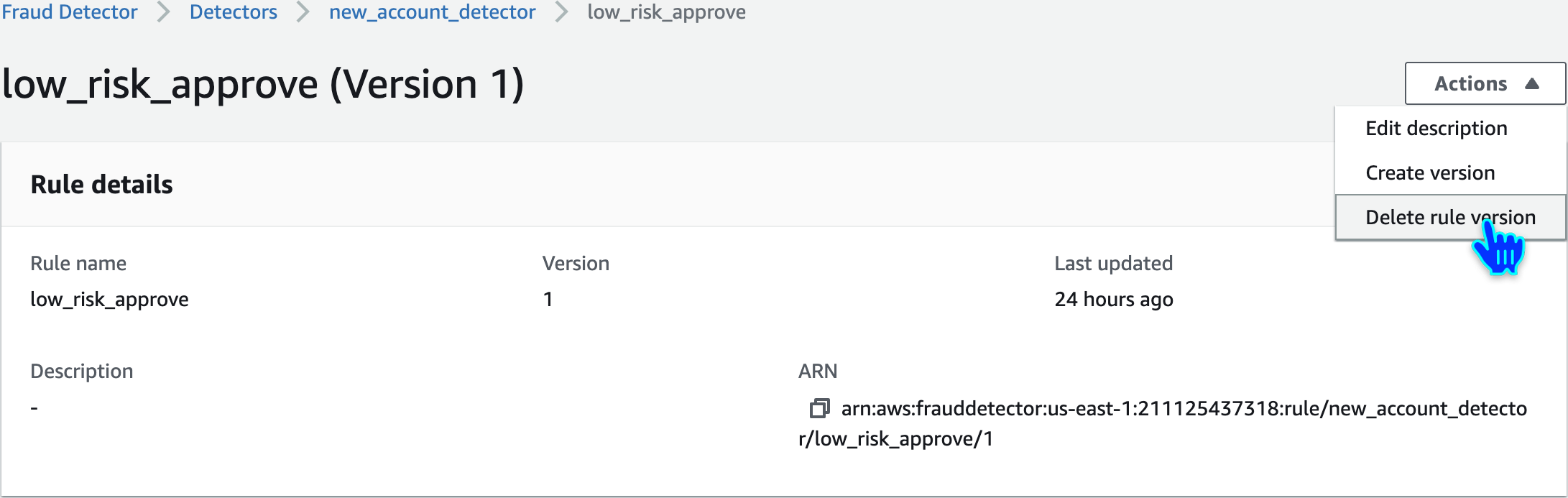

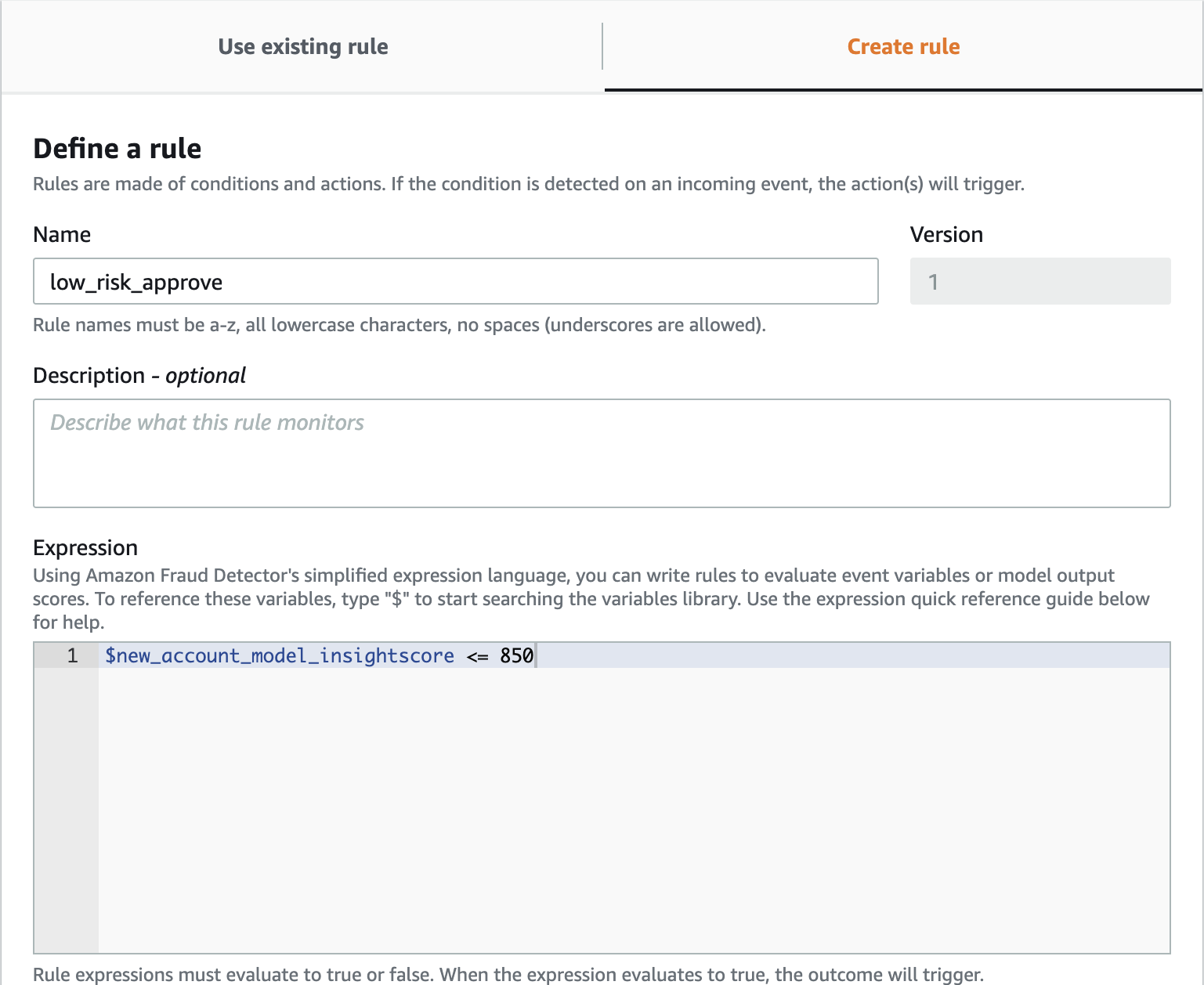

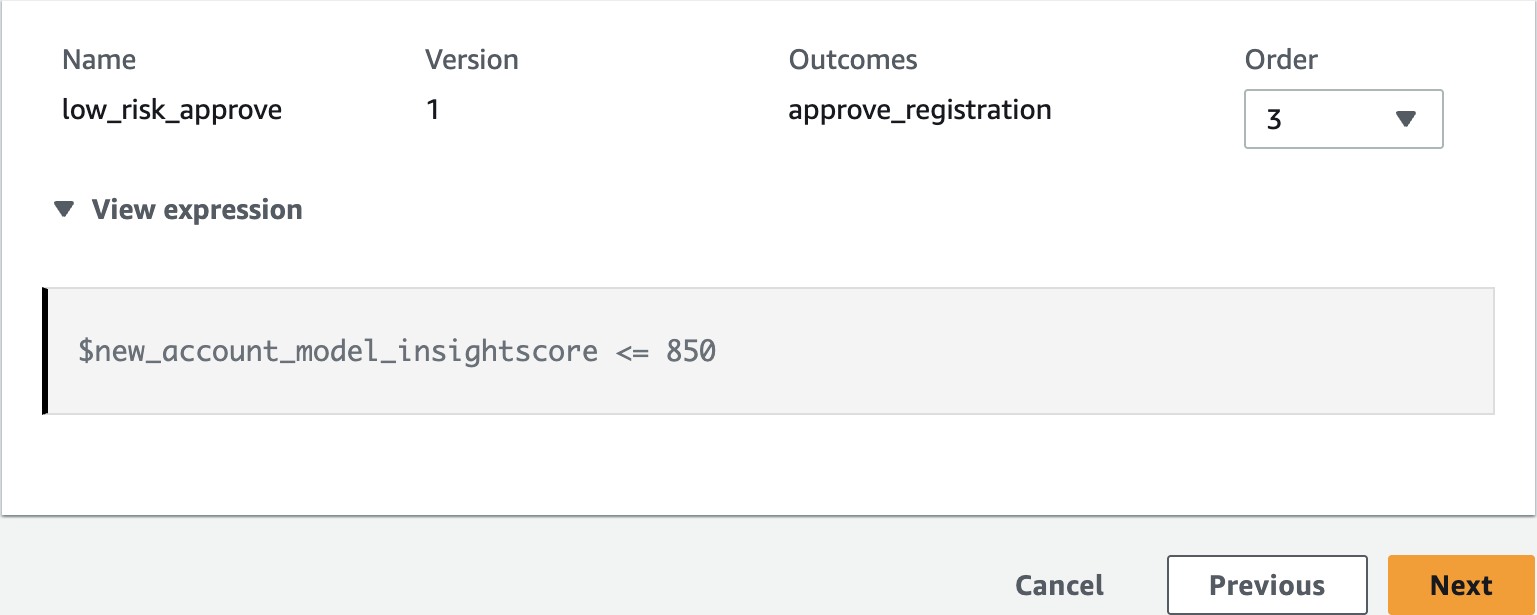

low_risk_approve

$new_account_model_insightscore <= 850

Outcomes

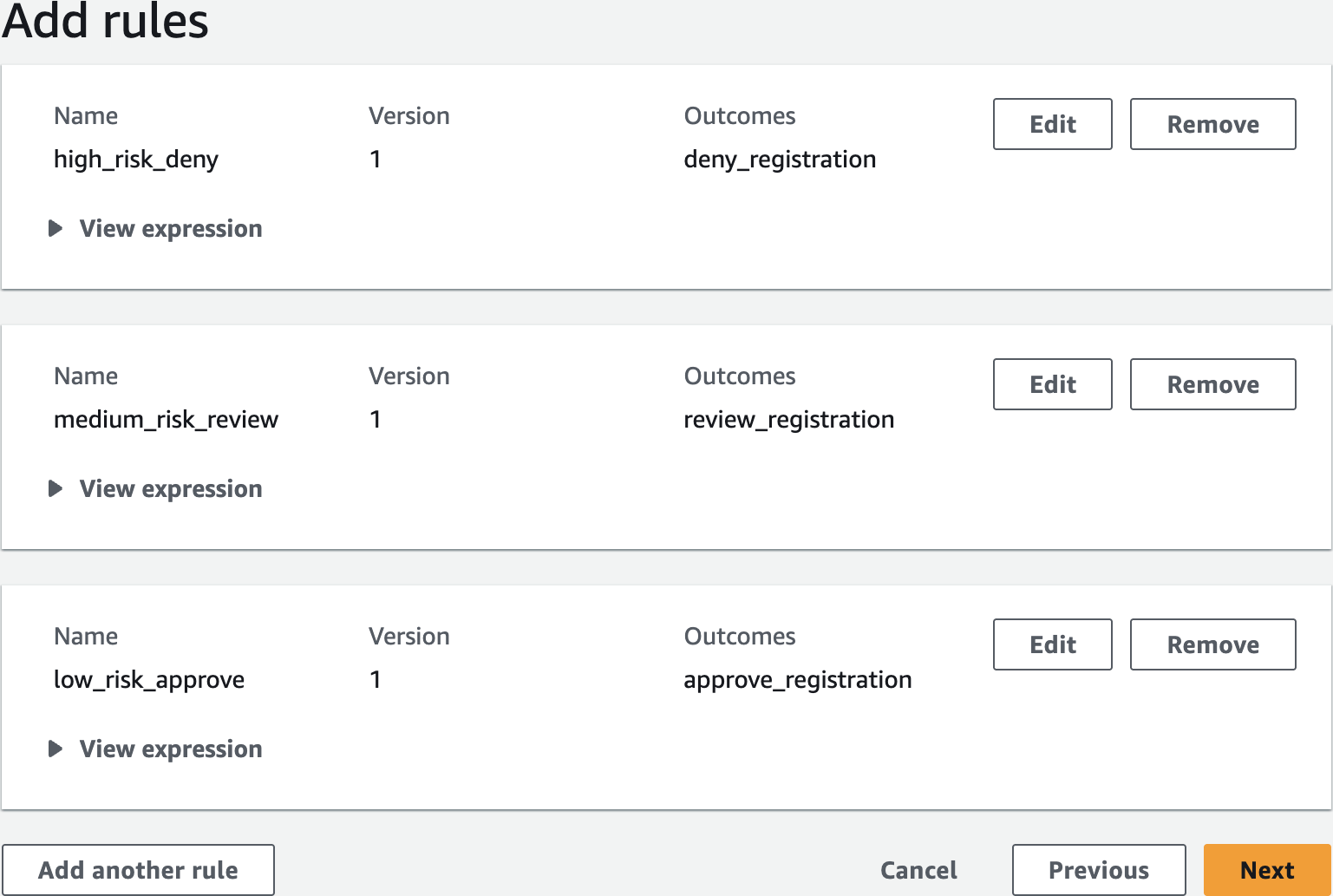

3 Rules

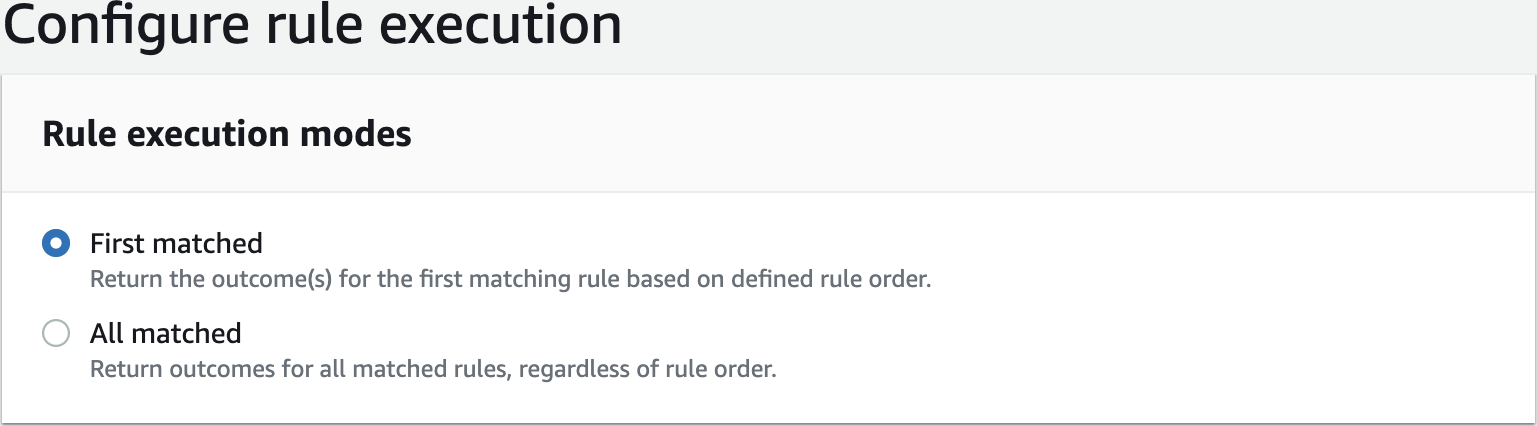

Configure rule execution

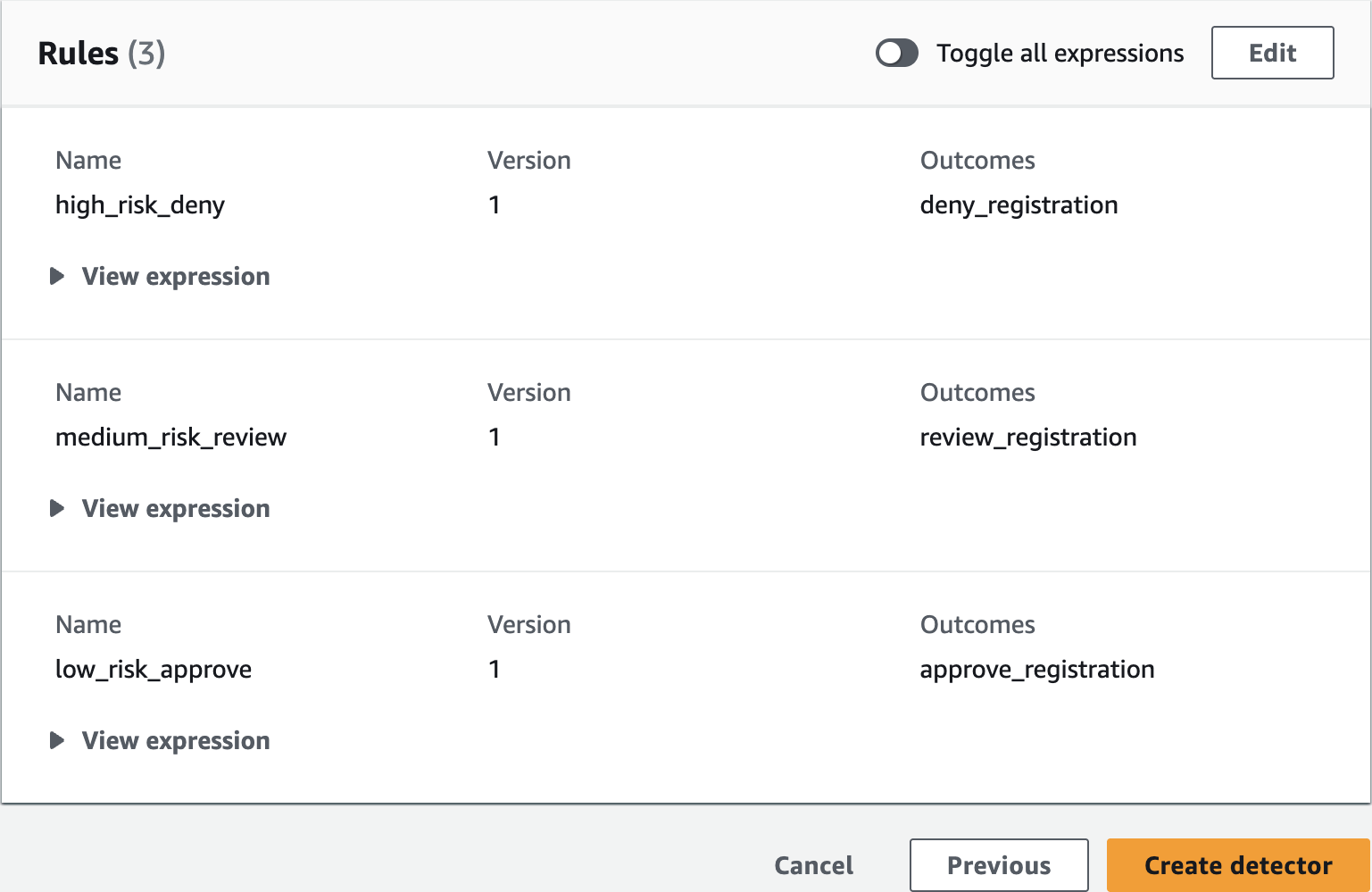

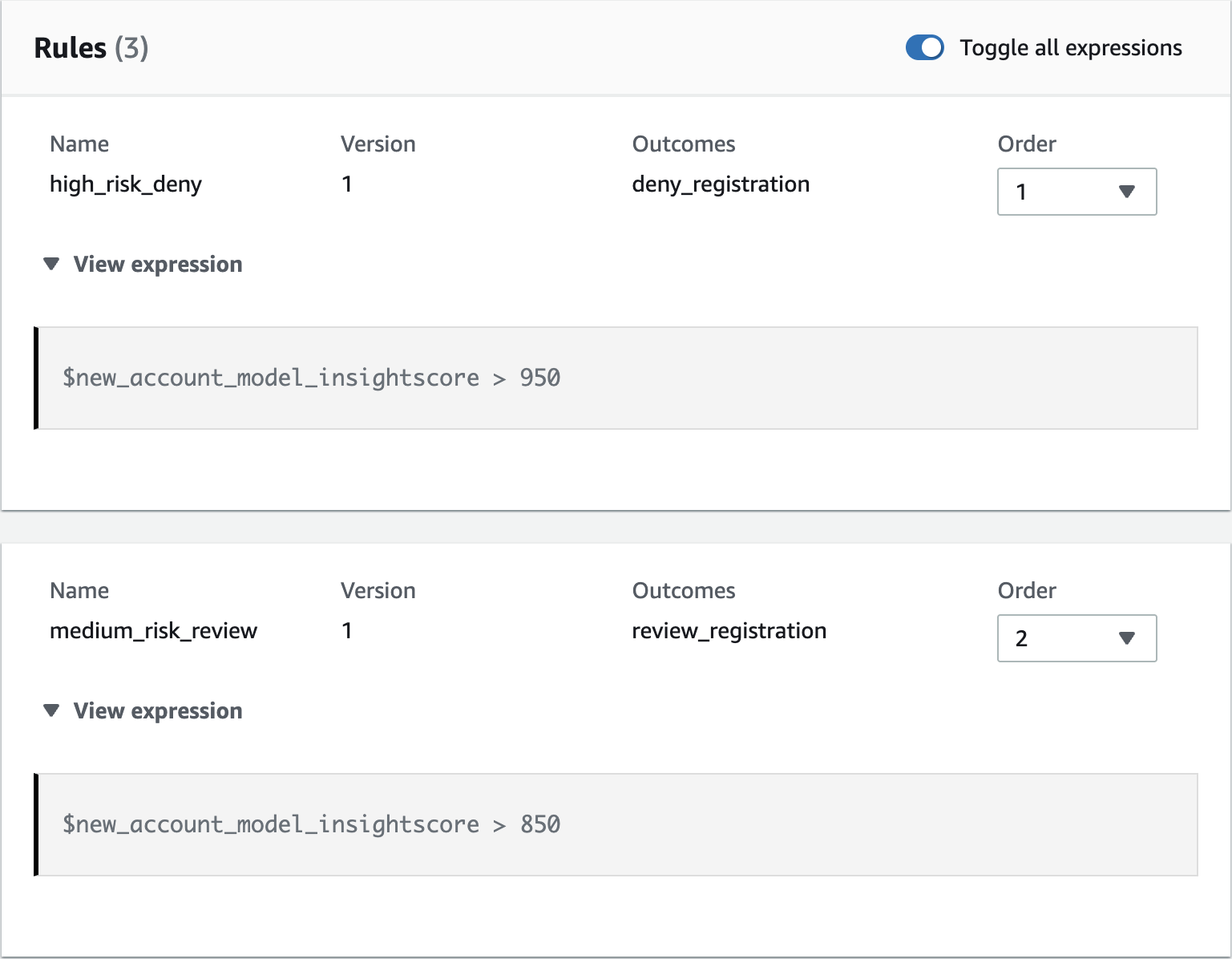

Rules (3)

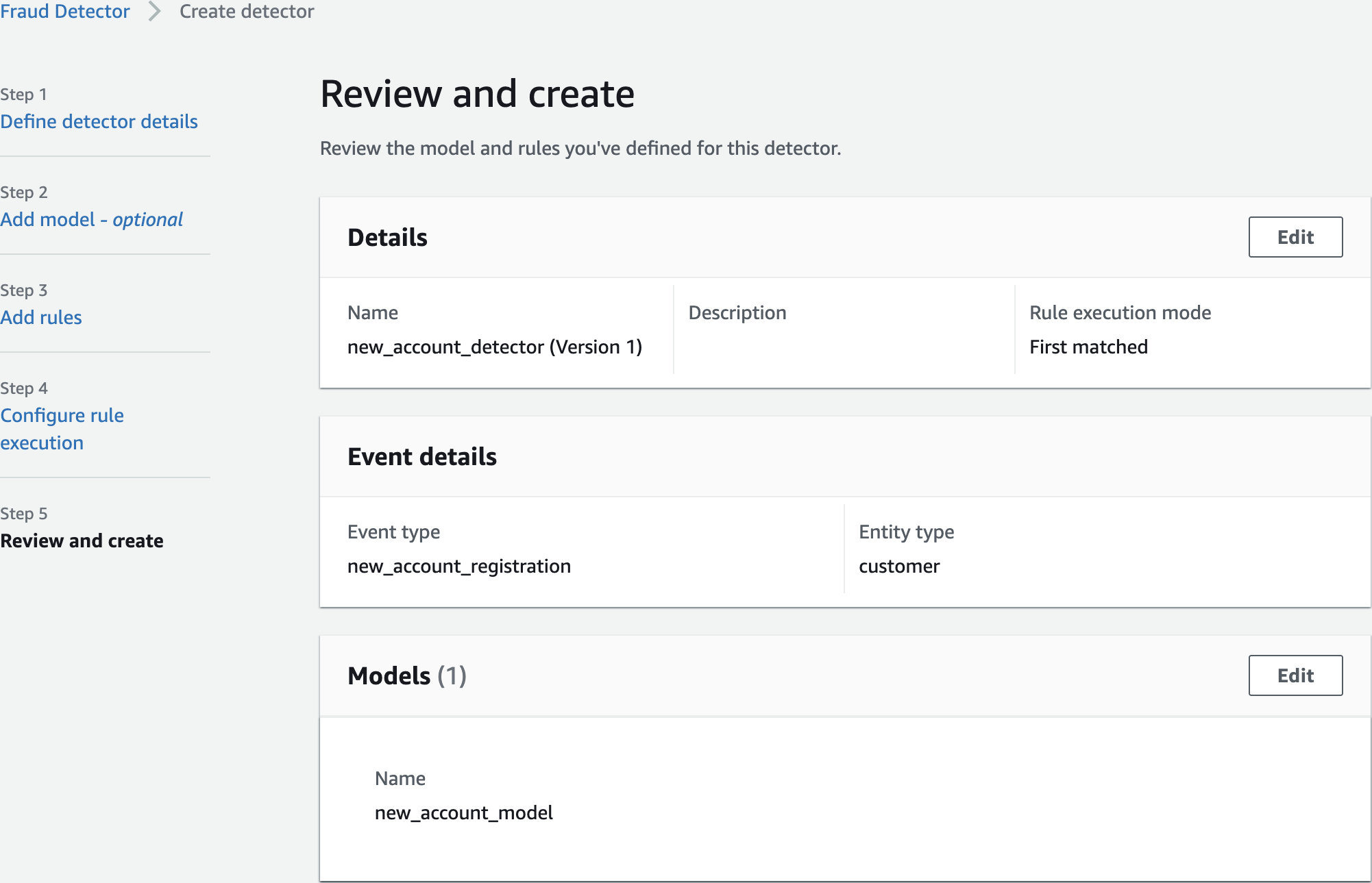

Review and create

Create detector

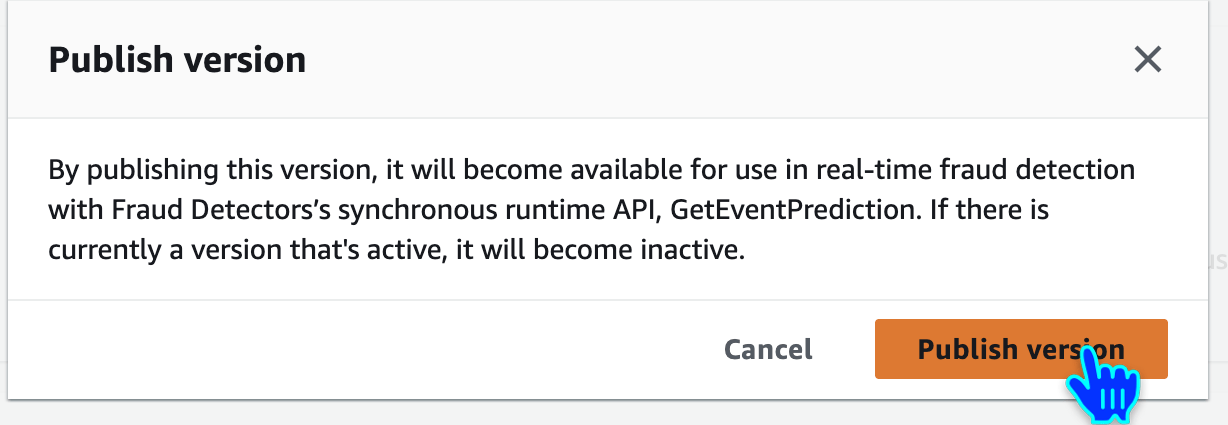

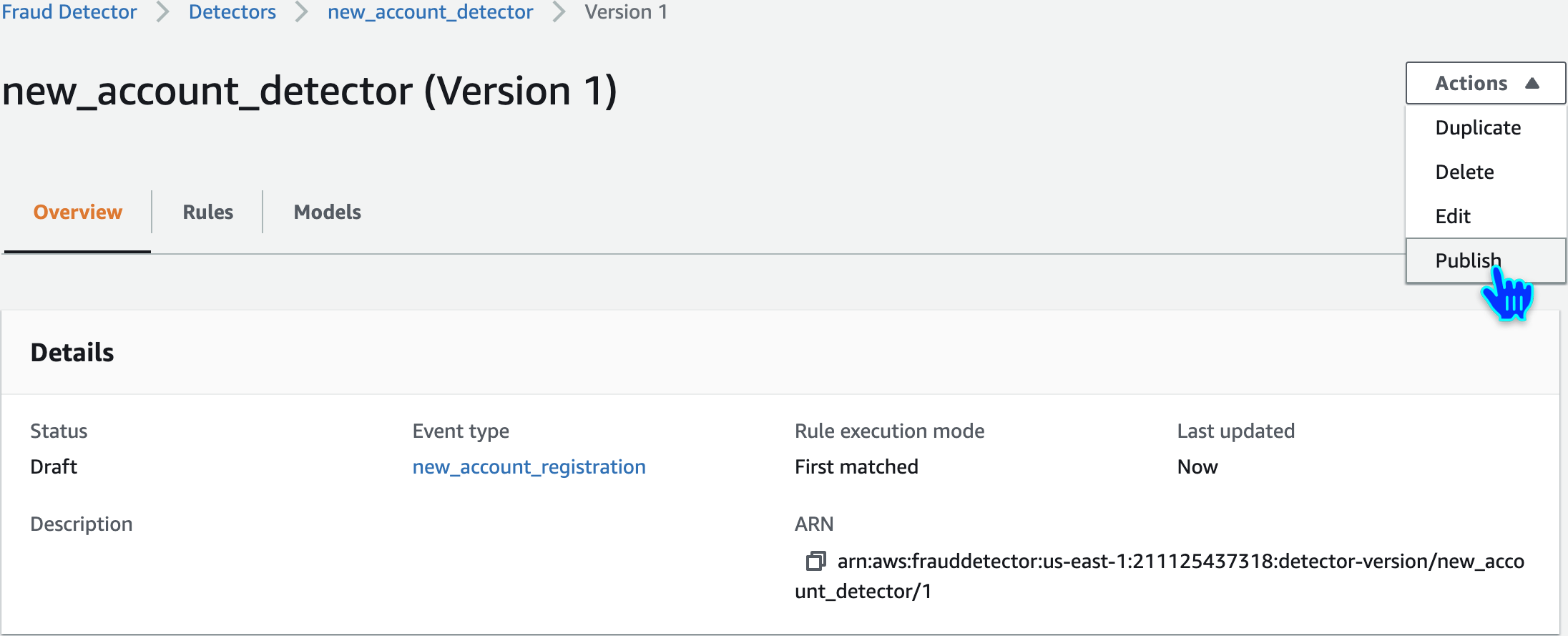

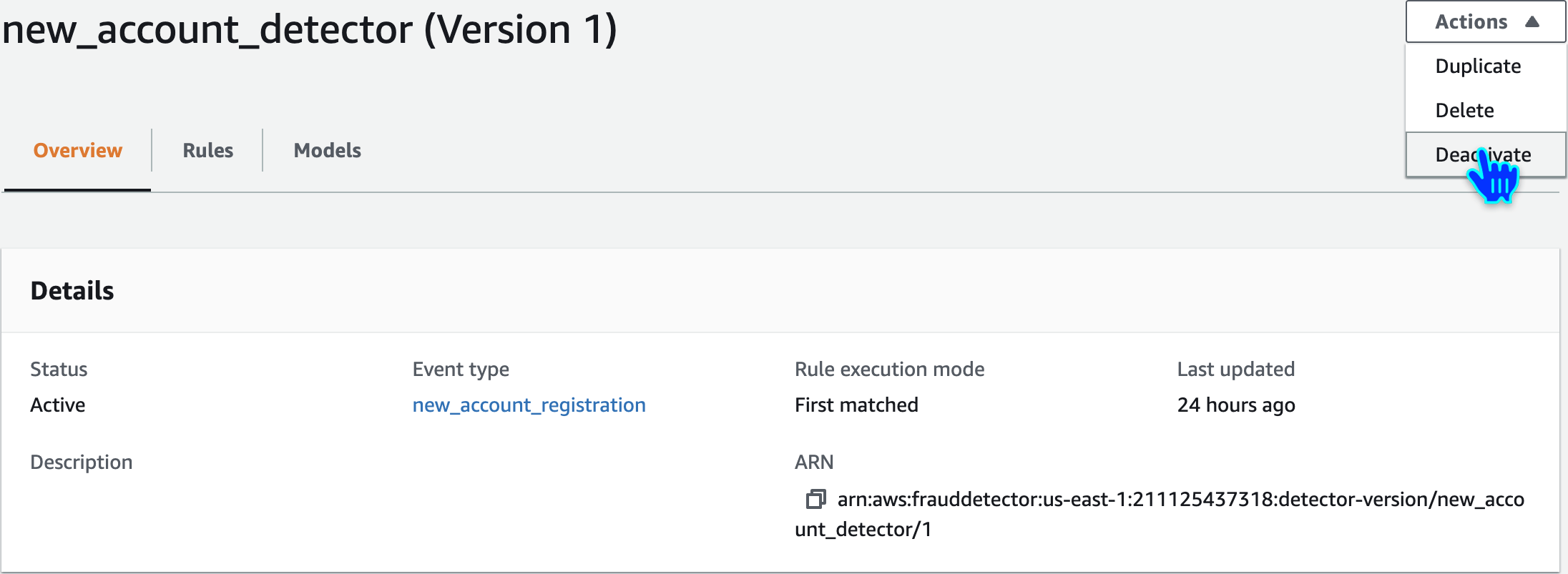

Publish the Detector

Publish version

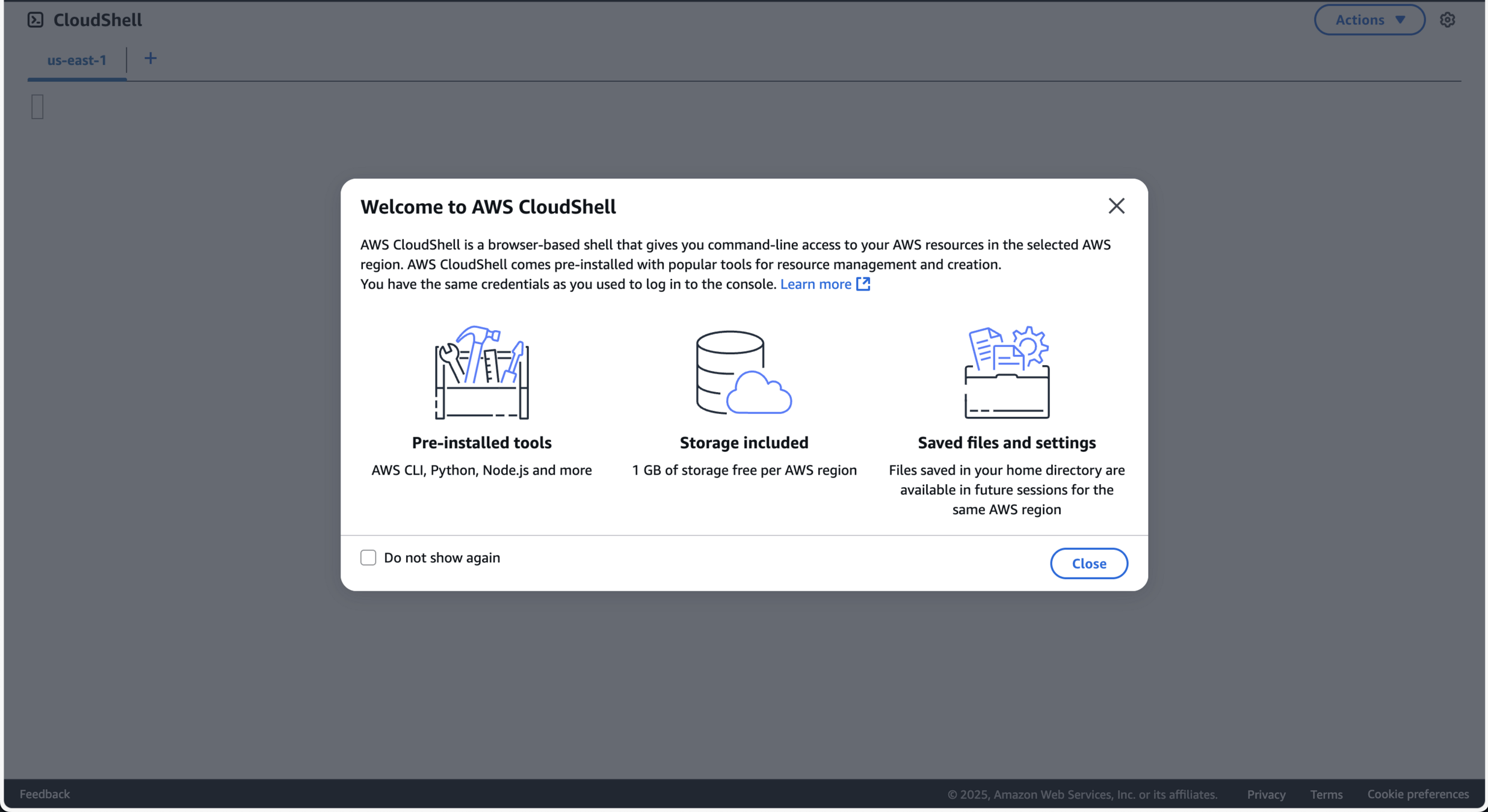

Launch AWS CloudShell

aws frauddetector get-event-prediction \
  --detector-id "new_account_detector" \
  --event-type-name "new_account_registration" \
  --event-id "test-event-high-risk-deny" \
  --event-timestamp "$(date -u +%Y-%m-%dT%H:%M:%SZ)" \
  --entities '[{"entityType":"customer", "entityId":"customer-fraud-indicators"}]' \
  --event-variables '{
    "email_address": "fraud123@10minutemail.com",
    "ip_address": "185.220.100.240",
    "billing_city": "Lagos",
    "billing_state": "NG",
    "user_agent": "curl/7.68.0",
    "phone_number": "0000000000"
  }'

High Risk Event

aws frauddetector get-event-prediction \
  --detector-id "new_account_detector" \
  --event-type-name "new_account_registration" \
  --event-id "test-event-low-risk-approve" \
  --event-timestamp "$(date -u +%Y-%m-%dT%H:%M:%SZ)" \
  --entities '[{"entityType":"customer", "entityId":"customer-legitimate"}]' \
  --event-variables '{
    "email_address": "john.smith@gmail.com",
    "ip_address": "173.252.66.1",
    "billing_city": "Seattle",
    "billing_state": "WA",
    "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36",
    "phone_number": "2065551234"
  }'

Low Risk Event

Medium Risk Event

aws frauddetector get-event-prediction \
  --detector-id "new_account_detector" \
  --event-type-name "new_account_registration" \
  --event-id "test-event-review-8" \
  --event-timestamp "$(date -u +%Y-%m-%dT%H:%M:%SZ)" \
  --entities '[{"entityType":"customer", "entityId":"customer-fraud-indicators"}]' \
  --event-variables '{
    "email_address": "john.smith@gmail.com",
    "ip_address": "173.252.66.1",
    "billing_city": "Lagos",
    "billing_state": "NG",
    "user_agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36",
    "phone_number": "2065551234"
  }'
