AWS CodeDeploy

Hands-On

Demo

In this demo, we will:

  1. Create IAM roles for CodeDeploy and EC2 instances
  2. Launch and configure EC2 instances with CodeDeploy agent
  3. Create a CodeDeploy application and deployment group
  4. Prepare a sample web application with deployment configuration
  5. Create and upload application revision to S3
  6. Execute a deployment using CodeDeploy
  7. Test the deployed application and monitor deployment status
  8. Clean up resources

Agenda

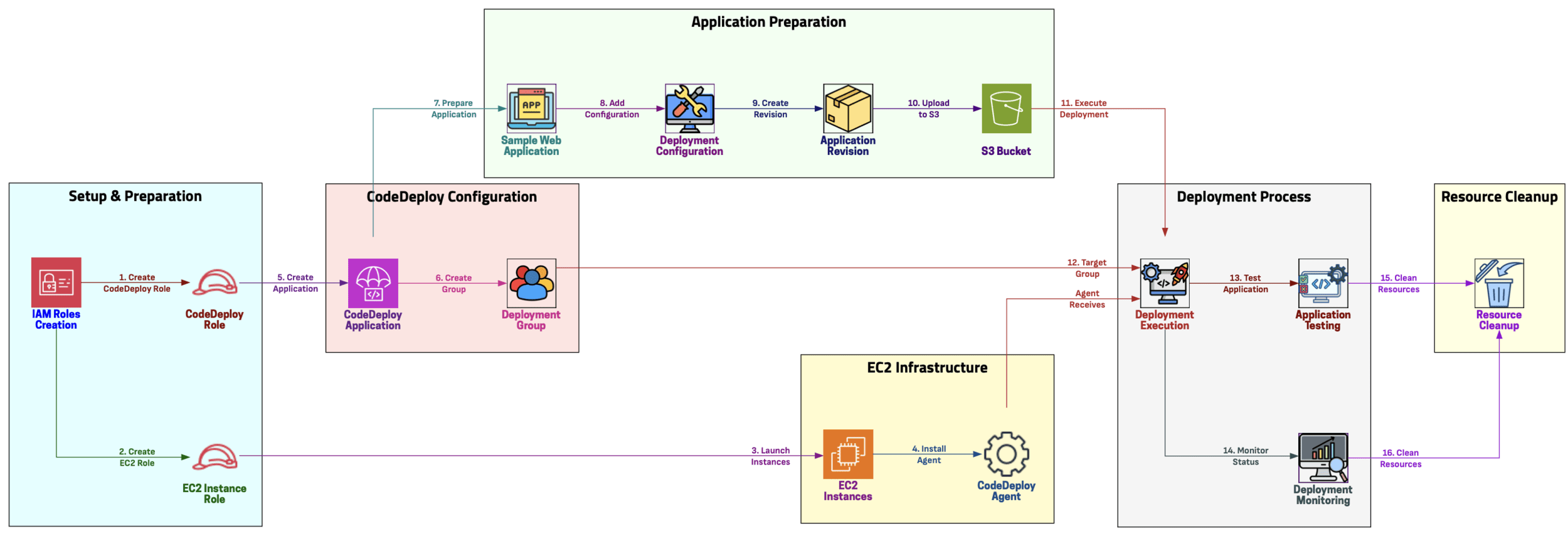

Visual Representation

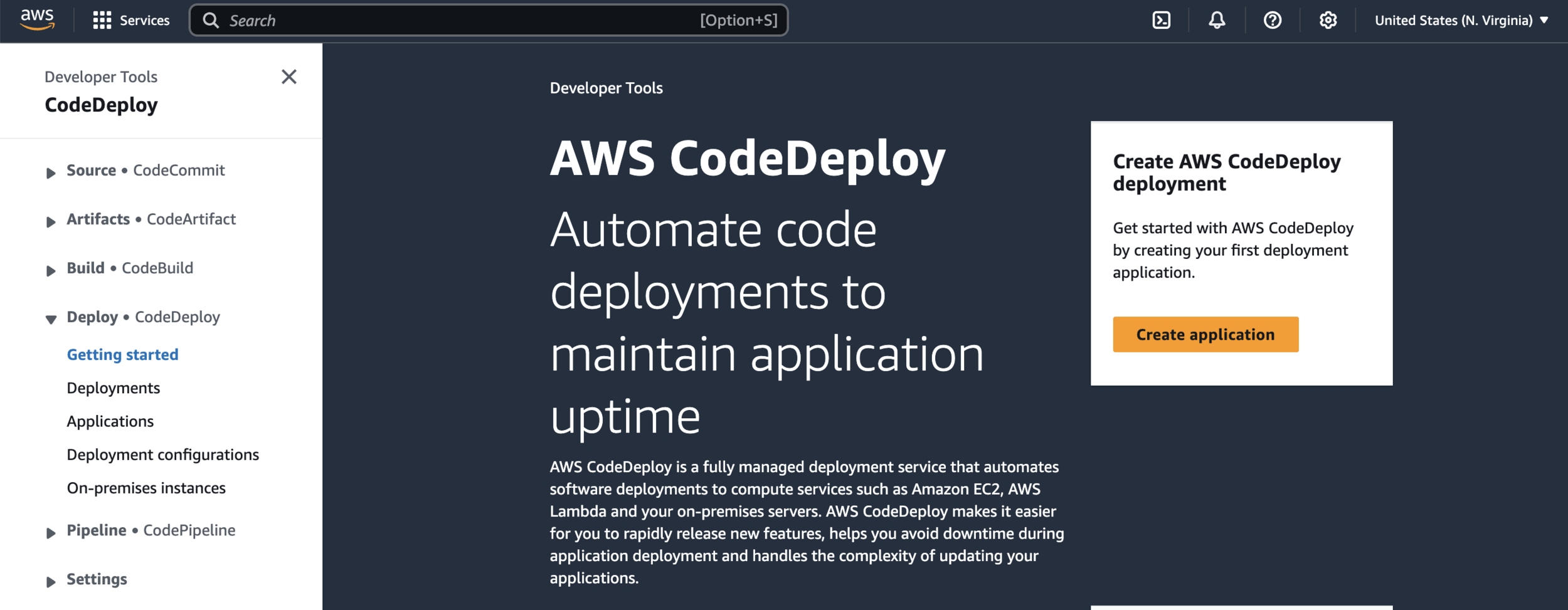

CodeDeploy

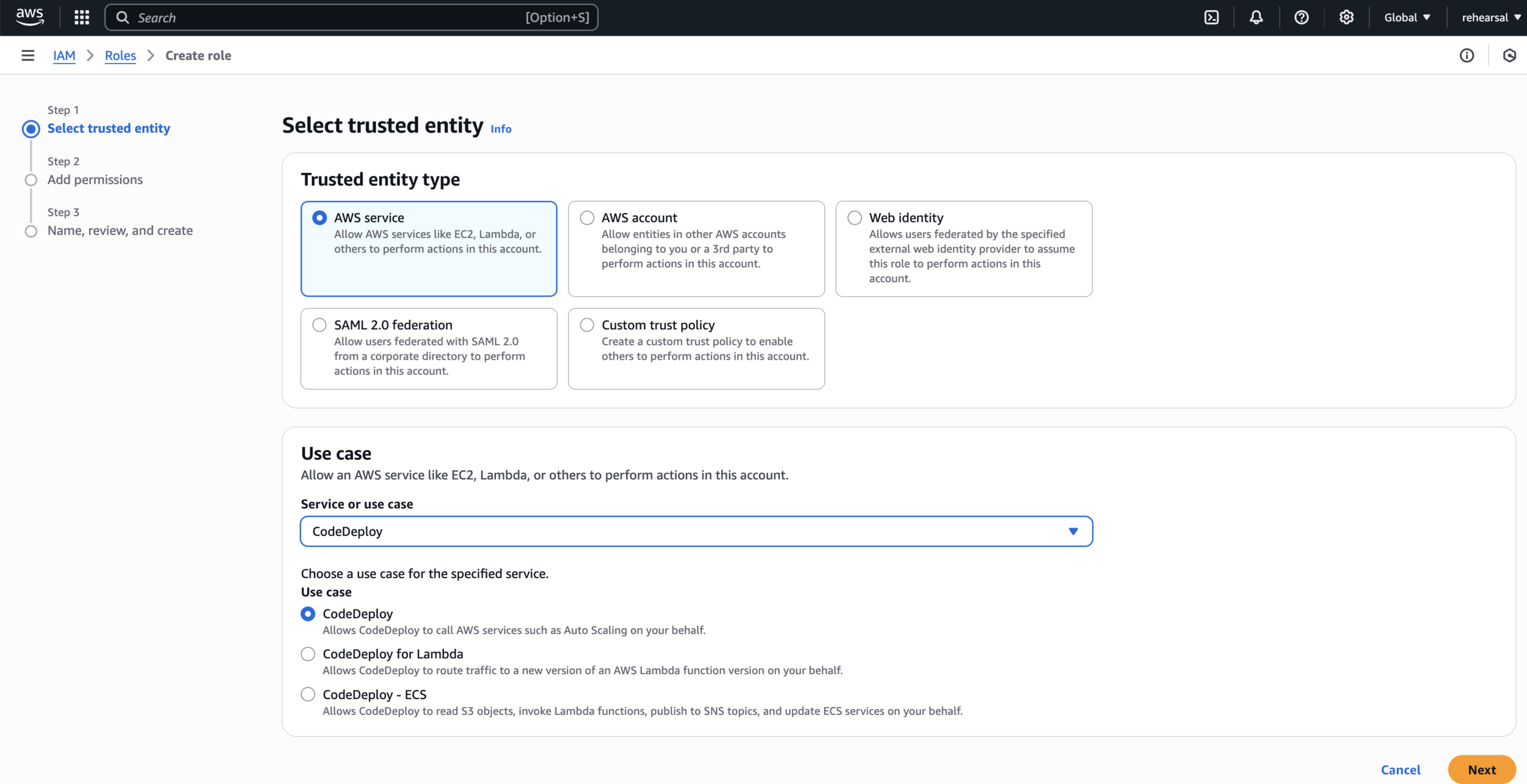

Create CodeDeploy IAM Role

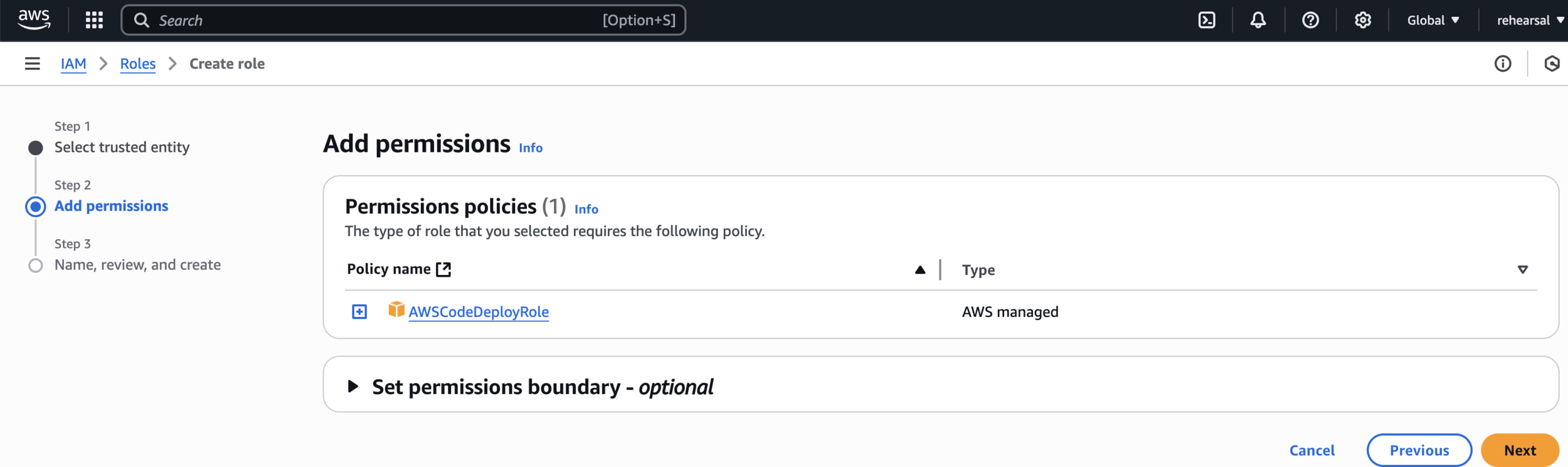

Add permissions

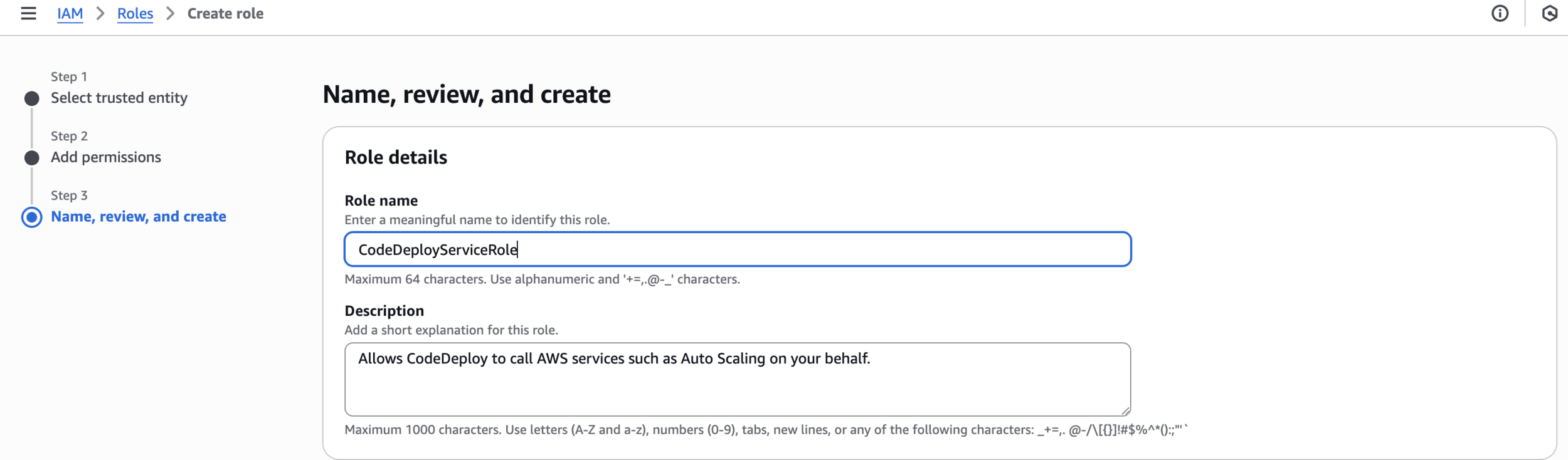

Name, review, and create

CodeDeployServiceRole

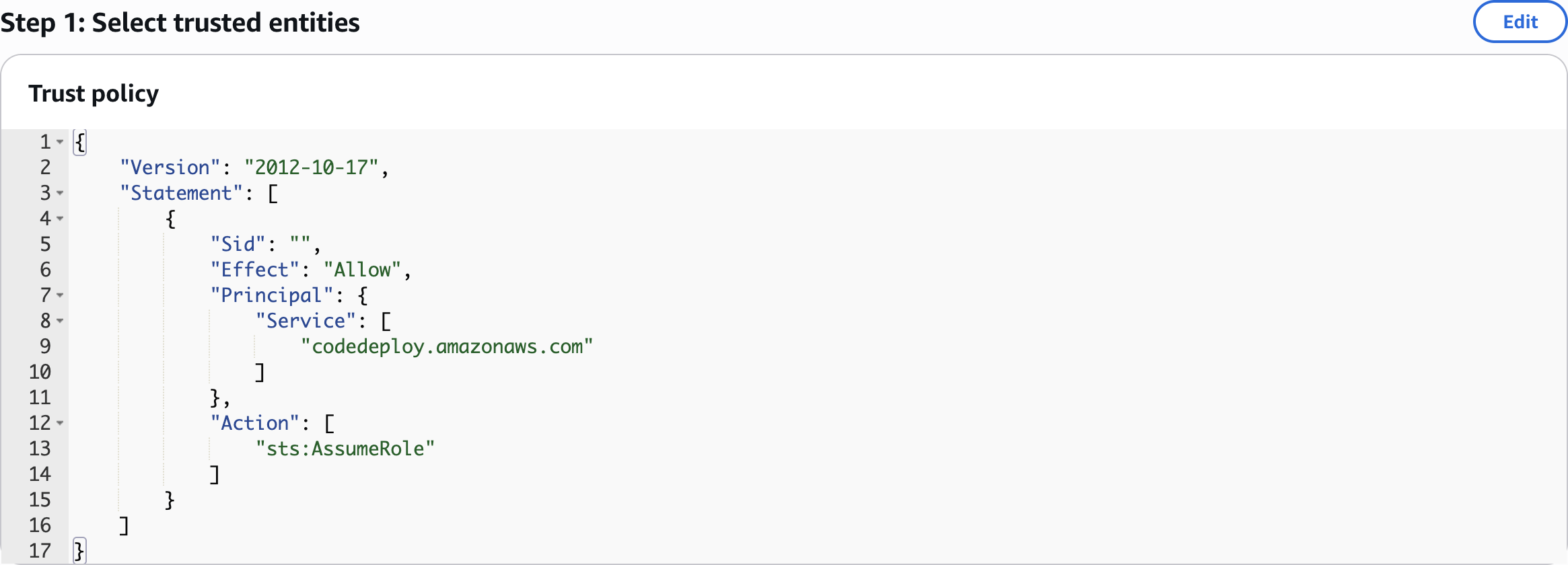

Step 1: Select trusted entities

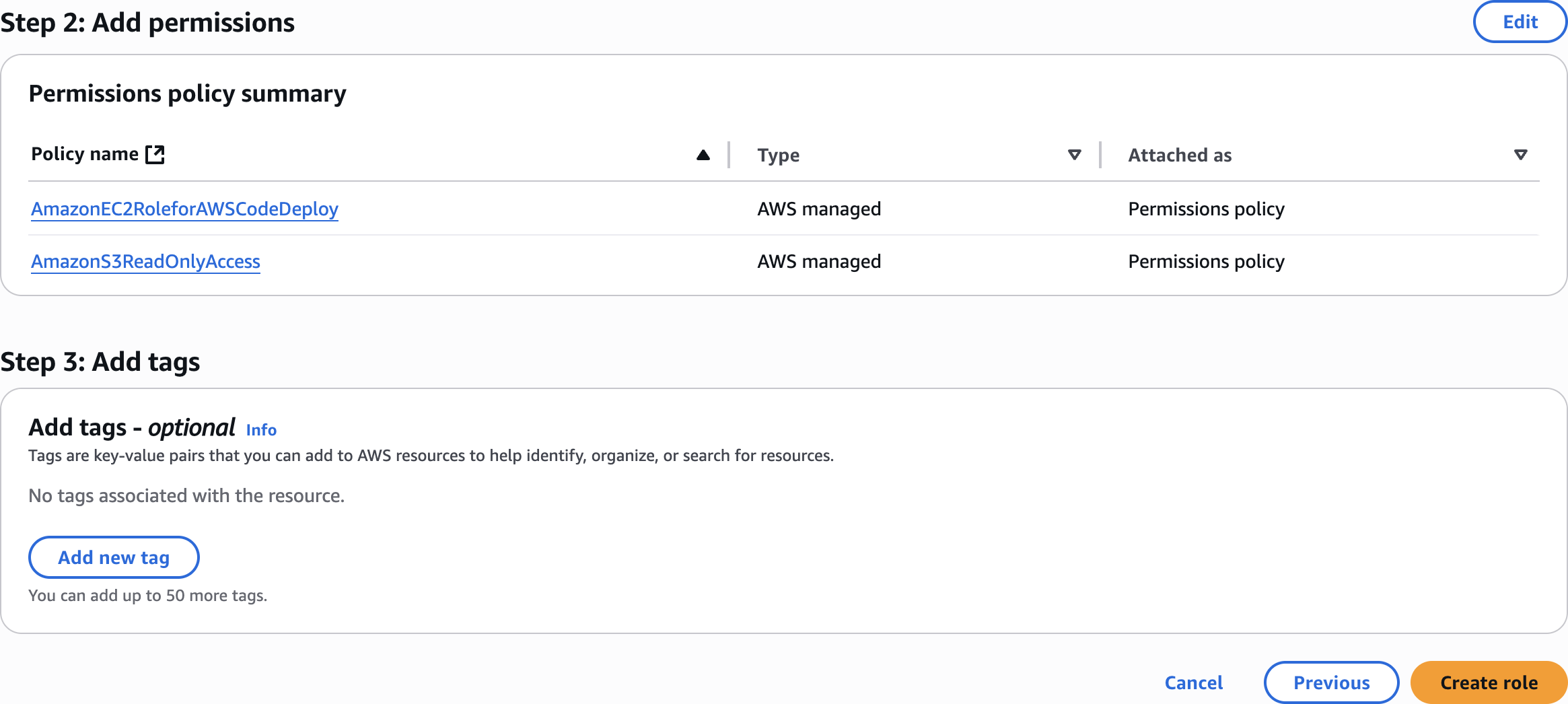

Step 2: Add permissions

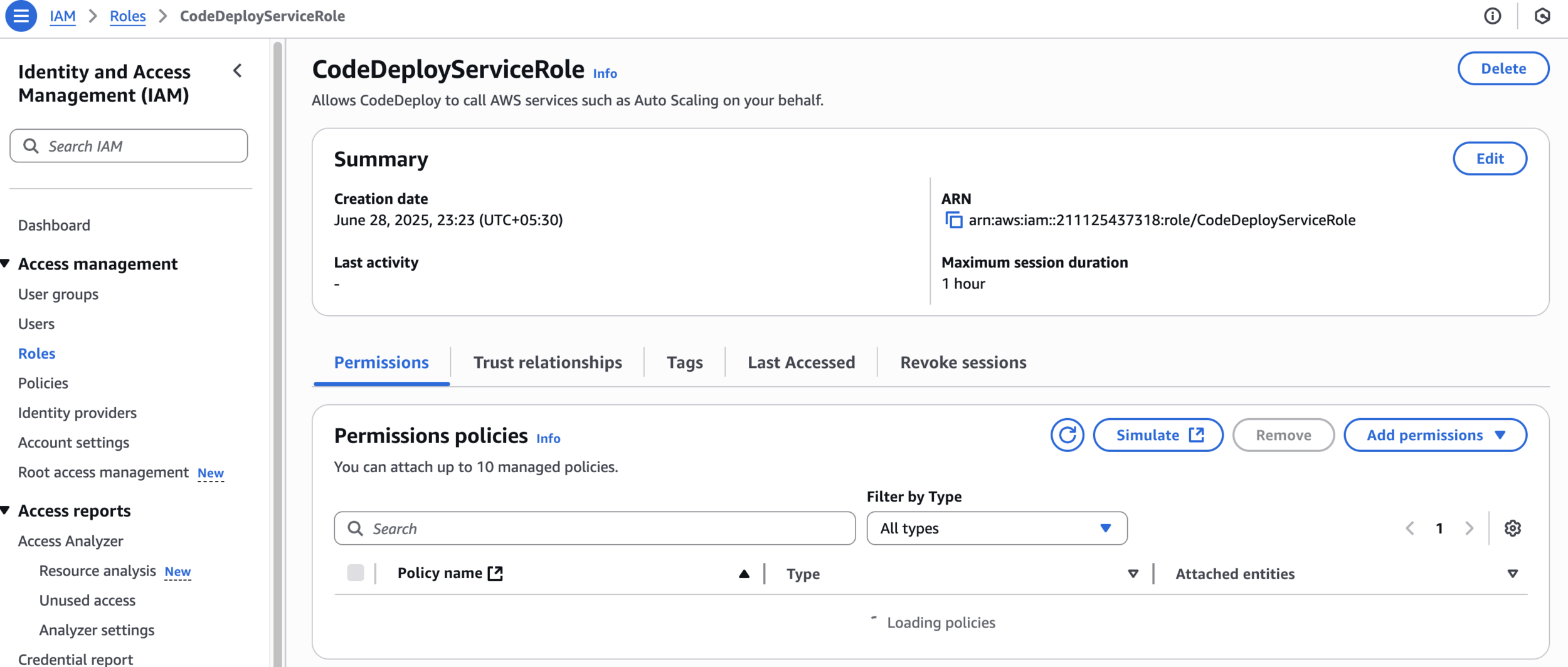

CodeDeployServiceRole

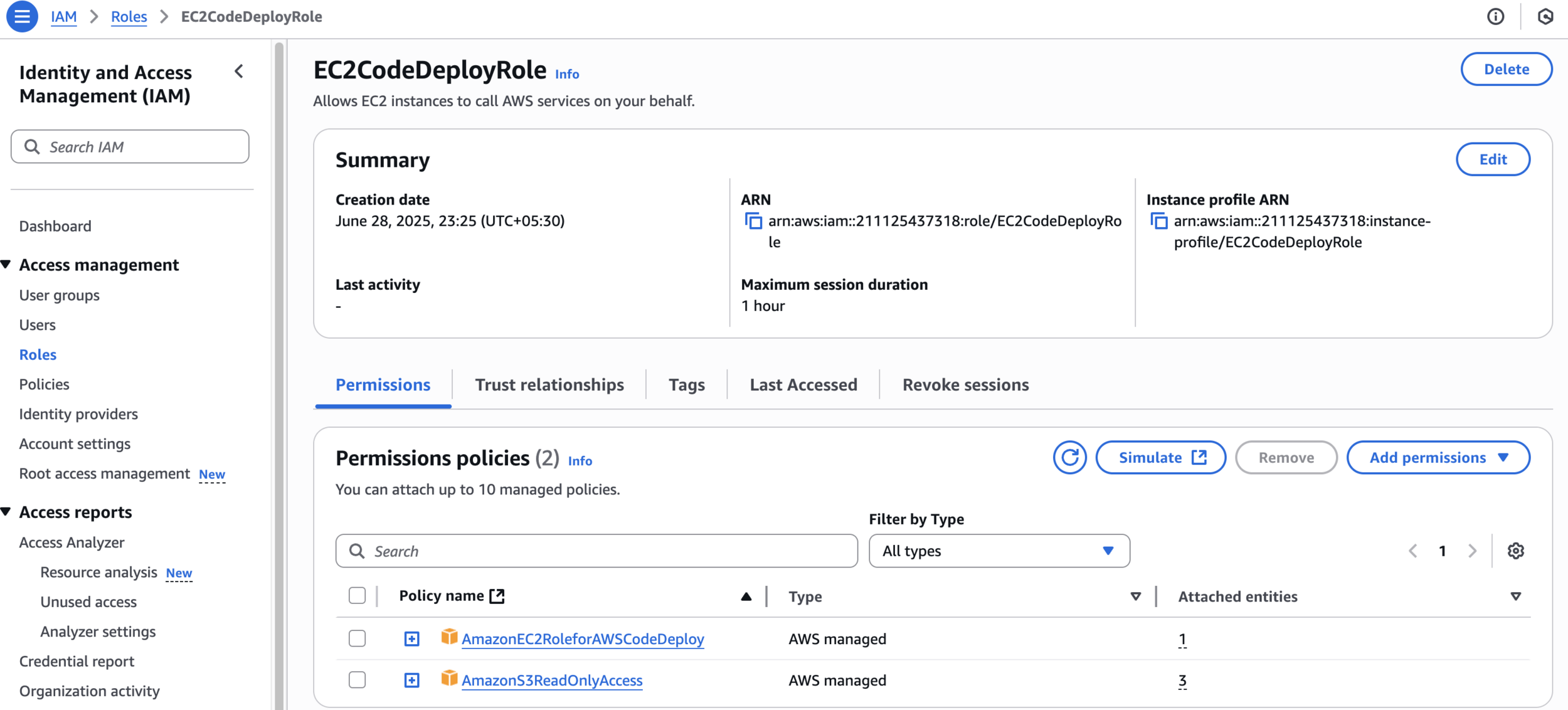

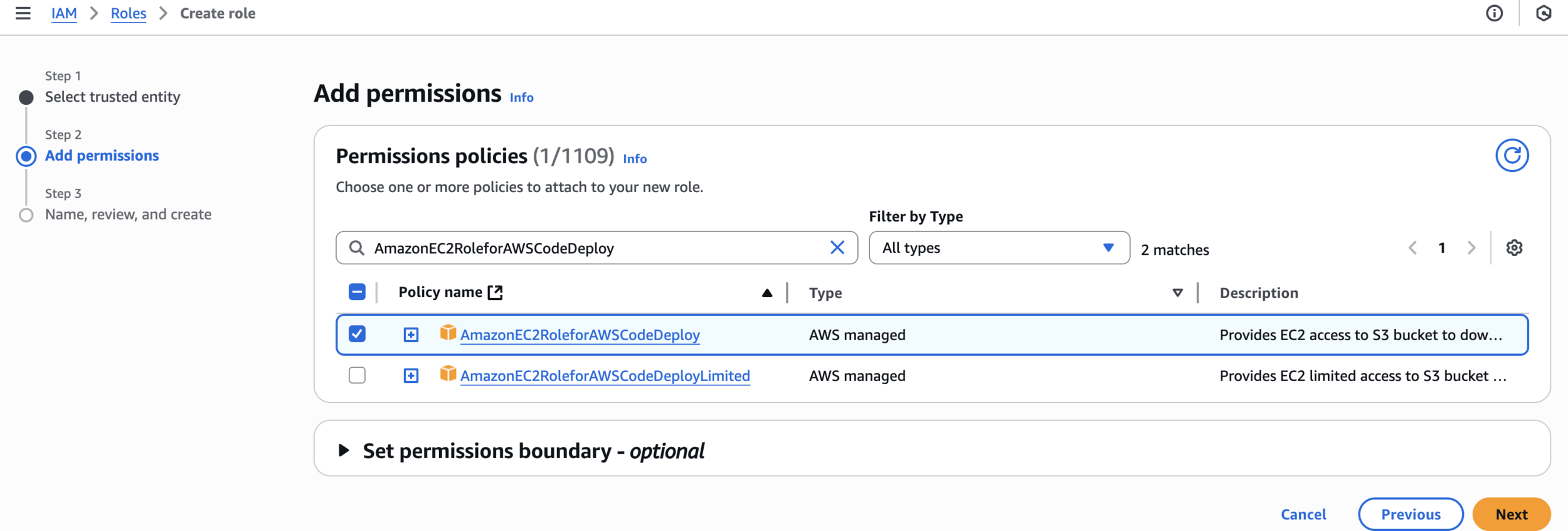

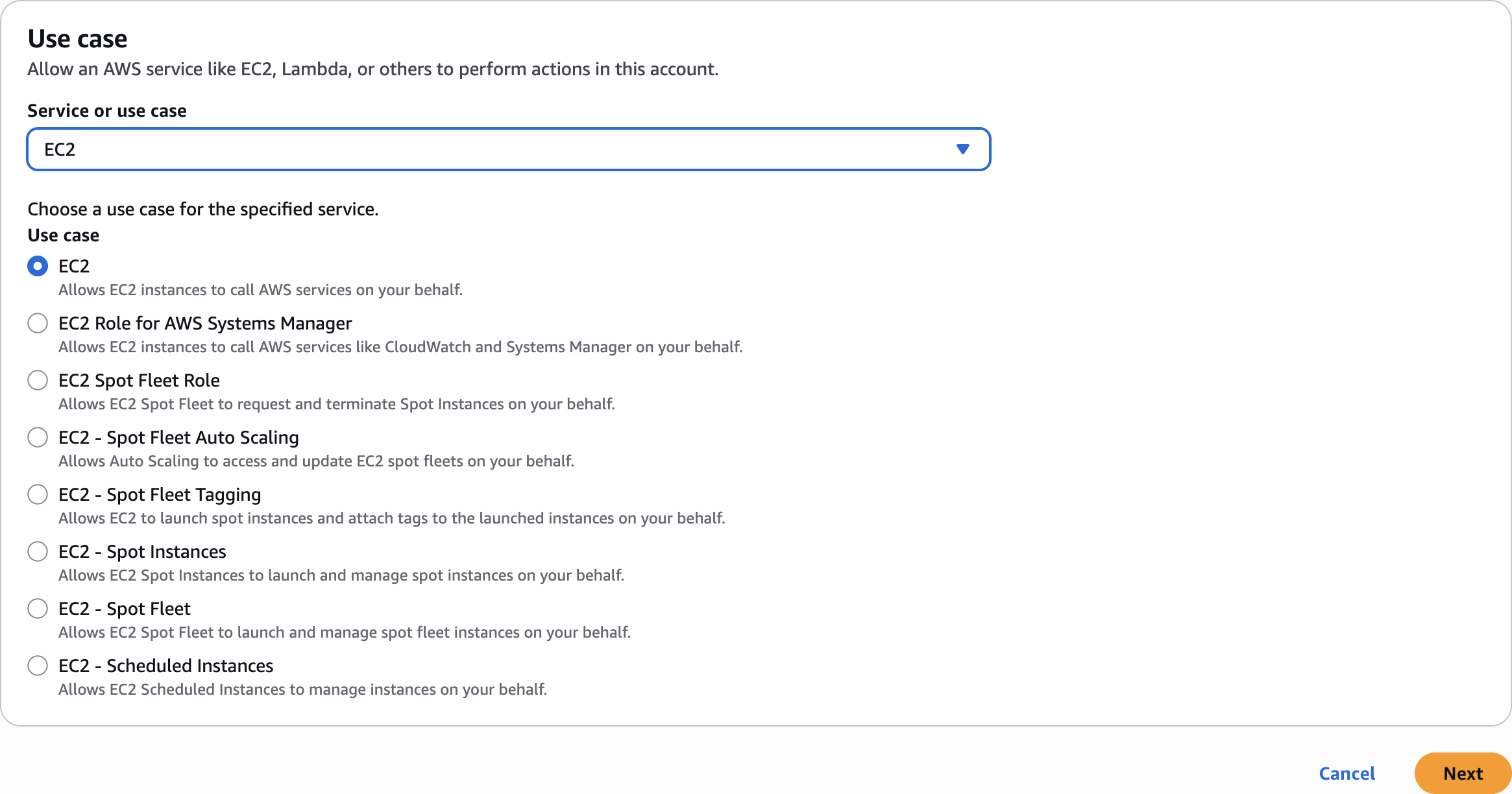

Create EC2 IAM Instance Profile Role

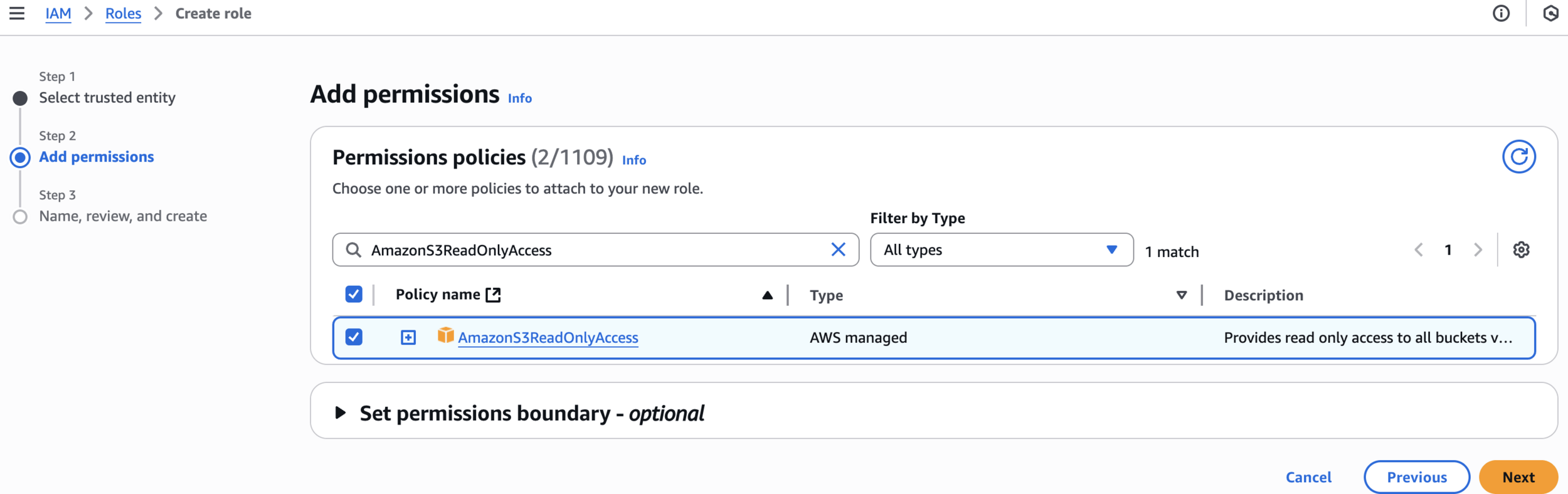

Add permissions

AmazonEC2RoleforAWSCodeDeploy
AmazonS3ReadOnlyAccess

Add permissions

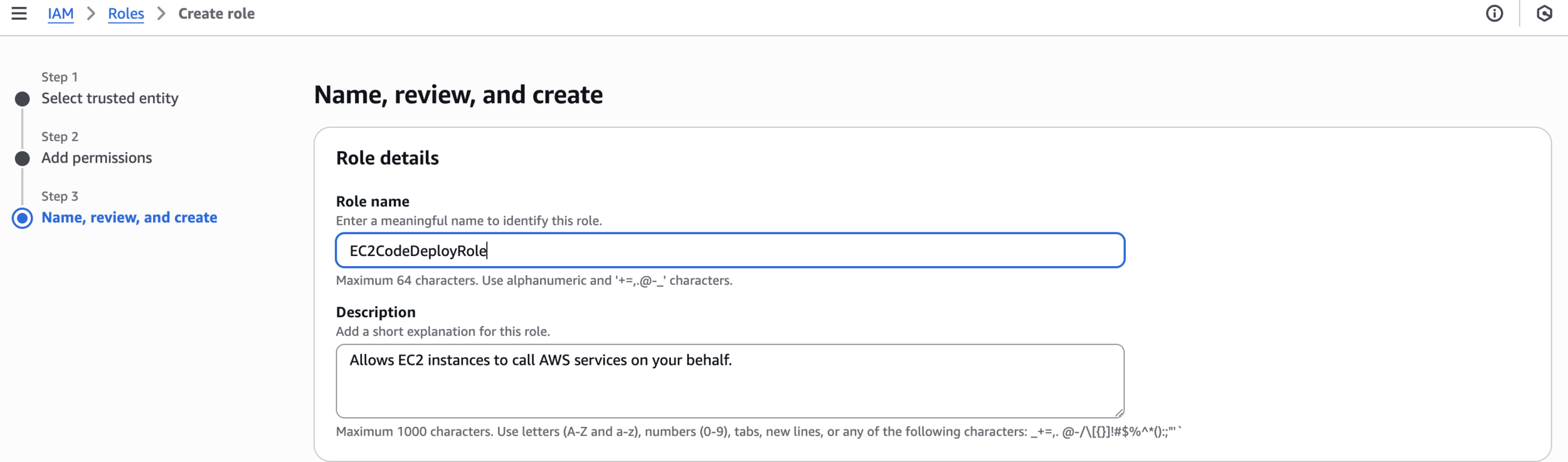

Name, review, and create

EC2CodeDeployRole

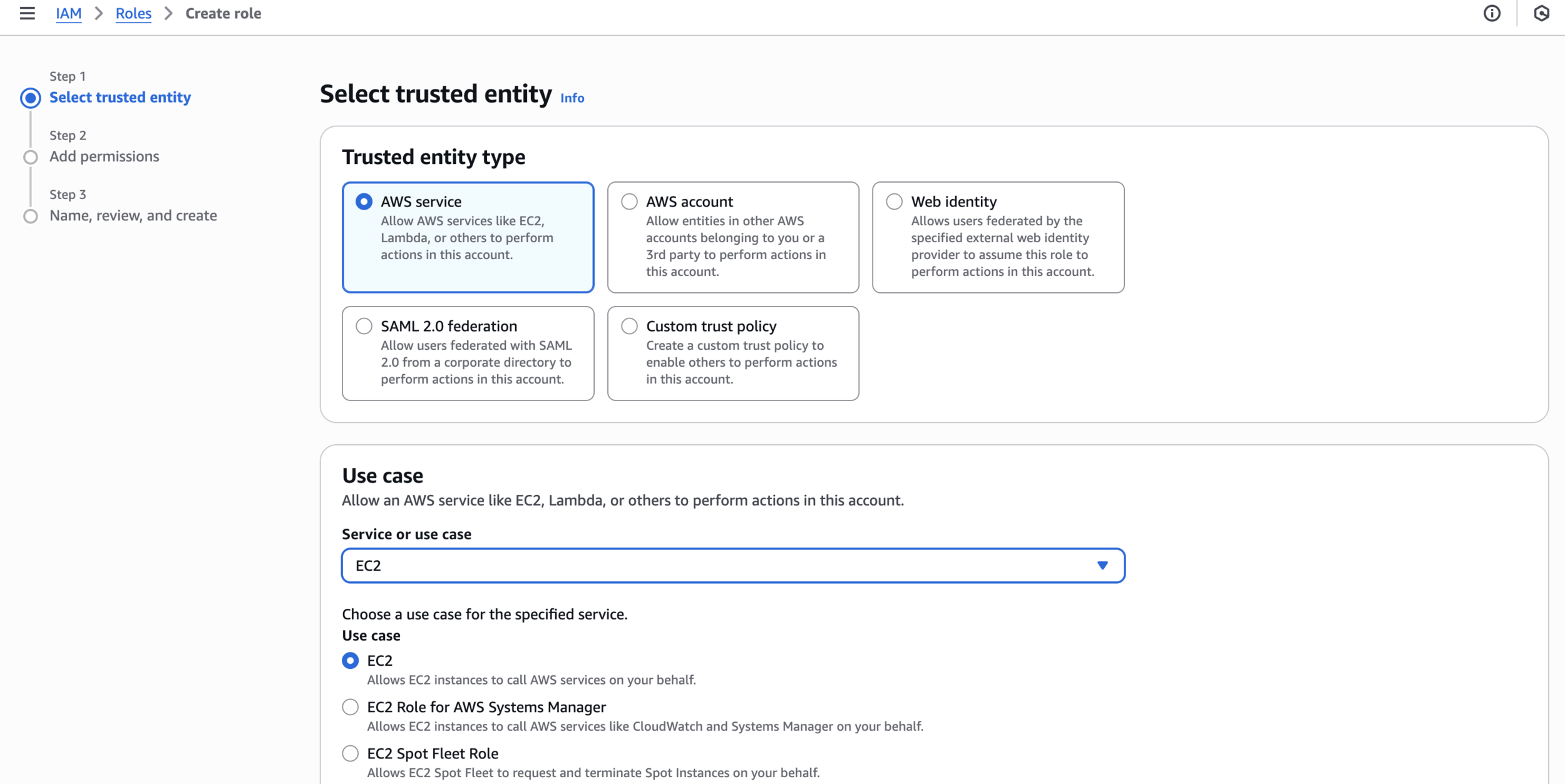

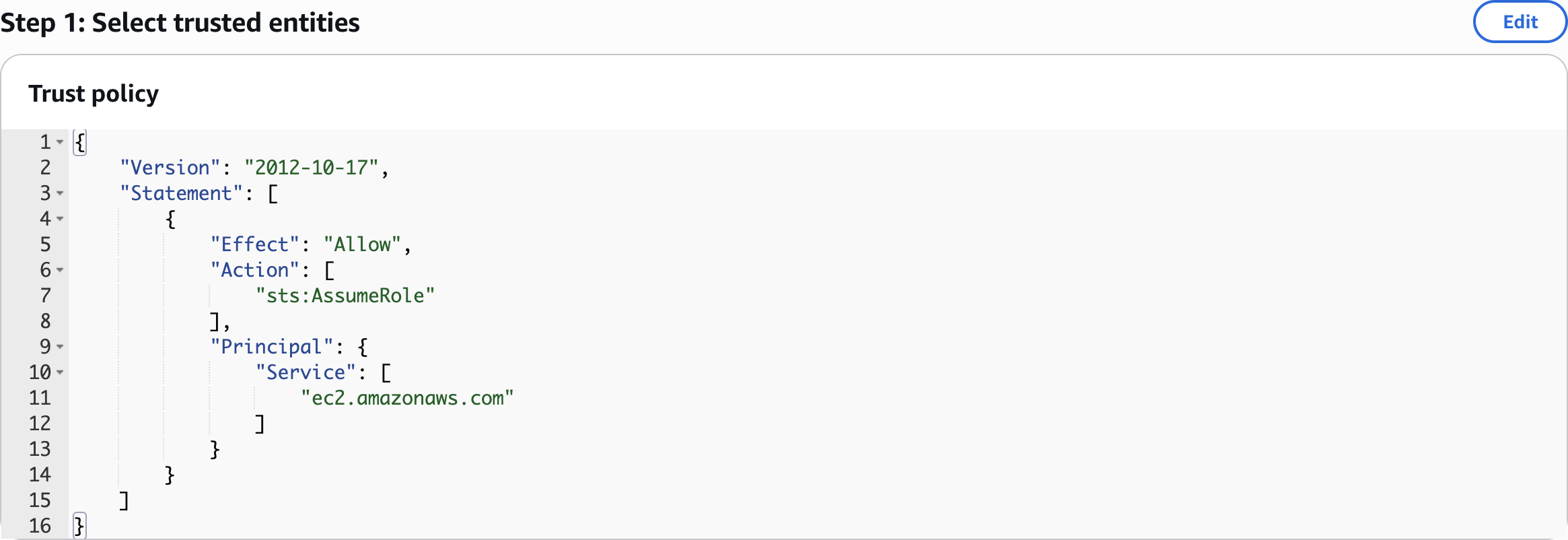

Step 1: Select trusted entities

Create role

EC2CodeDeployRole

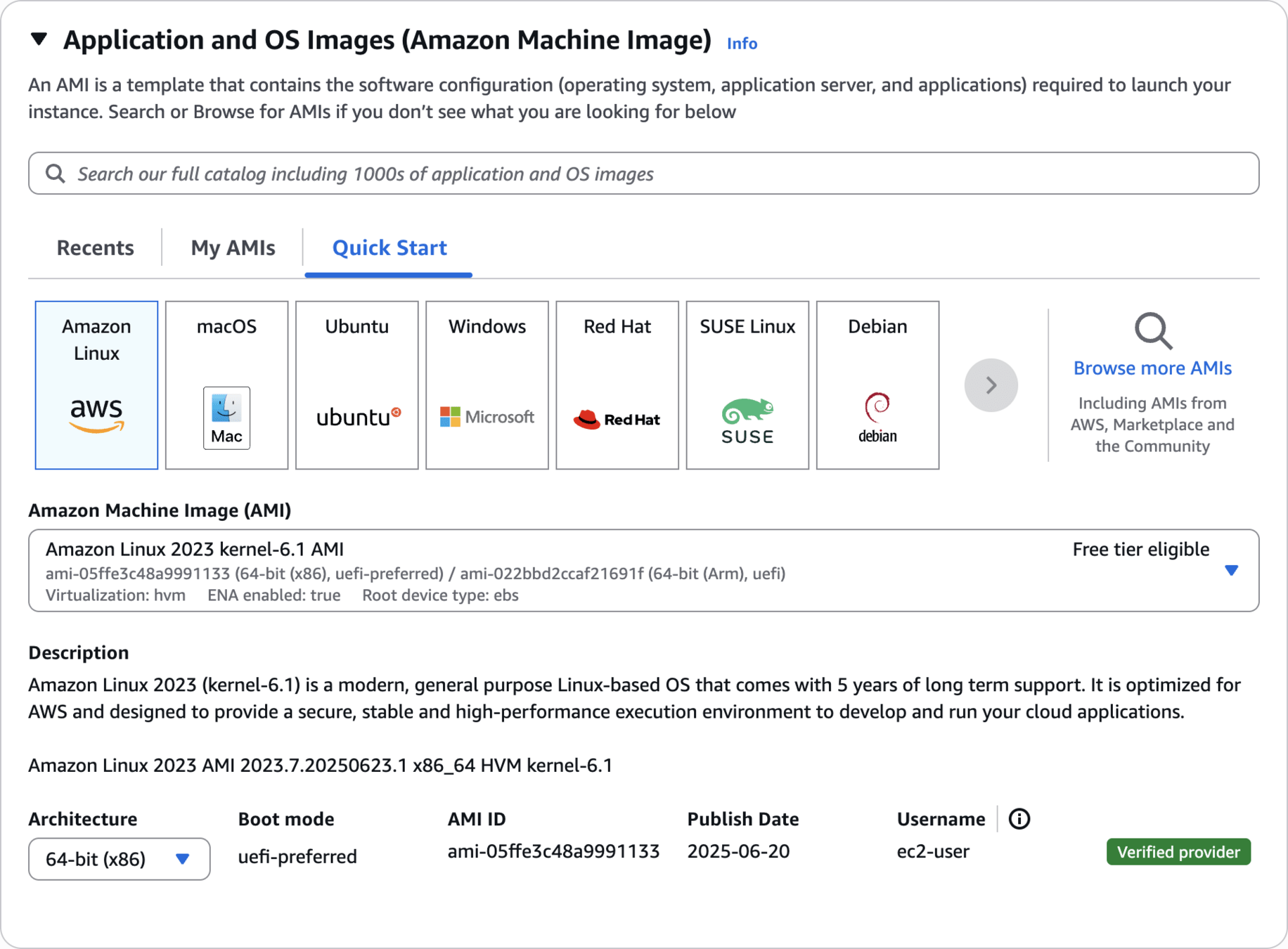

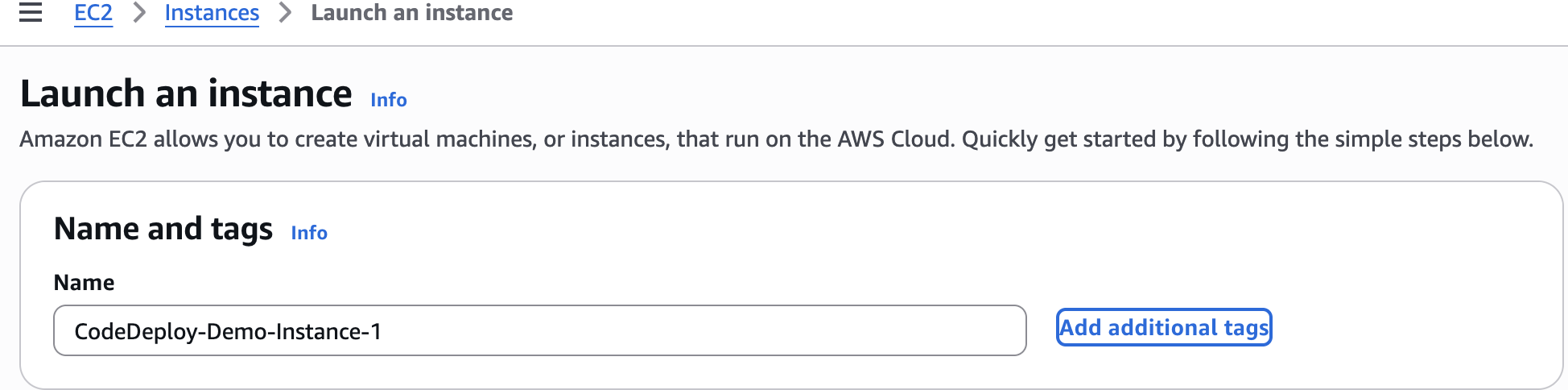

EC2 - Launch Instance

CodeDeploy-Demo-Instance-1

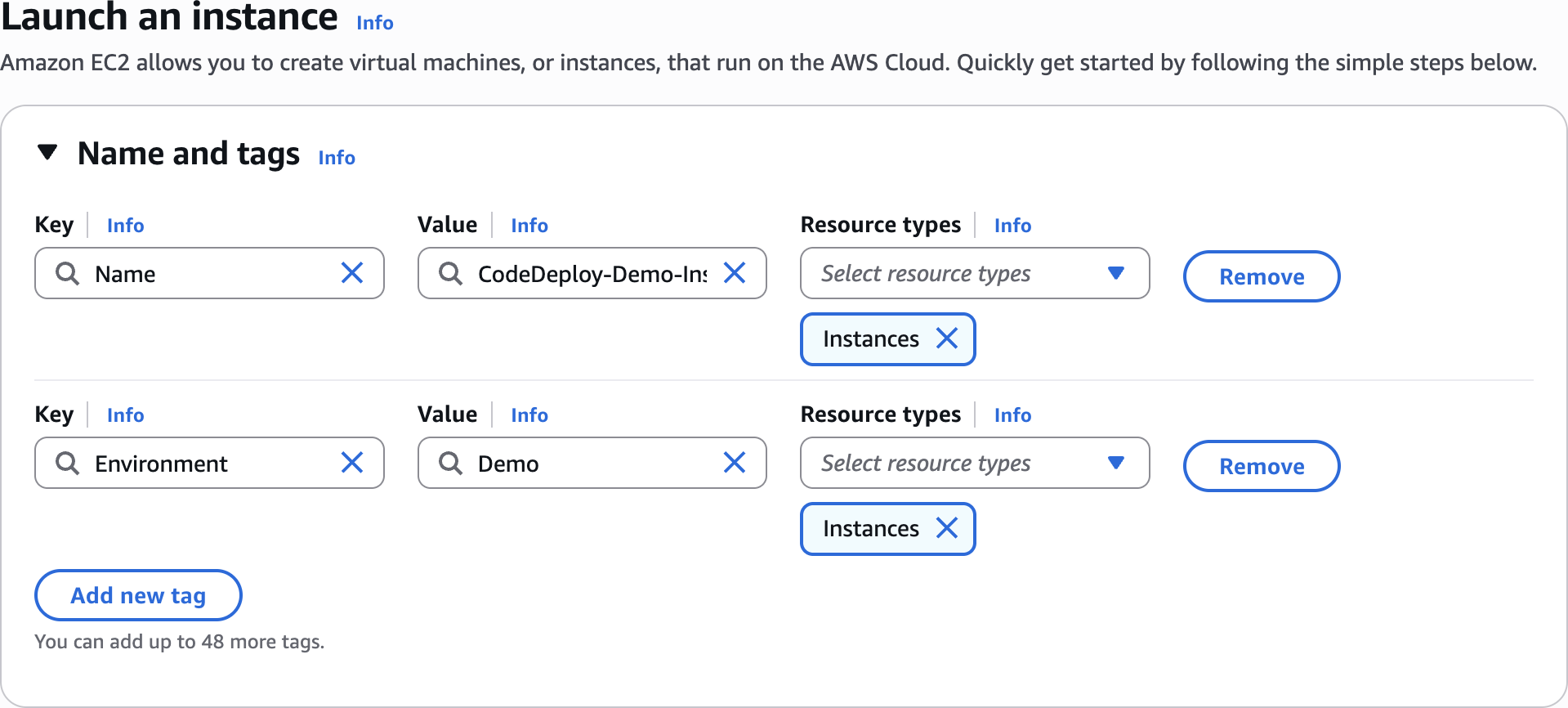

Launch an instance

Environment
Demo

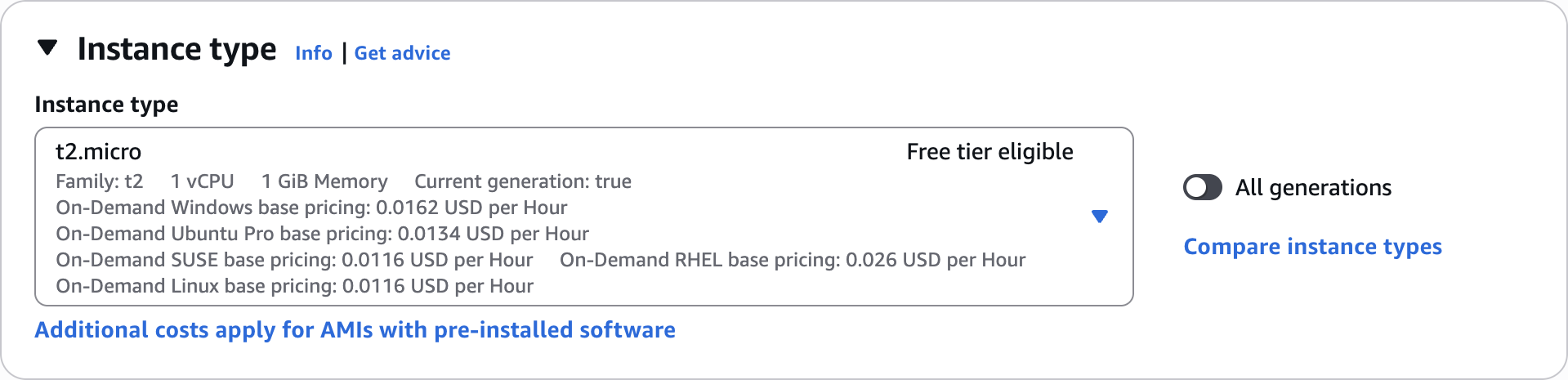

Instance type

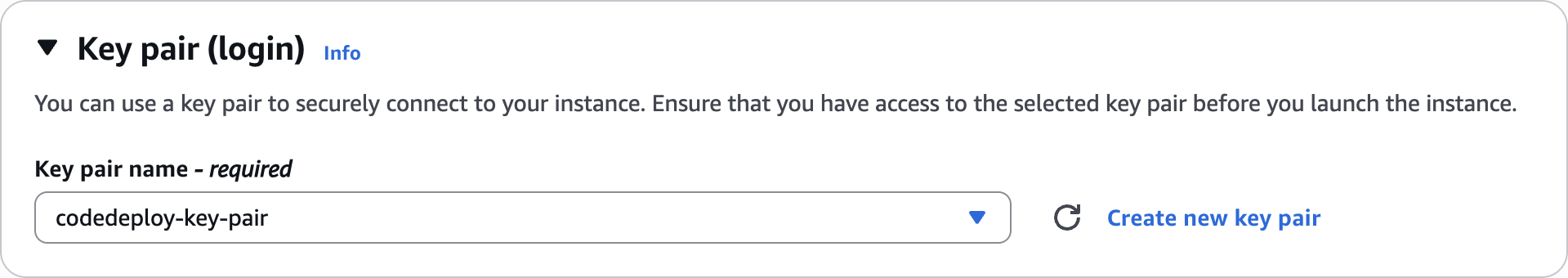

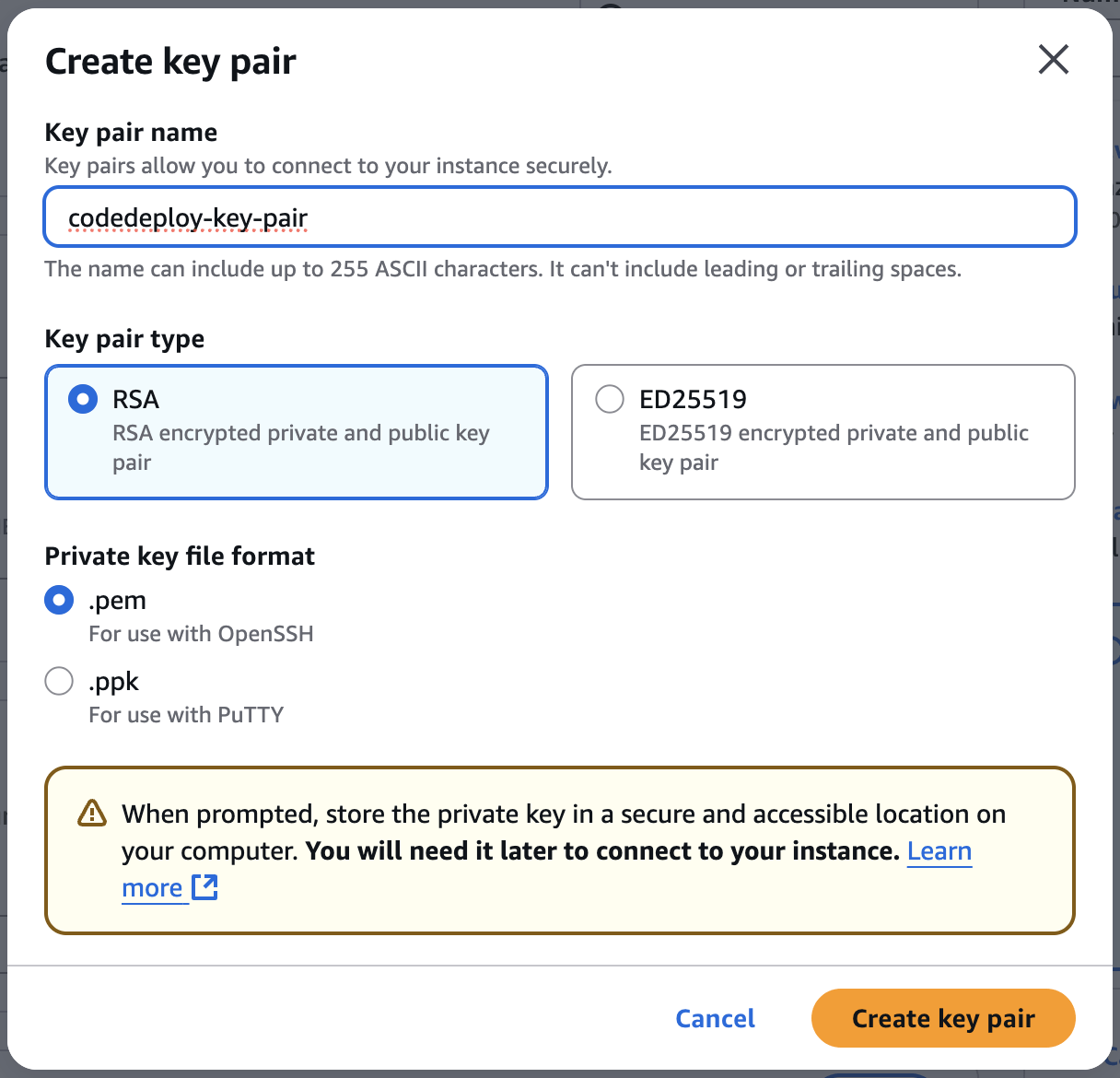

codedeploy-key-pair

Key pair (login)

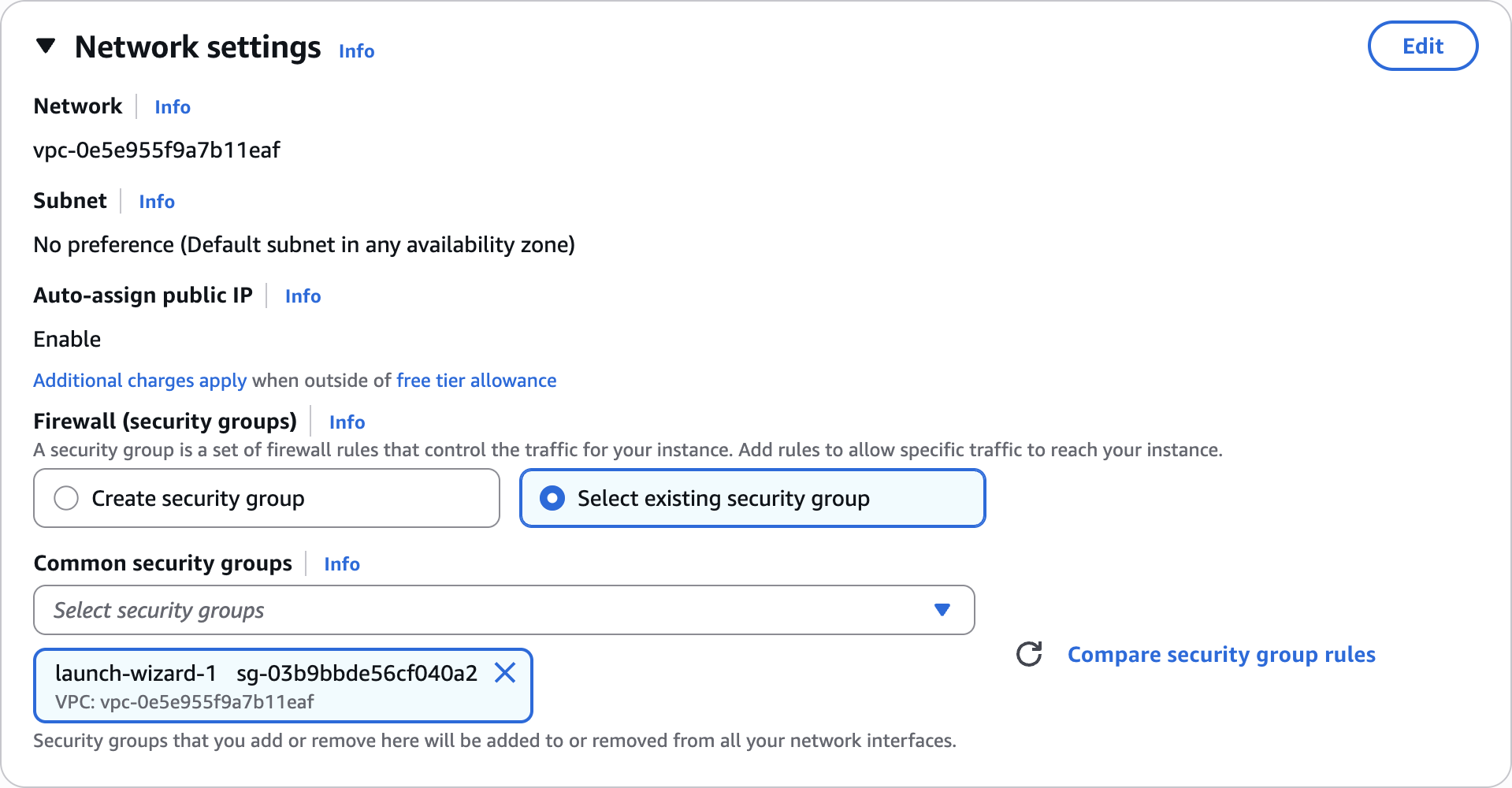

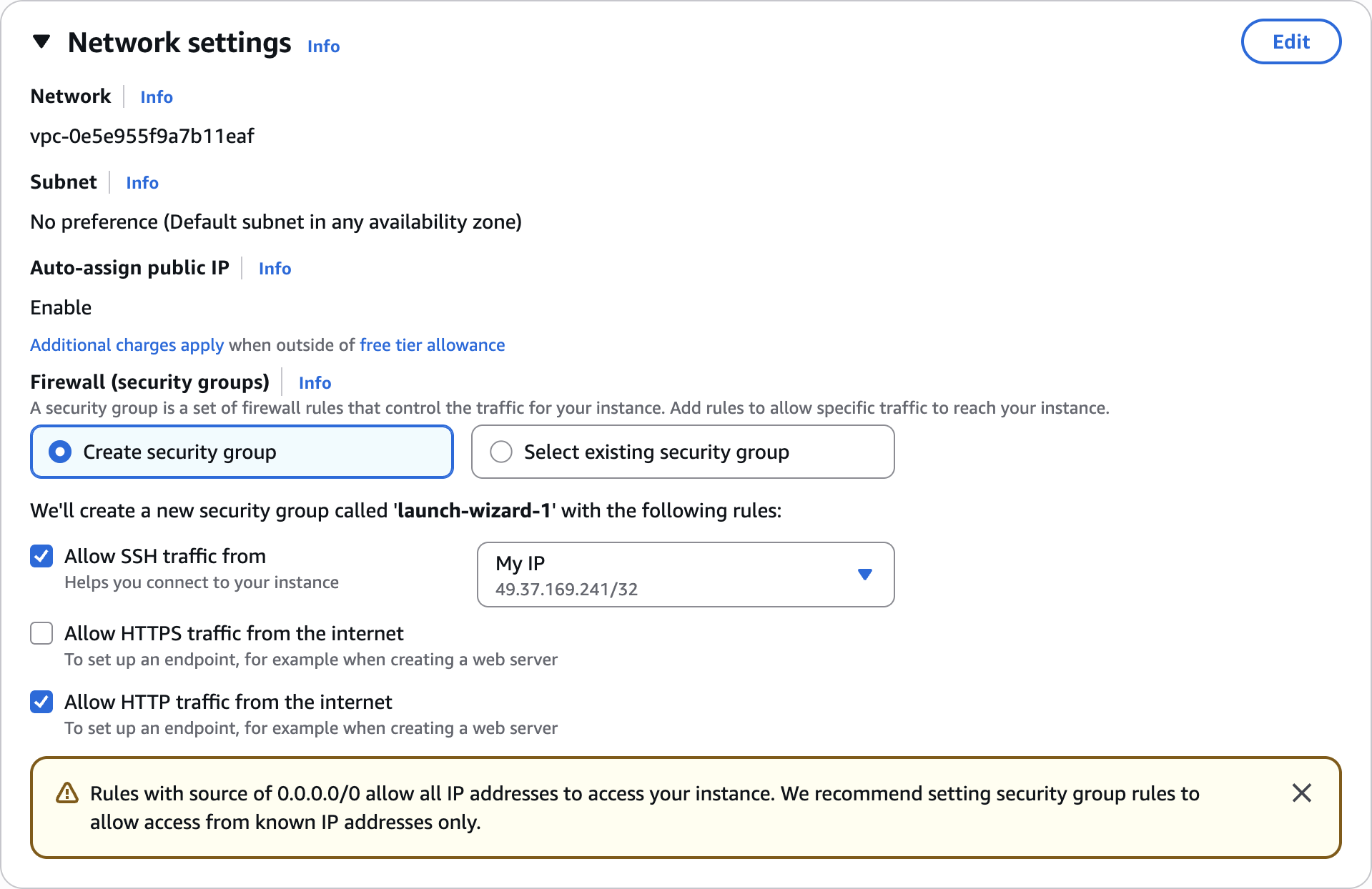

Network settings

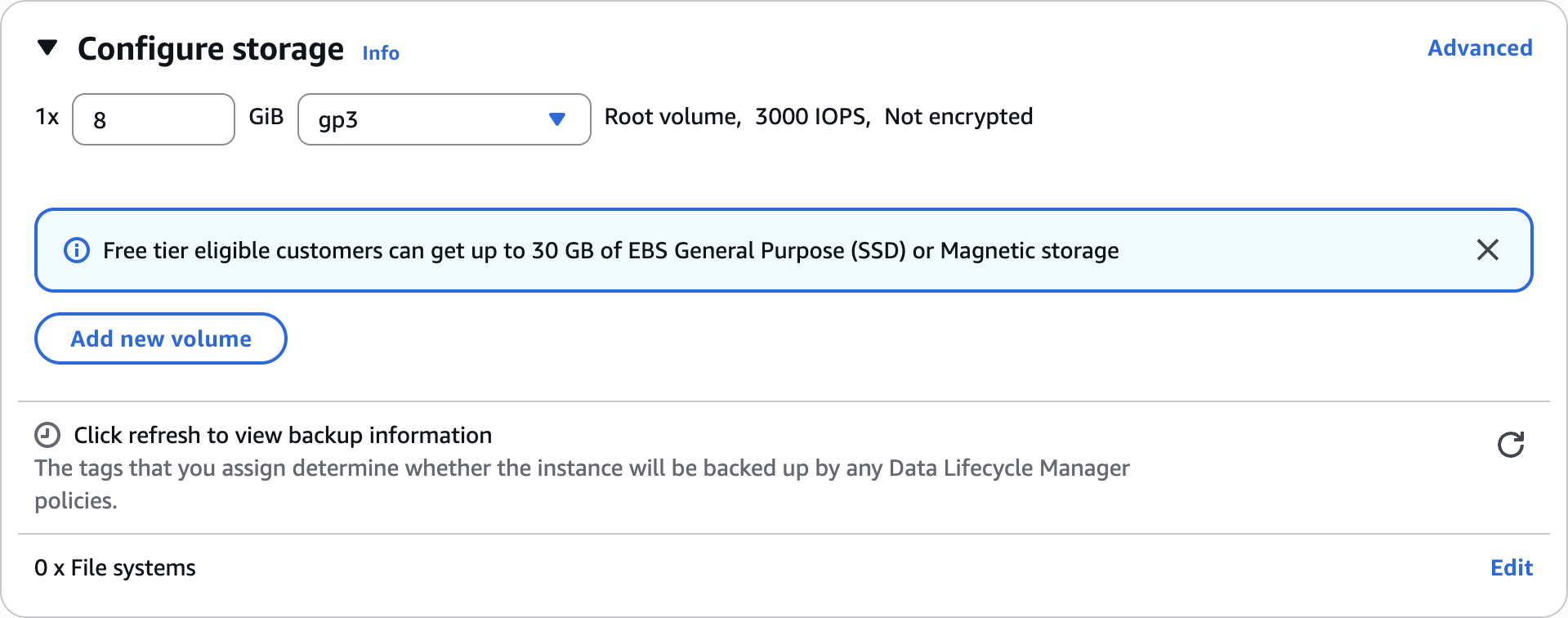

Configure storage

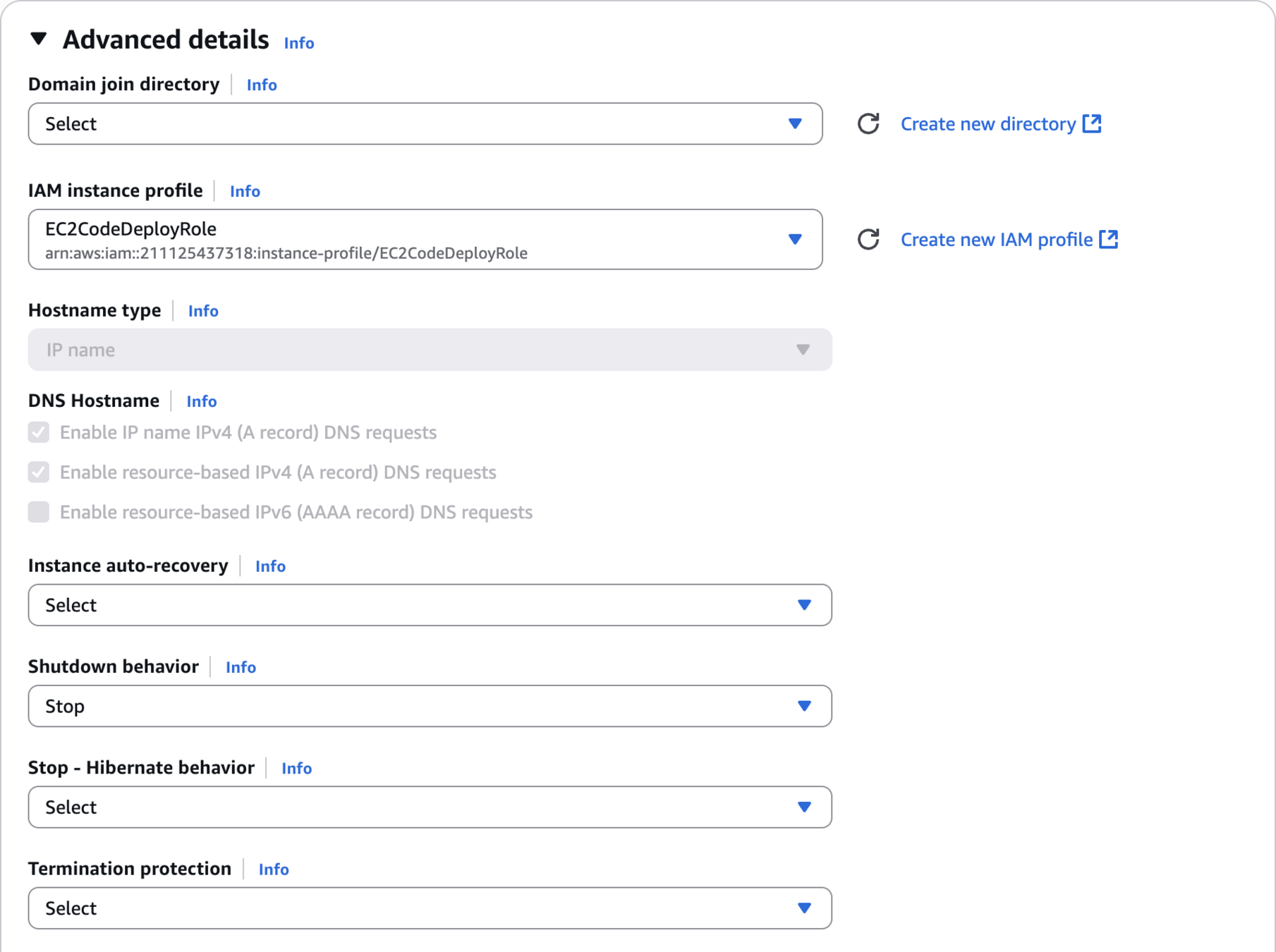

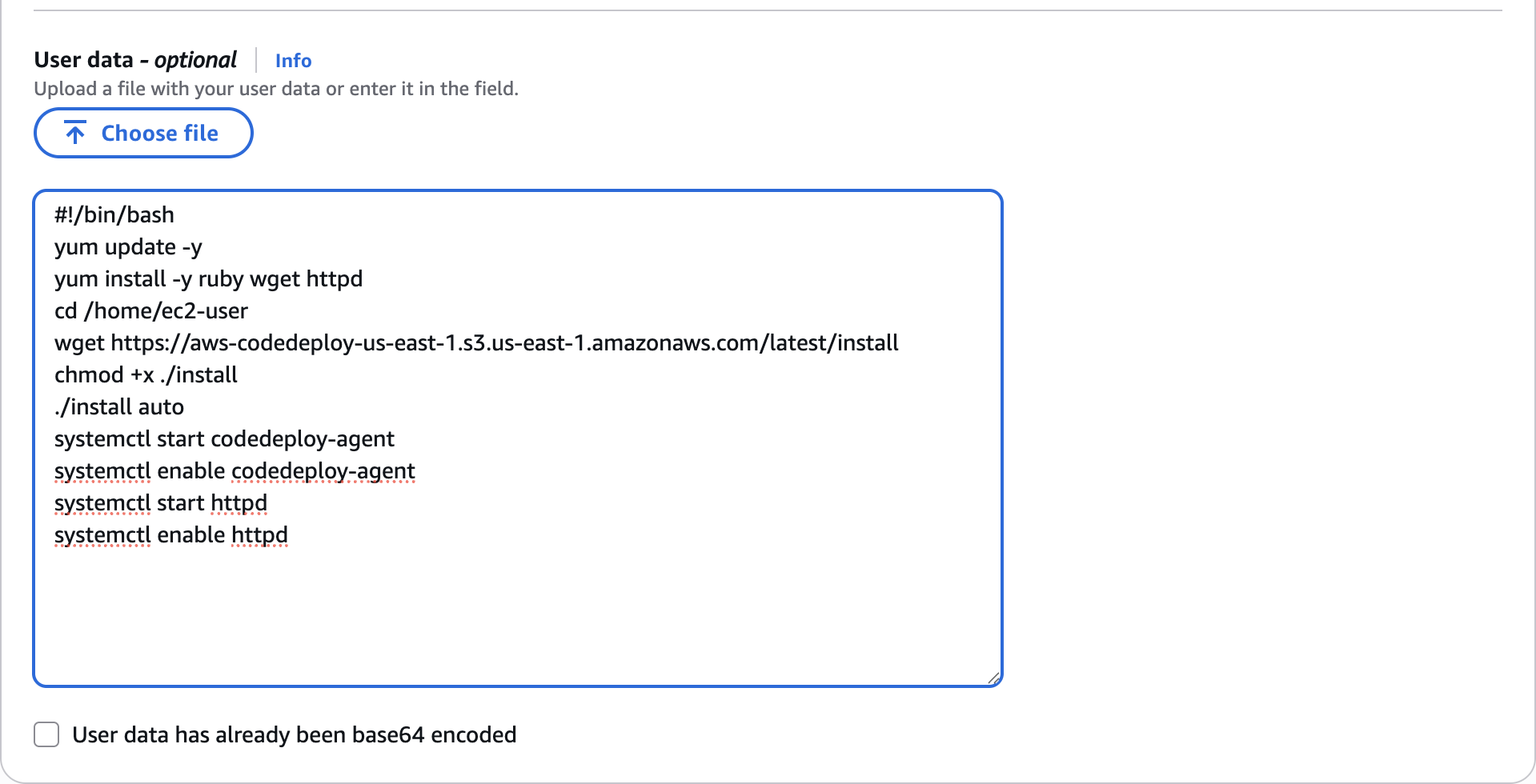

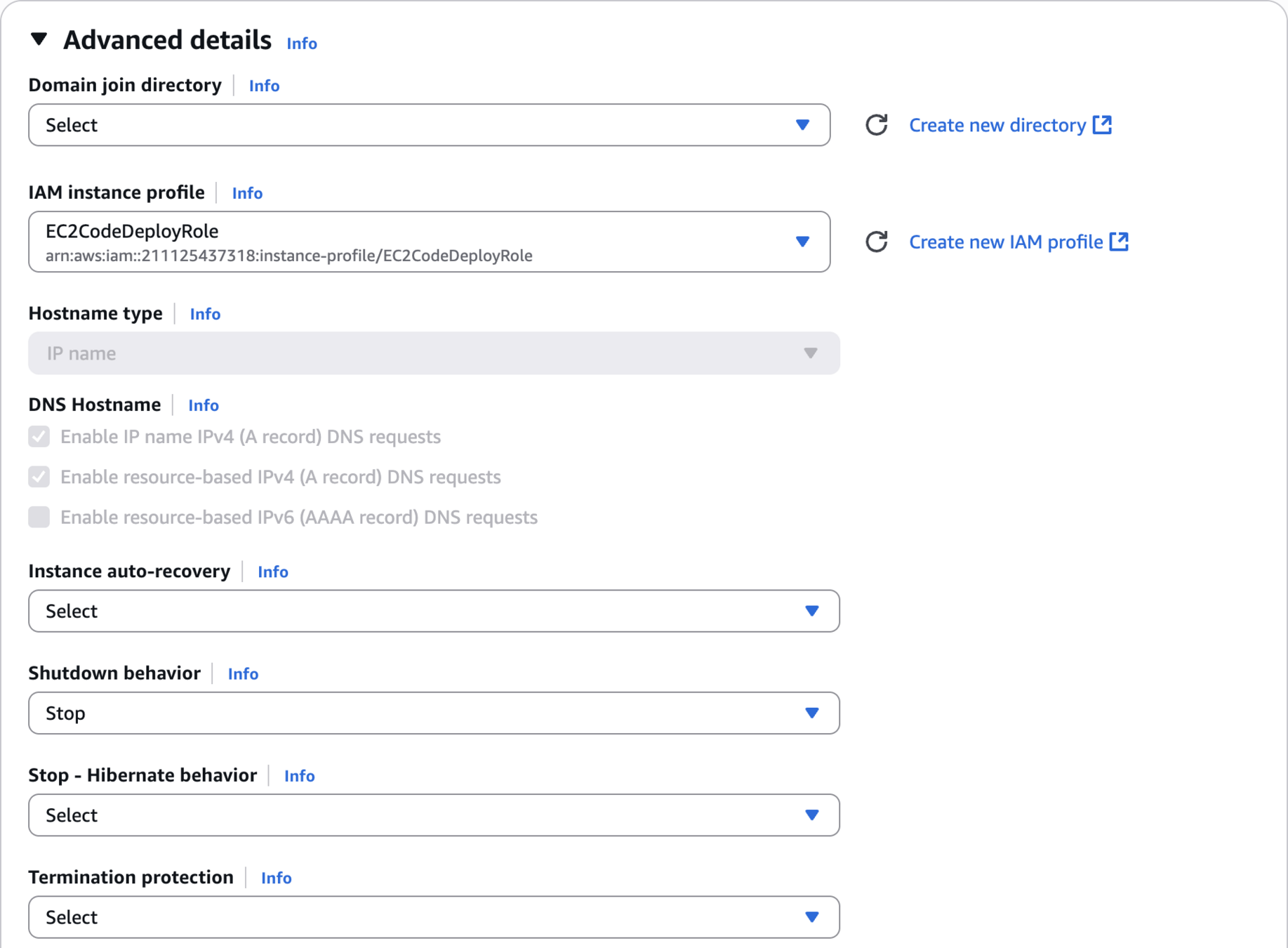

Advanced details

#!/bin/bash
yum update -y
yum install -y ruby wget httpd
cd /home/ec2-user
wget https://aws-codedeploy-us-east-1.s3.us-east-1.amazonaws.com/latest/install
chmod +x ./install
./install auto
systemctl start codedeploy-agent
systemctl enable codedeploy-agent
systemctl start httpd
systemctl enable httpd

User data

Launch 2nd Instance

CodeDeploy-Demo-Instance-2
Environment
Demo

Instance type

Key pair (login)

Network settings

Configure storage

Advanced details

#!/bin/bash
yum update -y
yum install -y ruby wget httpd
cd /home/ec2-user
wget https://aws-codedeploy-us-east-1.s3.us-east-1.amazonaws.com/latest/install
chmod +x ./install
./install auto
systemctl start codedeploy-agent
systemctl enable codedeploy-agent
systemctl start httpd
systemctl enable httpd

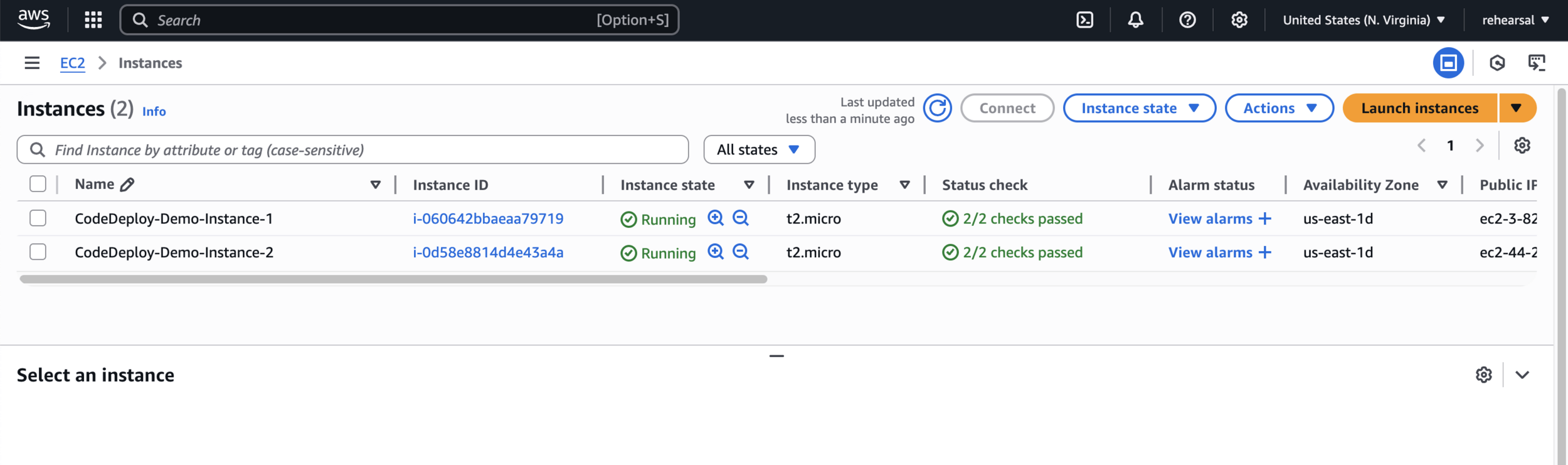

Instances (2)

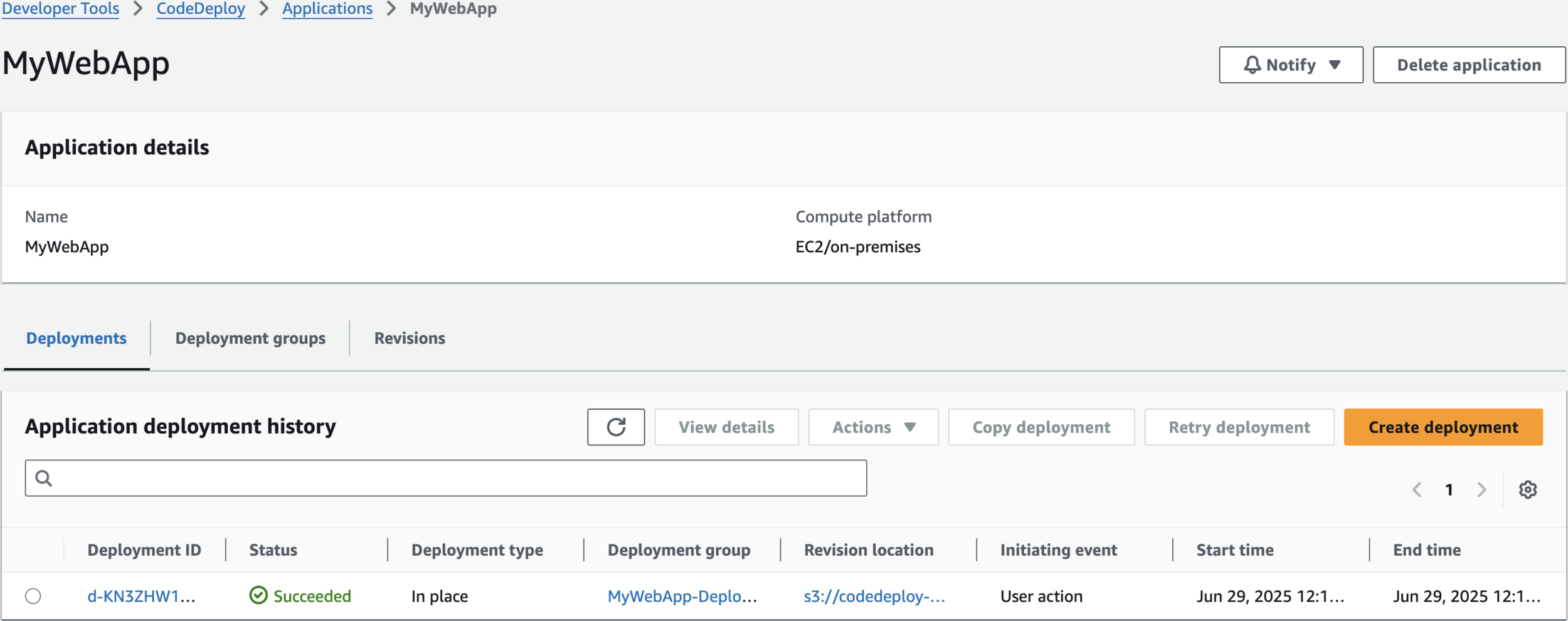

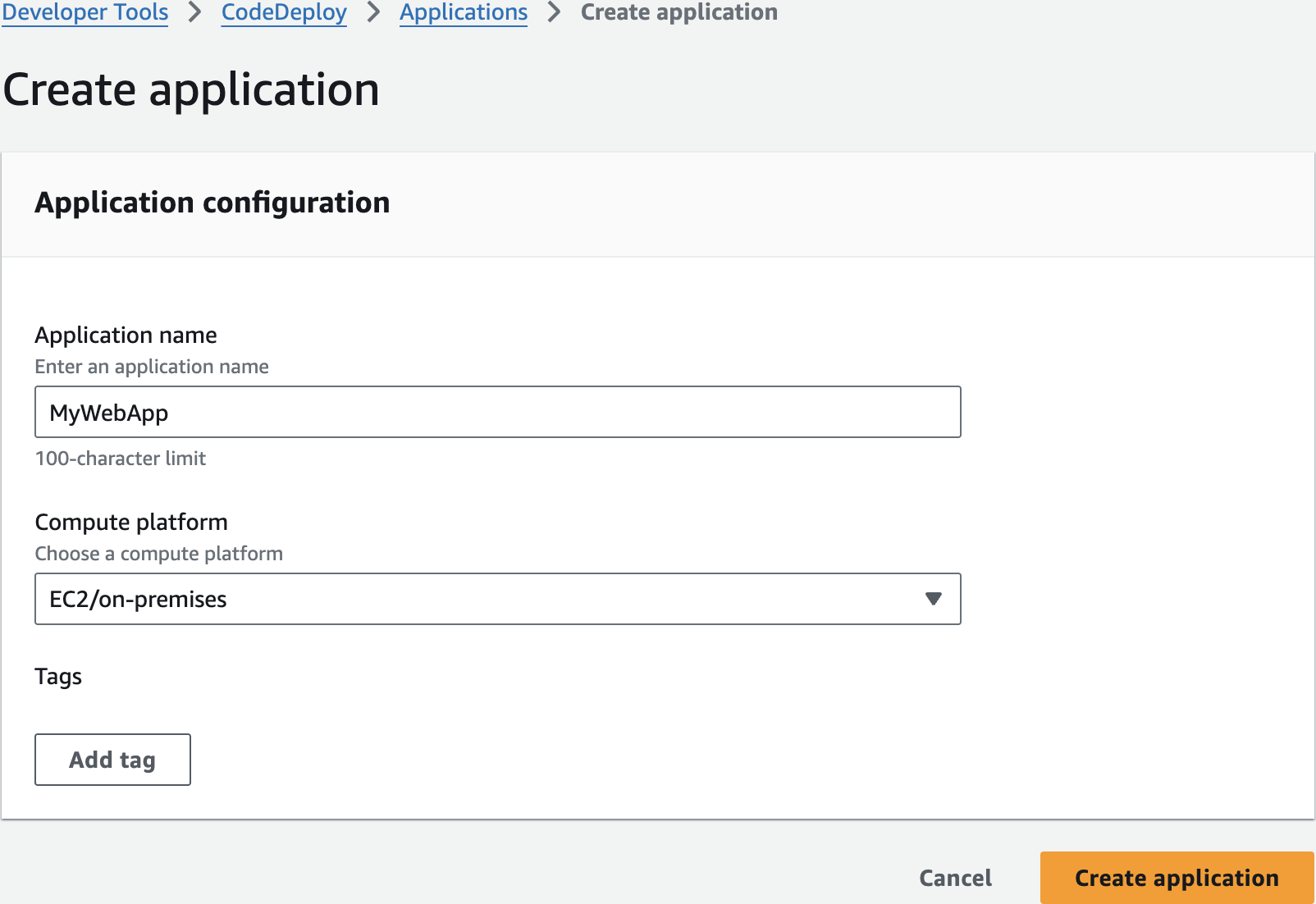

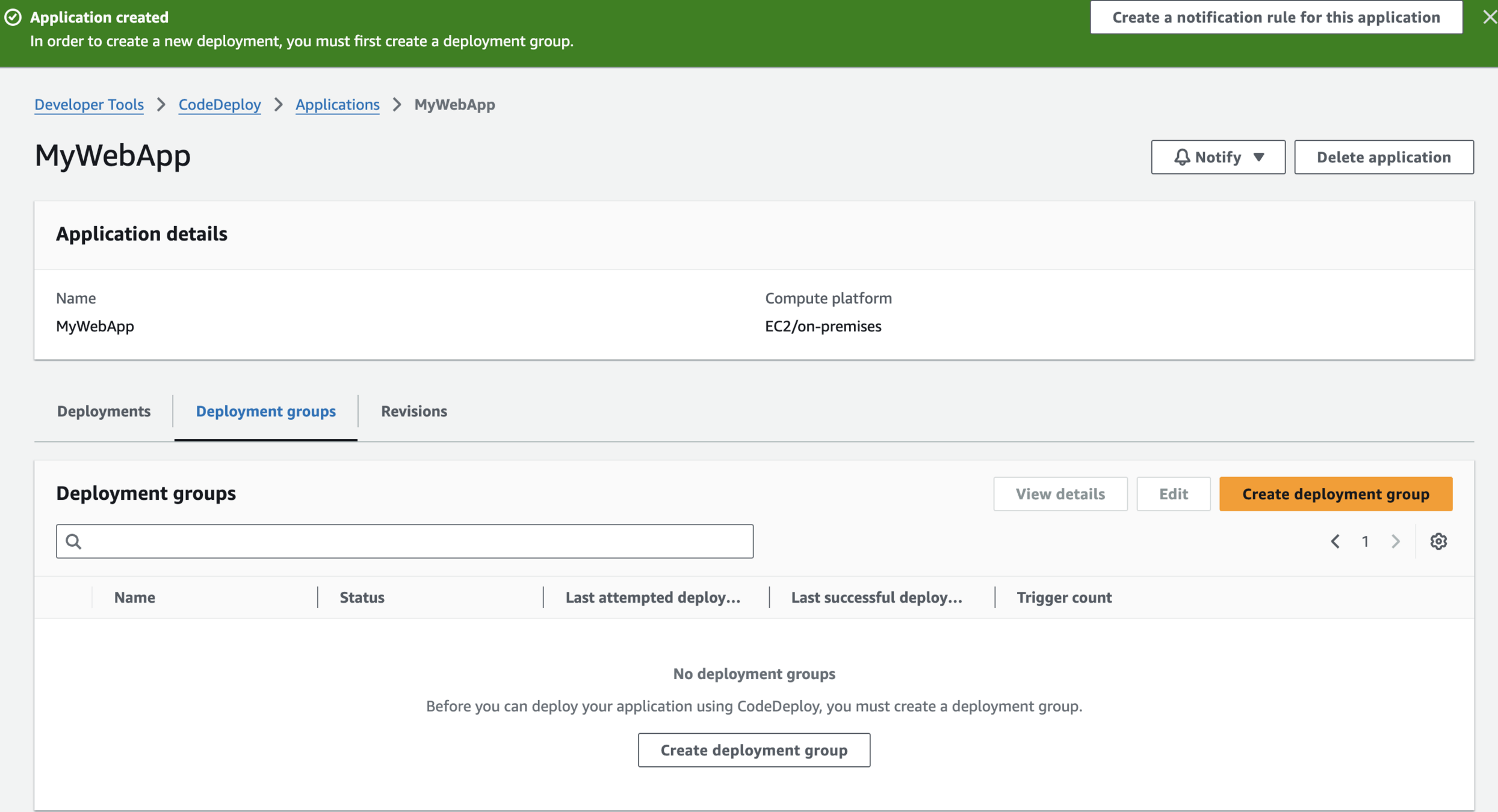

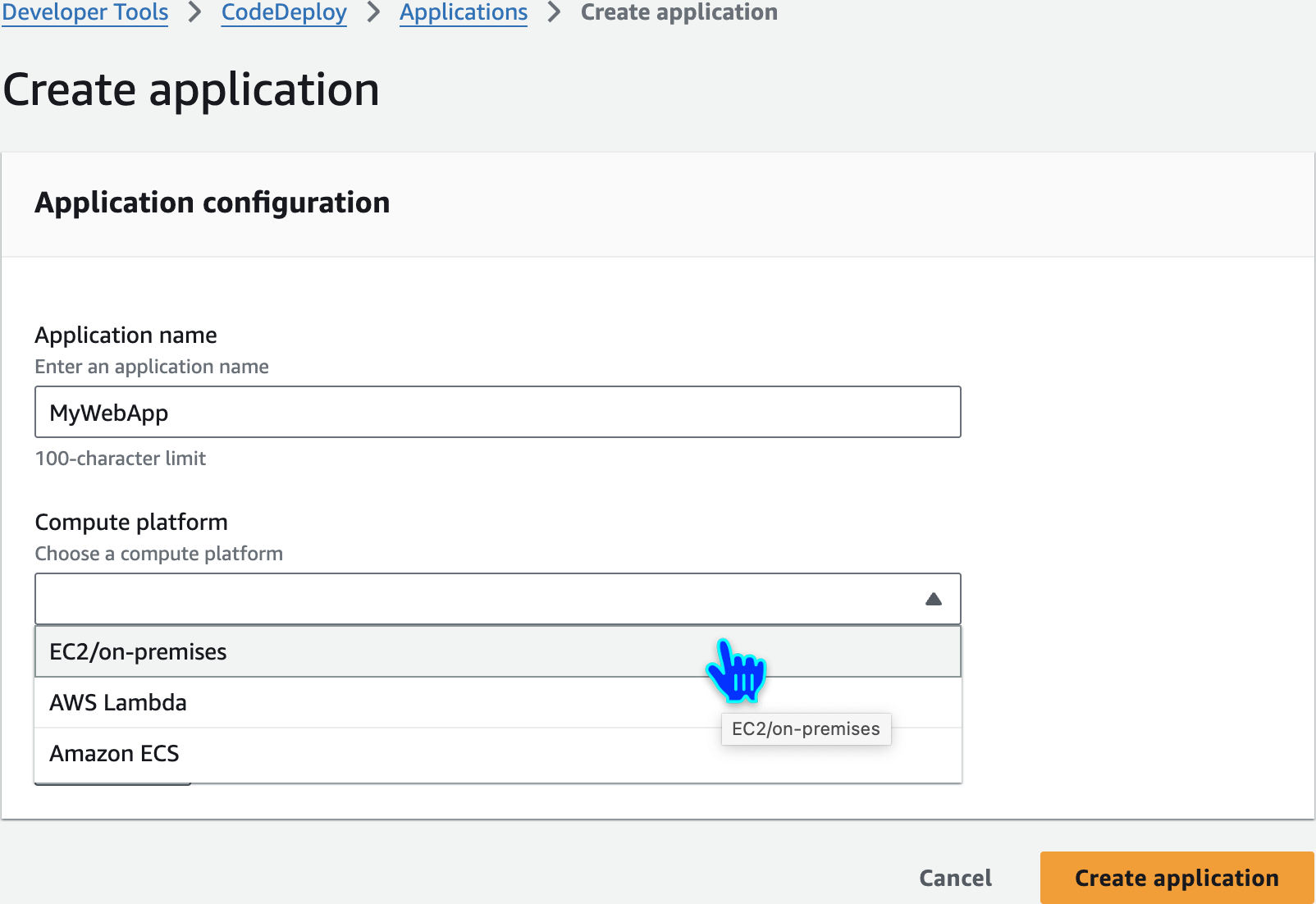

CodeDeploy - Create application

MyWebApp

Create application

Create application

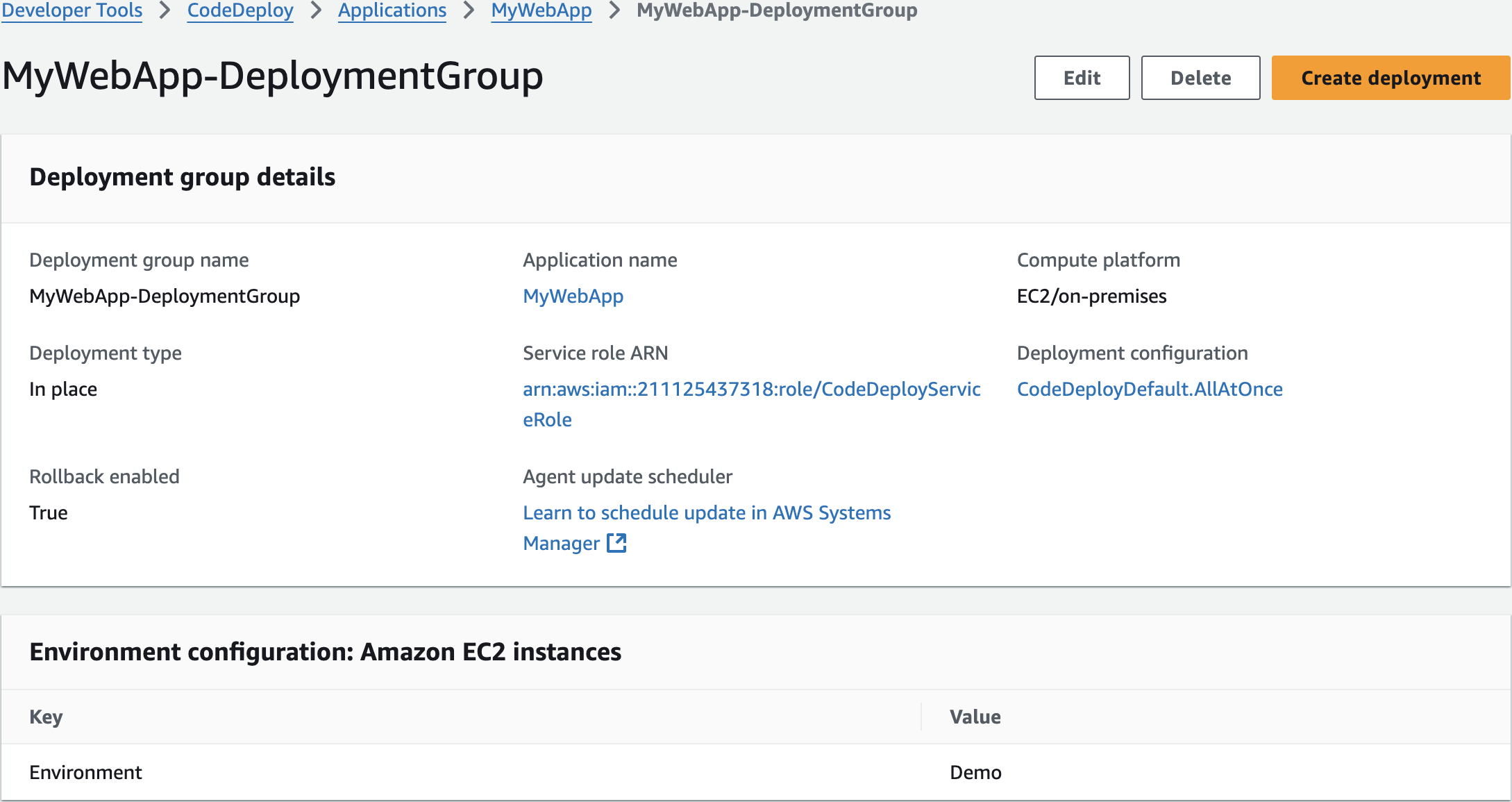

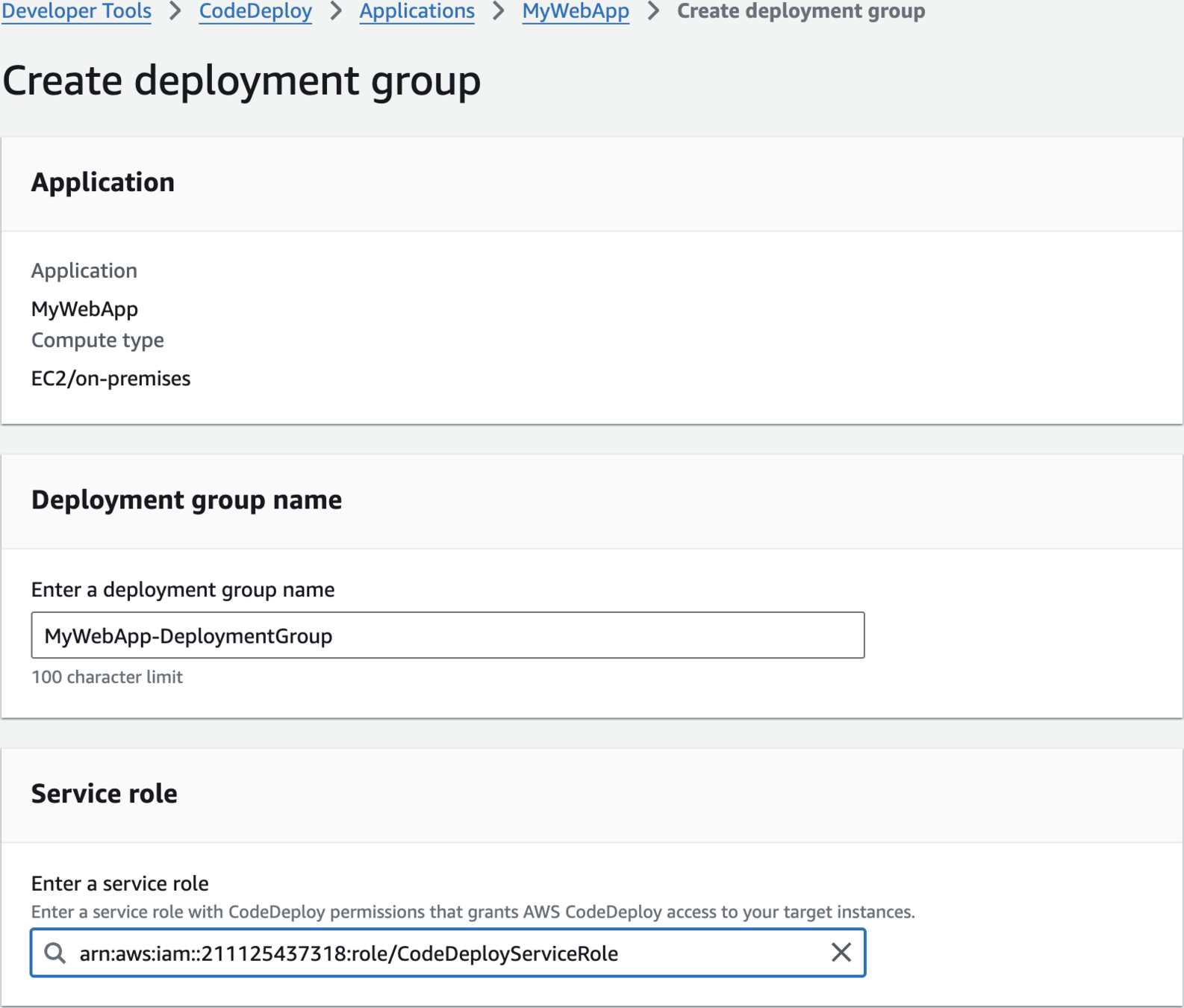

Create deployment group

MyWebApp-DeploymentGroup

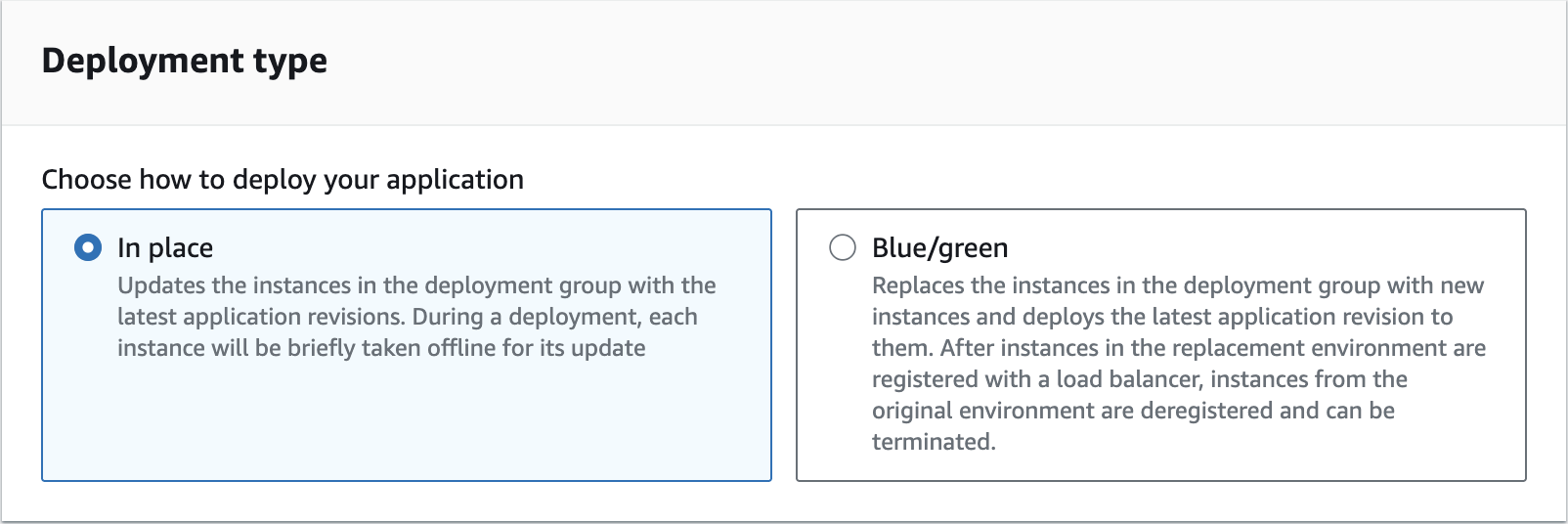

Deployment type

Choose this

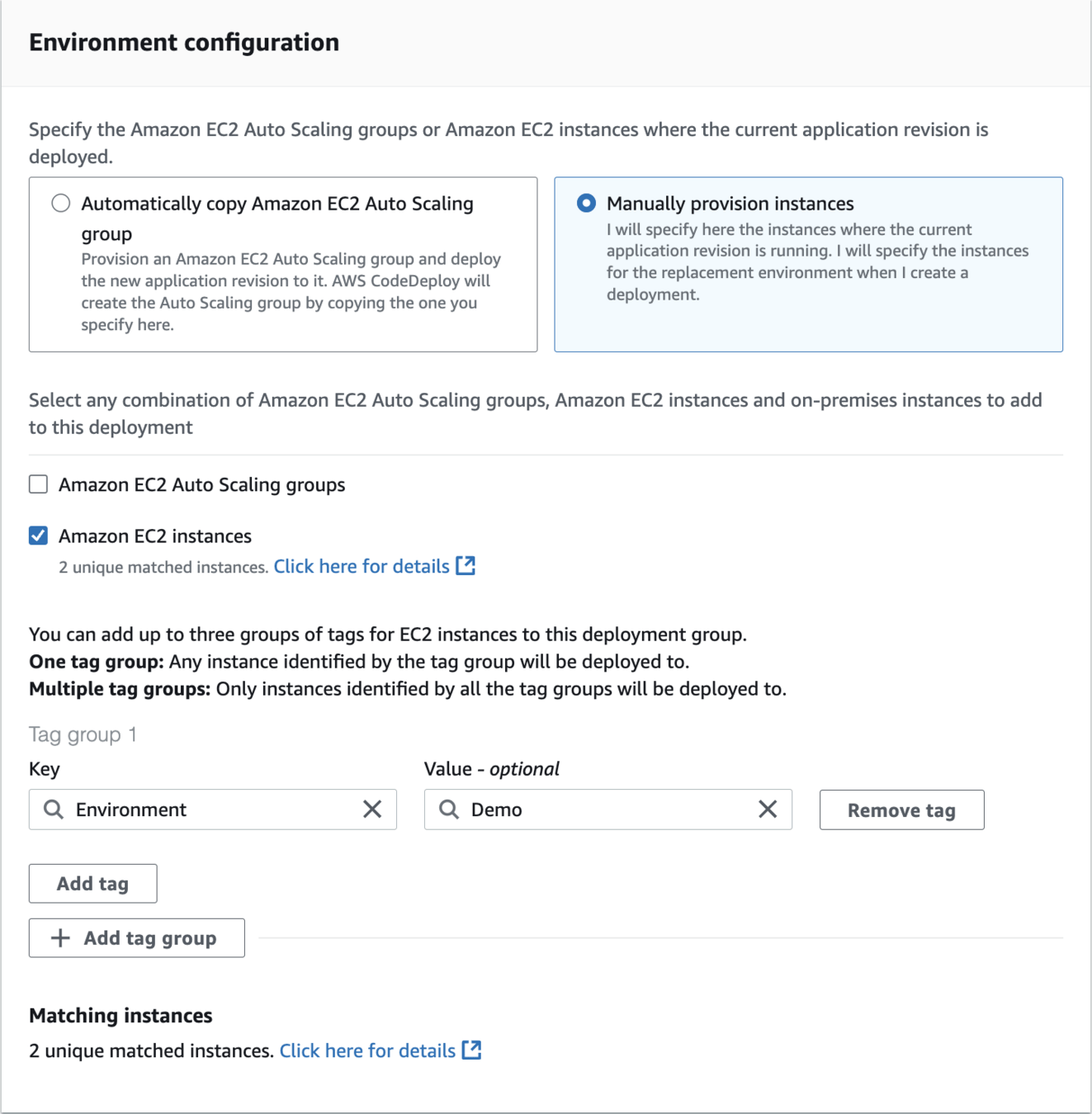

Environment configuration

Environment
Demo

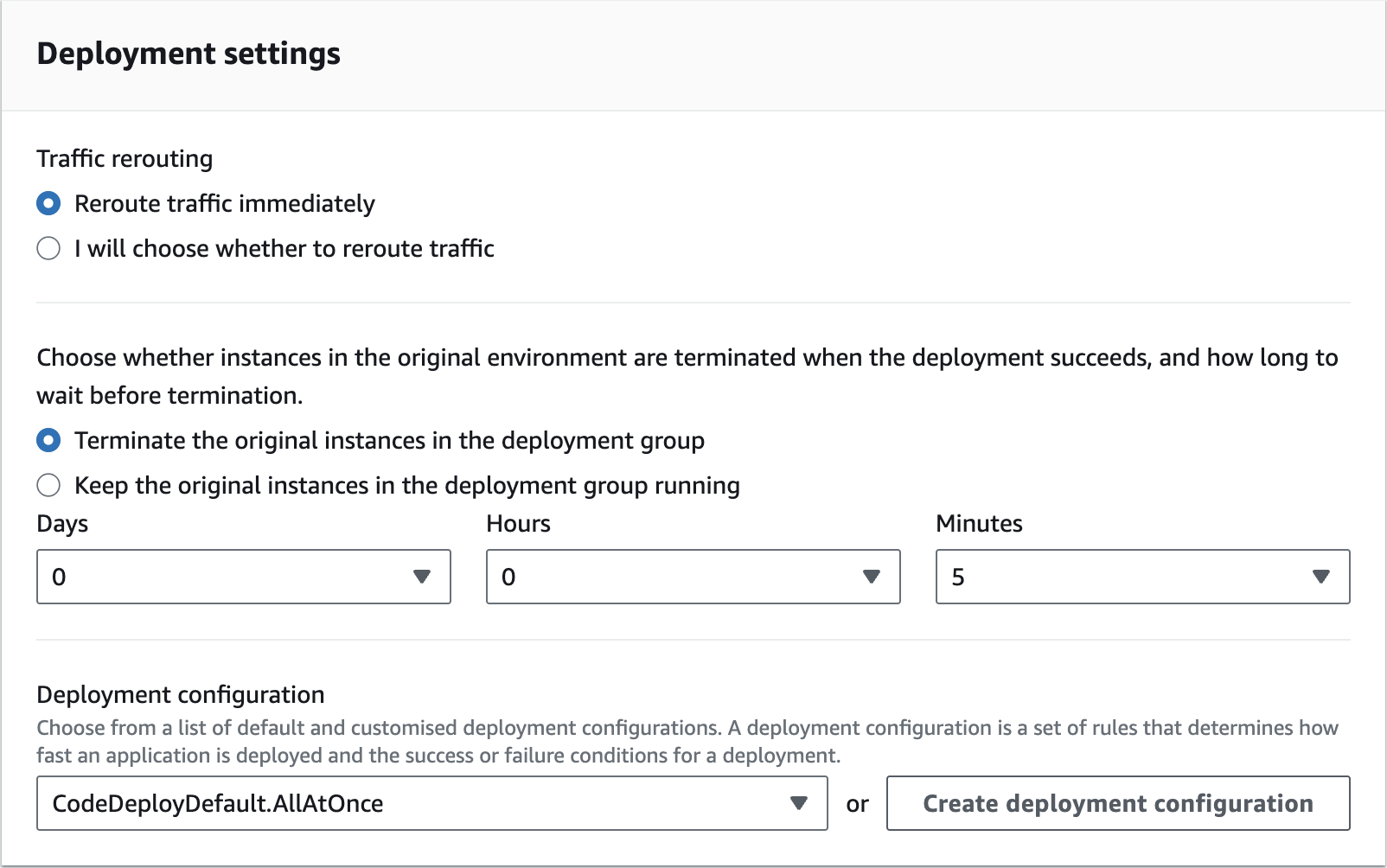

Deployment settings

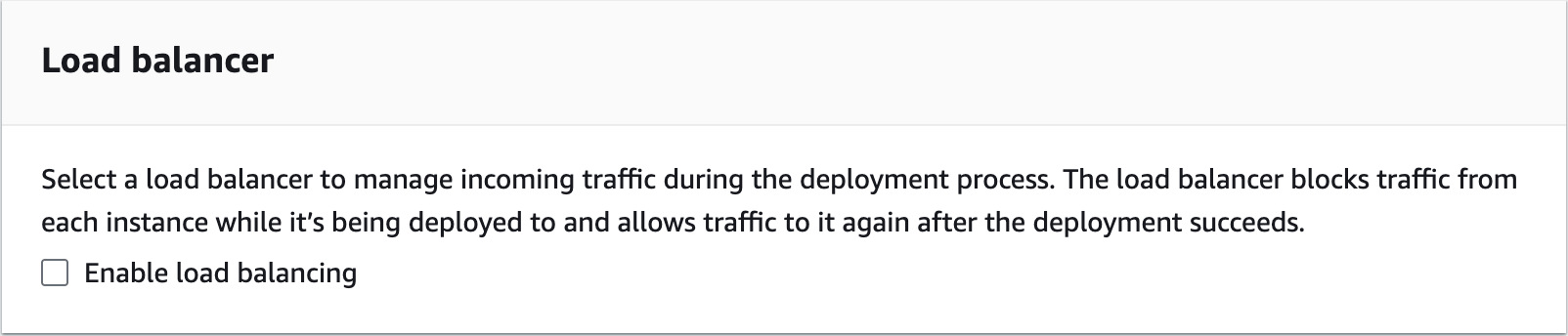

Load balancer

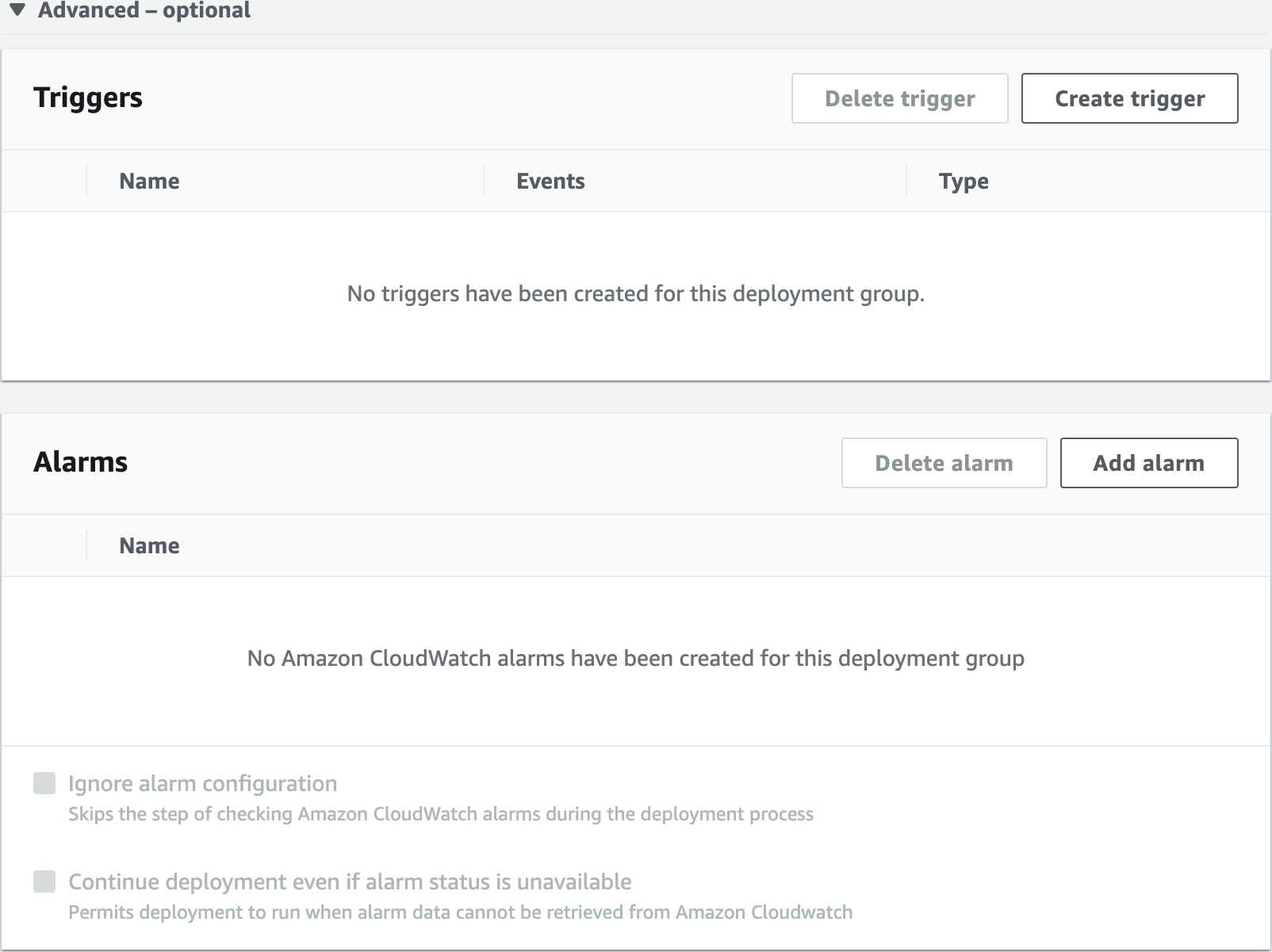

Triggers

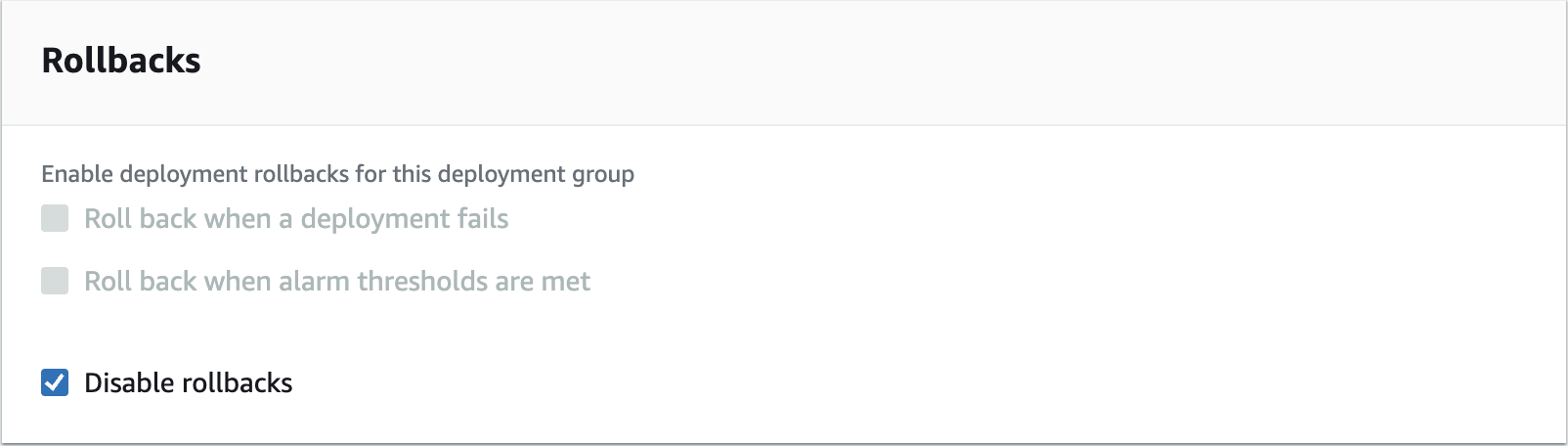

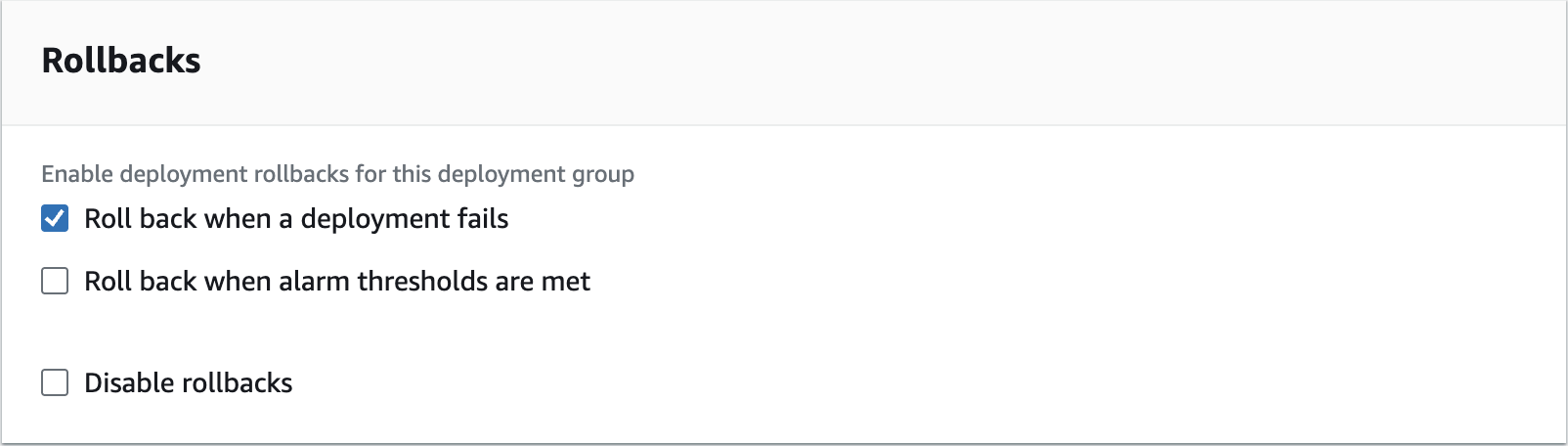

Rollbacks

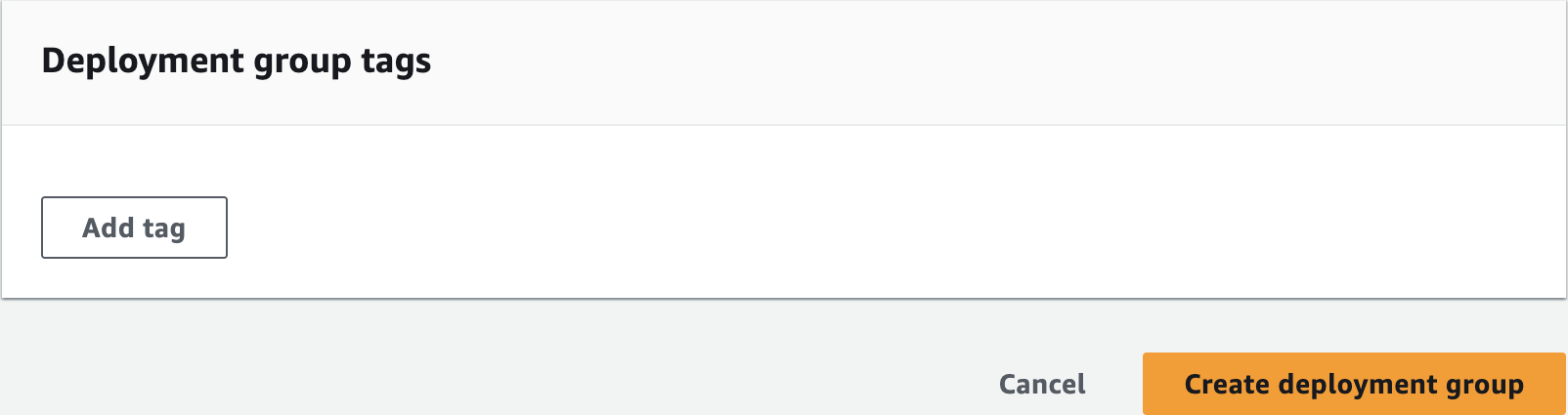

Deployment group tags

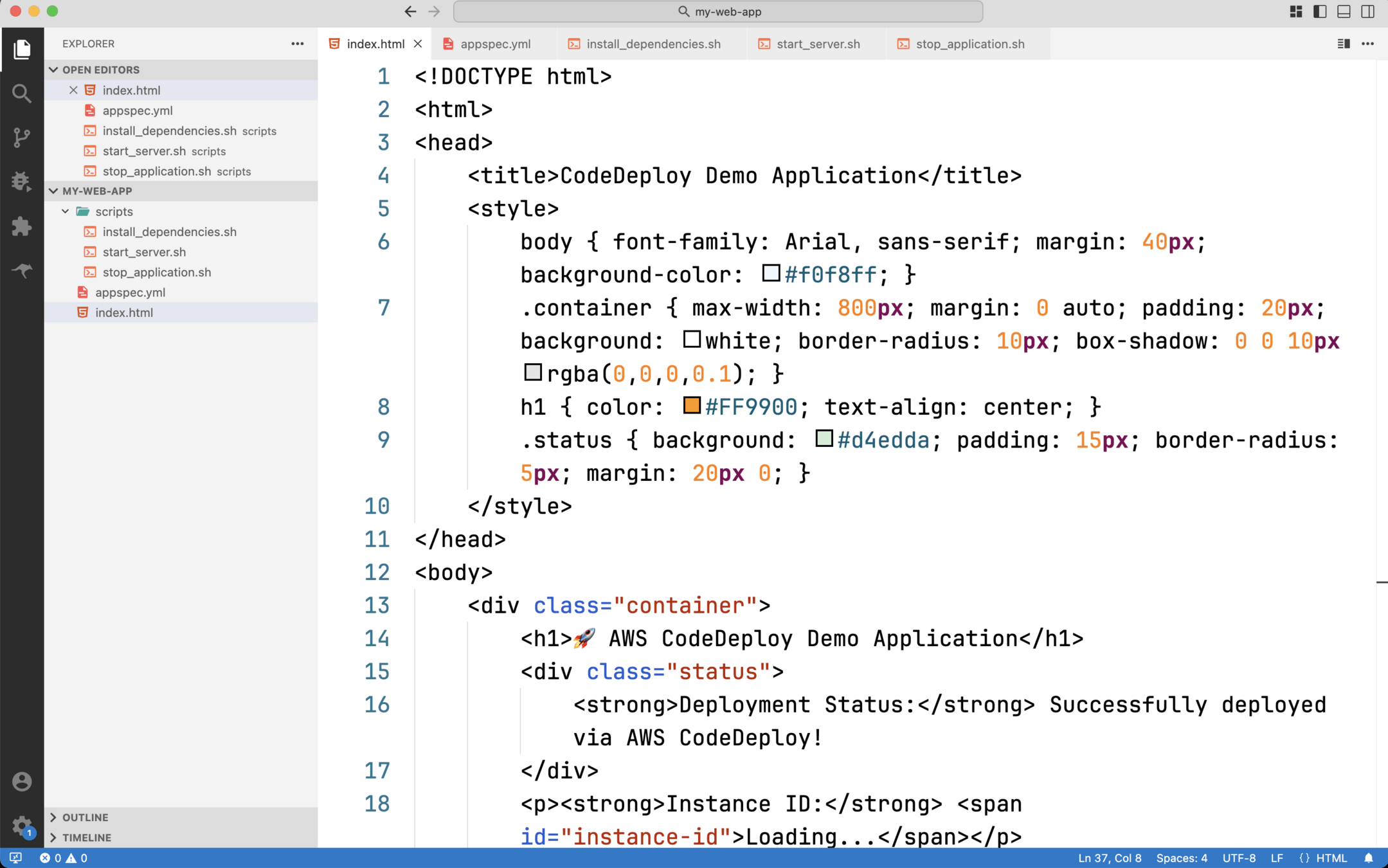

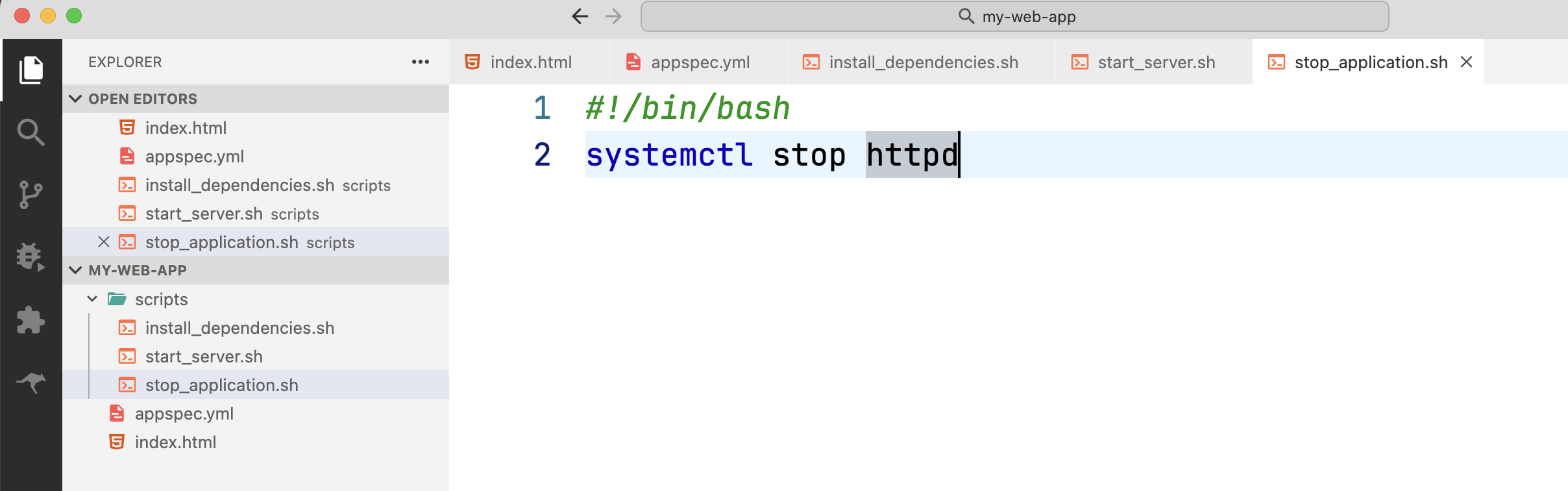

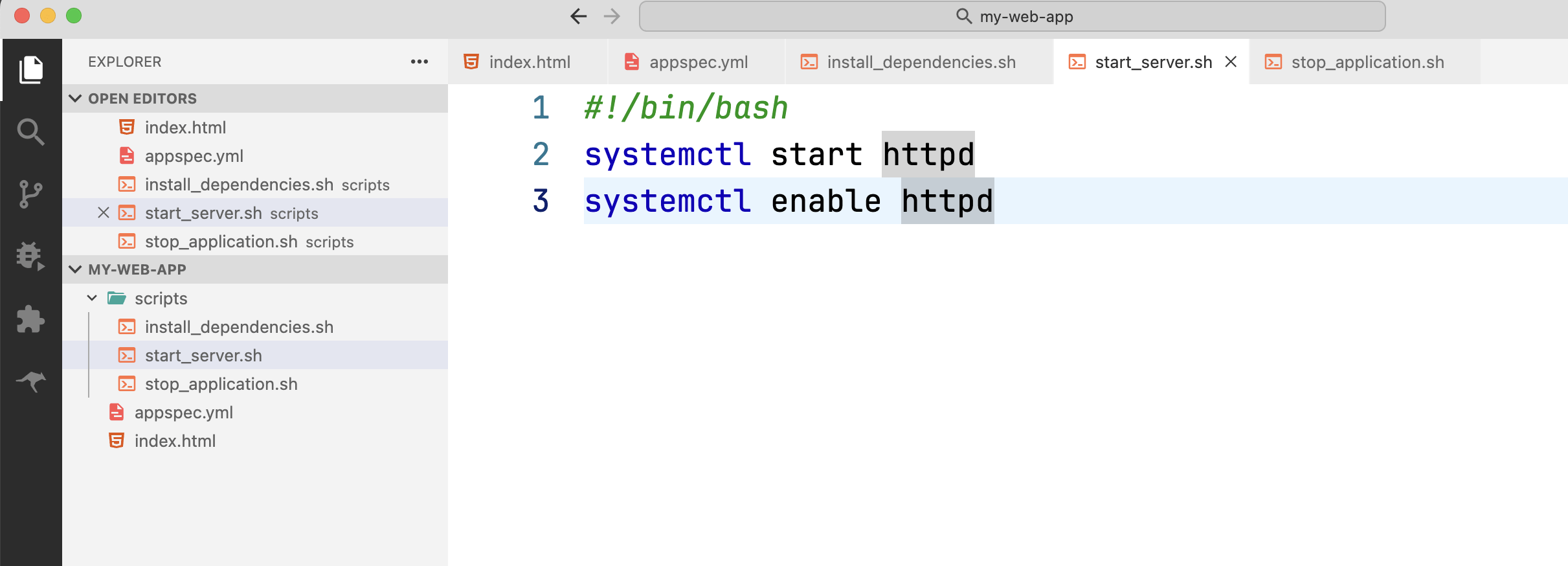

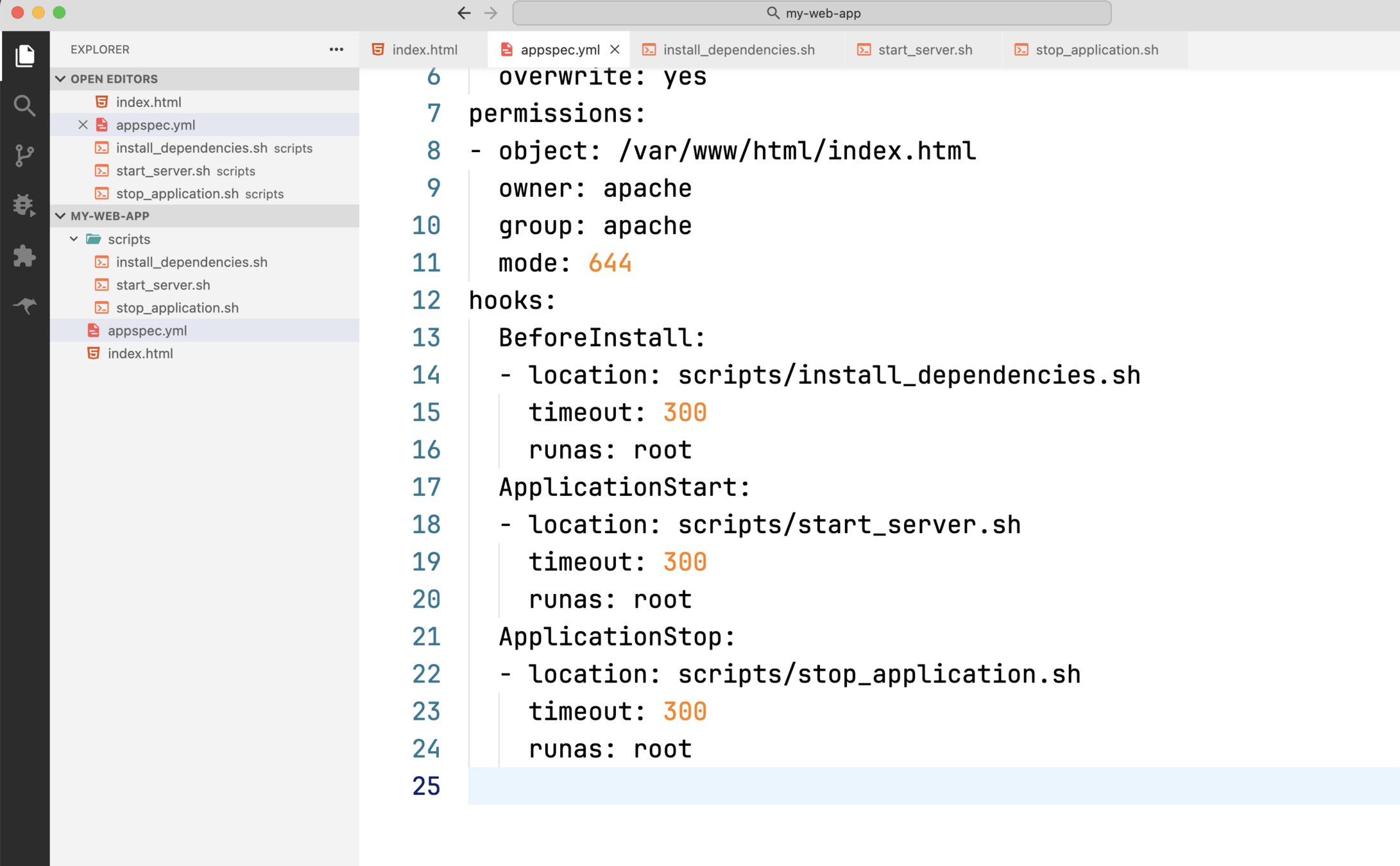

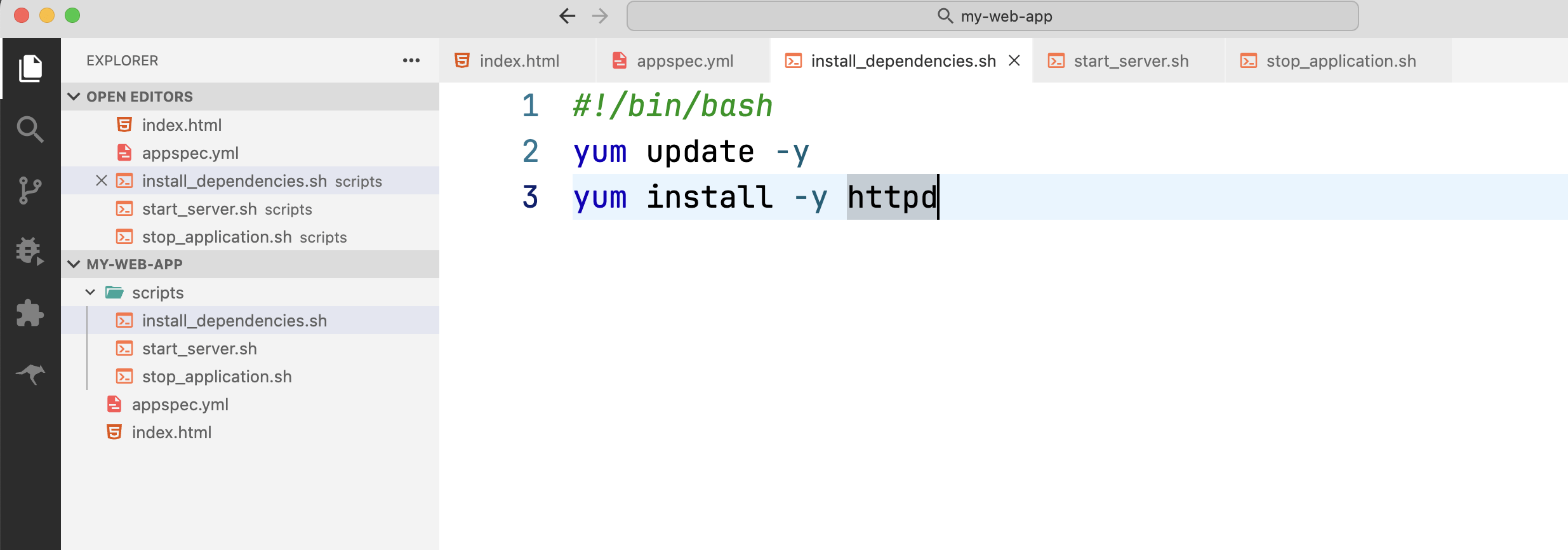

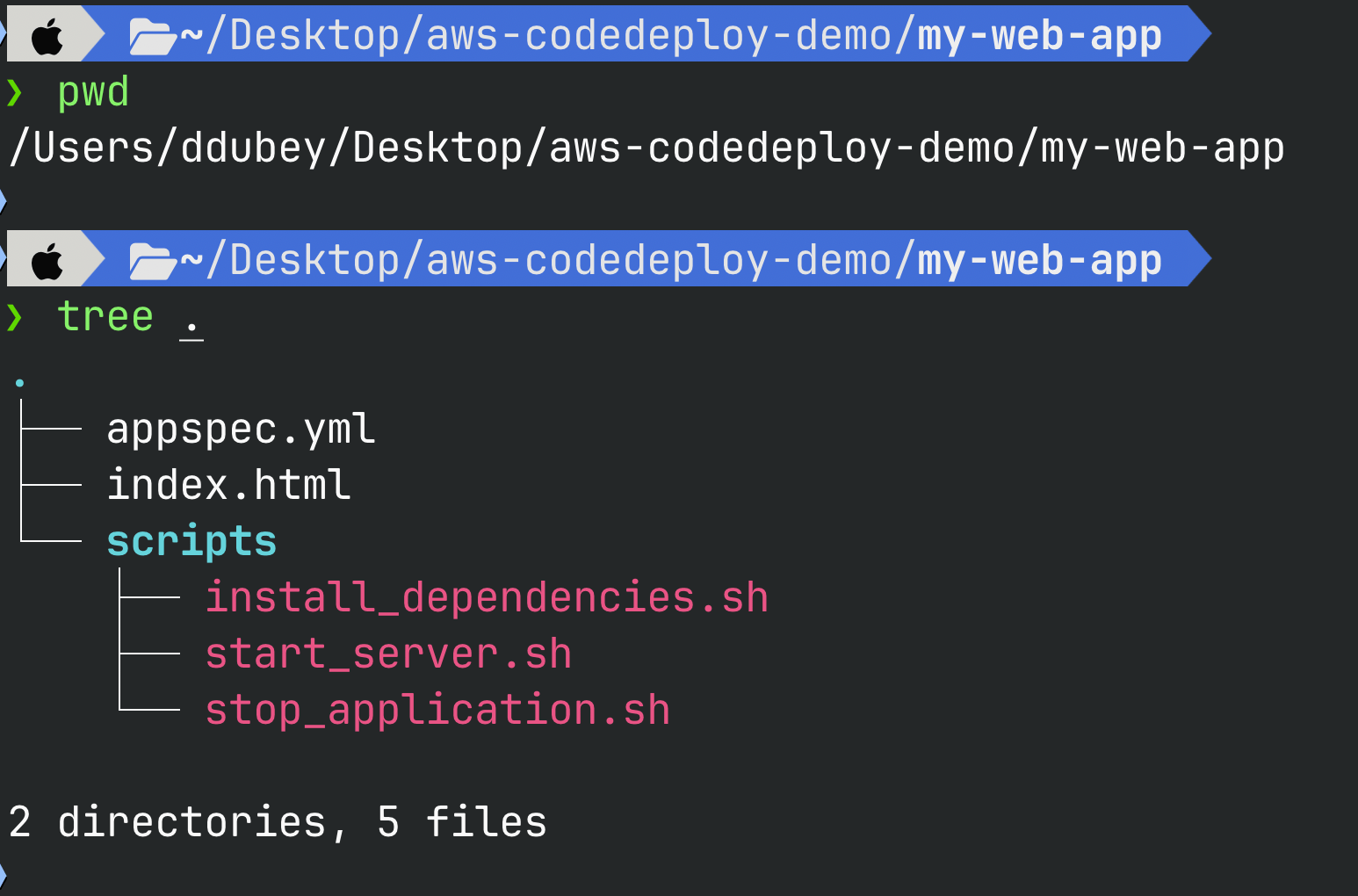

Sample Application

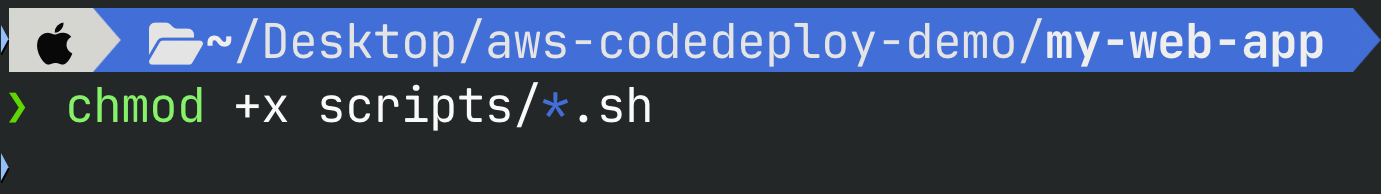

chmod +X scripts/*.sh

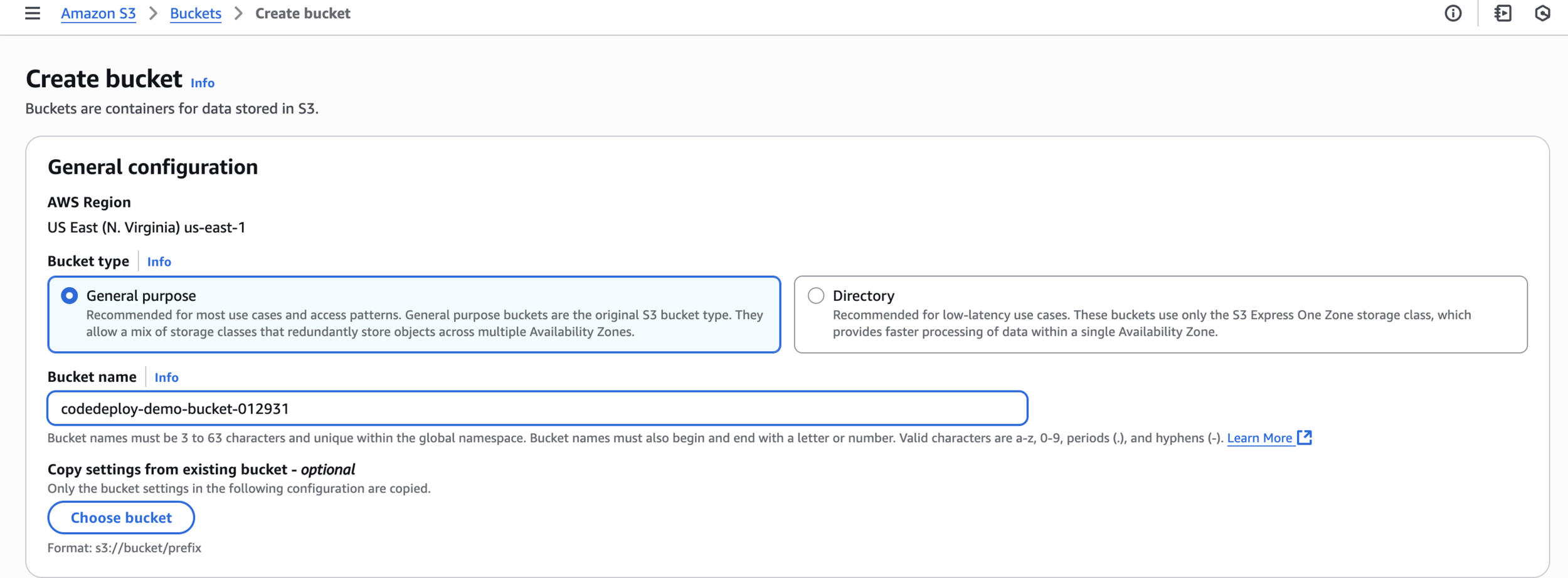

Create S3 bucket

codedeploy-demo-bucket-012931

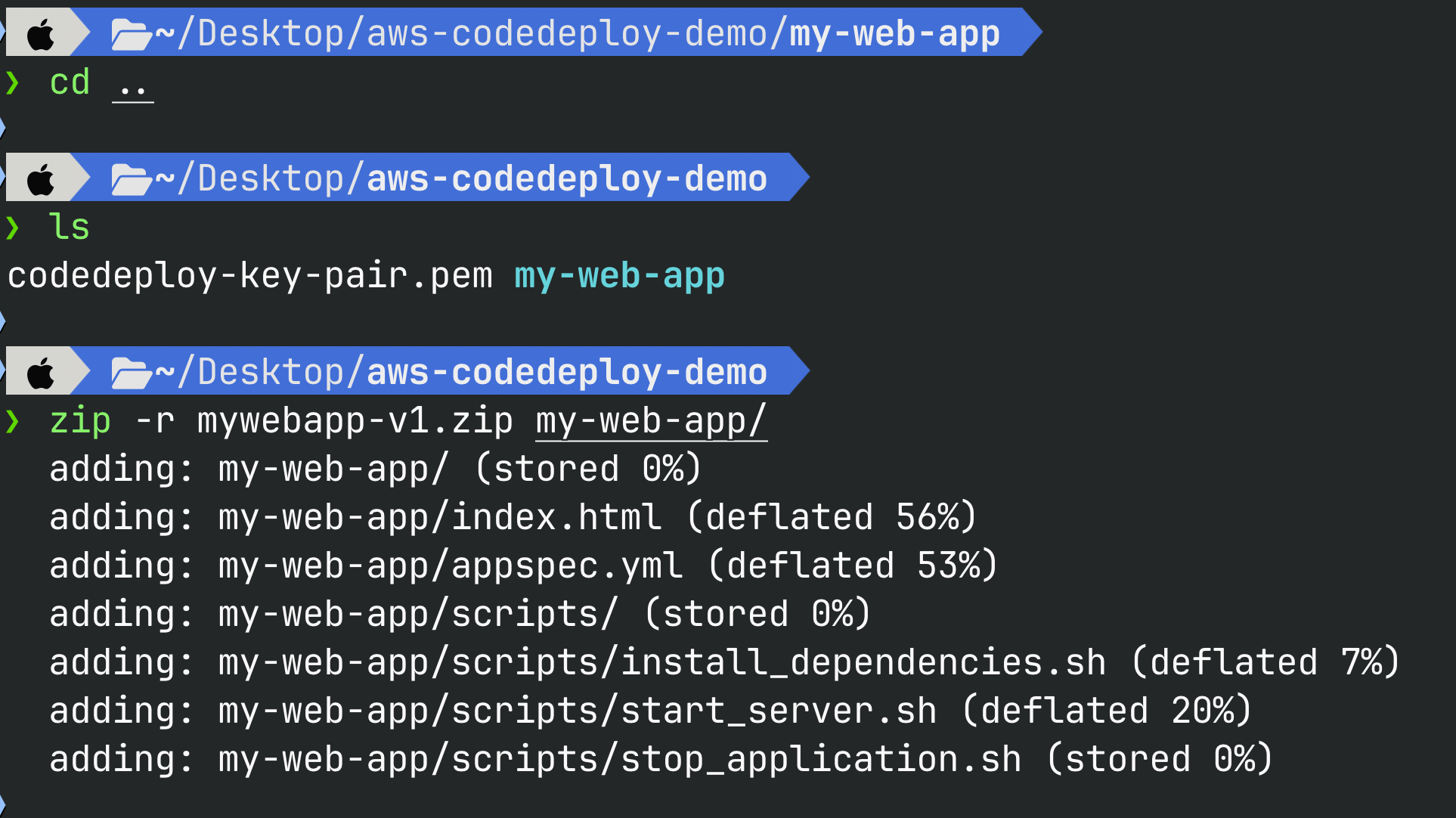

cd ..
zip -r mywebapp-v1.zip my-web-app/

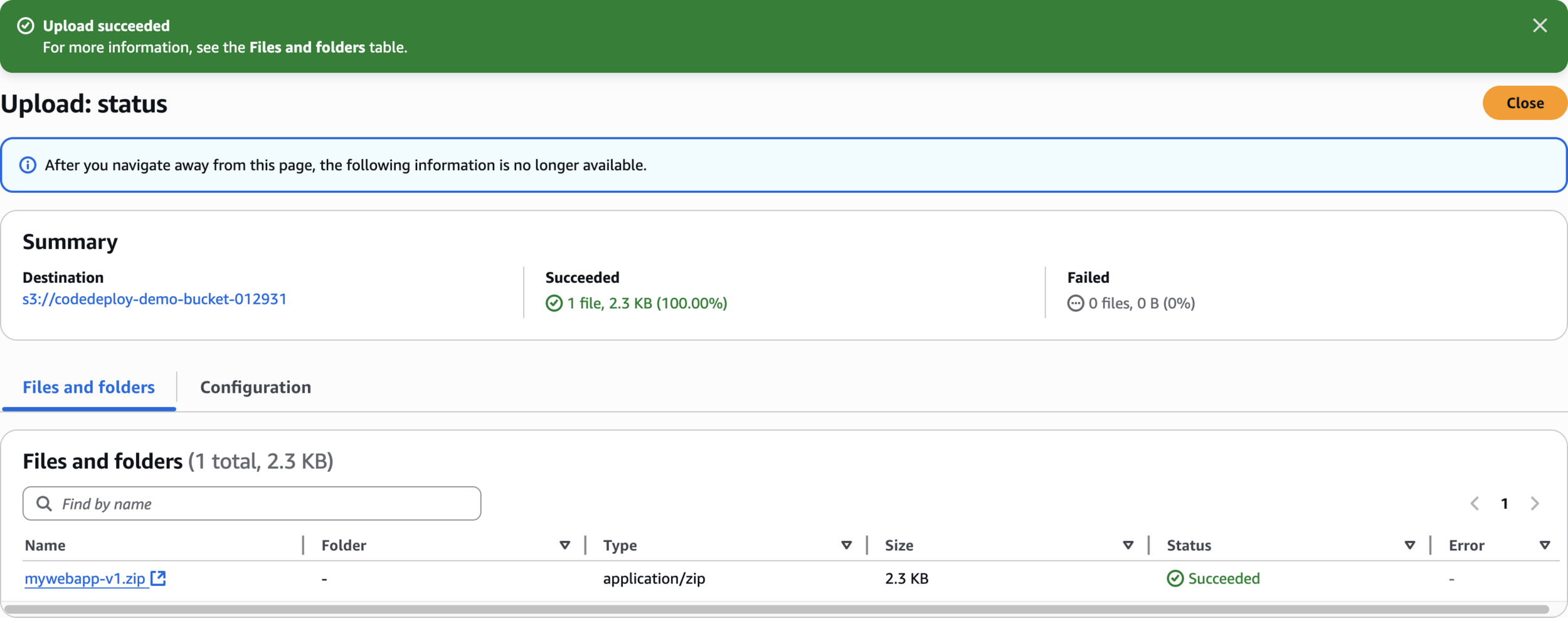

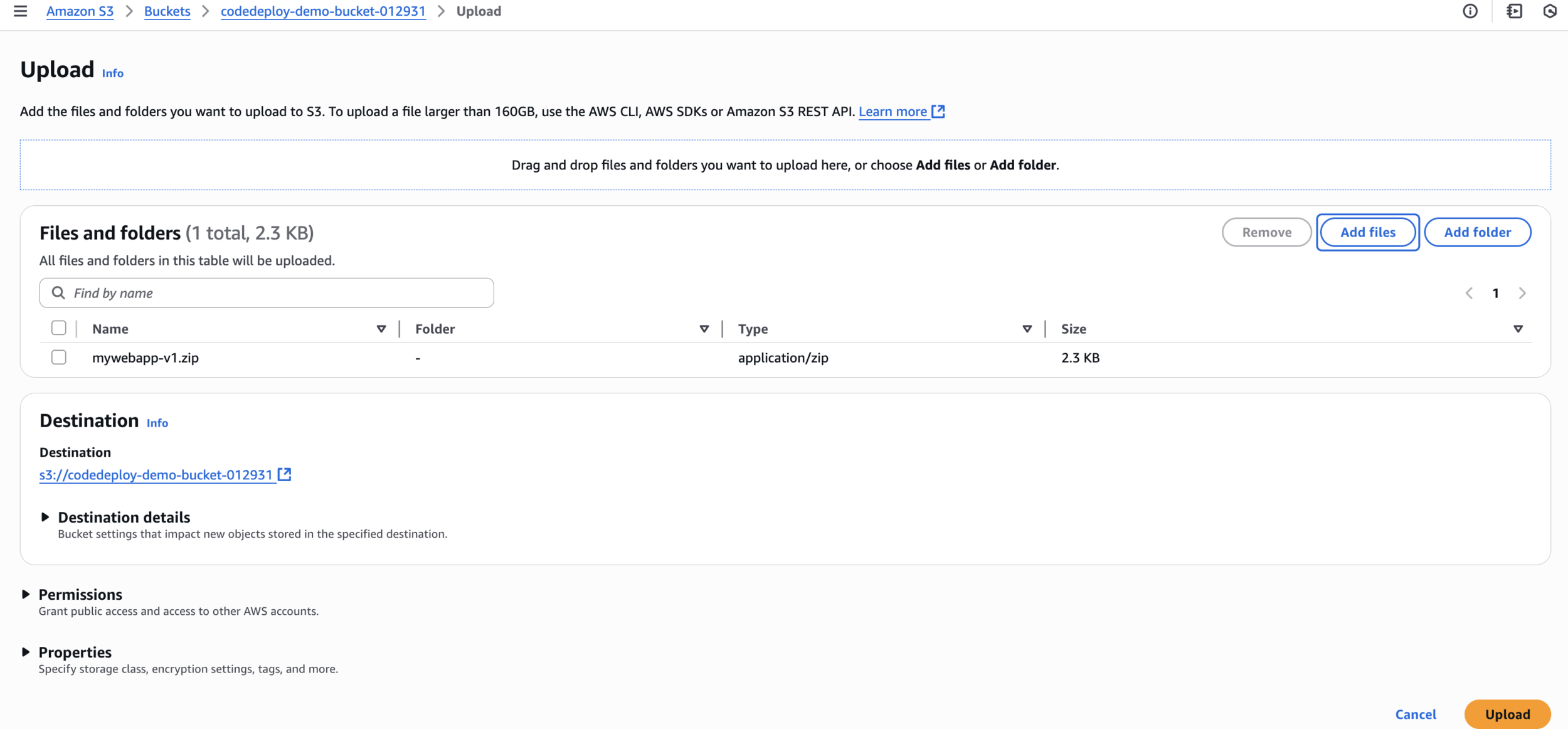

Upload to S3

Upload succeeded

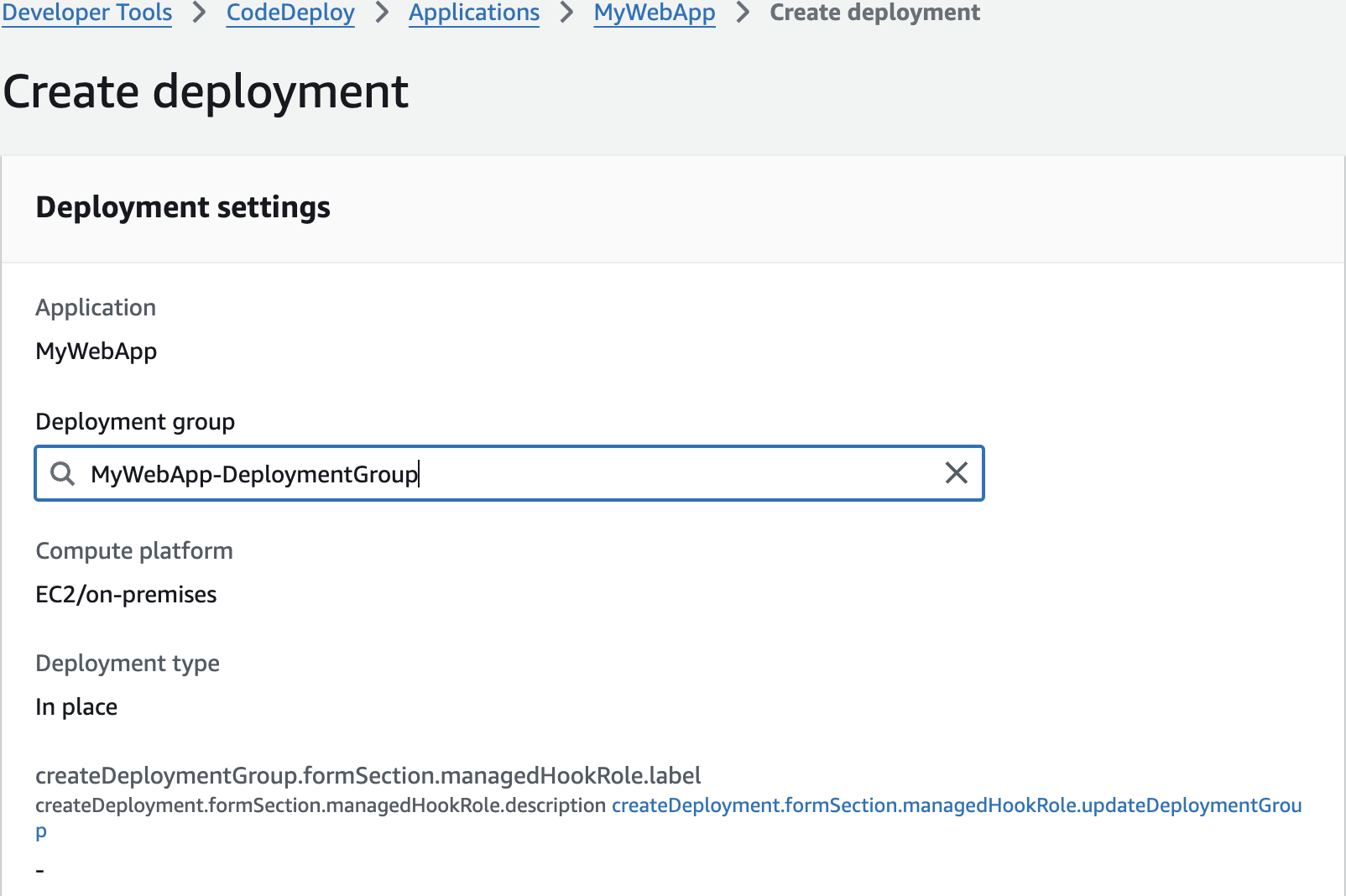

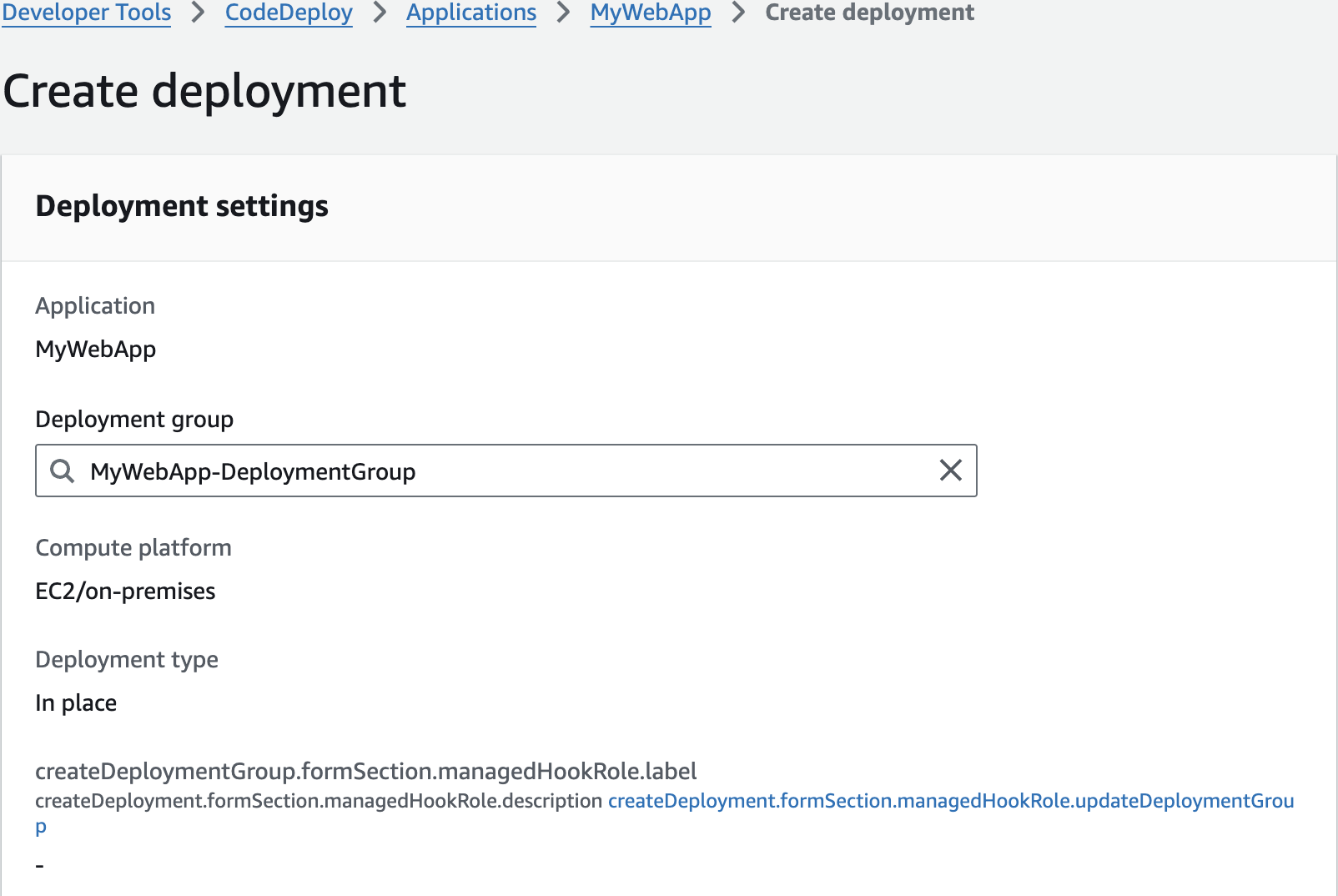

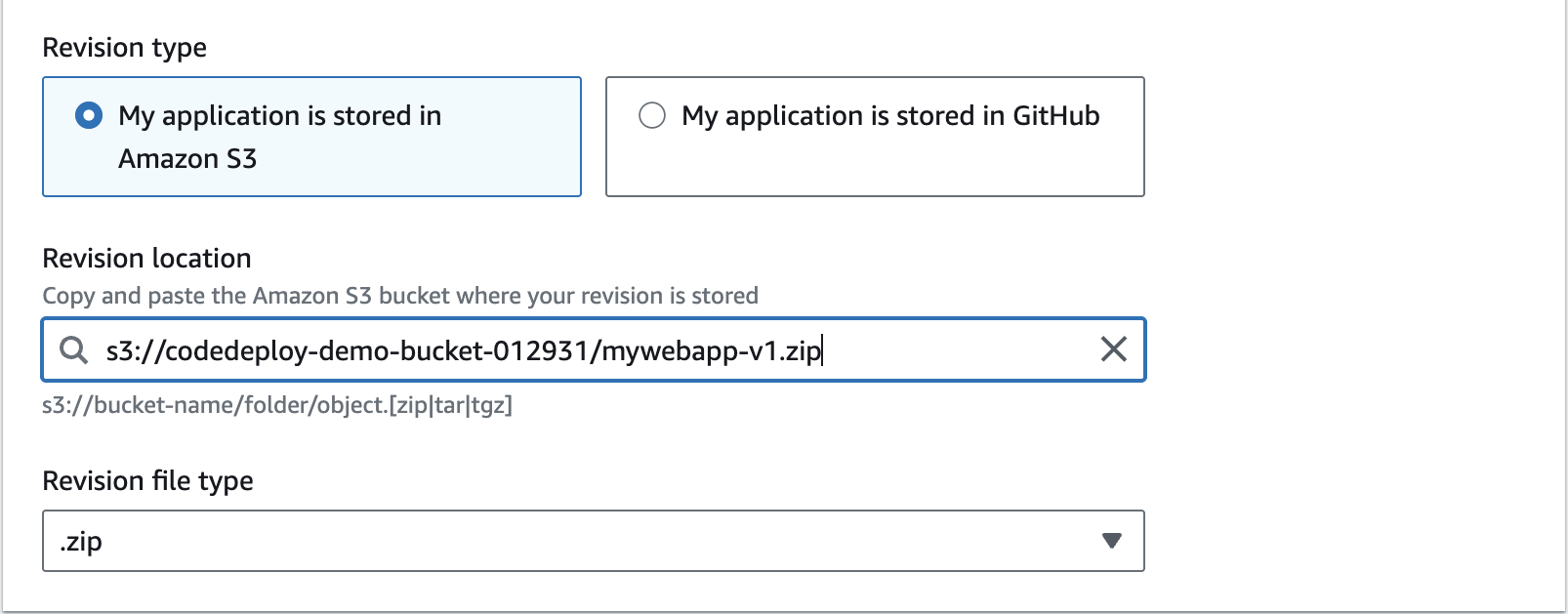

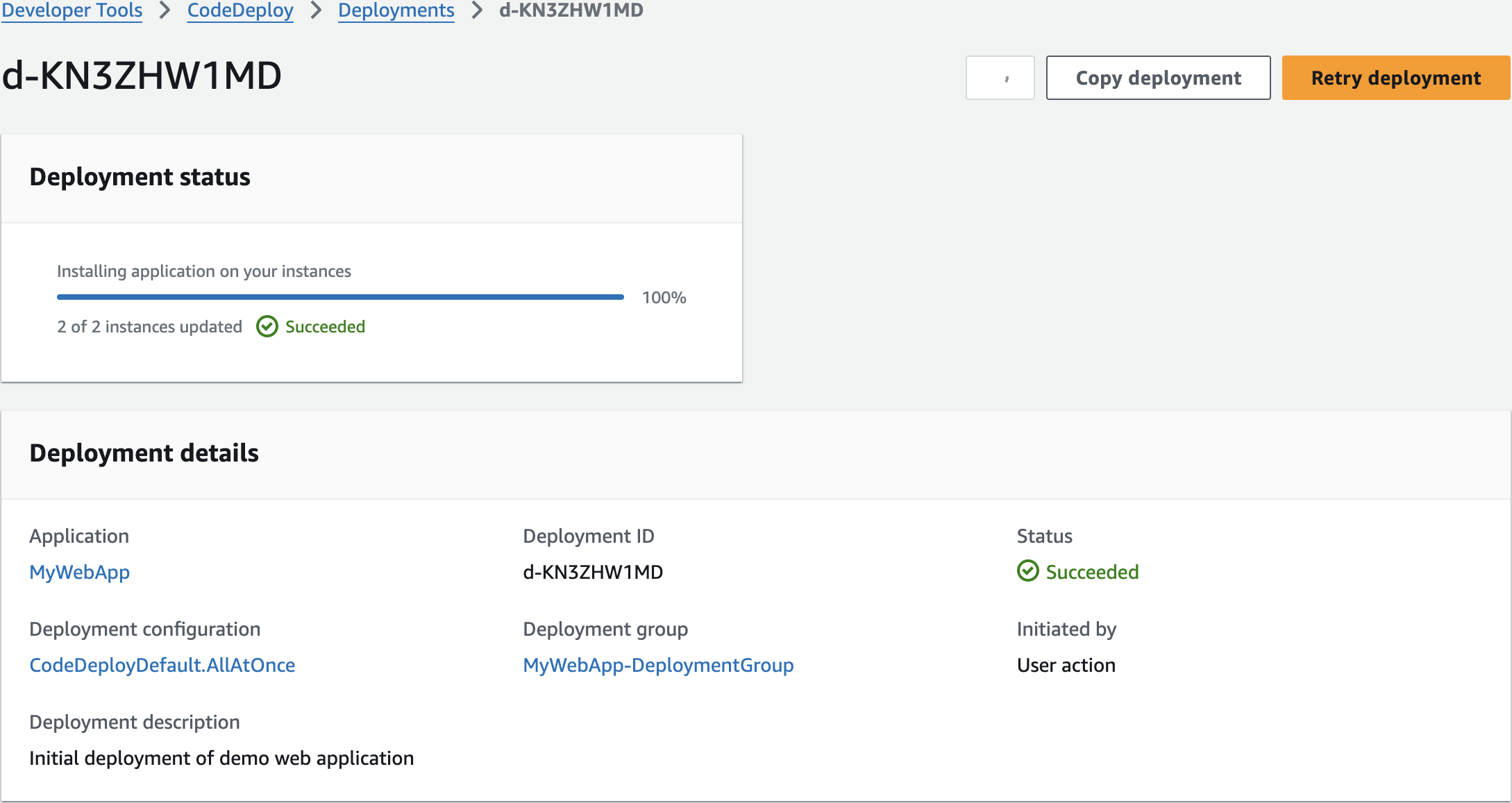

Create Deployment

S3 Location

s3://codedeploy-demo-bucket-012931/mywebapp-v1.zip

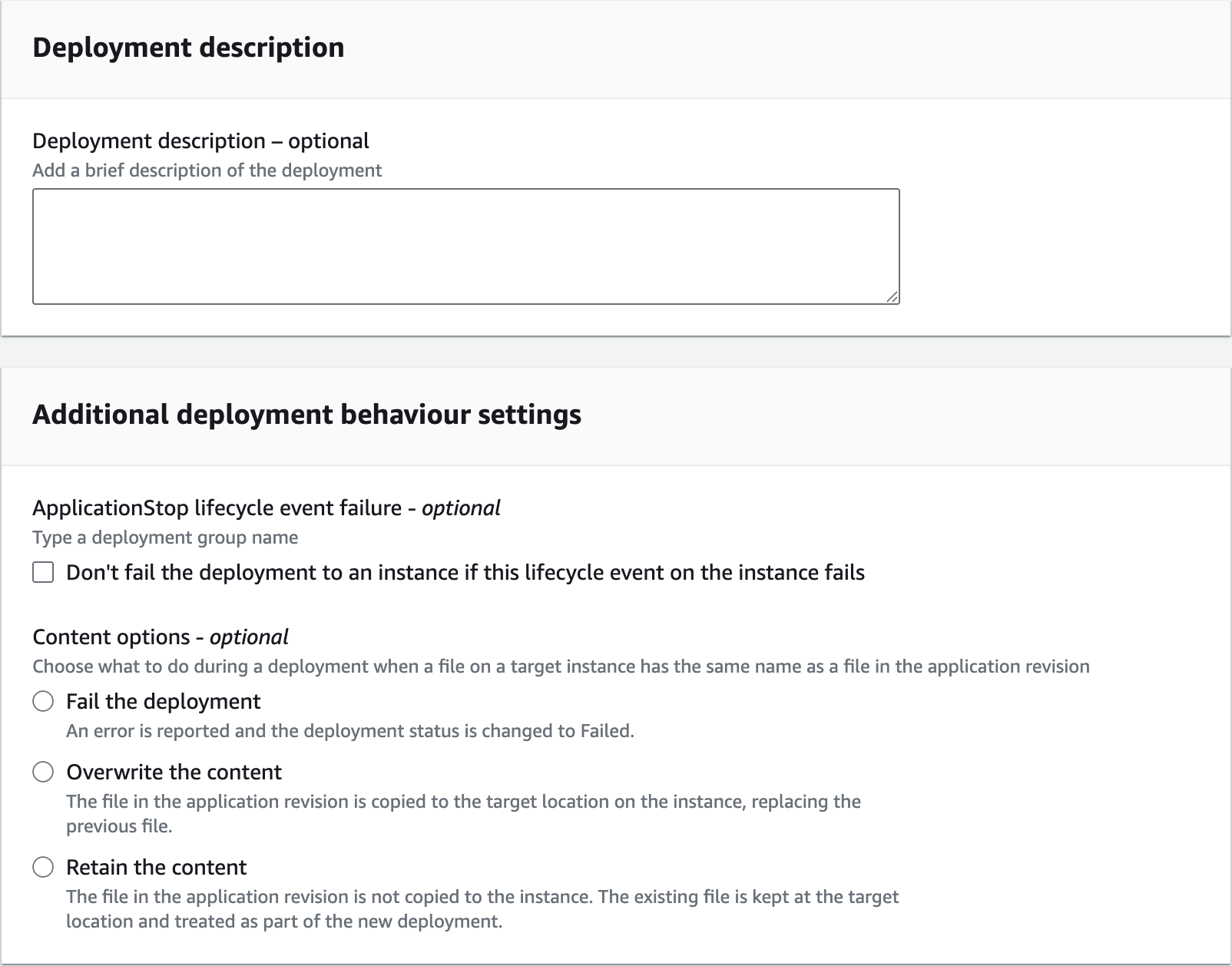

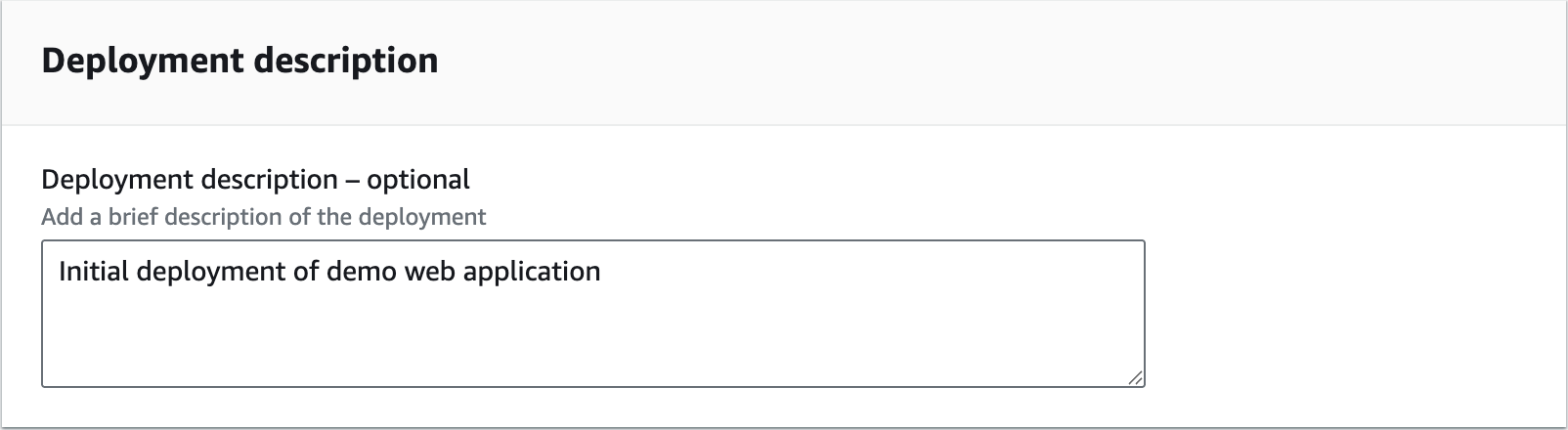

Deployment description

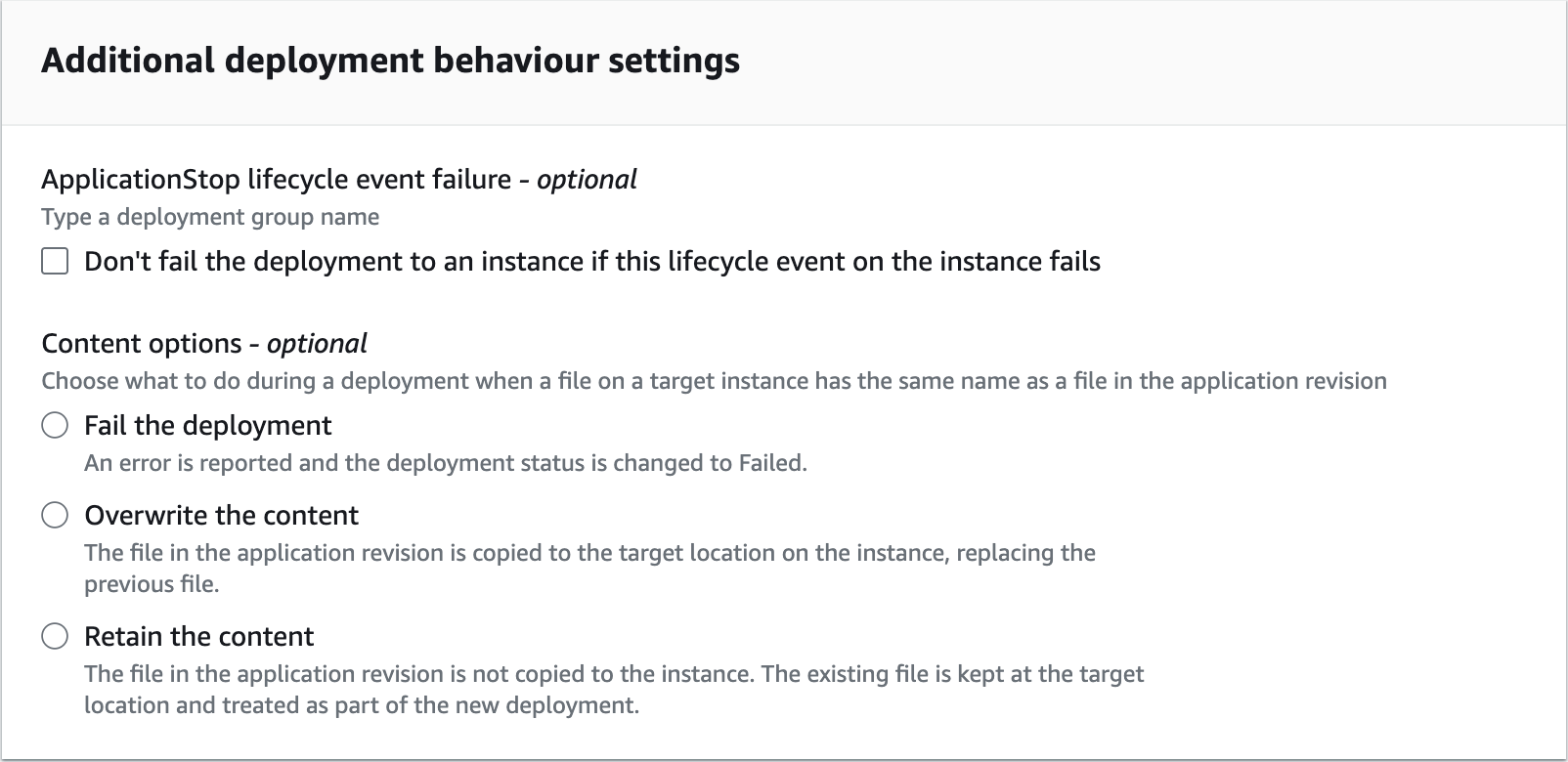

Additional deployment behaviour settings

Deployment group overrides

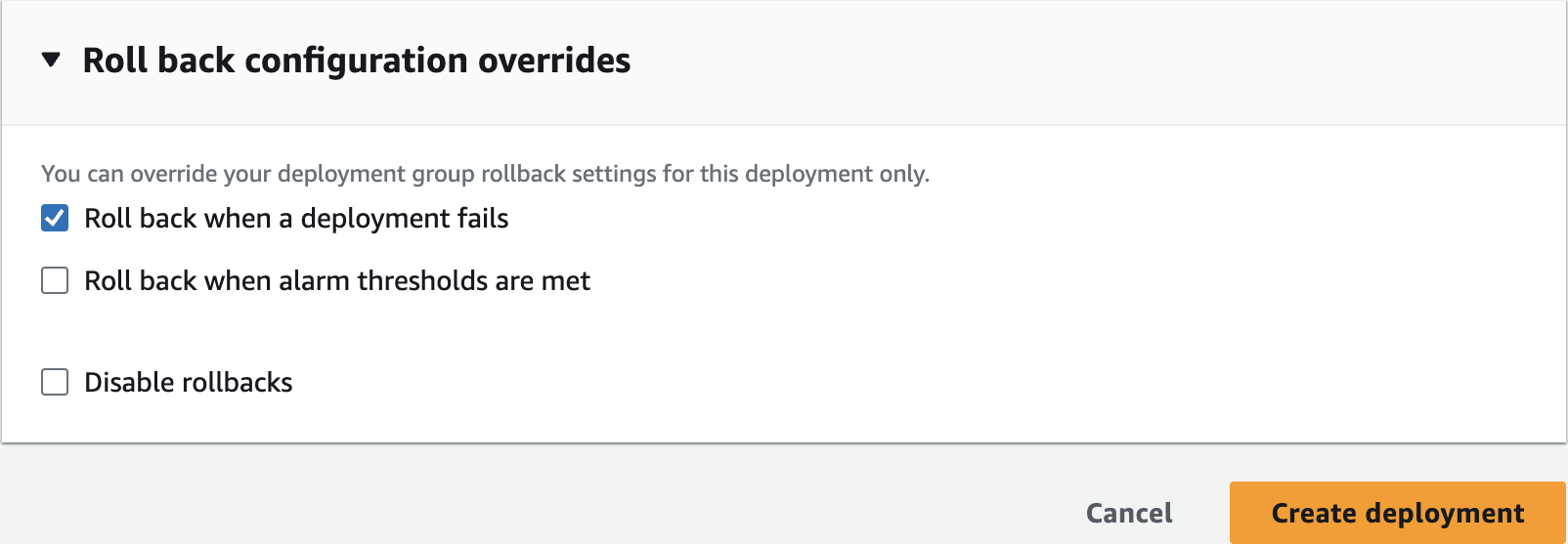

Roll back configuration overrides

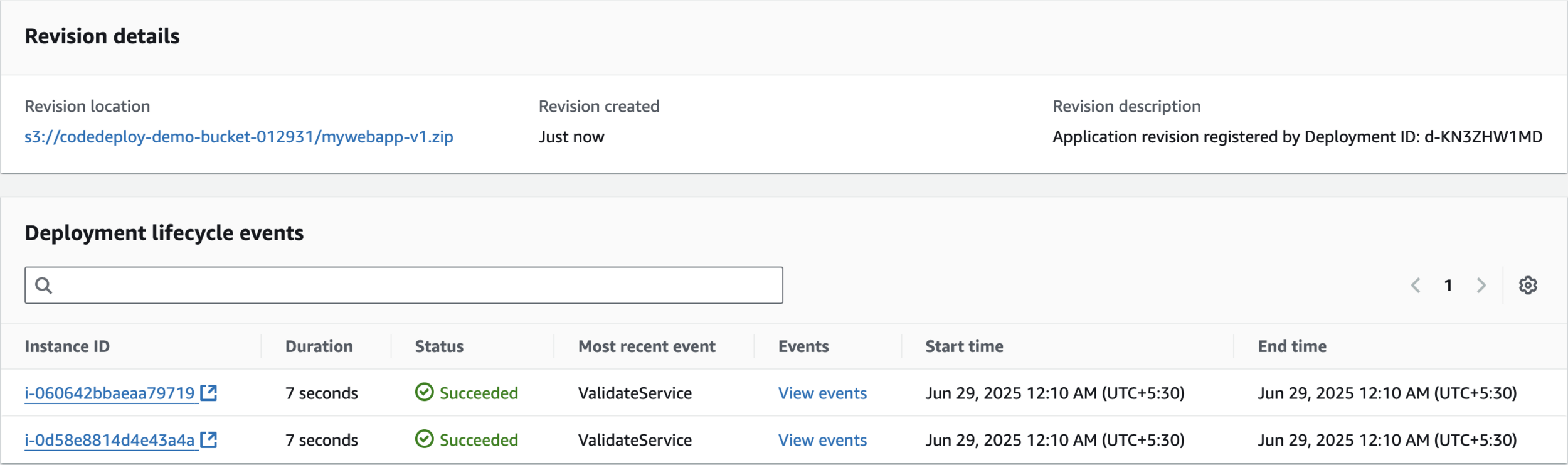

Revision details

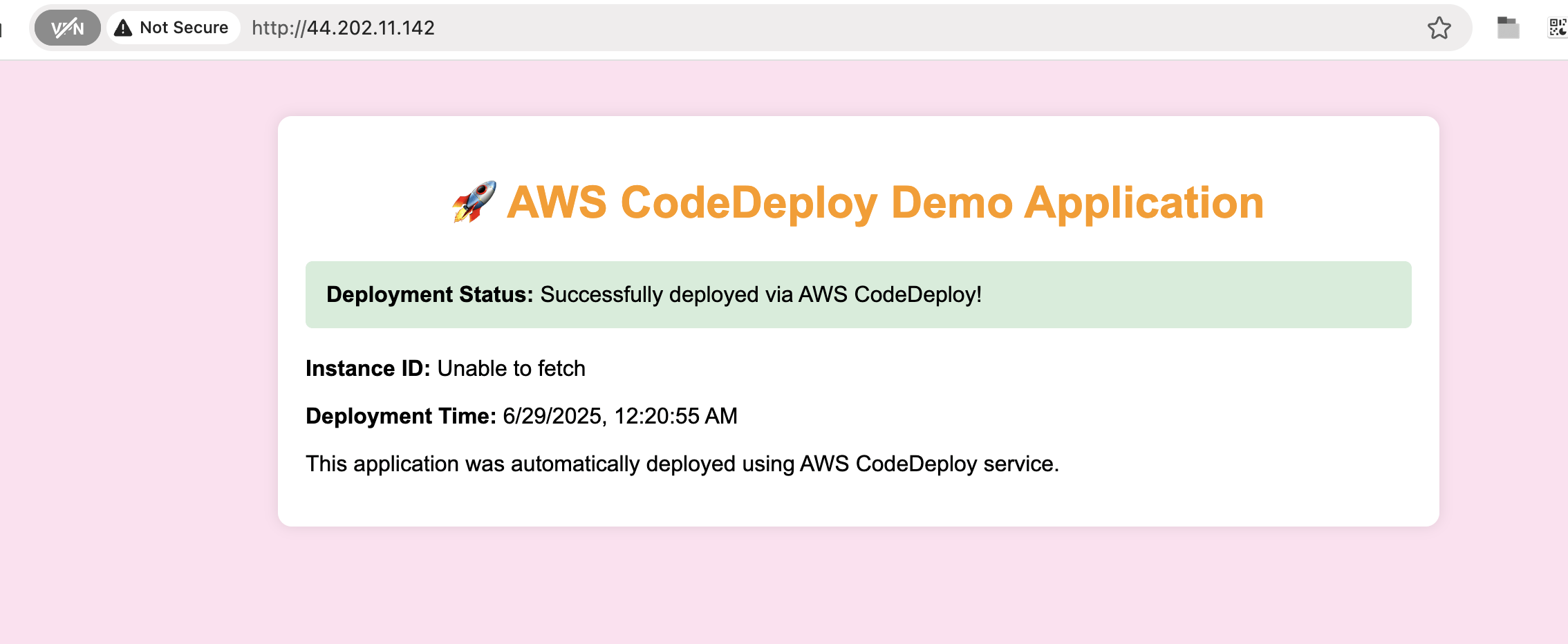

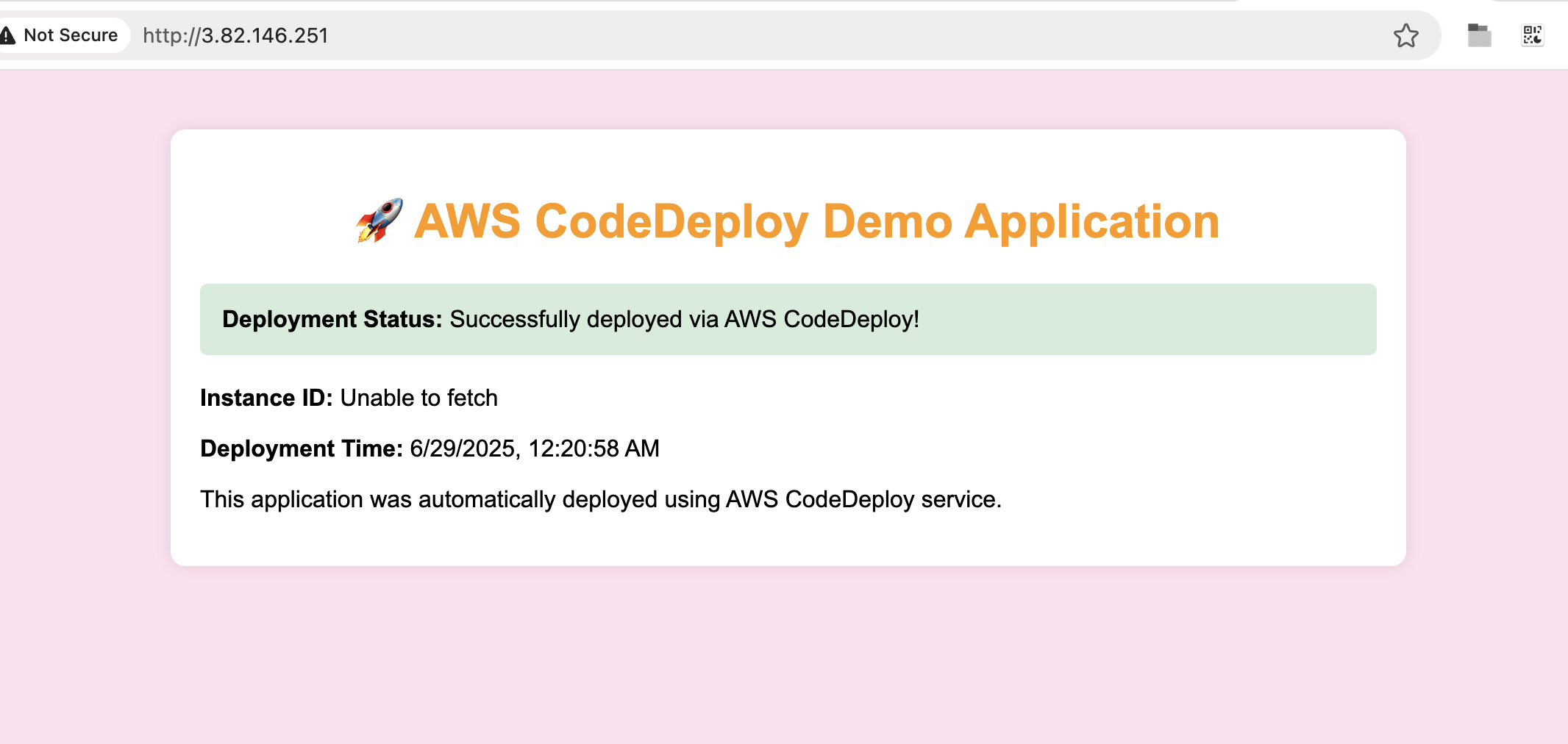

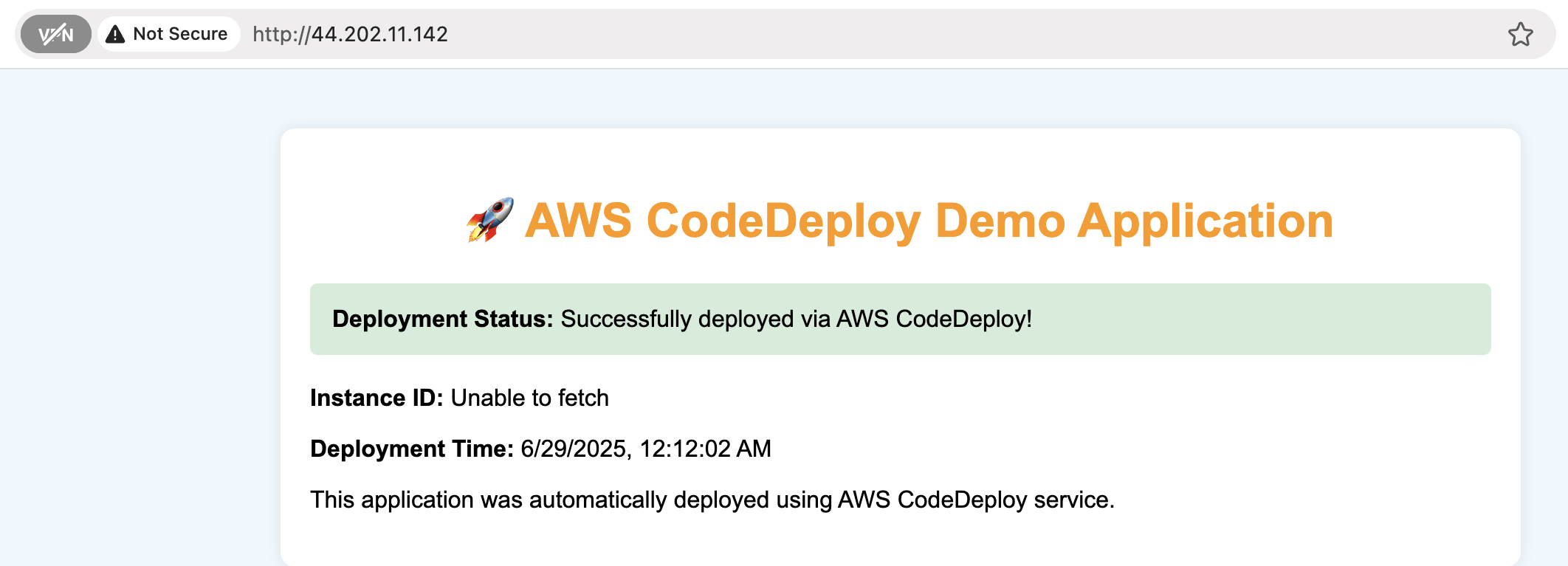

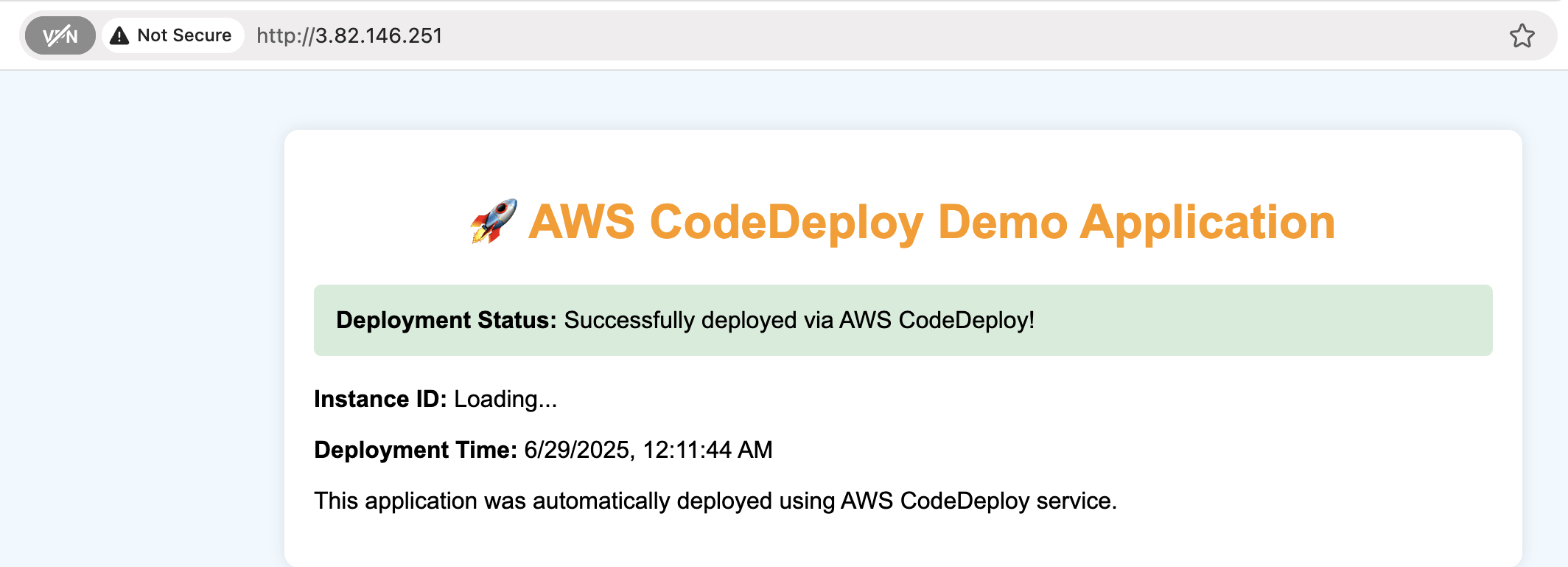

Test

http://3.82.146.251
http://44.202.11.142

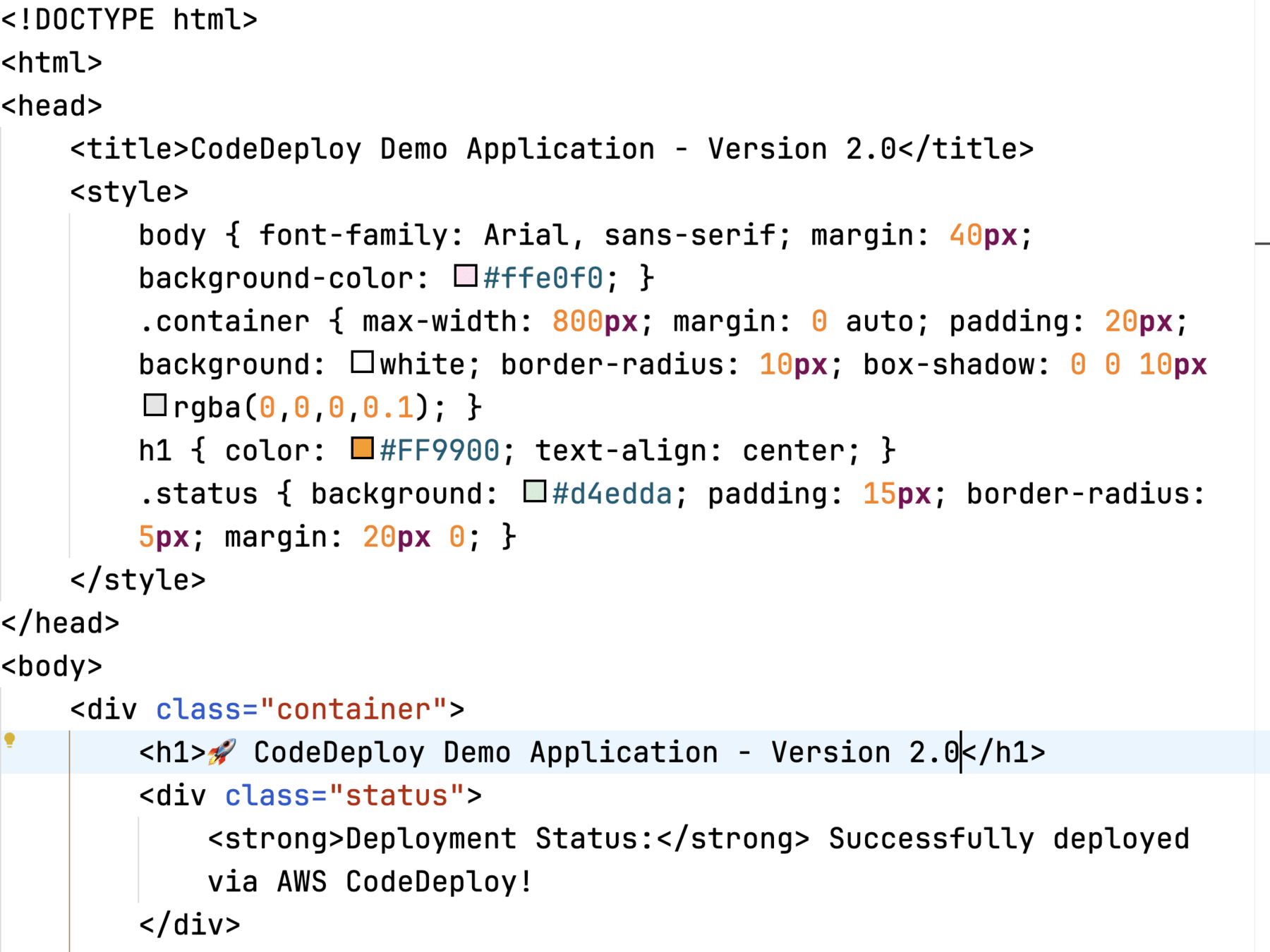

Deploy 2nd Version

#ffe0f0
zip -r mywebapp-v2.zip my-web-app/

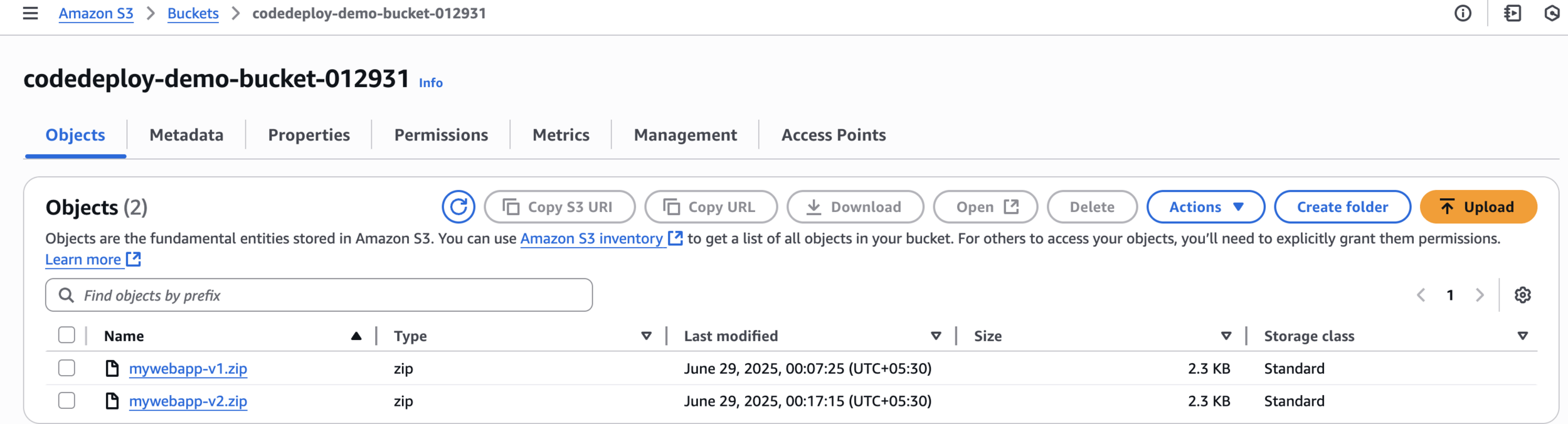

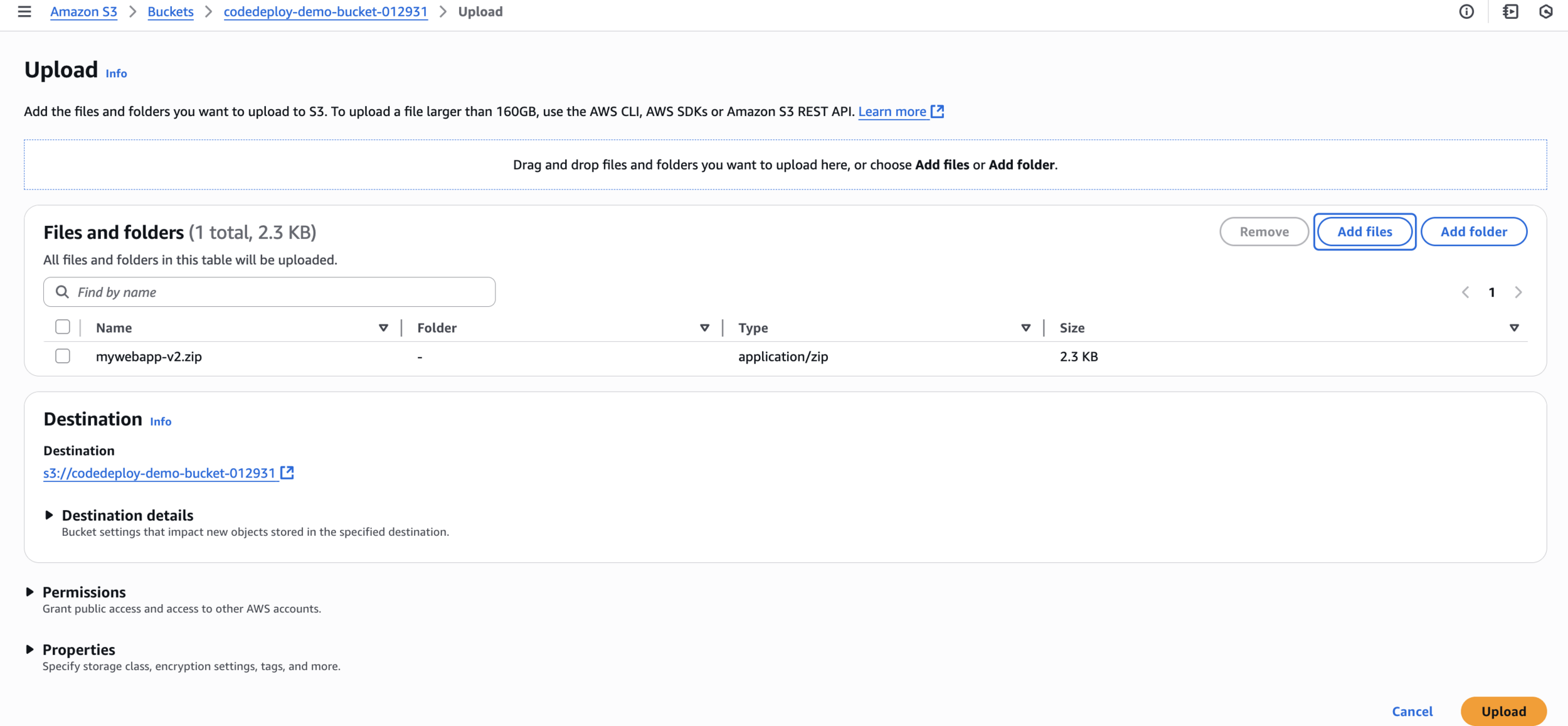

Upload 2nd Version

codedeploy-demo-bucket-012931

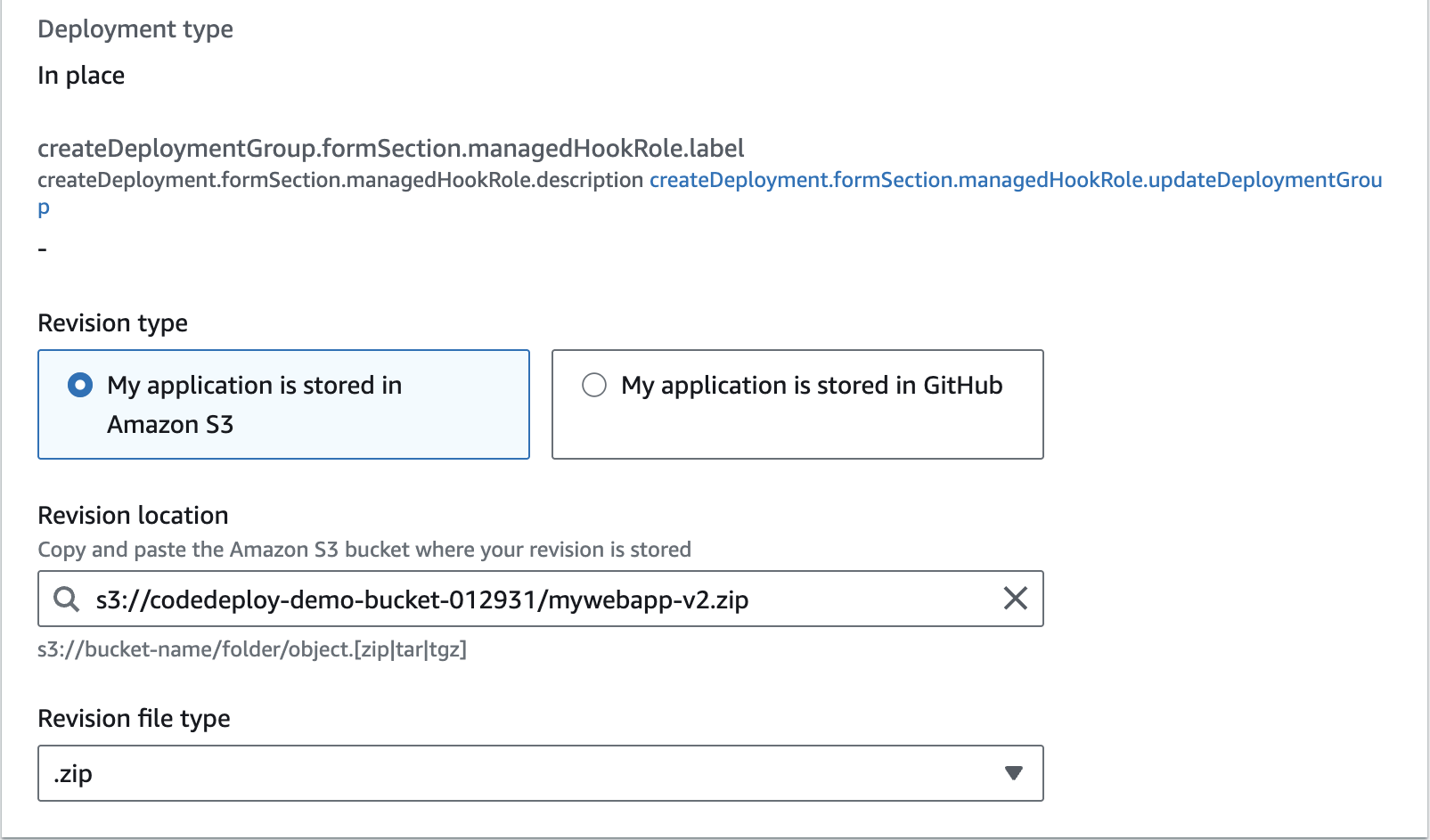

Create 2nd  deployment

s3://codedeploy-demo-bucket-012931/mywebapp-v2.zip

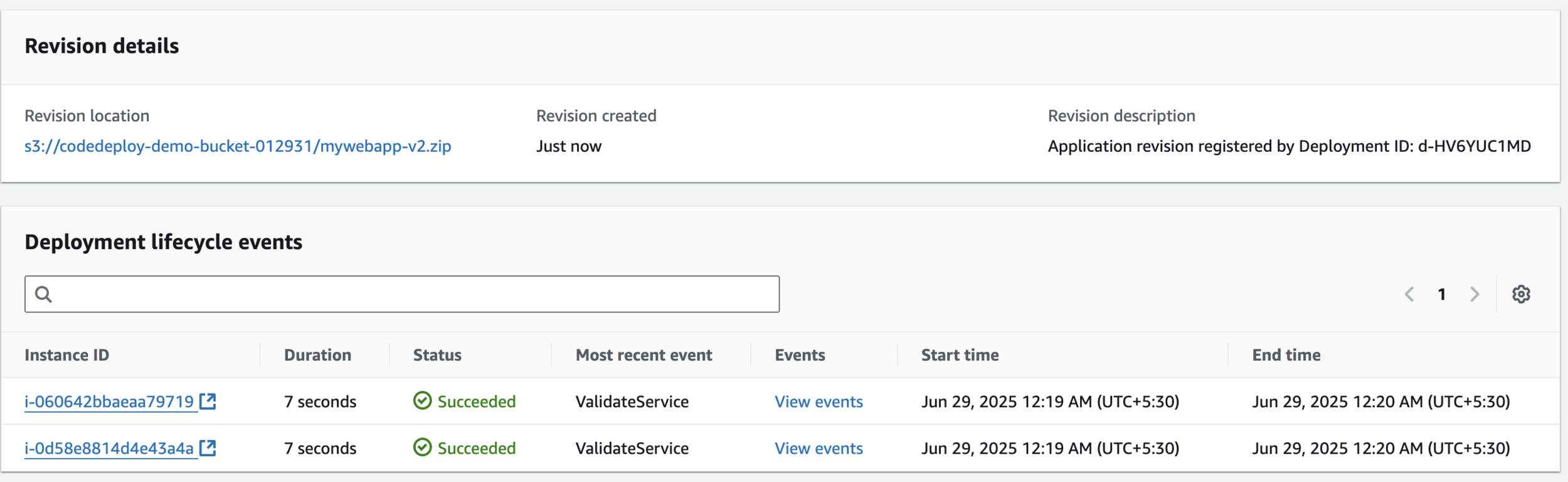

Revision details

http://3.82.146.251
http://44.202.11.142

Clean Up

Delete application

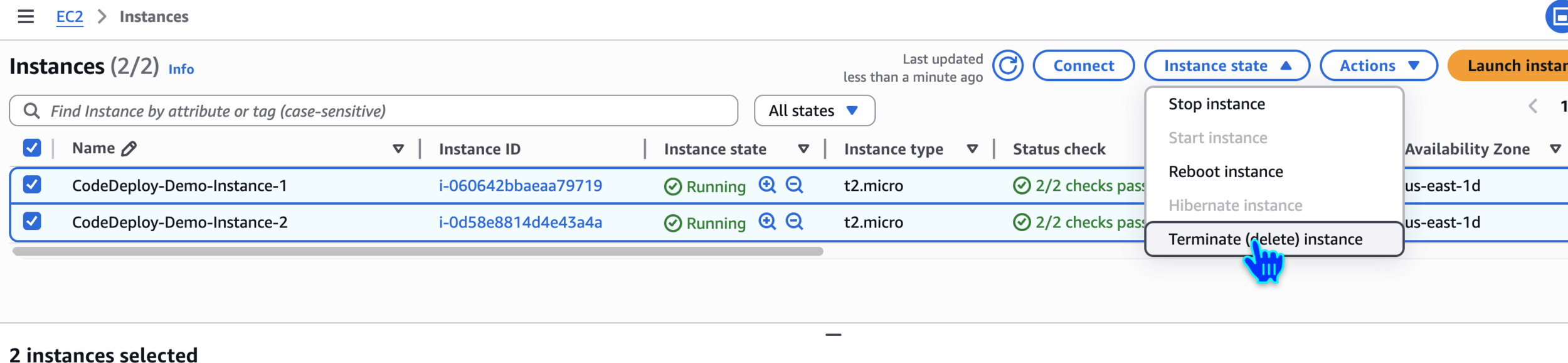

Terminate EC2 Instances

Terminate (delete) instances

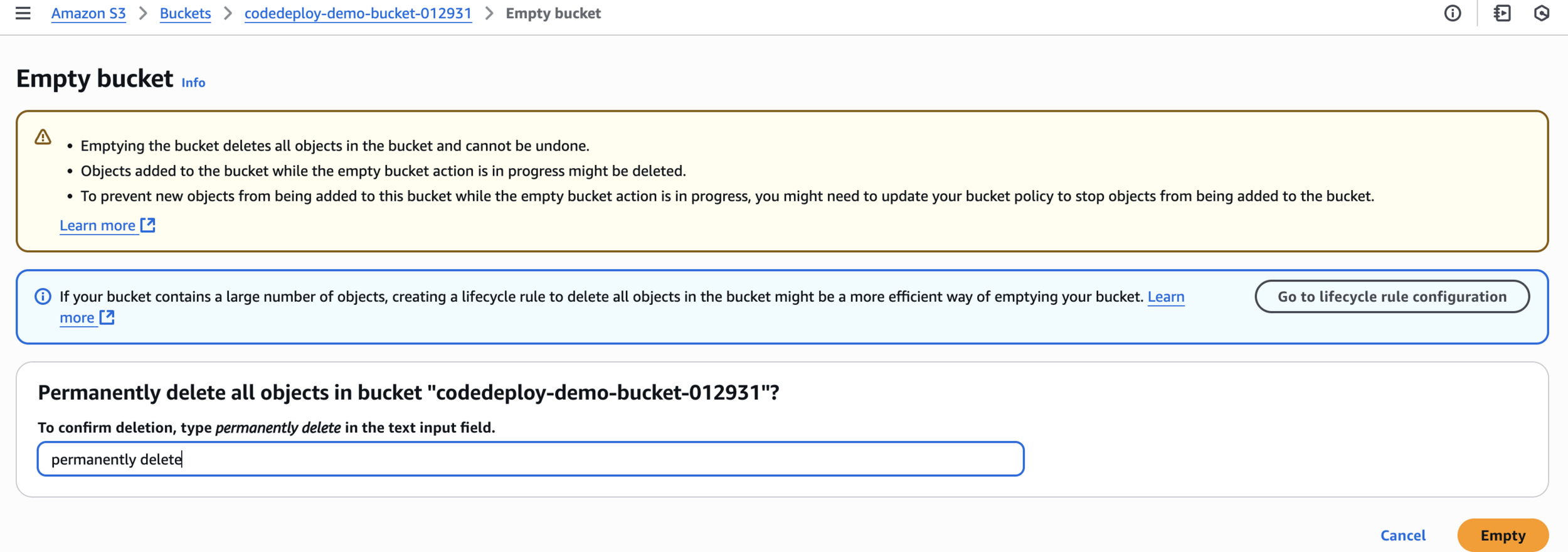

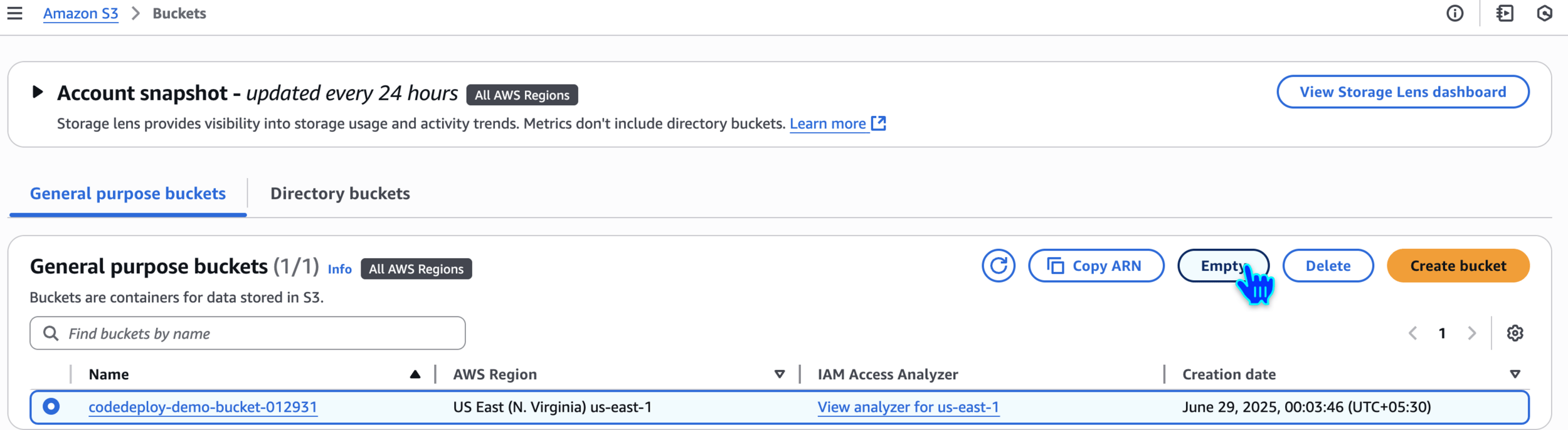

Empty S3 Bucket

permanently delete

Empty bucket

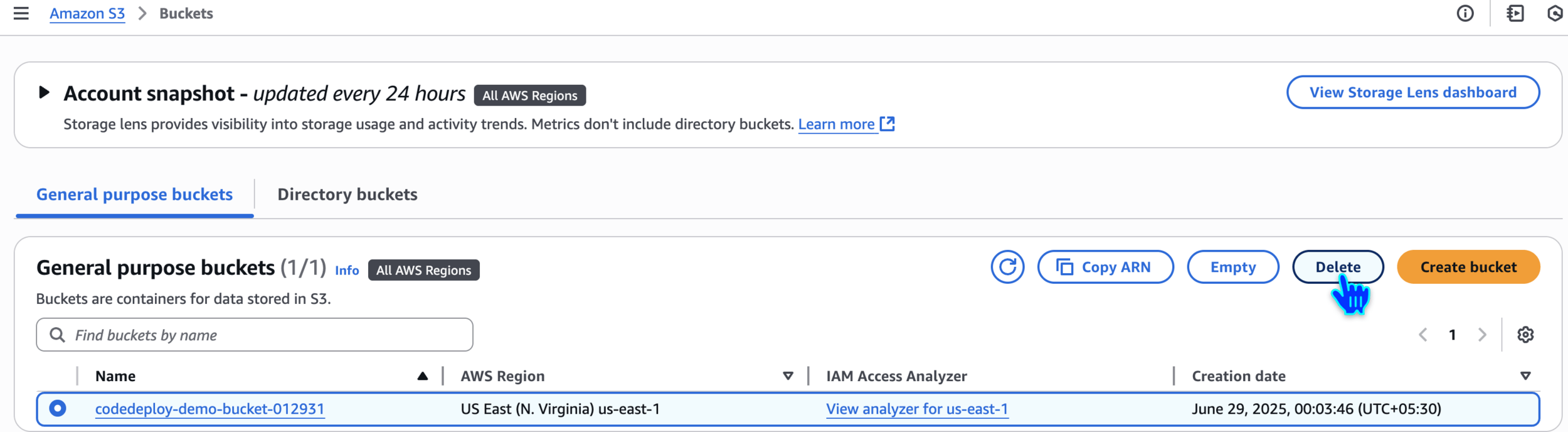

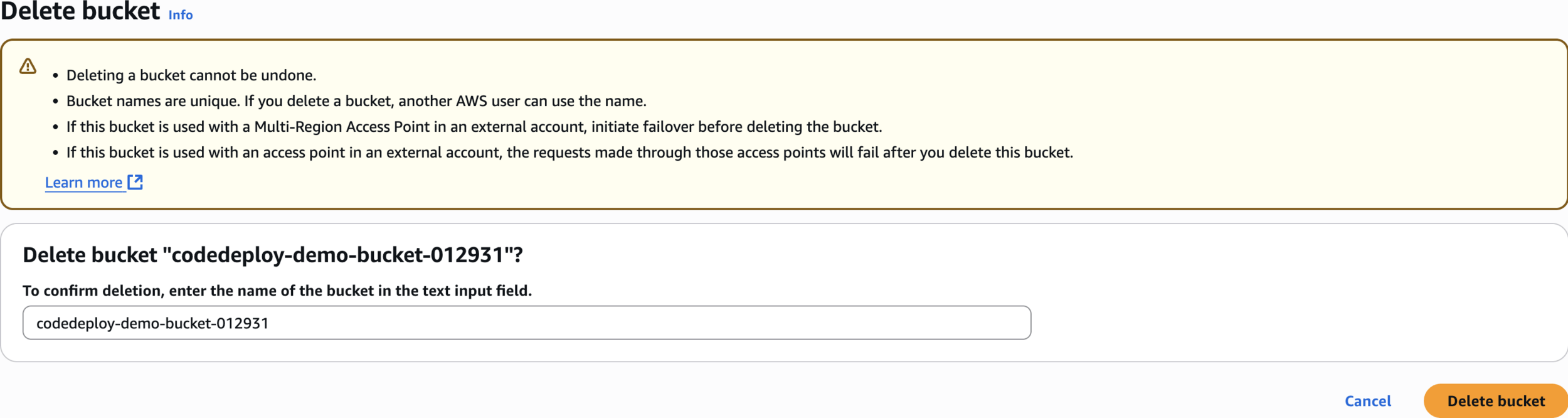

Delete S3 Bucket

Delete bucket

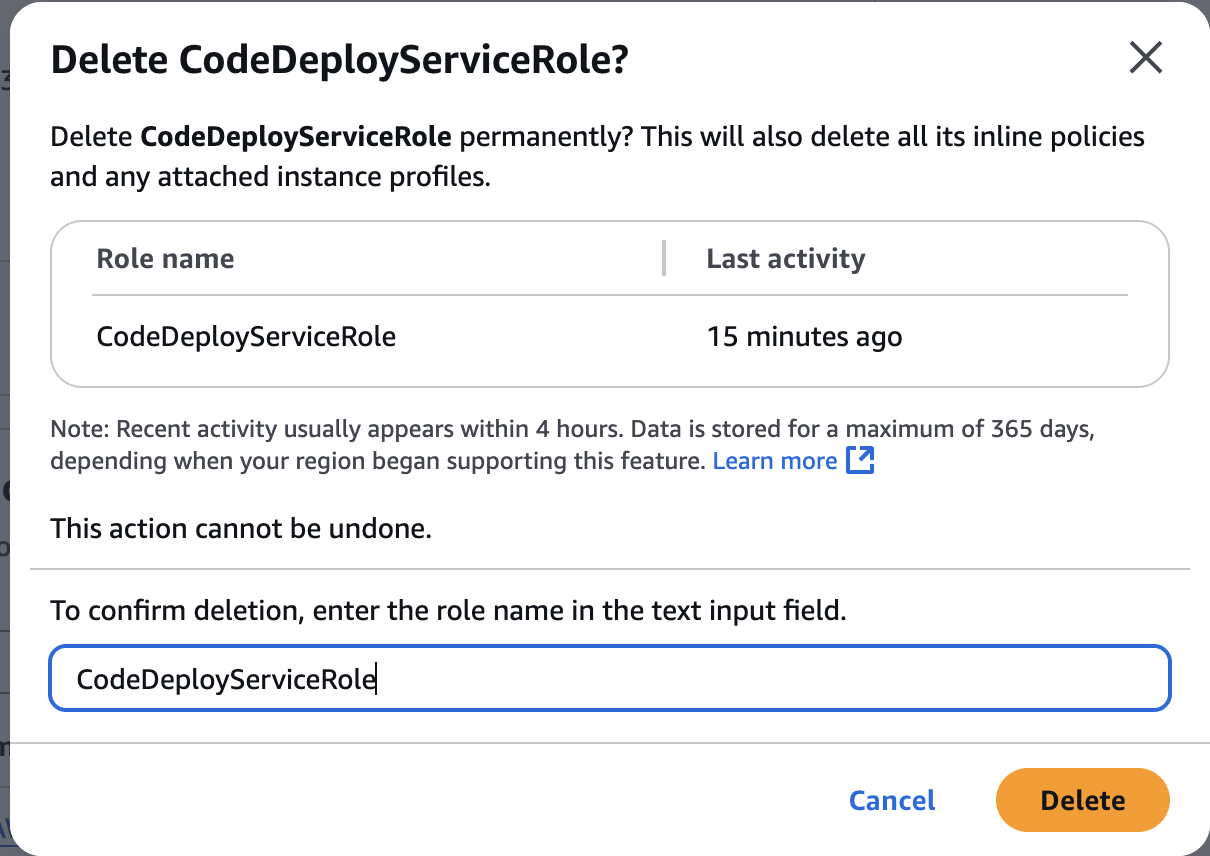

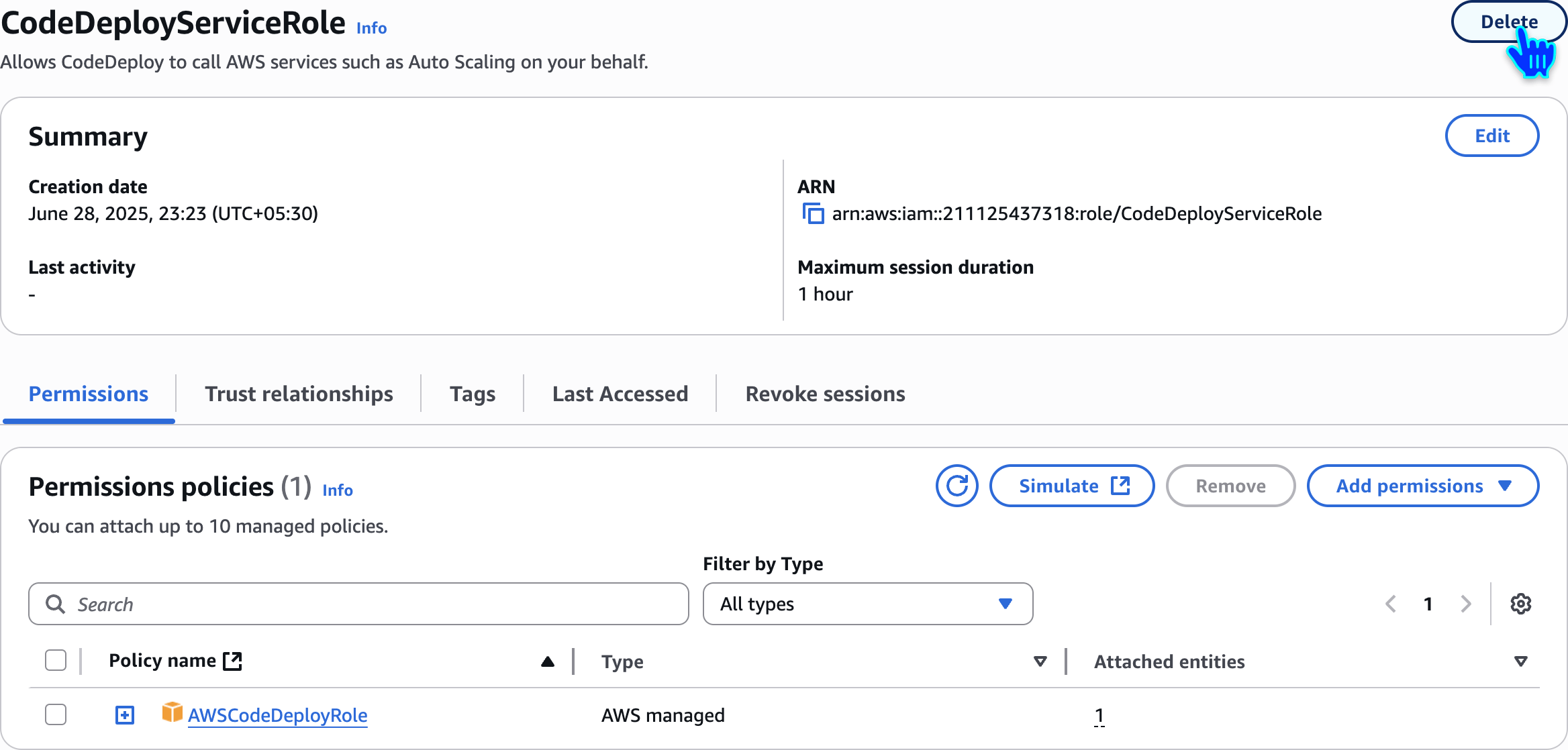

Delete CodeDeployServiceRole Role

CodeDeployServiceRole

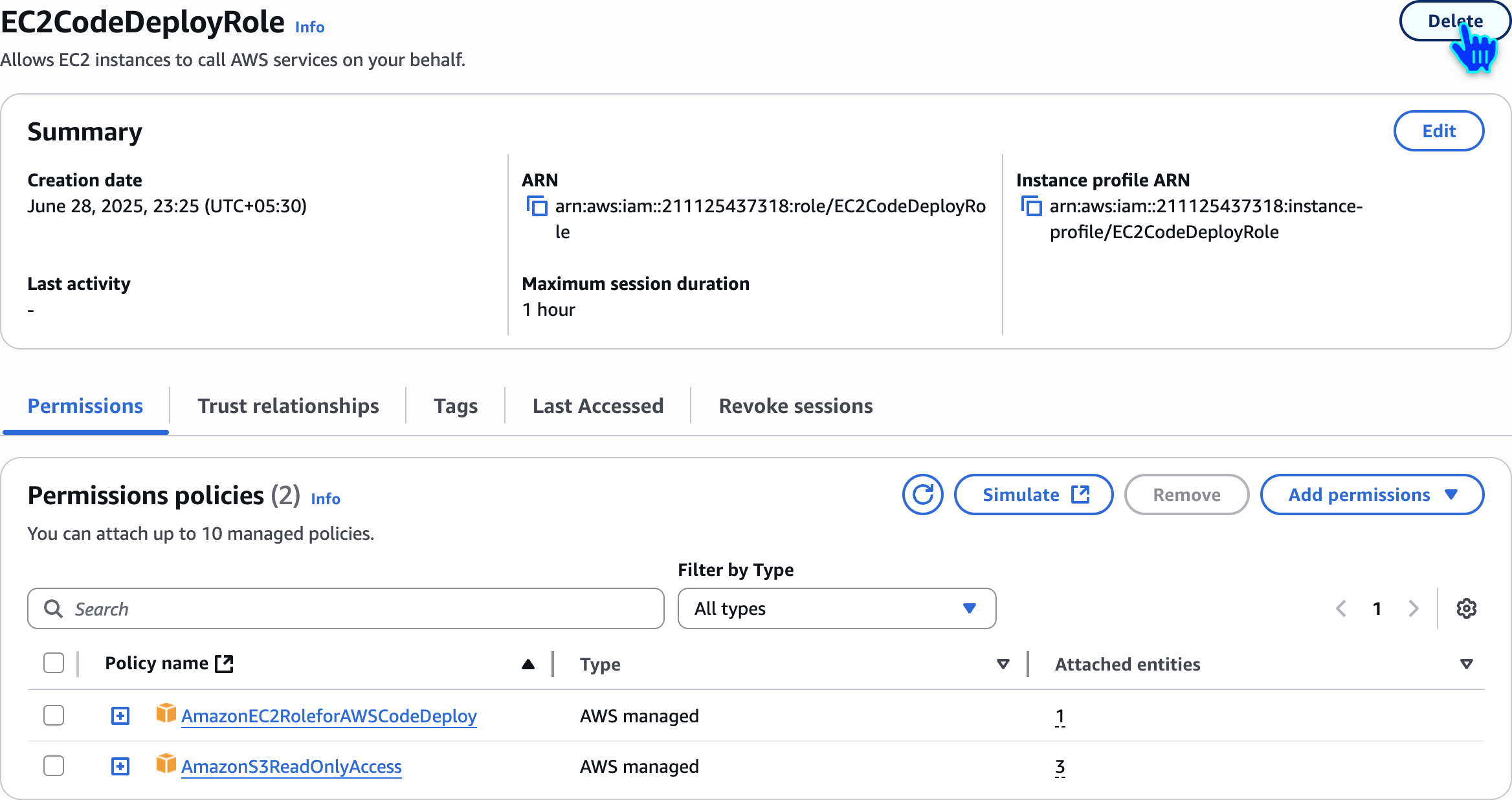

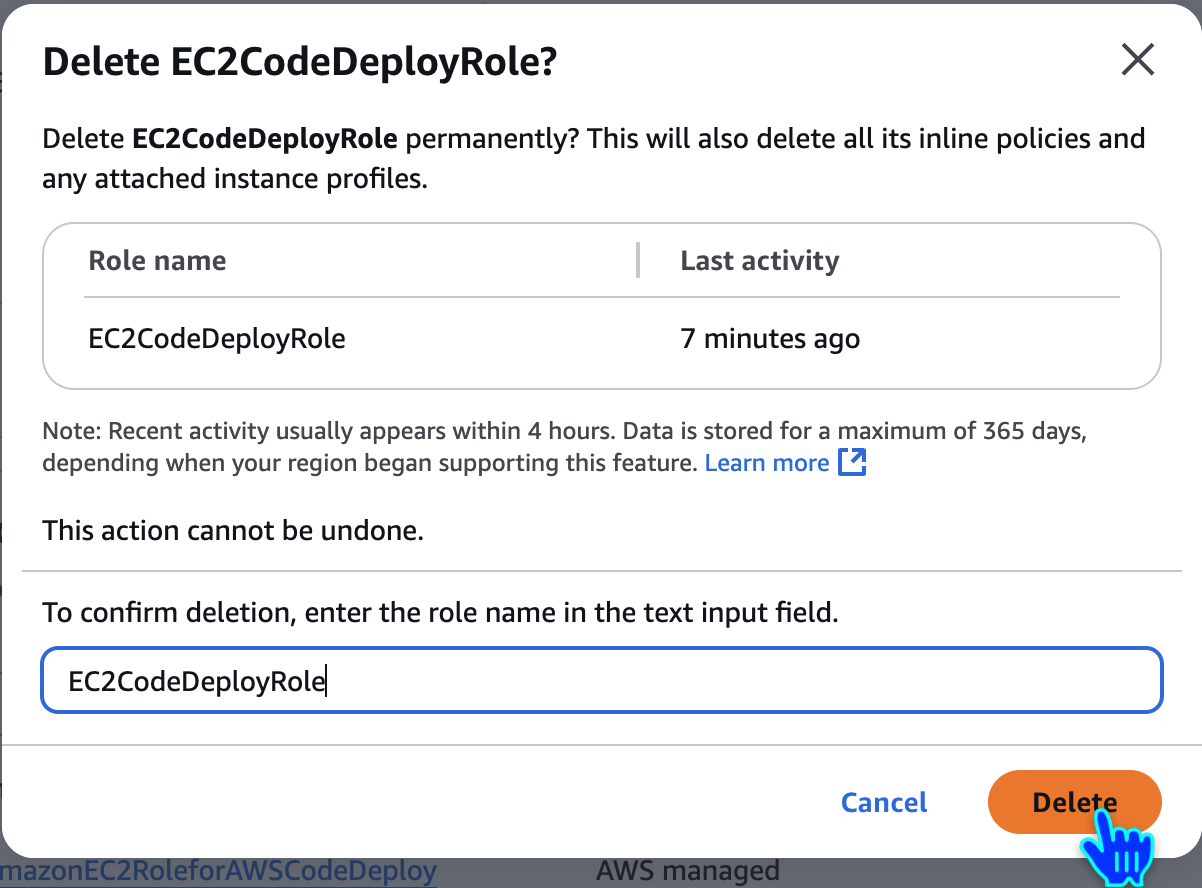

Delete EC2CodeDeployRole

EC2CodeDeployRole

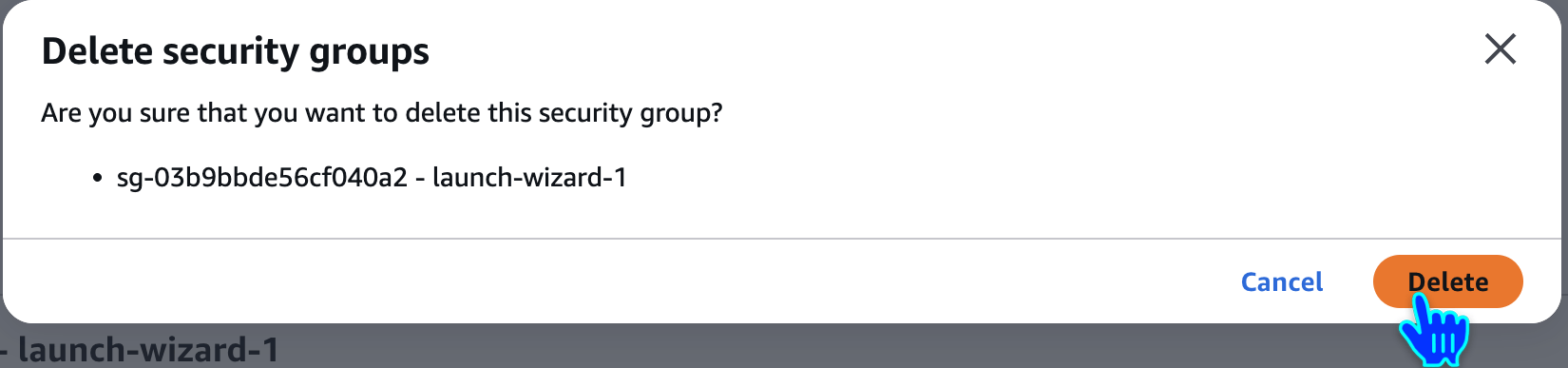

Delete security groups

Delete security groups

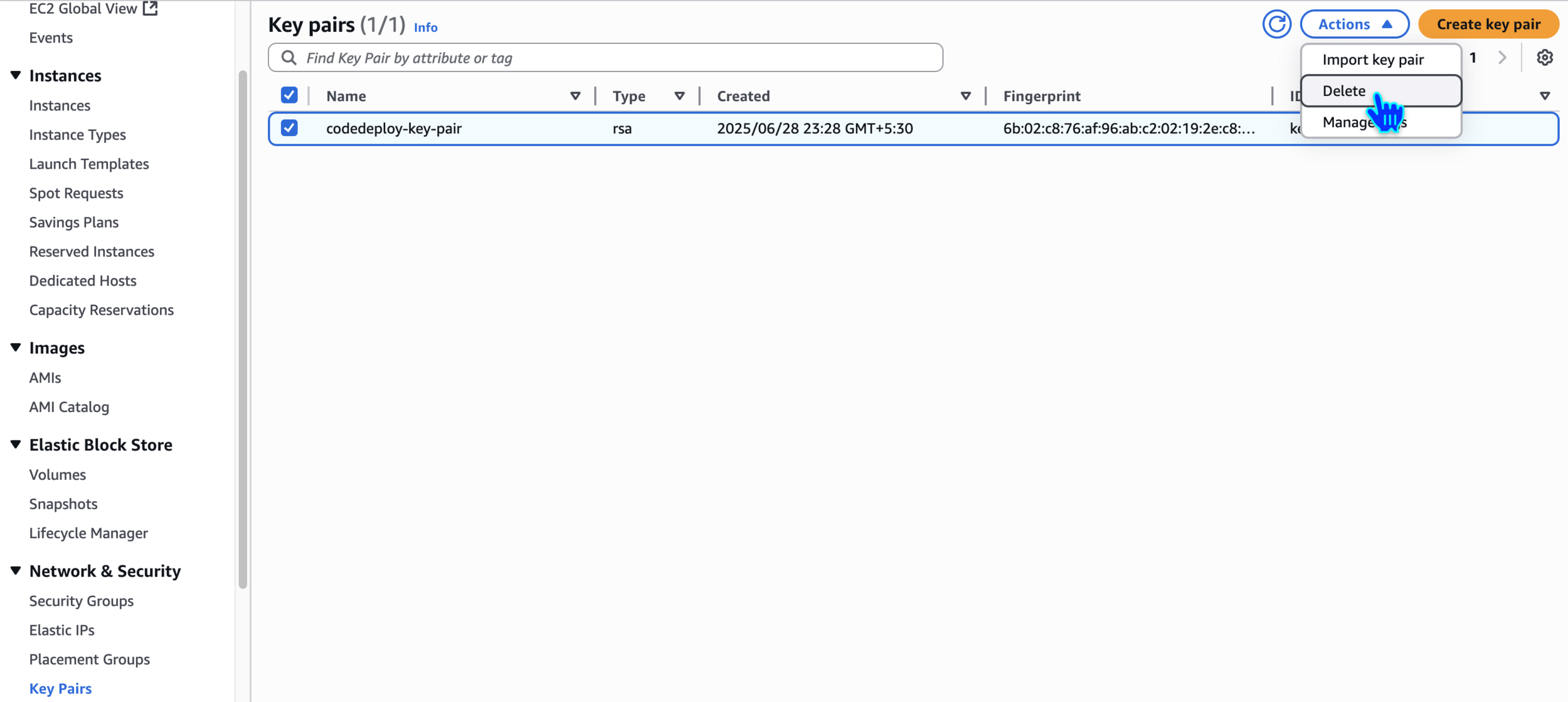

Delete Key pair

🙏

Thanks

for

Watching
